Description

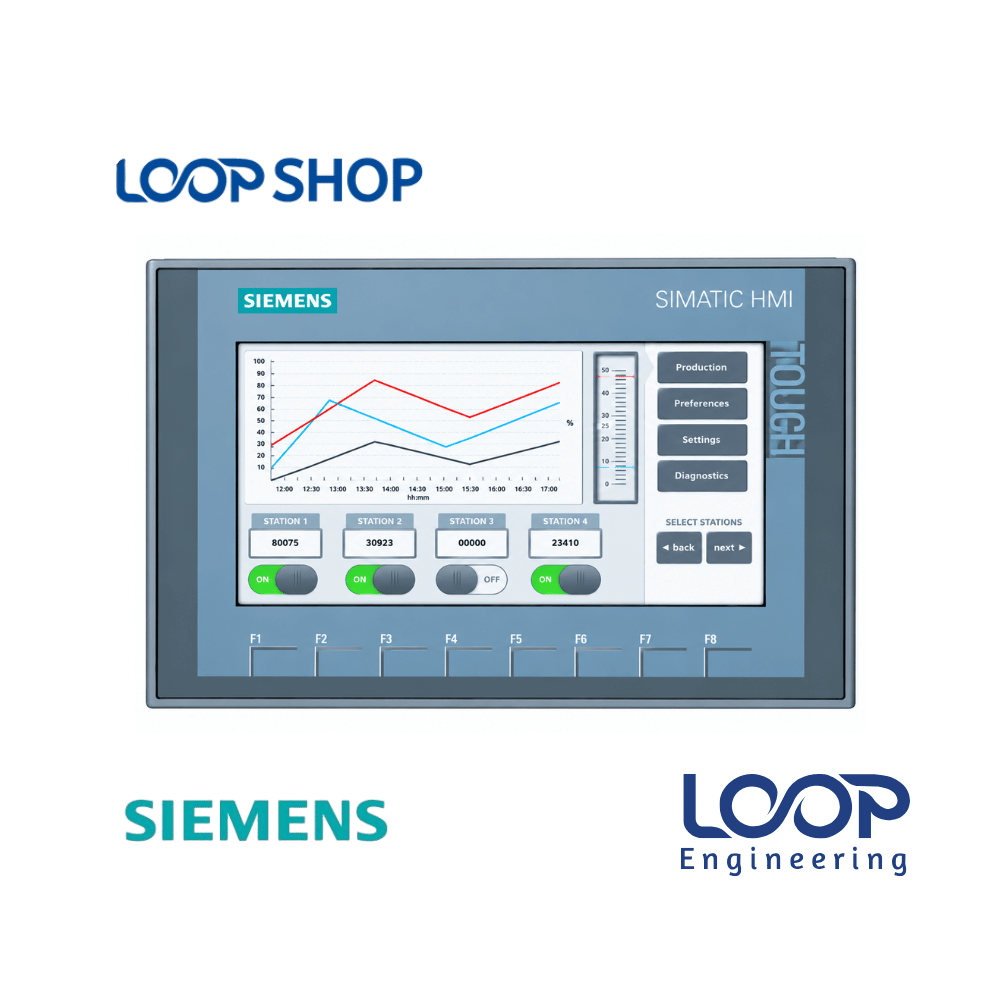

The Siemens SIMATIC KTP700 Basic DP (6AV2123-2GA03-0AX0) is an operator panel engineered for entry-level and mid-range industrial automation tasks. Featuring a 7-inch widescreen TFT display with 65,536 colors, this HMI module allows operators to interact seamlessly with process controls through combined touchscreen navigation and tactile, programmable membrane keys.
Equipped with an integrated PROFIBUS DP communication interface, the KTP700 Basic DP connects directly to Siemens S7-300, S7-400, and S7-1200 PLCs, as well as legacy fieldbus networks. In Bangladesh’s manufacturing and industrial processing sectors, where PROFIBUS networks are widely implemented, this panel serves as a dependable, budget-friendly interface for monitoring machinery, diagnosing system alarms, and maintaining high productivity.
Key Features
- Widescreen Color Display: 7-inch TFT screen with 800 x 480 pixel resolution rendering 65,536 colors for process layouts and trend graphics.
- Dual Touch & Key Operation: Combines touchscreen control with tactile membrane function keys for flexible operator input options.
- PROFIBUS DP Communication: Built-in RS485 sub-D interface dedicated to fast, reliable PROFIBUS DP serial network connectivity.
- TIA Portal Configurable: Programmed using Siemens WinCC Basic V13, STEP 7 Basic V13, or higher software versions.
- Rugged Front Panel Protection: Front face meets IP65 protection standards to safeguard internal electronics against dust and liquid splashes.
Technical Advantages
- Durable Construction: Built with industrial-grade housing to withstand severe shop-floor vibration, mechanical impact, and electrical noise.
- High Efficiency: Low operator input lag and immediate screen updates streamline operational workflows and reduce diagnostic downtime.
- Safety Protection: Built-in galvanically isolated communication lines shield the device against line noise and voltage spikes.
- Energy Saving: Dimmable LED backlighting conserves electrical power and limits thermal dissipation inside closed control desks.
- Easy Maintenance: Modern fanless chassis design prevents internal airborne dust accumulation, prolonging component service life.
Applications
- Industrial: Packaging equipment, plastic processing machinery, material handling conveyors, and automated assembly stations.
- Factory: Textile dyeing and spinning mills, pharmaceutical manufacturing lines, paper mills, and food processing plants in Bangladesh.
- Commercial: Municipal water treatment facilities, pump control stations, and central HVAC monitoring.
- Project Installation: Ideal choice for system integrators, OEM machine builders, and control panel fabricators across BD.
Why Choose This Product?
- Siemens Manufacturing Standard: Delivers world-class engineering quality and long operational lifespans under continuous 24/7 duty cycles.
- Cost Effectiveness: Delivers modern graphical visualization capabilities at a cost-conscious price point for budget-sensitive projects.
- Seamless Fieldbus Networking: Direct PROFIBUS DP interface eliminates the need for external network conversion hardware.
- After-Sales Support in BD: Guaranteed product verification, technical datasheet support, and fast delivery nationwide via LOOP Shop.
Technical Specification Table
| Specification |
Details |
| Model |
SIMATIC KTP700 Basic DP (6AV2123-2GA03-0AX0) |
| Brand |
Siemens |
| Rated Power |
24 V DC |
| Voltage |
24 V DC (19.2 V to 28.8 V DC permissible range) |
| Current |
Not Available |
| Frequency |
Direct Current (DC) |
| Efficiency |
Energy-efficient LED backlit display |
| Protection |
IP65 (Front panel), IP20 (Rear enclosure) |
| Dimension |
214 mm x 158 mm x 43 mm (Panel cutout: 197 mm x 141 mm) |
| Weight |
Approx. 0.8 kg |
| Operating Temperature |
0 °C to 50 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
- ✓ 7-inch widescreen TFT display with 65,536 colors
- ✓ Integrated PROFIBUS DP (RS485) communication interface
- ✓ Combined touch screen and tactile function key operation
- ✓ Front IP65 dust-proof and splash-water protection rating
- ✓ Configurable via WinCC Basic V13 / STEP 7 Basic V13 (TIA Portal)
Benefits For Customers
- Minimizes Machinery Downtime: Clear real-time alarm reporting allows operators to identify and resolve machine trips quickly.
- Improves Operational Reliability: Fast PROFIBUS communication guarantees stable, real-time data sync with control PLCs.
- Saves Energy & Space: Ultra-compact physical depth and low 24 V DC power draw optimize panel door layout space.
- Resilient in Bangladesh Environment: IP65 sealed front bezel withstands elevated humidity, airborne dust, and factory floor conditions in BD.
Installation & Maintenance Guide
Installation Requirements:
- Cut out the mounting area on the enclosure door precisely to 197 mm x 141 mm.
- Insert the KTP700 Basic DP panel into the cutout from the front side and tighten all mounting clips evenly to ensure an IP65 gasket seal.
- Wire a clean, regulated 24 V DC power supply to the main terminals, ensuring proper earth grounding (PE).
- Connect the PROFIBUS DP sub-D connector securely to the rear RS485 communication port and tighten retaining screws.
Maintenance Tips:
- Clean the display surface periodically using a soft, dry or damp microfiber cloth; do not use aggressive solvents.
- Regularly check cabinet ventilation and cooling fans to ensure ambient enclosure temperatures stay below 50 °C.
- Inspect physical terminal screws and PROFIBUS connectors to prevent vibration-induced signal dropouts.
Safety Instructions:
- Always isolate incoming 24 V DC power before installing, wiring, or servicing the HMI panel.
- Verify correct supply polarity prior to energizing the device to prevent internal power board damage.
- Operate the touch panel using bare fingers or designated soft styluses; never use sharp tools or screwdrivers.
Frequently Asked Questions (FAQ)
Q: What is the price of Siemens SIMATIC KTP700 Basic DP 6AV2123-2GA03-0AX0 in Bangladesh?
A: Product pricing varies based on stock availability, import costs, and market demand in BD. Please visit loopshop.com.bd or contact our sales team directly for updated pricing.
Q: Where can I buy original Siemens KTP700 Basic DP HMI in Bangladesh?
A: You can purchase genuine Siemens KTP700 Basic DP panels online directly from loopshop.com.bd with fast delivery across Dhaka, Chittagong, and all regions in BD.
Q: What warranty does this product come with?
A: This product carries standard supplier warranty coverage against factory defects. Please verify full terms with LOOP Shop at the time of purchase.
Q: Is the Siemens KTP700 Basic DP suitable for Bangladesh factory conditions?
A: Yes, featuring an IP65 front face rating and an operating temperature threshold up to 50 °C, it is built to operate dependably in tropical, dusty, and humid factory settings in BD.
Q: How do I program and configure the Siemens KTP700 Basic DP?
A: The panel is configured using Siemens TIA Portal software (WinCC Basic V13 / STEP 7 Basic V13 or higher versions) via a compatible programming cable interface.
Q: Does this model support PROFIBUS DP communication?
A: Yes, the 6AV2123-2GA03-0AX0 features an integrated sub-D RS485 port specifically for PROFIBUS DP industrial communication networks.
Q: What display resolution and color depth does this HMI offer?
A: It features a 7-inch widescreen TFT display with an 800 x 480 pixel resolution and up to 65,536 colors.
Q: What is the difference between touch and key operation on this model?
A: It features a full touch-sensitive screen combined with tactile, programmable membrane function keys along the bottom frame.
Q: Can this panel connect to Siemens S7-300 and S7-400 PLCs?
A: Yes, its onboard PROFIBUS DP interface makes it natively compatible with Siemens S7-300, S7-400, and PROFIBUS-enabled controllers.
Q: Does LOOP Shop provide technical and specification support in BD?
A: Yes, LOOP Shop provides sales assistance, datasheet verification, and order processing across Bangladesh.
