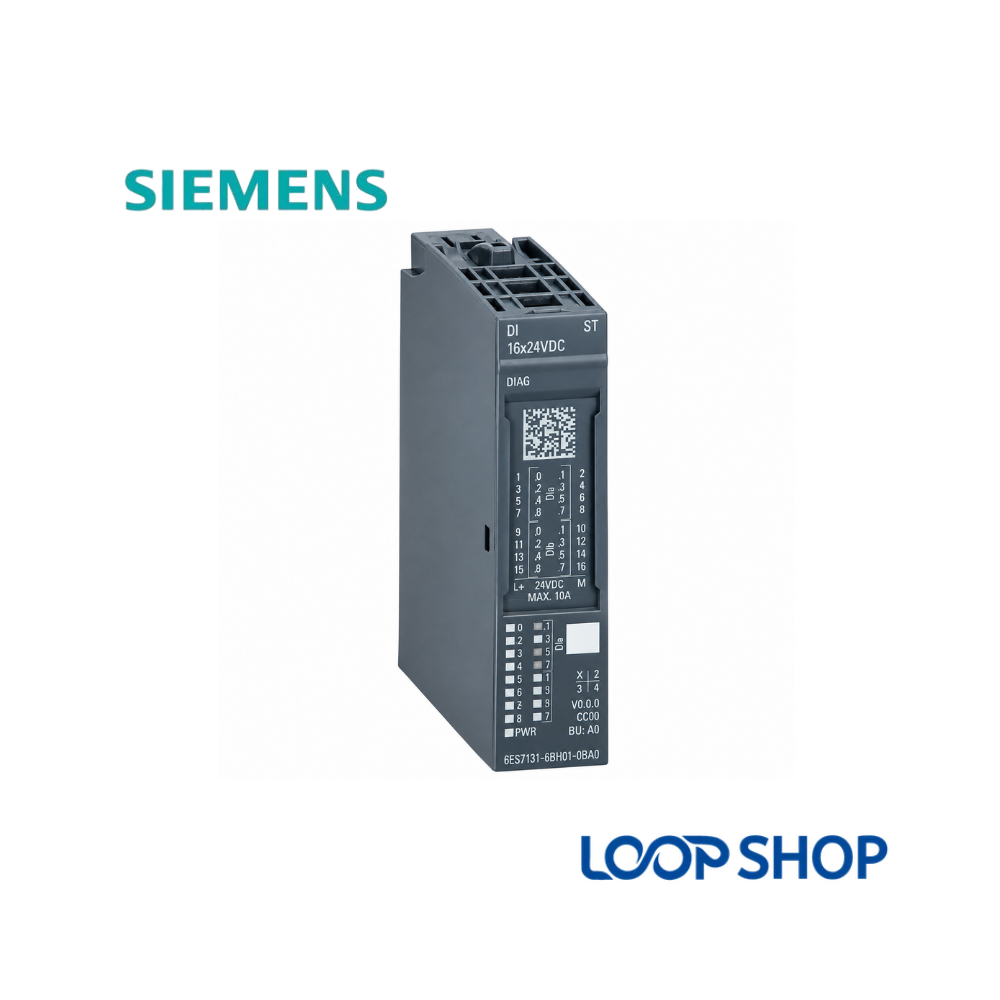

SIEMENS SIMATIC ET 200SP Digital Input Module 6ES7131-6BH01-0BA0

Description

The SIEMENS 6ES7131-6BH01-0BA0 belongs to the modular SIMATIC ET 200SP I/O system, engineered to provide high-density signal processing in space-constrained control cabinets. Functioning primarily as a 16-channel digital input module (DI 16x 24V DC BA), it records 24 V DC binary signals from field sensors, push buttons, switches, and proximity sensors, translating them for main controller evaluation over PROFINET or PROFIBUS networks.

Main Features

Built for modular flexibility, the module features 16 digital input channels organized into a compact 15 mm form factor. It uses color-coded module labels and status LEDs to give technicians immediate visual feedback for diagnostic troubleshooting and channel monitoring. Hot-swapping (multi-hot swapping) allows live replacement of damaged modules during ongoing operations without interrupting system power or network traffic across the backplane.

Benefits

• High Density: 16 channels packed into a ultra-slim 15 mm width maximizes control cabinet space.
• Simplified Cabling: Direct push-in terminal connections eliminate the need for specialized tools during installation.
• Minimizes System Downtime: Module replacement under live operational conditions (hot-swapping) keeps production lines active.
• Flexible Architecture: Fully compatible with standard ET 200SP BaseUnits (BU Type A0), allowing seamless mix-and-match configuration.

Applications

The SIEMENS ET 200SP DI 16x module is ideal for discrete automation lines, packaging machinery, conveyor networks, water treatment processing plants, and centralized panel building across Bangladesh’s expanding industrial sector.

Key Features

• 16 digital input channels operating at 24 V DC (Type 1 and Type 3 input characteristics).
• Ultra-compact 15 mm module width for maximum terminal packing density.
• Supports push-in technology via BU type A0 BaseUnits (with CC00 color code).
• Module hot-swapping supported for quick maintenance without power disruption.
• Integrated channel diagnostics and LED indicators for clear system status monitoring.
• Fits standard DIN rail mounting arrangements within control cabinets.
• Supports 2-wire sensor integration directly.

Technical Specification Table

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the SIEMENS 6ES7131-6BH01-0BA0 module?

A :It is a 16-channel digital input module designed to detect 24 V DC binary signals from switches, photoelectric sensors, and limit switches, transferring this input data to an ET 200SP interface module or CPU.

Q2: Is this module a digital output or digital input device?

A :The part number 6ES7131-6BH01-0BA0 specifically designates a Digital Input (DI) module within Siemens’ product naming structure (DI 16x 24V DC BA).

Q3: Which BaseUnit is required for mounting this ET 200SP module?

A :This module is compatible with BU type A0 BaseUnits (such as 6ES7193-6BP00-0BA0 or 6ES7193-6BP20-0DA0).

Q4: Can I replace this module without turning off system power?

A :Yes, the ET 200SP system supports hot-swapping, allowing module removal and insertion while the backplane and power remain active.

Q5: What IP rating does this module carry?

A :It carries an IP20 protection rating, meaning it must be installed inside an enclosure or control cabinet to protect against dust and liquid exposure.

Q6: What is the width of this module?

A :The module measures 15 mm in width, helping save panel space inside control cabinets.
