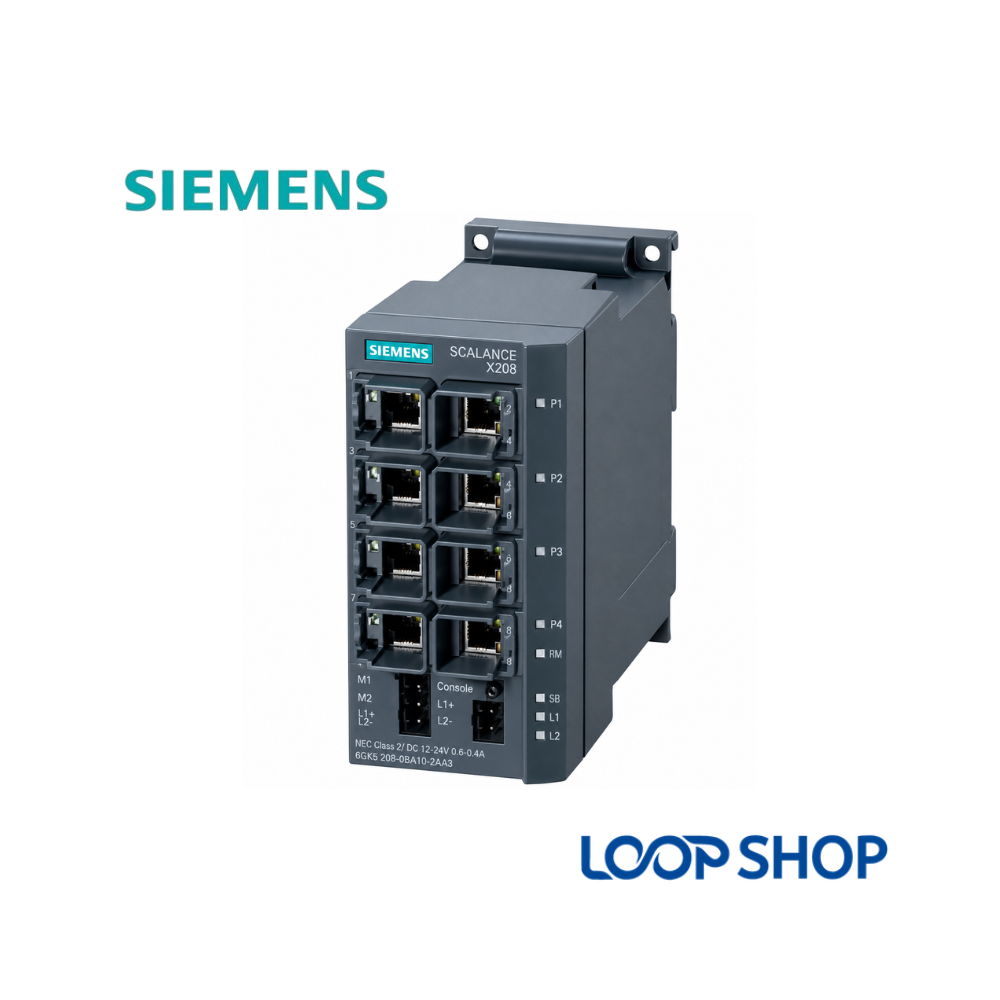

The Siemens SCALANCE X208 (6GK5208-0BA10-2AA3) is a managed industrial Ethernet switch engineered for robust networking in industrial automation systems. Equipped with 8 RJ45 ports supporting 10/100 Mbit/s data transfer rates, it ensures reliable communication between PLCs, HMIs, and field devices. It features redundant power inputs, SNMP management, and PROFINET diagnostics within a compact IP30-rated enclosure.
The Siemens 6GK5208-0BA10-2AA3 SCALANCE X208 is a managed layer 2 industrial Ethernet switch designed for configuring linear, star, and ring network topologies. It provides reliable data communication across plant floors and control networks in industrial automation environments.
Main Features
This switch includes 8 RJ45 ports operating at 10/100 Mbit/s with auto-negotiation and auto-crossover functionality. It incorporates an integrated redundancy manager to support high-speed ring redundancy, preventing network downtime. Configuration and network monitoring are available through Web-Based Management (WBM), SNMP, and integrated PROFINET diagnostics.
Benefits
Redundant 24V DC power supply connections alongside signaling contact outputs enhance operational reliability by alerting operators to power or link failures. The rugged IP30 metal housing and DIN-rail or wall-mounting options allow installation in tough control cabinet environments.
Applications
The SCALANCE X208 is used across factory automation, process plants, infrastructure projects, and machine building. It connects controllers, human-machine interfaces (HMIs), distributed I/O racks, and IP cameras within secure industrial networks.
Key Features
| Specification | Details |
| Brand | Siemens |
| Model | 6GK5208-0BA10-2AA3 |
| Product Type | Managed Industrial Ethernet Switch (SCALANCE X208) |
| Interfaces | 8 x RJ45 Ports (10/100 Mbit/s) |
| Rated Voltage | 24V DC (18 to 32 V DC, Redundant supply) |
| Rated Current | Max. 0.18 A |
| Power/Capacity | Power loss typ. 4.3 W |
| Frequency | Not specified by manufacturer |
| IP Rating | IP30 |
| Dimensions (W x H x D) | 60 x 125 x 124 mm |
| Weight | Approx. 0.78 kg |
| Standards/Certification | CE, UL, C-Tick, FM, ATEX Zone 2, IECEx |
| Warranty | Standard Manufacturer Warranty |
Q: What is the primary function of the Siemens SCALANCE X208 switch?
A: It is a managed Layer 2 industrial Ethernet switch used to connect and route data between industrial devices like PLCs, HMIs, and drives over a network.
Q: How many communication ports are available on the 6GK5208-0BA10-2AA3?
A: It features 8 RJ45 ports that support 10/100 Mbit/s Fast Ethernet transmission speeds.
Q: Does this switch support ring redundancy?
A: Yes, it includes an integrated redundancy manager that enables high-speed ring redundancy to maintain network operation if a link fails.
Q: Can the switch be integrated into PROFINET systems?
A: Yes, it offers PROFINET IO diagnostics and can be integrated directly into Siemens TIA Portal or STEP 7 hardware configurations.
Q: What power input is required for operation?
A: It operates on a 24V DC power supply and features dual redundant terminals for power backup reliability.
