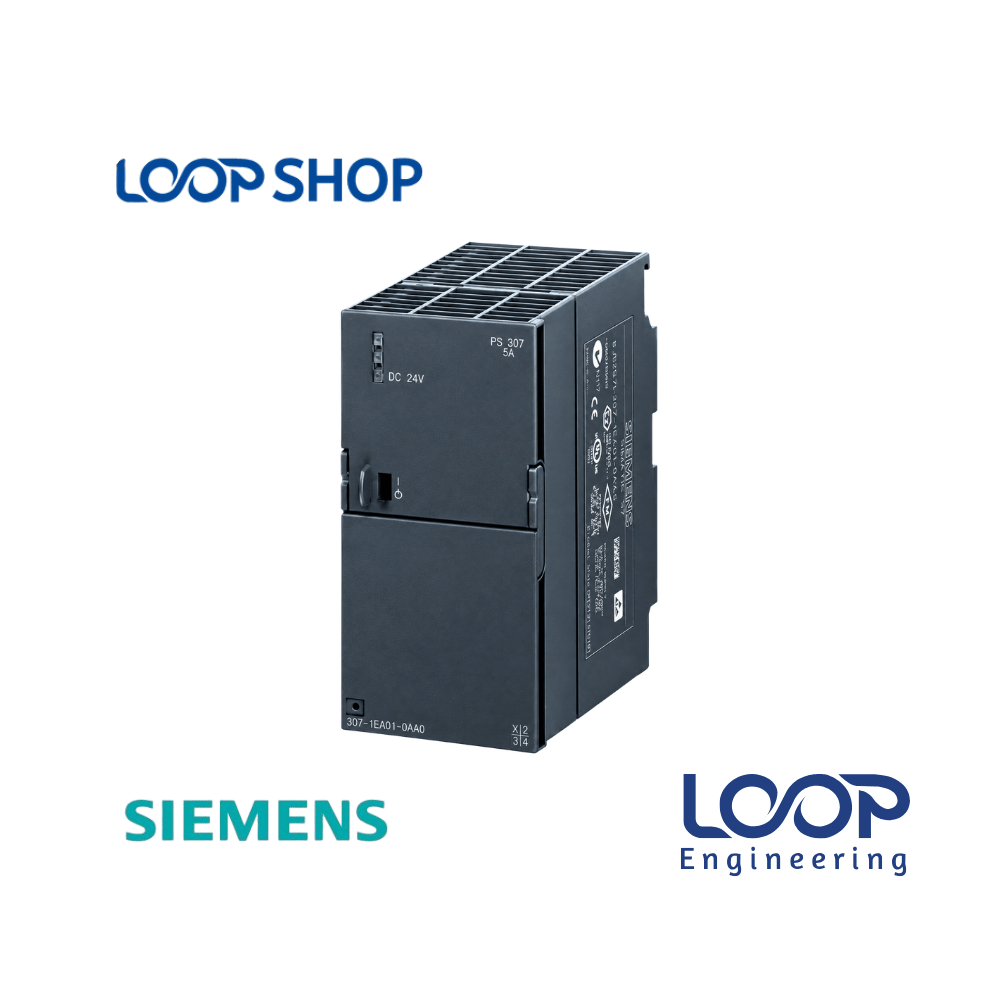

Siemens S7-300 PS307 6ES7307-1EA01-0AA0 Power Supply 24V 5A PLC Unit

Description

The Siemens SIMATIC PS307 Regulated Power Supply Unit (6ES7307-1EA01-0AA0 / 6ES7 307-1EA01-0AA0) is a single-phase system and load power supply custom-engineered for the SIMATIC S7-300 PLC platform. It steps down and regulates 120 V AC or 230 V AC mains utility power to a smooth, low-ripple 24 V DC output. Capable of delivering up to 5 A of continuous current, this unit powers central processing units (CPUs), signal modules (SM), functional modules (FM), and connected field sensors or actuators.

Designed with automatic input voltage range selection, the PS307 adapts effortlessly to single-phase AC supply networks. In Bangladesh’s industrial sector—where grid voltage fluctuations can disrupt sensitive automation electronics—this regulated supply acts as a critical line of defense, ensuring uninterrupted PLC operation in automotive, packaging, textile, and general assembly lines.

Key Features

• Regulated 24V DC / 5A Output: Supplies up to 120 W of stable DC power to S7-300 CPU racks and auxiliary control circuits.
• Automatic Range Switchover: Detects and adapts to nominal line input voltages of 120 V AC and 230 V AC without manual jumper reconfiguration.
• Seamless Rack Integration: Shares the identical housing design and DIN rail mounting footprint as SIMATIC S7-300 I/O modules for clean panel assembly.
• Connecting Comb Included: Integrates directly with the adjacent CPU or module to supply operating voltage across the rack.
• Comprehensive Visual Diagnostics: Front-panel green LED indicates normal 24 V DC output voltage status for fast troubleshooting.

Technical Advantages

• High Electrical Reliability: Advanced line regulation cushions downstream PLC processors against AC mains transients, brownouts, and voltage spikes.
• Durable Industrial Construction: Certified for continuous 24/7 duty cycles under heavy industrial operating conditions.
• Integrated Safety Features: Built-in electronic short-circuit protection and overload safeguards prevent internal module damage.
• Low Thermal Load: High efficiency minimizes thermal dissipation inside enclosed control cabinets, extending internal component lifespans.
• Easy Maintenance & Installation: Clip-on DIN rail attachment and screw-type terminal blocks make installation and replacement fast and straightforward.

Applications

• Industrial Manufacturing: Powering automated packaging lines, bottling plants, and material handling systems.
• Factory Operations: Textile spinning and weaving machine panels, readymade garment (RMG) finishing equipment, and pharmaceutical machinery.
• Commercial Systems: Water treatment plant pumping stations, HVAC central monitoring panels, and boiler control cabinets.
• Project Installation & Maintenance: Retrofitting existing S7-300 control cabinets or serving as a backup power module for industrial automation integrators across Bangladesh.

Why Choose This Product?

• Optimized for S7-300 Architectures: Engineered by Siemens to perfectly match the mechanical, electrical, and thermal specifications of S7-300 systems.
• Prevents Operational Downtime: Stable power output prevents unexpected CPU resets caused by unstable grid power.
• Space-Saving Design: Eliminates the need for bulkier third-party power supplies, saving valuable DIN rail space in control enclosures.
• Trusted Local Sourcing: Available in Bangladesh through loopshop.com.bd with prompt delivery and technical support for plant maintenance teams.

Technical Specification Table

Features List

✓ Regulated 24V DC / 5A output with 120W total output power capacity

✓ Automatic input voltage selection between 120V AC and 230V AC

✓ Overload and continuous short-circuit electronic protection

✓ Direct connection comb for seamless S7-300 CPU power distribution

✓ Compact 60mm housing designed for standard S7-300 DIN rail mounting

Benefits For Customers

• Protects Sensitive CPU Hardware: Regulated output keeps internal logic and sensor supply stable during mains voltage dips.
• Saves Panel Space: Compact 60mm width integrates directly onto the S7-300 mounting rail next to the CPU.
• Reduces System Downtime: Short-circuit and overload protection allow quick recovery after resolving external wiring faults.
• Built for Tropical Climates: Reliable operational performance in panel environments up to +60 °C across Bangladesh factories.

Installation & Maintenance Guide

Installation Requirements:

• Always disconnect the main AC supply voltage before installing, wiring, or removing the power unit.
• Hook the PS307 unit onto the standard S7-300 DIN mounting rail to the far left position (Slot 1) and tighten the top securing screw.
• Wire the AC supply lines (L1, N, and PE ground) to the input terminals using appropriately rated cables.
• Insert the supplied power connecting comb into the output terminals to feed 24V DC directly to the adjacent S7-300 CPU.

Maintenance Tips:

• Periodically check that screw terminals are tight and free from oxidation or loose strands.
• Keep control cabinet ventilation louvers and internal cooling fans free from dust to maintain air circulation around the module.
• Check the green front LED (“24V OK”) during routine panel inspections to confirm proper output voltage delivery.

Safety Instructions:

• Ensure protective earth (PE) is properly grounded to guard against static buildup and high-voltage surges.
• Do not exceed the maximum output current rating of 5A; add additional load power supplies if field sensor demand increases.
• Installation must be performed by certified electrical engineers or qualified automation technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens PS307 6ES7307-1EA01-0AA0 in Bangladesh?

A: The price of the Siemens S7-300 PS307 5A power supply in Bangladesh depends on current stock and import rates. Please visit loopshop.com.bd or contact our sales hotline for real-time pricing and quotes.

Q: Where can I buy Siemens 6ES7307-1EA01-0AA0 in Bangladesh?

A: You can order the original Siemens 6ES7307-1EA01-0AA0 power supply online directly at loopshop.com.bd with nationwide delivery to Dhaka, Chittagong, Gazipur, Narayanganj, and across Bangladesh.

Q: What warranty does this product have?

A: Warranty terms depend on stock type and vendor policies. Please review product details on the loopshop.com.bd page or contact customer support.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an operating temperature rating up to +60 °C, it is well-suited for hot, humid industrial cabinet environments found throughout Bangladesh.

Q: How to install this product?

A: Mount the PS307 to Slot 1 on the S7-300 DIN rail, lock it with the securing screw, connect single-phase AC input (120/230V), insert the connecting comb to the CPU, and switch on supply power.

Q: Does the PS307 5A power supply select input voltage automatically?

A: Yes, it features automatic range selection between 120V AC and 230V AC nominal input voltages.

Q: What is the maximum output current of the 6ES7307-1EA01-0AA0?

A: It delivers a rated continuous output current of 5 A DC at 24 V.

Q: Can I use this power supply to power external 24V DC field sensors?

A: Yes, provided the total combined current consumption of the CPU, modules, and sensors does not exceed 5 A.

Q: Does this module require a battery or separate maintenance?

A: No, it is a solid-state regulated power supply unit and requires no backup batteries or routine internal servicing.

Q: Can this power supply replace older PS307 models in S7-300 racks?

A: Yes, it serves as a direct form-fit-function replacement for S7-300 5A load power supplies.
