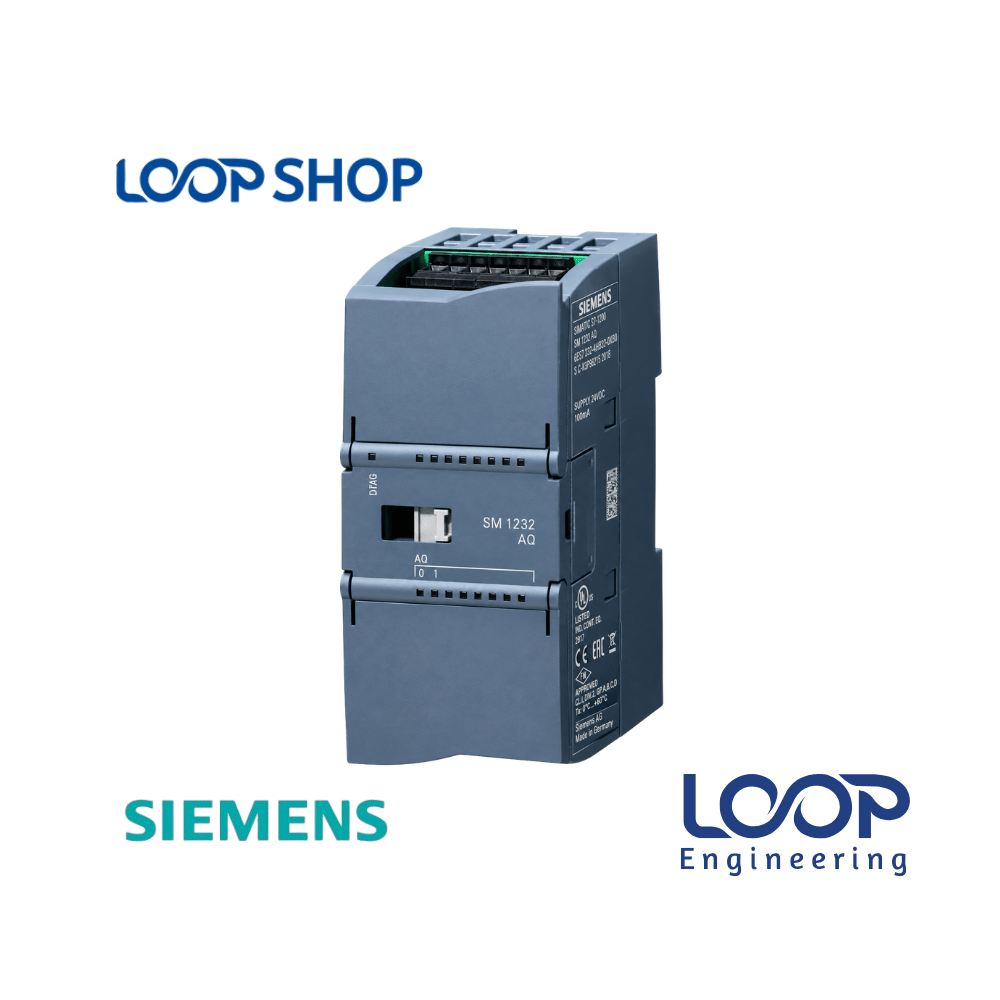

Siemens S7-1200 6ES7232-4HD32-0XB0 SM 1232 Analog Output Module

Description

The Siemens SIMATIC S7-1200 SM 1232 Analog Output Module (6ES7232-4HD32-0XB0) is an expansion module designed to scale the control capabilities of Siemens S7-1200 PLCs. It converts digital controller signals into proportional analog output signals to drive external actuators, control valves, drives, and instrumentation.

Engineers and system integrators require this module when expanding an automated system’s output channels without upgrading the main CPU. In Bangladesh’s rapidly modernizing industrial sector, this module provides a cost-effective, scalable solution for factory automation, process monitoring, and plant upgrades.

Key Features

• 4 Analog Outputs: Enables simultaneous control of four independent field instruments or devices.
• Flexible Signal Types: Configurable for standard voltage ($\pm10\text{V}$) and current ($0\text{–}20\text{ mA}$ / $4\text{–}20\text{ mA}$) signals.
• High Resolution: Features 14-bit resolution for voltage and 13-bit resolution for current outputs, ensuring fine-tuned actuator adjustments.
• Compact DIN Rail Mounting: Fits directly onto standard DIN rails beside the S7-1200 CPU for quick hardware integration.
• TIA Portal Integration: Fully supported within Siemens SIMATIC TIA Portal for straightforward configuration and diagnostics.

Technical Advantages

• High Signal Accuracy: Provides low conversion tolerance and stable signal output under variable line loads.
• Robust Noise Immunity: Built with shielding against electromagnetic interference common in industrial panel environments.
• Integrated Diagnostics: Allows early detection of short circuits, open loops, and module errors directly via software.
• Energy-Efficient Design: Low power consumption directly from the backplane bus minimizes heat build-up inside enclosures.
• Simplified Wiring: Removable terminal blocks simplify wiring installation and fast replacement during maintenance.

Applications

• Industrial Control: Precise speed reference control for Variable Frequency Drives (VFDs).
• Factory Automation: Control of proportional flow valves, dampeners, and heating elements in manufacturing lines.
• Commercial & Infrastructure: HVAC control systems, building automation, and automated pumping stations.
• Project Installation: Custom control panels for textile machinery, pharmaceutical processing, and packaging plants.

Why Choose This Product?

• Siemens Reliability: Built to global industrial standards, ensuring long-term operational uptime.
• Precise Performance: Delivers repeatable control accuracy essential for high-quality production processes.
• Cost Effectiveness: Expands system capacity incrementally without needing high-end controller replacements.
• After-Sales Value: Supported by widely available technical expertise, documentation, and local automation support in Bangladesh.

Technical Specification Table

Features List

✓ 4 High-precision analog output channels

✓ Supports $\pm10\text{V}$ voltage and $0\text{–}20\text{ mA}$ / $4\text{–}20\text{ mA}$ current ranges

✓ Seamless connection with SIMATIC S7-1200 CPU

✓ Compact expansion form factor with DIN rail mounting

✓ Full software integration via TIA Portal

Benefits For Customers

• Improves Operational Reliability: Delivers accurate analog output signals for sensitive industrial machinery.
• Reduces System Downtime: LED indicators and TIA diagnostics allow quick troubleshooting of wiring issues.
• Saves Panel Space: Compact footprint allows panel builders to optimize space inside control enclosures.
• Suitable for Bangladesh Environment: Standard industrial enclosure rating handles typical factory operating conditions in Bangladesh.

Installation & Maintenance Guide

Installation Requirements

• Mount on standard 35 mm DIN rail adjacent to the S7-1200 PLC CPU or neighboring expansion module.
• Ensure power supply to the main PLC system is completely shut off before physically connecting the backplane connector.
• Use shielded twisted-pair cables for analog signal output connections to prevent signal noise.

Maintenance Tips

• Periodically check terminal screw connections for tightness due to industrial machine vibration.
• Keep the enclosure clean and free from excessive dust accumulation and moisture.
• Verify LED status indicators during routine maintenance cycles.

Safety Instructions

• Installation must be performed by qualified electrical engineers or automation technicians.
• Do not apply external voltages exceeding the specified channel limitations.
• Ensure effective panel grounding (PE) before powering on the system.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens S7-1200 6ES7232-4HD32-0XB0 in Bangladesh?

A: Product prices vary depending on stock availability and import rates. Please check loopshop.com.bd or contact our sales team for the latest updated price in BD.

Q: Where can I buy Siemens S7-1200 SM 1232 in Bangladesh?

A: You can purchase genuine Siemens automation products directly online from loopshop.com.bd with reliable delivery across Bangladesh.

Q: What warranty does this product have?

A: This product comes with standard manufacturer/supplier warranty coverage against manufacturing defects. Check loopshop.com.bd warranty terms at checkout.

Q: Is this suitable for Bangladesh climate?

A: Yes, the module is engineered for industrial environment temperature ranges and operates reliably inside properly ventilated control panels across local ambient conditions.

Q: How to install this product?

A: Snap the module onto a 35mm DIN rail next to your S7-1200 CPU, snap the bus connector into place, wire your actuators to the output terminals, and configure the channels in Siemens TIA Portal.

Q: How many analog outputs does this module provide?

A: The SM 1232 6ES7232-4HD32-0XB0 module provides 4 independent analog output channels.

Q: What signal types does this Siemens analog output module support?

A: It supports current output signals ($0\text{–}20\text{ mA}$ / $4\text{–}20\text{ mA}$) and voltage output signals ($\pm10\text{V}$).

Q: Can I use this module with S7-300 or S7-1500 PLCs?

A: No, the SM 1232 series modules are designed specifically for the Siemens SIMATIC S7-1200 PLC system.

Q: Does this module require software configuration?

A: Yes, signal output types (voltage or current) and operational parameters are configured using Siemens SIMATIC STEP 7 / TIA Portal engineering software.

Q: Is this module original and authentic?

A: Yes, loopshop.com.bd supplies authentic industrial automation equipment sourced for professional engineering applications.
