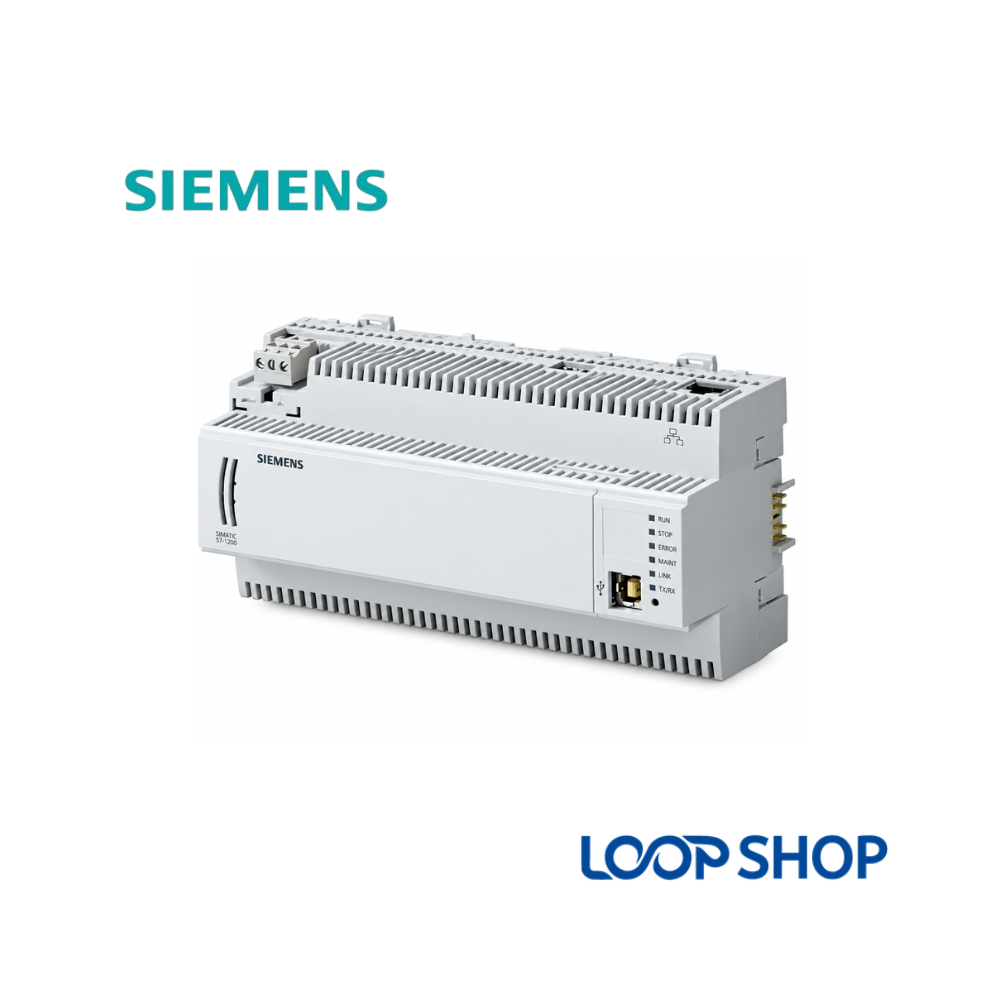

Siemens PXC Programmable Controller Modular PXC00-PE96.A BACnet

Description

The Siemens PXC Modular (Programmable Controller-Modular) PXC00-PE96.A is an advanced supervisory field controller created to streamline HVAC and facility management systems. Functioning as a central network coordinator, it collects system data from connected sensors and directly controls field devices without depending on a higher-level host processor. Its modular footprint allows industrial facilities and commercial setups to scale control capabilities according to operational requirements.

Main Features

• Supervisory DDC Control: Provides standalone or networked Direct Digital Control routines for facility-wide equipment.
• Network Integration: Built-in support for BACnet communication protocols over Ethernet (BACnet/IP) and MS/TP field networks.
• Adaptive Control Algorithm: Utilizes advanced closed-loop Adaptive Control that auto-adjusts to system load and seasonal shifts, reducing oscillation and wear on mechanical actuators.
• Data Retention & Battery Backup: Integrated battery backup preserves internal RAM database during extended power interruptions for up to 30 days.
• LED Diagnostics: Front-panel LEDs provide visual verification of system operation, network status, and battery health.

Benefits

• Scalable Investment: Modular construction enables businesses to start with essential supervisory components and expand network nodes as facility needs grow.
• Reduced Downtime: Fast processing combined with secure memory backup eliminates the risk of control logic loss during power supply failures.
• Optimized Energy Usage: Implements pre-programmed energy management sequences to minimize power consumption in commercial HVAC plants.
• Simplified Serviceability: DIN-rail mounting and quick-connect terminal points reduce setup time and routine maintenance efforts.

Applications

The unit is engineered for integration into central air-handling plants, chilled water management networks, multi-story commercial buildings, data centers, pharmaceutical environments, and industrial complexes requiring BACnet field-level supervision.

Key Features

• High-performance Direct Digital Control (DDC) supervisory field panel.
• Native BACnet protocol support for system integration.
• 96-node network capacity for field-level device management.
• Powered by 133 MHz PowerPC processor with 80 MB total memory.
• Advanced Adaptive Control logic for dynamic loop tuning.
• Integrated battery protection for SDRAM and Real-Time Clock (RTC).
• Standard DIN-rail mounting design for control panels.
• Onboard diagnostics via LED status indicators.

Technical Specification Table

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of the Siemens PXC00-PE96.A?

A: The Siemens PXC00-PE96.A is a modular supervisory field panel that monitors and controls connected HVAC and building automation equipment via standard BACnet protocols.

Q2: Does this controller support BACnet communication?

A: Yes, it features native BACnet support, enabling integration across BACnet/IP and BACnet MS/TP automation networks.

Q3: Does the PXC00-PE96.A lose its program data during a power outage?

A: No. It uses an internal AA battery backup to preserve stored system databases and memory for up to 30 days during power loss.

Q4: Can this controller operate independently without a master server?

A: Yes, the field panel operates on a standalone basis to execute programming logic, schedules, and alarm sequences autonomously.

Q5: How is the unit physically installed in a panel?

A: The unit is engineered for quick mounting on standard DIN rails inside electrical control enclosures.

Q6: What software logic does the controller run?

A: It executes Siemens closed-loop Adaptive Control routines along with custom programming logic for building management.
