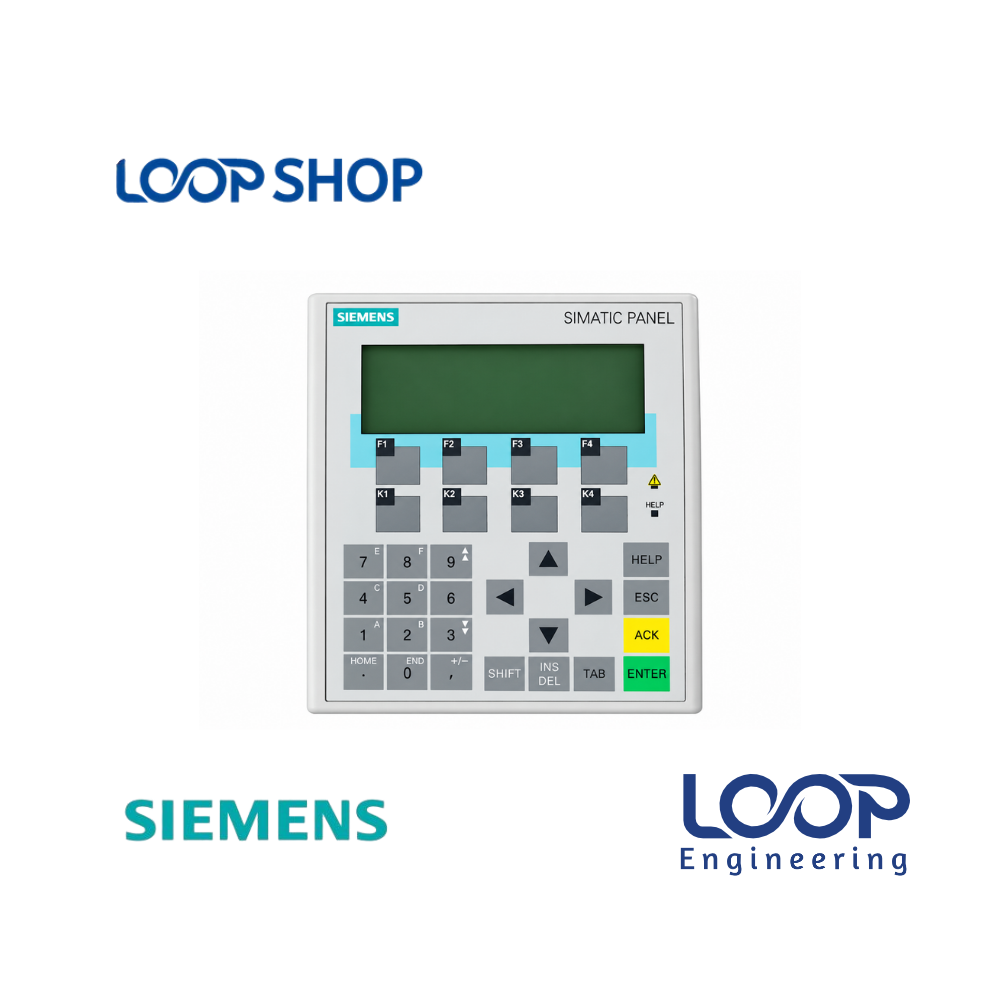

Siemens OP77B Operator Panel 4.5-Inch 6AV6641-0CA01-0AX1 PROFIBUS

Description

The Siemens SIMATIC Operator Panel OP77B (6AV6641-0CA01-0AX1) is a high-performance, compact human-machine interface designed for monitoring and controlling automated processes. Featuring a 4.5-inch high-contrast backlit LC display with a $160 \times 64$ pixel graphic matrix, the OP77B delivers clear visual readouts for real-time process values, system alarms, dynamic icons, and parameter menus.

Equipped with high-speed MPI and PROFIBUS DP communication interfaces operating at up to $12 \text{ Mbit/s}$, an integrated USB/printer interface, and an Multimedia Card (MMC) slot for recipe data and backup storage, this unit seamlessly integrates into Siemens SIMATIC S7 automation systems. For factory maintenance engineers, panel builders, and machine operators in Bangladesh, sourcing this original operator panel offers a reliable, drop-in replacement that eliminates production downtime and saves significant capital expenditure.

Key Features

• 4.5-Inch Graphic LC Display: Backlit monochrome STN display ($160 \times 64$ pixels) providing crisp readability under factory lighting.
• Tactile Keypad Matrix: Features 8 system keys and 8 freely configurable function keys, including 4 with integrated LED status indicators.
• High-Speed PROFIBUS DP & MPI: Integrated RS485 communication port supporting baud rates up to $12 \text{ Mbit/s}$ for fast PLC data polling.
• MMC Memory & USB Slot: Supports Multimedia Cards (MMC) for simple recipe management, archive backup, and configuration transfer.
• WinCC Flexible Configuration: Easily programmed using Siemens WinCC flexible 2004 Compact or higher engineering software.

Technical Advantages

• High Efficiency: Low boot time and fast data transmission speeds ensure rapid process response and operator entry.
• Durable Construction: Rugged plastic housing with an IP65-rated front bezel that resists industrial oils, greases, and harsh cleansers.
• Safety Protection: Built-in password security levels and clear alarm text displays protect system parameters against unauthorized access.
• Energy Saving: Highly efficient LED backlight and low current draw ($0.2 \text{ A}$ at 24V DC) reduce internal heat buildup.
• Easy Maintenance: Shares physical cabinet cutout dimensions with older OP3 panels, enabling rapid drop-in upgrades without mechanical modifications.

Applications

• Industrial: Automated packaging machinery, plastic injection molding, conveyor networks, and chemical dosing panels.
• Factory: Textile yarn spinning, fabric processing auxiliaries, pharmaceutical packaging lines, and food processing machinery.
• Commercial: Building management systems, water purification plants, and central HVAC control monitoring.
• Project Installation: Control cabinet repairs, legacy OP3/OP7 panel retrofitting, and automation maintenance projects across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles.
• Performance: Direct PROFIBUS DP communication guarantees reliable, high-speed fieldbus synchronization without data dropouts.
• Cost Effectiveness: Replacing a faulty panel with an original OP77B avoids multi-million Taka complete control system overhauls.
• After-Sales Value: Supported by genuine product verification, checking warranty coverage, and fast delivery through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ 4.5-inch graphic-capable backlit LC display ($160 \times 64$ pixels)

✓ Integrated MPI / PROFIBUS DP interface up to $12 \text{ Mbit/s}$

✓ 8 system keys plus 8 configurable function keys (4 with status LEDs)

✓ Built-in MMC card slot and USB/printer communication port

✓ IP65 oil- and chemical-resistant front membrane bezel

Benefits For Customers

• Saves Maintenance Cost: Direct replacement for broken OP3 and OP7 panels without requiring cabinet re-cutting.
• Improves Operational Reliability: Real-time alarm handling and function key LEDs provide clear, immediate operator feedback.
• Saves Engineering Time: Supports automatic conversion of older ProTool projects to WinCC flexible software.
• Suitable for Bangladesh Environment: IP65 front protection defends against dusty, humid, and greasy factory conditions in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Isolate main power supply from the cabinet before attempting installation or removal.
2. Cut the panel door opening matching the standard $138 \text{ mm} \times 174 \text{ mm}$ dimensions.
3. Position the protective sealing gasket around the front bezel to ensure an IP65 liquid-tight fit.
4. Secure the OP77B panel into the cutout using the supplied mounting clamps, then connect the 24V DC power connector and PROFIBUS DP cable.

Maintenance Tips:

• Clean the front membrane keys using a soft, non-abrasive microfiber cloth.
• Avoid spraying alcohol, aggressive chemical solvents, or abrasive liquids directly on the display surface.
• Check terminal blocks and fieldbus connector screws periodically to ensure solid contact despite machine vibration.

Safety Instructions:

• Always disconnect power terminals before opening the control cabinet or adjusting wiring connections.
• Ensure proper earthing/grounding of the control panel to eliminate static interference on fieldbus lines.

Frequently Asked Questions (FAQ)

Q: What is the price of SIEMENS 6AV6 641-0CA01-0AX1 SIMATIC OP77B Operator Panel in Bangladesh?

A: The current sales price of the Siemens OP77B (6AV6641-0CA01-0AX1) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy SIEMENS 6AV6 641-0CA01-0AX1 SIMATIC OP77B Operator Panel in Bangladesh?

A: You can purchase the genuine Siemens OP77B panel online directly from loopshop.com.bd with delivery options across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to verify full operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and oil-resistant front housing and a $50^\circ\text{C}$ operating threshold, it is well suited for factory environments in BD.

Q: How to install this product?

A: Mount the unit in the cabinet cutout, secure it using the supplied clamps, wire the 24V DC power line, and attach the PROFIBUS DP network cable.

Q: Can the Siemens OP77B replace an older OP3 operator panel?

A: Yes, the OP77B uses the same physical installation cutout as the Siemens OP3 and allows configuration migration from ProTool to WinCC flexible.

Q: Which software is used to program the Siemens OP77B operator panel?

A: The OP77B is programmed using Siemens WinCC flexible 2004 Compact (or higher) software.

Q: Does this panel support MMC cards for data backup?

A: Yes, it features an integrated MMC slot for transferring backup files, recipe data, and configuration parameters.

Q: What communication protocols does the 6AV6641-0CA01-0AX1 model support?

A: It supports MPI (Multi-Point Interface) and PROFIBUS DP fieldbus communication up to $12 \text{ Mbit/s}$.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation products to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
