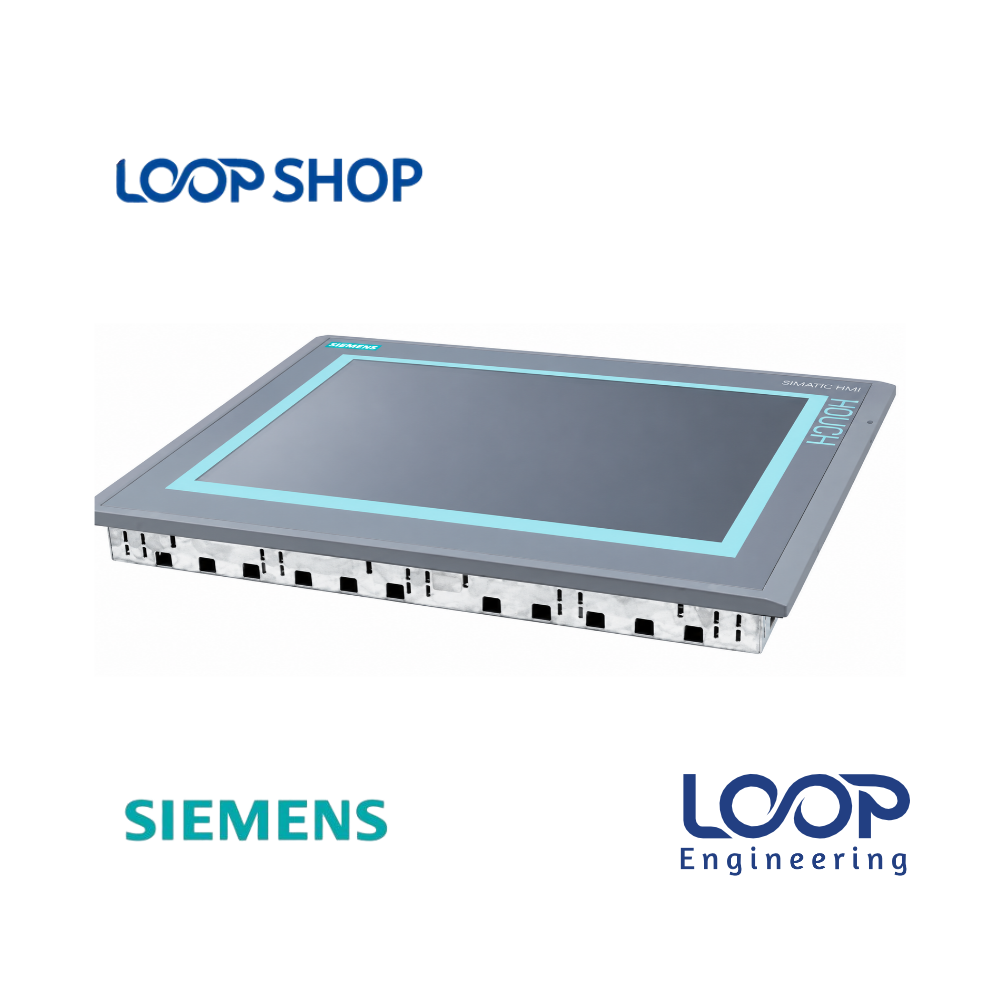

Siemens MP377 19-Inch Touch HMI 6AV6644-0AC01-2AX1 MultiPanel BD

Description

The Siemens SIMATIC MultiPanel MP377 19-Inch Touch Screen (6AV6644-0AC01-2AX1) is a top-tier industrial operator interface engineered for high-complexity, large-format automation environments. Featuring a massive 19-inch color TFT display rendering $1280 \times 1024$ SXGA resolution across 65,536 colors, this MultiPanel combines the open functionality of an industrial PC with the rugged stability of an operator panel.

Running on the reliable Windows CE 5.0 operating system, the MP377 allows operators to manage multi-zone machine variables, inspect complex trend curves, track system alarms, and execute detailed recipe databases. Built with a fanless, shallow-depth enclosure and an IP65-rated front panel face plate, this unit provides factory technicians and system integrators in Bangladesh with a heavy-duty, reliable display solution that restores full process visibility and reduces costly plant downtime.

Key Features

• 19-Inch Color TFT Display: Large $1280 \times 1024$ pixel SXGA display presenting clear graphical process layouts, mimic diagrams, and multi-parameter readouts.
• Windows CE 5.0 Platform: Powered by Windows CE 5.0 operating system, enabling flexible software routines, script execution, option packages, and media viewing.
• 12 MB Configuration Memory: Generous onboard flash/RAM memory for storing complex screen configurations, extensive recipe libraries, and historical alarm archives.
• Multi-Protocol Fieldbus Networking: Integrated dual RJ45 Ethernet ports (PROFINET), RS422/RS485 ports (MPI / PROFIBUS DP up to 12 Mbit/s), and high-speed USB expansion ports.
• WinCC Flexible Configuration: Configurable using Siemens WinCC flexible 2007 (or higher) and TIA Portal engineering platforms.

Technical Advantages

• High Efficiency: Swift screen refreshes and rapid data polling across PROFINET and PROFIBUS networks ensure zero operational latency on complex lines.
• Durable Construction: Fanless, hard-drive-free construction with an IP65 dust- and splash-resistant front panel designed for continuous industrial duty.
• Safety Protection: Built-in multi-level user password management, active system diagnostics, and real-time alarm reporting prevent operational errors.
• Energy Saving: Efficient LED backlighting ($50,000 \text{ hours}$ MTBF) and low thermal output ($60 \text{ W}$ active power input) reduce cabinet heating.
• Easy Maintenance: External USB backup options and standard mounting brackets enable fast hardware swapping without re-engineering.

Applications

• Industrial: Continuous textile finishing ranges, dyeing plants, plastic extrusion lines, and large automated printing presses.
• Factory: Pharmaceutical production lines, food and beverage processing centers, chemical batching systems, and paper mills.
• Commercial: Central building control management, large-scale water treatment plants, and power distribution monitoring.
• Project Installation: Control cabinet retrofitting, system modernization, and emergency HMI replacement across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest industrial standards for continuous 24/7 duty cycles under heavy industrial conditions.
• Performance: High touch accuracy, massive visual working space, and multi-fieldbus networking across S7 automation architectures.
• Cost Effectiveness: Sourcing an original MP377 19-inch MultiPanel replaces broken hardware directly, avoiding multi-million Taka complete control system overhauls.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and expert technical assistance from LOOP Shop in BD.

Technical Specification Table

Features List

✓ Massive 19-inch color TFT display with $1280 \times 1024$ pixel SXGA resolution

✓ Powered by Windows CE 5.0 with 12 MB user configuration memory

✓ Dual PROFINET Ethernet (RJ45), PROFIBUS DP, MPI, RS422/RS485, and USB interfaces

✓ Fanless, shallow-depth IP65 dust-tight and splash-proof front housing

✓ Configurable via WinCC flexible 2007 (or higher) or TIA Portal

Benefits For Customers

• Saves Maintenance Capital: Replaces damaged 19-inch HMI hardware directly without altering host PLC code or cabinet wiring.
• Improves Operational Reliability: Expansive display workspace allows operators to monitor complex plant loops simultaneously.
• Minimizes Production Stoppages: Quick drop-in installation gets processing plants back online fast.
• Suitable for Bangladesh Environment: Heavy-duty IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel door cutout measuring $449 \text{ mm} \times 379 \text{ mm}$ on the cabinet.
2. Position the supplied front sealing gasket properly around the bezel to preserve its IP65 moisture rating.
3. Insert the MP377 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire to a filtered 24V DC industrial power supply line and connect the Ethernet or PROFIBUS communication cables securely.

Maintenance Tips:

• Clean the front screen using a soft, non-abrasive microfiber cloth.
• Do not apply harsh chemical solvents, alcohol, or abrasive cleaning wipes directly onto the display glass.
• Check terminal block screws and fieldbus connector latches periodically to prevent loosening from machine vibration.

Safety Instructions:

• Always disconnect main electrical power prior to handling panel terminals or dismounting the HMI.
• Ensure proper earthing/grounding of the cabinet frame to prevent static interference on fieldbus lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6AV6644-0AC01-2AX1 Simatic MP377 19inch touch multi panel in Bangladesh?

A: The current sales price of the Siemens MP377 19-inch MultiPanel (6AV6644-0AC01-2AX1) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy Siemens 6AV6644-0AC01-2AX1 Simatic MP377 19inch touch multi panel in Bangladesh?

A: You can purchase the genuine Siemens MP377 19-inch MultiPanel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial plants in BD.

Q: How to install this product?

A: Cut the designated panel opening ($449 \text{ mm} \times 379 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFINET/PROFIBUS network cable.

Q: Which operating system does the Siemens MP377 19-inch MultiPanel run?

A: It runs on the Windows CE 5.0 operating system and includes 12 MB of user configuration memory.

Q: Which software is used to program the 6AV6644-0AC01-2AX1 model?

A: It is programmed using Siemens WinCC flexible 2007 (or higher) or SIMATIC WinCC in TIA Portal.

Q: Does this HMI support both PROFINET and PROFIBUS DP protocols?

A: Yes, it features integrated RJ45 PROFINET Industrial Ethernet ports as well as RS485 ports supporting PROFIBUS DP and MPI.

Q: What are the exact panel cutout dimensions for the 19-inch MP377?

A: The required cabinet mounting cutout measures $449 \text{ mm} \text{ (width)} \times 379 \text{ mm} \text{ (height)}$.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
