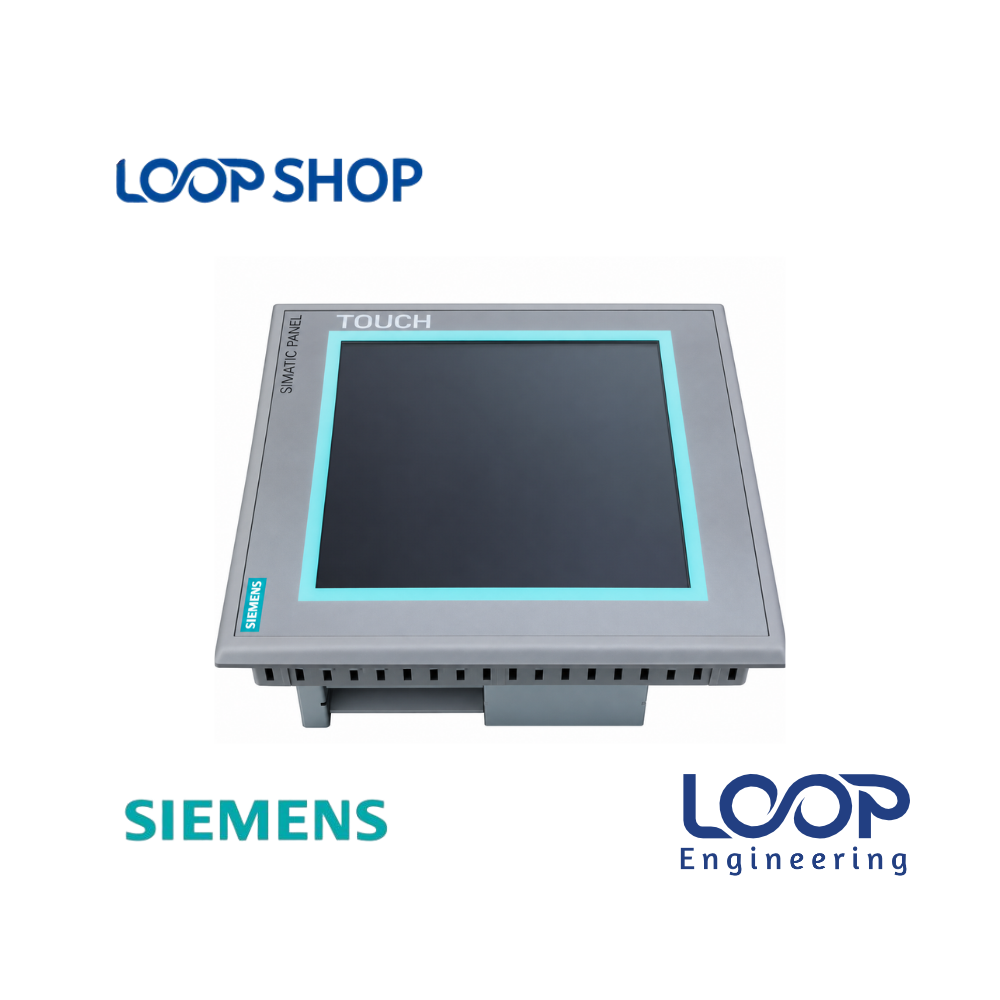

Siemens MP377 12-Inch Touch HMI 6AV6644-0AA01-2AX0 MultiPanel BD

Description

The Siemens SIMATIC MultiPanel MP377 12-Inch Touch Screen (6AV6644-0AA01-2AX0) is an industrial-grade, high-end operator display interface engineered for mid-to-large automated manufacturing systems. Featuring a brilliant 12.1-inch SVGA TFT color display ($800 \times 600$ pixel resolution) with 64,536 colors, this MultiPanel runs on the open and flexible Windows CE 5.0 operating platform. It enables complex graphical visualization, real-time diagnostic reporting, trend analysis, and comprehensive recipe database management.

Equipped with 12 MB of non-volatile onboard configuration memory and versatile fieldbus communication options—including dual PROFINET Industrial Ethernet ports, RS485 (MPI/PROFIBUS DP up to $12 \text{ Mbit/s}$), and USB ports—the MP377 integrates seamlessly into Siemens SIMATIC S7 controllers and field networks. For plant managers, control panel builders, and automation maintenance engineers in Bangladesh, sourcing this original replacement unit provides a direct drop-in solution that restores total process control and prevents expensive line shutdowns.

Key Features

• 12.1-Inch Color TFT Touch Screen: High-contrast $800 \times 600$ pixel SVGA display rendering bright colors for clear visualization of complex process loops.
• Windows CE 5.0 Operating System: Runs on the Windows CE 5.0 platform to support script execution, option packages, media viewing, and custom software integration.
• 12 MB Configuration Memory: Generous onboard memory capacity for storing detailed graphical screens, alarm archives, recipe databases, and trend curves.
• Multi-Protocol Fieldbus Interface: Integrated PROFINET Ethernet (RJ45), RS485 (MPI/PROFIBUS DP up to 12 Mbit/s), RS422, and high-speed USB expansion ports.
• WinCC Flexible & TIA Portal Support: Easily configured using Siemens WinCC flexible 2007 (or higher) and SIMATIC WinCC within TIA Portal.

Technical Advantages

• High Efficiency: Rapid processor speed and fast fieldbus data polling maintain responsive touch screen navigation without communication lags.
• Durable Construction: Heavy-duty front panel with an IP65 oil- and dust-resistant seal protects internal electronics against harsh plant conditions.
• Safety Protection: Built-in multi-level user password administration, system diagnostic logging, and active alarm tracking safeguard process parameters.
• Energy Saving: Efficient display backlight technology lowers overall power consumption and prevents excess heat accumulation inside control cabinets.
• Easy Maintenance: Removable memory card options permit fast, automatic project backup and plug-and-play unit swapping during maintenance.

Applications

• Industrial: Textile finishing machinery, continuous dyeing ranges, plastic extrusion equipment, and automated printing presses.
• Factory: Food and beverage packaging, pharmaceutical production lines, chemical batching systems, and paper converting mills.
• Commercial: Building control systems, central water treatment plant monitoring, and power distribution setups.
• Project Installation: Control cabinet retrofitting, system modernization, and emergency HMI replacement across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest industrial standards for continuous 24/7 duty cycles under demanding manufacturing conditions.
• Performance: Smooth touch responsiveness, multi-fieldbus networking across S7 architectures, and crisp visual rendering.
• Cost Effectiveness: Sourcing an original MP377 12-inch MultiPanel replaces damaged hardware directly without requiring complete system re-engineering.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 12.1-inch color TFT touch display with $800 \times 600$ pixel SVGA resolution

✓ Powered by Windows CE 5.0 OS with 12 MB user configuration memory

✓ Dual PROFINET Ethernet (RJ45), PROFIBUS DP, MPI, and USB interfaces

✓ Rugged IP65 dust-tight and splash-water resistant front bezel

✓ Configurable via WinCC flexible 2007 (or higher) or TIA Portal

Benefits For Customers

• Saves Maintenance Capital: Avoids multi-million Taka control panel overhauls by replacing damaged HMI hardware directly.
• Improves Operational Reliability: Real-time alarm handling and trend curves allow operators to resolve process faults rapidly.
• Minimizes Production Downtime: Quick drop-in installation gets processing machinery back into operation quickly.
• Suitable for Bangladesh Environment: Heavy-duty IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out a clean panel opening measuring $310 \text{ mm} \times 248 \text{ mm}$ on the cabinet door.
2. Position the supplied front sealing gasket properly around the bezel to preserve its IP65 moisture rating.
3. Insert the MP377 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire to a filtered 24V DC industrial power supply line and connect the Ethernet or PROFIBUS communication cables securely.

Maintenance Tips:

• Clean the front screen using a soft, non-abrasive dry microfiber cloth.
• Do not apply harsh chemical solvents, alcohol, or abrasive cleaning wipes directly onto the display glass.
• Check terminal block screws and fieldbus connector latches periodically to prevent loosening from machine vibration.

Safety Instructions:

• Always disconnect main electrical power prior to handling panel terminals or dismounting the HMI.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on fieldbus communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI MP377 12 Inch touch panel 6AV6 644-0AA01-2AX0 in Bangladesh?

A: The current sales price of the Siemens MP377 12-inch Touch HMI (6AV6644-0AA01-2AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy Siemens HMI MP377 12 Inch touch panel 6AV6 644-0AA01-2AX0 in Bangladesh?

A: You can purchase the genuine Siemens MP377 12-inch MultiPanel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial plants in BD.

Q: How to install this product?

A: Cut the designated panel opening ($310 \text{ mm} \times 248 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFINET/PROFIBUS network cable.

Q: Which operating system does the Siemens MP377 12-inch MultiPanel run on?

A: The Siemens MP377 MultiPanel runs on the Windows CE 5.0 operating platform.

Q: Which software is used to program the 6AV6644-0AA01-2AX0 model?

A: It is programmed using Siemens WinCC flexible 2007 (or higher) or SIMATIC WinCC in TIA Portal.

Q: Does this HMI support both PROFINET and PROFIBUS DP protocols?

A: Yes, it features integrated RJ45 PROFINET Industrial Ethernet ports as well as an RS485 port supporting PROFIBUS DP and MPI.

Q: What are the cabinet cutout dimensions for the 12-inch MP377 Touch Panel?

A: The required cabinet door mounting cutout measures $310 \text{ mm} \text{ (width)} \times 248 \text{ mm} \text{ (height)}$.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
