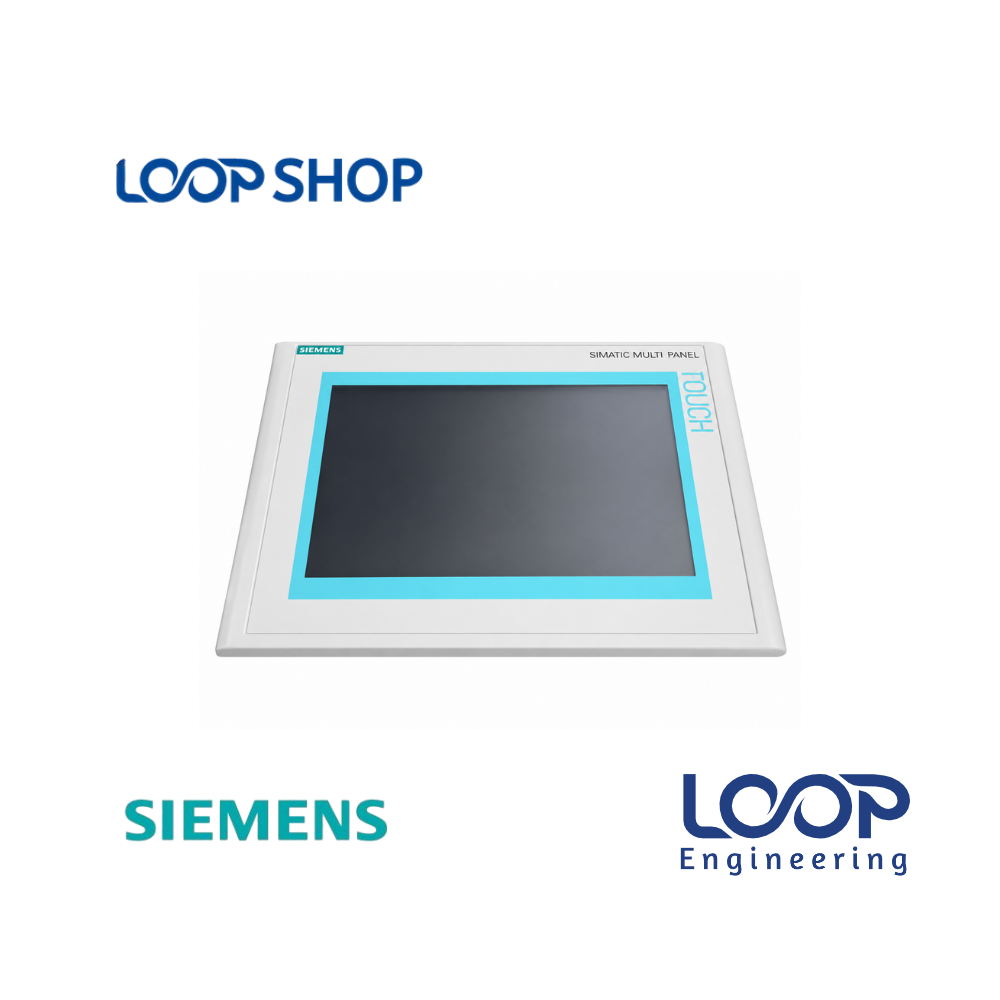

Siemens MP370 12-Inch Touch HMI 6AV6545-0DA10-0AX0 MultiPanel

Description

The Siemens SIMATIC MultiPanel MP370 12-Inch Touch Screen (6AV6545-0DA10-0AX0) is an industrial-grade high-end operator interface engineered for complex industrial control systems. Featuring a brilliant 12.1-inch SVGA TFT display ($800 \times 600$ resolution) with 256 colors, the MP370 runs on the flexible Windows CE 3.0 operating system, providing powerful visual graphics, real-time diagnostic reporting, trend analysis, and comprehensive recipe management.

Equipped with 7168 KB of available user memory, an Ethernet RJ45 port, RS485 (MPI/PROFIBUS DP) interface, serial interfaces, and expansion slots, this MultiPanel supports diverse industrial network protocols including Modbus RTU, TCP/IP, and PROFIBUS DP. For plant managers, automation engineers, and repair technicians in Bangladesh, this unit offers an authentic replacement solution that restores full process visibility and restores automated machinery to peak productivity.

Key Features

• 12.1-Inch Color TFT Touch Screen: Crisp $800 \times 480$ / $800 \times 600$ SVGA resolution providing clear visual readouts for multi-parameter machine processes.
• Windows CE 3.0 Operating System: Runs on Windows CE 3.0 platform allowing flexible software routines, script execution, and advanced system options.
• Multi-Protocol Connectivity: Integrated RS485 (MPI/PROFIBUS DP up to 12 Mbit/s), Ethernet RJ45, RS232/RS422, and USB interfaces.
• Expanded Storage & Slots: Features 7168 KB user data memory along with CF Card / PC Card expansion slots for simple backup and recipe storage.
• ProTool & WinCC Flexible Configuration: Configurable using ProTool (Version V5.2+SP3 or higher) or Siemens WinCC flexible engineering software.

Technical Advantages

• High Efficiency: Fast processor response and high data throughput across fieldbus networks eliminate operational lag.
• Durable Construction: Heavy-duty front panel with IP65 seal protects internal electronics against industrial dust and light splashing.
• Safety Protection: Multi-level password security, system logging, and automated diagnostic alarms prevent operational errors.
• Energy Saving: Efficient 28 W typical power consumption minimizes heat generation within large control cabinets.
• Easy Maintenance: Onboard backup options and standardized panel mounting enable fast hardware swapping during maintenance.

Applications

• Industrial: Textile stenter machines, continuous dyeing ranges, plastic extrusion, and automated printing lines.
• Factory: Food and beverage processing lines, pharmaceutical manufacturing, chemical batching, and paper converting mills.
• Commercial: Building control systems, water treatment plants, and power distribution monitoring setups.
• Project Installation: Control cabinet retrofitting, system modernization, and emergency HMI replacement across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest engineering standards for continuous 24/7 duty cycles under heavy industrial conditions.
• Performance: Smooth touch responsiveness, multi-network fieldbus integration, and fast screen navigation.
• Cost Effectiveness: Sourcing an original MP370 MultiPanel replaces broken hardware directly without requiring complete system re-engineering.
• After-Sales Value: Fully supported by genuine product verification, checking warranty guarantees, and expert technical assistance from LOOP Shop in BD.

Technical Specification Table

Features List

✓ 12.1-inch color TFT display with $800 \times 600$ pixel resolution

✓ Runs on Windows CE 3.0 platform for flexible application routines

✓ Multi-interface support: Ethernet RJ45, PROFIBUS DP, RS485, RS232, USB

✓ IP65 dust-tight and splash-water resistant front housing

✓ Configurable via ProTool (V5.2+SP3) or Siemens WinCC flexible

Benefits For Customers

• Saves Maintenance Capital: Avoids multi-million Taka control panel overhauls by replacing broken HMI hardware directly.
• Improves Operational Reliability: Displays real-time alarm codes and trend curves for fast operator troubleshooting.
• Minimizes Production Downtime: Fast drop-in installation gets factory machinery back into operation quickly.
• Suitable for Bangladesh Environment: Heavy-duty front panel overlay protects against dusty and humid industrial environments across BD.

Installation & Maintenance Guide

Installation Requirements:

1. Ensure the control cabinet cutout matches the required $310 \text{ mm} \times 248 \text{ mm}$ opening dimensions.
2. Position the front sealing gasket properly to maintain its IP65 liquid and dust rating.
3. Insert the MP370 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire to a filtered 24V DC power supply line and connect the Ethernet or PROFIBUS communication cables securely.

Maintenance Tips:

• Clean the front screen using a soft, non-abrasive microfiber cloth.
• Periodically check terminal blocks and fieldbus connector screws inside the panel to prevent loose contact caused by machine vibration.
• Keep control cabinet exhaust vents clear to ensure ambient panel operating temperatures stay within limits.

Safety Instructions:

• Disconnect main power prior to opening control cabinets or wiring power connectors.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of SIEMENS 6AV6545-0DA10-0AX0 MULTIPANEL MP370 TOUCH HMI in Bangladesh?

A: The current sales price of the Siemens MP370 12-inch Touch HMI (6AV6545-0DA10-0AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our store for live stock and price updates.

Q: Where can I buy SIEMENS 6AV6545-0DA10-0AX0 MULTIPANEL MP370 TOUCH HMI in Bangladesh?

A: You can purchase the genuine Siemens MP370 MultiPanel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to verify full operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial plants in BD.

Q: How to install this product?

A: Mount the unit into the designated panel cutout, secure it using the supplied mounting clamps, connect 24V DC power terminals, and plug in the network bus cables.

Q: Which operating system does the Siemens MP370 MultiPanel run on?

A: The Siemens MP370 MultiPanel runs on the Windows CE 3.0 operating platform.

Q: Which software is used to configure the 6AV6545-0DA10-0AX0 model?

A: It can be configured using Siemens ProTool (Version V5.2+SP3 or higher) or WinCC flexible.

Q: What communication protocols does this HMI support?

A: It supports PROFIBUS DP, PROFINET, Modbus RTU, TCP/IP, and MPI communication protocols.

Q: Can this unit handle retentive recipe memory?

A: Yes, it features integrated Flash/RAM user memory and supports memory card options for storing recipe databases and backup files.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop delivers industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial zones across Bangladesh.
