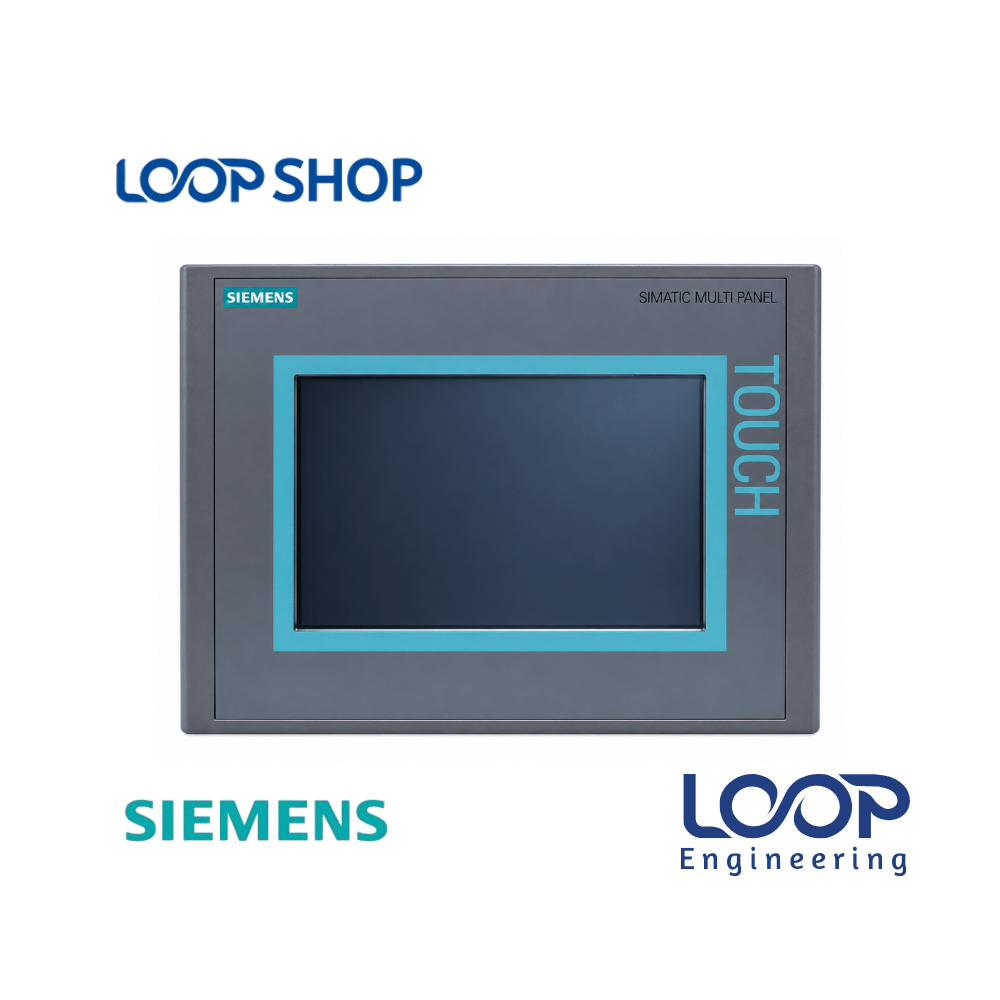

Siemens MP277 10″ Touch HMI 6AV6643-0CD01-1AX1 Panel for Machine Control

Description

The Siemens SIMATIC MP 277 10-inch Touch Multi-Panel (6AV6643-0CD01-1AX1) is a high-performance Human Machine Interface (HMI) built for complex machine-level control applications. Featuring a brilliant 10.4-inch TFT display with tactile touch control, this multi-panel provides operators with clear visual monitoring, real-time diagnostic alarms, and precise parameter adjustment options directly on the shop floor.

Designed with non-volatile retentive memory and standardized hardware/software interfaces, the MP 277 ensures secure data handling without requiring a backup battery for critical retentive memory areas. Configurable with WinCC Flexible 2005 Standard SP1 and updated SIMATIC software tools, this HMI panel offers outstanding versatility for modernizing older machine setups or building robust new control panels across Bangladeshi manufacturing industries.

Key Features

• 10.4″ TFT Touch Display: High-resolution display panel offering sharp graphic visualization and intuitive touchscreen navigation.
• Retentive Memory: Built-in non-volatile memory safely retains active process values and system parameters during power interruptions.
• Standard Industrial Interfaces: Features flexible communication channels for easy networking with Siemens S7 PLCs and multi-vendor automation systems.
• WinCC Flexible Integration: Seamless project engineering using WinCC Flexible 2005 Standard SP1, TIA Portal, or compatible legacy software packages.
• Rugged Front Construction: Engineered to withstand harsh industrial environments, vibration, and continuous multi-shift machine operation.

Technical Advantages

• Durable Construction: Industrial-grade front panel resistant to dust, oils, and environmental wear typical of factory floors.
• Enhanced Safety Protection: Clear visual and audio alarms enable operators to immediately respond to critical fault conditions.
• Easy Maintenance: Quick project transfer, convenient backup/restore capabilities, and simple bezel surface cleaning.
• High Efficiency Operation: Fast display refresh rates and responsive touch performance reduce operator error and improve line productivity.

Applications

• Industrial: Heavy machinery control panels, automated assembly lines, and material handling systems.
• Factory: Textile dyeing and spinning machinery, pharmaceutical production lines, and food processing plants.
• Commercial: Centralized HVAC control units and building automation monitoring stations.
• Project Installation: System retrofits, control panel upgrades, and OEM machine control integration across Bangladesh.

Why Choose This Product?

• Reliability: Siemens Multi-Panel engineering guarantees high operational stability in continuous, demanding production environments.
• Performance: Rapid processing speed and high graphical clarity ensure smooth operation and real-time process monitoring.
• Cost Effectiveness: Extending the service life of existing industrial machinery avoids expensive complete control panel redesigns.
• After-Sales Value: Highly standardized global architecture ensures widely available technical expertise and replacement support throughout Bangladesh.

Technical Specification Table

Features List

✓ 10.4-inch TFT color touch display for clear process visualization

✓ Integrated retentive memory for crucial process data protection

✓ Flexible engineering via WinCC Flexible 2005 Standard SP1 or later

✓ Standardized interface support for seamless PLC communication

✓ Industrial IP65 front protection against dust and moisture exposure

 Benefits For Customers

• Improves Operational Reliability: Enables accurate real-time machine monitoring and quick fault diagnosis.
• Protects Vital Process Data: Non-volatile memory preserves crucial parameters during sudden utility power failures.
• Reduces Maintenance Costs: Rugged industrial construction minimizes panel downtime and screen replacement frequency.
• Suitable for Bangladesh Environment: IP65 sealed front panel guards against industrial dust, moisture, and ambient room heat.

Installation & Maintenance Guide

Installation Requirements:

• Cut cabinet panel opening to exact Siemens MP 277 10″ mounting cutout dimensions.
• Connect a regulated 24V DC industrial power supply observing correct terminal polarities.
• Secure all mounting clamps evenly around the panel perimeter to establish an IP65 front seal.
• Use shielded PROFIBUS, MPI, or Ethernet cables to connect to host controller PLCs.

Maintenance Tips:

• Regularly wipe the touchscreen display using a soft, non-abrasive cloth moistened with mild cleaning solution.
• Inspect panel mounting clamps and rear wire connections periodically to ensure vibration resistance.
• Keep cabinet ventilation fans clean to maintain healthy ambient temperatures behind the panel enclosure.

Safety Instructions:

• Disconnect main power supply to the control panel before performing wiring or physical mounting work.
• Ensure proper electrical grounding according to Siemens safety standards to prevent electrostatic discharge.
• Installation and software upload/download should only be executed by qualified automation engineers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens MP277 HMI 10inch 6AV6643-0CD01-1AX1 in Bangladesh?

A: The price of the Siemens MP 277 10″ HMI panel in Bangladesh depends on current stock availability and market conditions. Please visit loopshop.com.bd or contact our team for live pricing.

Q: Where can I buy Siemens MP277 HMI 10inch 6AV6643-0CD01-1AX1 in Bangladesh?

A: You can purchase genuine Siemens MP 277 HMI panels directly online from loopshop.com.bd with reliable nationwide delivery across Bangladesh.

Q: What warranty does this product have?

A: It includes a standard supplier warranty covering manufacturing integrity. Check the product page at loopshop.com.bd for specific terms.

Q: Is this suitable for Bangladesh climate?

A: Yes, with its industrial IP65 front panel protection and broad operating temperature range, it handles the heat and dust conditions of Bangladeshi factories reliably.

Q: How to install this product?

A: Insert the panel into the cabinet door cutout, secure it with supplied mounting clips, connect a 24V DC power source, and attach communication cables to your PLC.

Q: What software is required to program the Siemens MP 277 Touch panel?

A: It is configured using WinCC Flexible 2005 Standard SP1 (or later) or compatible TIA Portal software packages.

Q: What display size does the Siemens 6AV6643-0CD01-1AX1 offer?

A: It features a 10.4-inch TFT color touchscreen display with high visual resolution.

Q: Does the Siemens MP 277 require a battery for memory retention?

A: No, it includes non-volatile retentive memory that safeguards key operational data without a backup battery.

Q: Can this HMI replace older Siemens touch panels?

A: Yes, the MP 277 is a standard multi-panel choice for upgrading or retrofitting older Siemens 10-inch operator interface panels.

Q: Does it support touch-screen operating control?

A: Yes, it utilizes a full touch-screen interface for quick, button-free navigation and system input.
