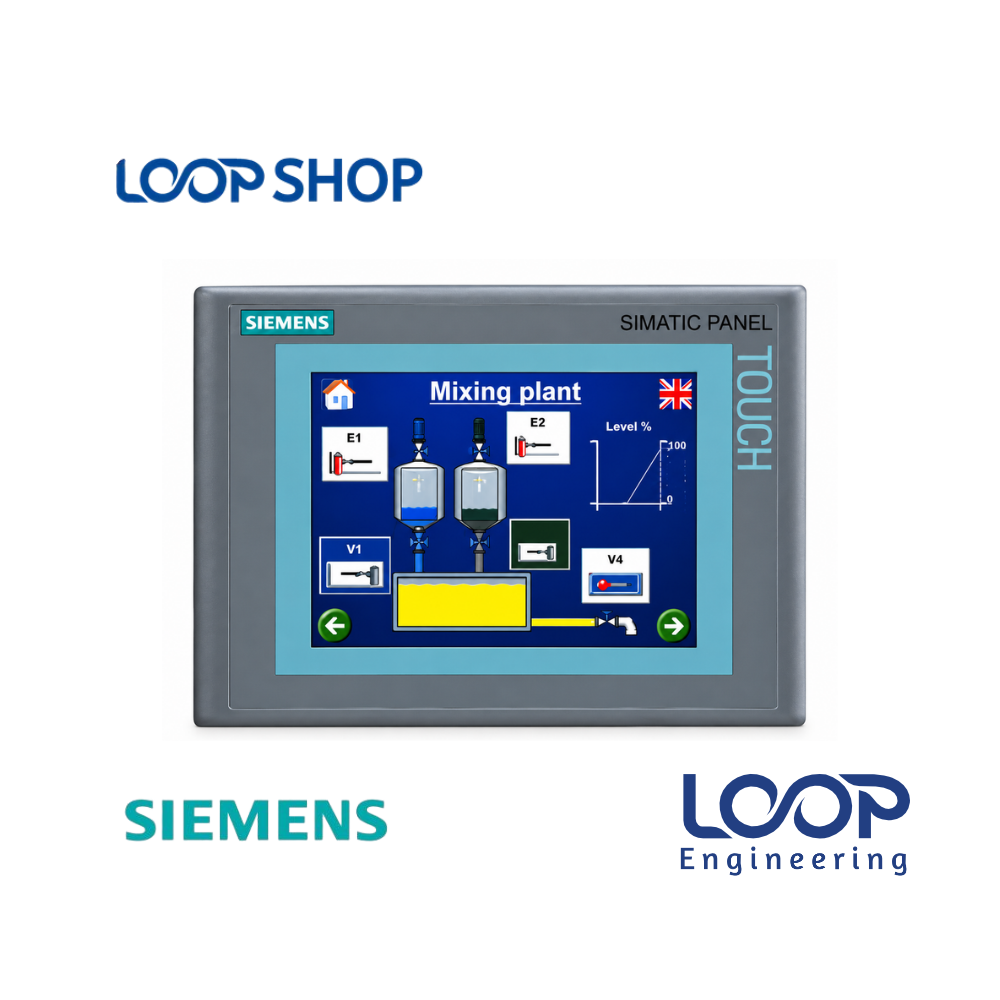

Siemens MP277 10-Inch Touch HMI 6AV6643-0CD01-1AX0 Display Panel

Description

The Siemens SIMATIC MultiPanel MP277 10-Inch Touch Screen (6AV6643-0CD01-1AX0) is an industrial-grade operator interface engineered for complex, high-demand automation systems. Combining the functions of a robust HMI panel and an open system platform, this 10.4-inch TFT display panel provides clear real-time process monitoring, alarm tracking, recipe execution, and system trend logging.

Equipped with 6 MB of non-volatile configuration memory, multiple serial fieldbus interfaces, and PROFINET Ethernet integration, the MP277 serves as a key communication bridge between Siemens S7 PLCs and factory operators. In Bangladesh’s textile dyehouses, spinning lines, stenter finishing machinery (such as Brückner units), and automated packaging plants, this unit provides factory technicians with a dependable, heavy-duty display solution that restores seamless operation and lowers costly plant downtime.

Key Features

• 10.4-Inch TFT Touch Screen: Delivers crisp visual clarity at $640 \times 480$ VGA resolution with 64,536 color rendering for easy system navigation.
• 6 MB User Memory: Generous onboard memory capacity for storing complex graphical screens, recipe structures, and alarm archives.
• Multi-Protocol Connectivity: Built-in RS422/RS485 (MPI/PROFIBUS DP), RJ45 Industrial Ethernet (PROFINET), and dual USB ports for flexible network integration.
• Retentive Memory Protection: Safeguards process variables and recipe configurations against sudden power outages.
• Flexible Software Support: Fully configurable using WinCC Flexible Standard/Advanced or Siemens TIA Portal engineering suites.

Technical Advantages

• High Efficiency: Swift screen refreshes and intuitive touch handling speed up routine machine adjustments and batch setups.
• Durable Construction: Rugged IP65-rated front panel face protects internal electronics against industrial airborne dust, lint, and chemical splatters.
• Safety Protection: Built-in password levels, diagnostic alarm logs, and system protection routines safeguard against unauthorized tampering.
• Energy Saving: Optimized LED display backlighting lowers power draw ($12 \text{ W}$ typical) and extends display panel longevity.
• Easy Maintenance: Removable memory card options allow rapid firmware, project backup, and simple hardware swaps.

Applications

• Industrial: Textile stenter machines (Brückner, Monforts), fabric dyeing ranges, plastic extrusion, and automated printing lines.
• Factory: Pharmaceutical production lines, food and beverage processing, packaging equipment, and chemical batching plants.
• Commercial: Large-scale HVAC control panels, central water treatment monitoring, and power generation management.
• Project Installation: Control cabinet modernization, panel retrofitting, and PLC-HMI upgrades across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ exacting engineering standards for continuous 24/7 duty cycles under heavy industrial conditions.
• Performance: High touch accuracy, robust fieldbus networking, and rapid visual rendering of complex automation layouts.
• Cost Effectiveness: Replacing or repairing an existing MP277 touch module saves up to 70% compared to full system re-architecting.
• After-Sales Value: Supported by genuine product verification, warranty guarantees, and localized engineering assistance through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Bright 10.4-inch TFT touch screen display with $640 \times 480$ pixels

✓ 6 MB internal user memory with retentive memory protection

✓ Multi-interface support: PROFINET Ethernet, MPI, PROFIBUS DP, and USB

✓ Rugged IP65 dust-tight and moisture-resistant front faceplate

✓ Compatible with WinCC Flexible and Siemens TIA Portal software

Benefits For Customers

• Improves Operational Reliability: Real-time alarms display exact process fault locations for fast maintenance response.
• Reduces Maintenance Cost: Replacing only the HMI unit retains existing PLC code and wiring layout, avoiding costly engineering re-design.
• Minimizes Machine Downtime: Fast drop-in installation gets textile stenters and dyehouse lines running quickly.
• Suitable for Bangladesh Environment: Heavy-duty front panel overlay protects against warm, humid, and dusty factory conditions in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Ensure the control cabinet cutout matches the standard $310 \text{ mm} \times 248 \text{ mm}$ opening dimensions.
2. Fit the protective rubber seal correctly around the bezel to maintain its IP65 rating.
3. Secure the MP277 module using the provided cabinet mounting clamps.
4. Wire to a regulated, filtered 24V DC power source and connect the PROFINET or PROFIBUS communication cables securely.

Maintenance Tips:

• Clean the front touch screen using a soft, non-abrasive microfiber cloth.
• Periodically check terminal blocks and fieldbus connector screws inside the panel to prevent loose connections caused by machine vibration.
• Keep control enclosure cooling fans clean to ensure ambient panel temperatures stay below 50°C.

Safety Instructions:

• Disconnect main power prior to opening control cabinets or connecting wiring terminals.
• Never use sharp, pointed metal tools on the touch glass screen overlay.

Frequently Asked Questions (FAQ)

Q: What is the price of HMI SIEMENS MP277 6AV6 643-0CD01-1AX0 SIMATIC MultiPanel 10inch in Bangladesh?

A: The current sales price of the Siemens MP277 10-inch HMI (6AV6643-0CD01-1AX0) in Bangladesh is available on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy HMI SIEMENS MP277 6AV6 643-0CD01-1AX0 SIMATIC MultiPanel 10inch in Bangladesh?

A: You can buy the genuine Siemens MP277 HMI module online directly from loopshop.com.bd with delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: This product comes with a standard checking and testing warranty from LOOP Shop to confirm operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, the IP65 front protection and wide operating temperature range make it suitable for dusty and humid textile and industrial plants in BD.

Q: How to install this product?

A: Cut the designated panel opening on your cabinet door, insert the unit with its sealing ring, tighten the mounting clamps, connect the 24V DC power plug, and attach the communication bus cable.

Q: Is the Siemens MP277 10-inch Touch suitable for Brückner stenter machines?

A: Yes, the Siemens MP277 series is widely used as the primary process control interface on Brückner and other European textile finishing stenters.

Q: Which software is used to program the Siemens MP277 10-inch HMI?

A: It is configured using Siemens WinCC Flexible (2005 SP1 or higher) or SIMATIC WinCC in TIA Portal.

Q: Does this panel support both PROFINET and PROFIBUS DP?

A: Yes, it includes built-in RS485 (PROFIBUS DP / MPI) and RJ45 Industrial Ethernet (PROFINET) ports.

Q: Does this unit have retentive memory?

A: Yes, it features retentive memory to preserve process values and recipe parameters in case of power interruption.

Q: Does LOOP Shop provide delivery outside Dhaka?

A: Yes, LOOP Shop delivers industrial automation equipment and PLC/HMI modules to all industrial regions across Bangladesh.
