Siemens LOGO! 8 TDE HMI Panel 6ED1055-4MH00-0BA1 12-24V AC/DC PLC Display

Description

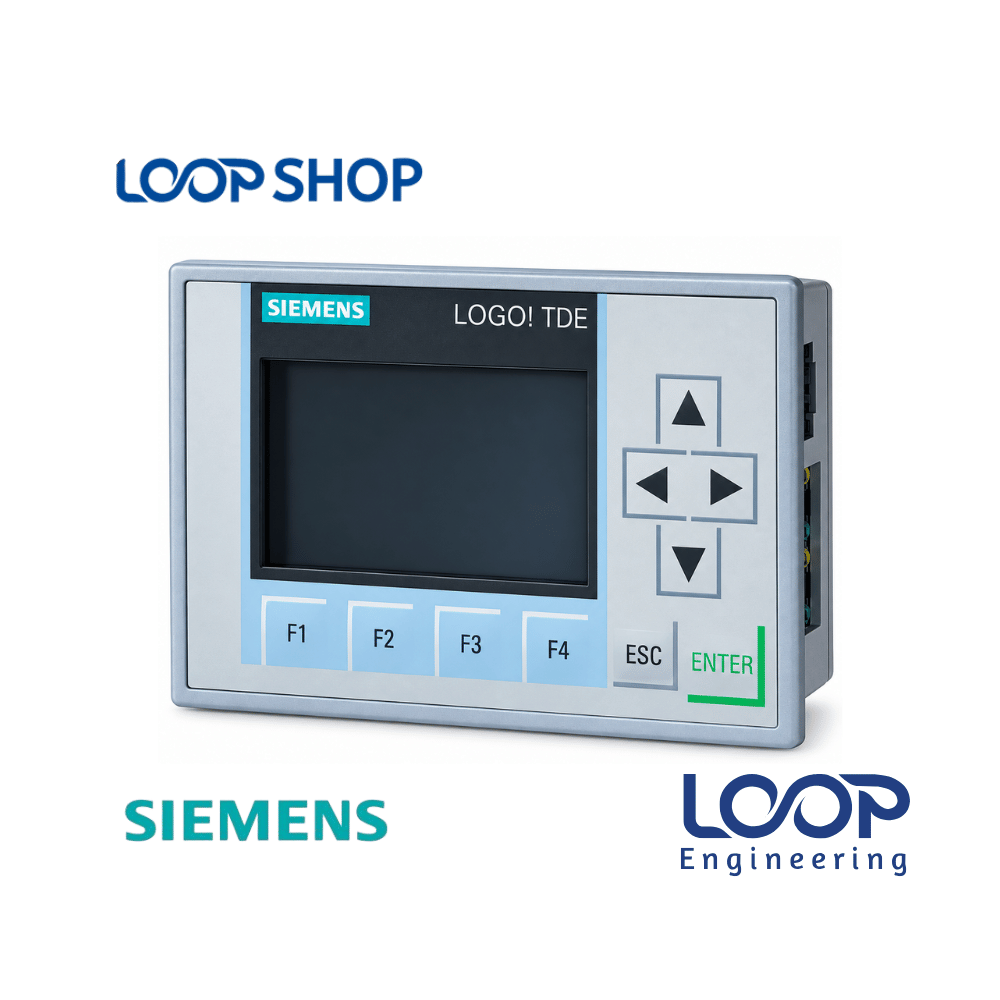

The Siemens LOGO! 8 TDE (6ED1055-4MH00-0BA1) is a dedicated Text Display HMI Panel designed to expand the human-machine interface capabilities of Siemens LOGO! 8 automation systems. Operating on a versatile 12–24V AC/DC power supply, this unit provides a clear, back-lit display allowing operators to view message texts, check system statuses, and modify process parameters directly from the control cabinet door.

Equipped with two integrated Ethernet ports, it acts as an onboard switch—simplifying network topology by allowing simultaneous connection to a LOGO! 8 controller and a programming PC or additional network node. Engineered for modern industrial environments, the LOGO! 8 TDE is essential for Bangladeshi factories, panel manufacturers, and automation engineers seeking cost-effective, real-time control and monitoring solutions.

Key Features

• Dual Ethernet Ports: Integrated 2-port Ethernet switch allows streamlined daisy-chain connection to controllers and networks.
• Backlit Display: Clear text visualization with customizable backlight colors (white, amber, red) for distinct alarm and operating status indication.
• Universal Voltage Input: Compatible with 12V to 24V AC/DC power supplies for versatile system integration.
• Tactile Operator Keys: Equipped with functional keys and navigation buttons for menu browsing and parameter entry.
• IP65 Front Protection: Rugged front panel design resistant to dust and water splashes suitable for harsh industrial conditions.

Technical Advantages

• Durable Construction: Industrial-grade panel casing designed to withstand industrial vibration, moisture, and dust exposure.
• Enhanced Safety Protection: Clear visual feedback via color-coded backlights helps operators react quickly to plant alarms and warnings.
• Easy Maintenance: Enables quick setpoint adjustments and diagnostic evaluations directly at the panel without connecting a laptop.
• Streamlined Networking: Dual Ethernet connectivity eliminates the need for an external switch in small automation setups, reducing panel footprint.

Applications

• Industrial: Machine control panels, conveyer control systems, and automated packaging lines.
• Factory: Textile automation panels, pharmaceutical manufacturing equipment, and water treatment processing units.
• Commercial: HVAC automation, elevator control systems, and centralized lighting monitoring panels.
• Project Installation: Custom PLC control panels, OEM machine manufacturing, and retrofit automation projects across Bangladesh.

Why Choose This Product?

• Reliability: Built with Siemens’ renowned industrial-grade quality, ensuring long-term stable operation in demanding environments.
• Performance: Real-time data transfer via standard Ethernet ensures fast visual feedback and responsive control action.
• Cost Effectiveness: Combines an HMI display and an Ethernet switch in one compact unit, saving panel space and hardware costs.
• After-Sales Value: Widely supported and globally standardized, making spare replacement and troubleshooting straightforward for local engineers.

Technical Specification Table

Features List

✓ Dual integrated Ethernet ports for simple daisy-chain networking

✓ Backlit display with multi-color alarm background options

✓ Operating supply voltage range of 12–24V AC/DC

✓ IP65 front-panel protection against dust and water ingress

✓ Built-in navigation keys for parameter editing and diagnostic checks

Benefits For Customers

• Improves Operational Reliability: Enables quick operator reaction through visible color-coded alarm backlighting.
• Saves Installation & Hardware Costs: Dual Ethernet ports eliminate the need for an additional network switch inside small panels.
• Simplifies Field Modifications: Allows engineers and technicians to modify timers and parameters on-site without a programming cable.
• Suitable for Bangladesh Environment: Built to tolerate variable industrial supply voltages (12-24V AC/DC) and dust-prone factory environments.

Installation & Maintenance Guide

Installation Requirements:

• Ensure the panel cutout dimensions match standard Siemens LOGO! TDE mounting dimensions before panel integration.
• Connect a stabilized 12–24V AC/DC power source with correct polarity.
• Use standard RJ45 Ethernet cables for communication with the LOGO! 8 main unit.
• Ensure proper panel sealing to maintain IP65 front protection against dust and moisture.

Maintenance Tips:

• Periodically check Ethernet patch cables and power terminal block connections for firm seating.
• Clean the display panel using a soft, lint-free cloth; avoid abrasive solvents or high-pressure water spray.
• Monitor backlighting performance and ensure panel ventilation inside the main cabinet is unobstructed.

Safety Instructions:

• De-energize the cabinet power supply prior to wiring or panel mounting/dismounting.
• Ensure grounding guidelines strictly follow Siemens industrial installation recommendations.
• Wiring must only be performed by qualified automation technicians or electrical engineers.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens LOGO! 8 TDE 6ED1055-4MH00-0BA1 in Bangladesh?

A: The price of the Siemens LOGO! 8 TDE HMI panel in Bangladesh varies based on stock availability and import rates. Please check loopshop.com.bd or contact our sales team for the latest pricing.

Q: Where can I buy Siemens LOGO! 8 TDE 6ED1055-4MH00-0BA1 in Bangladesh?

A: You can purchase genuine Siemens LOGO! 8 TDE HMI panels directly online through loopshop.com.bd with reliable island-wide delivery and support.

Q: What warranty does this product have?

A: It comes with a standard manufacturer/supplier guarantee against manufacturing defects. Check loopshop.com.bd policy terms during purchase.

Q: Is this suitable for Bangladesh climate?

A: Yes, with IP65 protection on the front face, it is designed to withstand typical industrial dust, ambient humidity, and temperature variations found in Bangladeshi factories.

Q: How to install this product?

A: Mount the TDE unit onto your cabinet door cut-out, connect the 12-24V AC/DC power supply, and link an Ethernet cable from one of its 2 ports to the LOGO! 8 base module.

Q: Is the Siemens LOGO! 8 TDE compatible with older LOGO! 0BA6 or 0BA7 units?

A: The LOGO! 8 TDE is specifically designed for Ethernet-enabled LOGO! 8 series logic modules.

Q: Does this display panel require a separate Ethernet switch?

A: No, it features 2 integrated Ethernet ports that act as a switch, allowing direct pass-through connections.

Q: Can I change backlight colors on the LOGO! 8 TDE?

A: Yes, the display backlight can be programmed to switch colors (e.g., white, amber, red) based on operating status or alarm conditions.

Q: What power supply is required to power the LOGO! 8 TDE panel?

A: It requires an external power supply operating within 12V to 24V AC or DC.

Q: Can parameter values be edited directly from the TDE screen?

A: Yes, using the built-in navigation keys, operators can modify allowed system variables and setpoints directly.
