Siemens KTP900 Basic HMI 9-Inch 6AV2123-2JB03-0AX0 Display Panel

Description

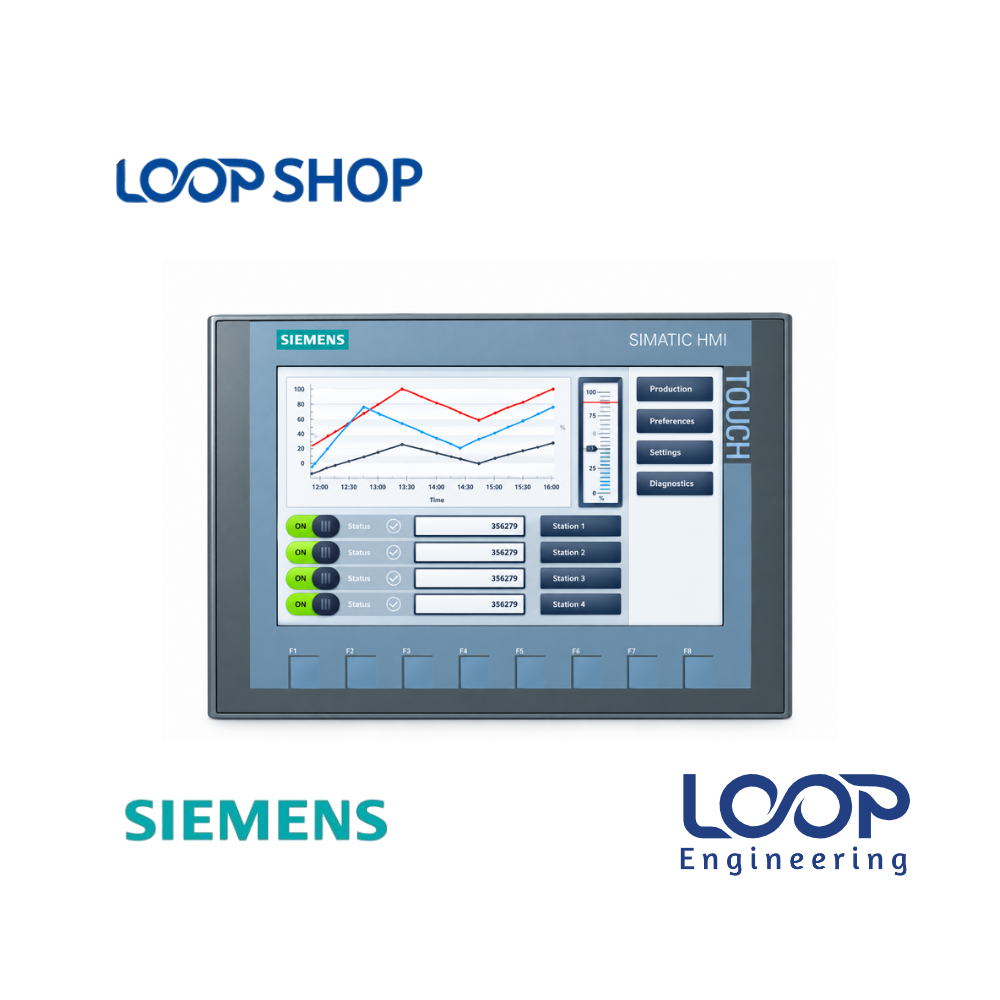

The Siemens SIMATIC HMI KTP900 Basic Panel (6AV2123-2JB03-0AX0) is an industrial-grade display solution designed to deliver simple, high-clarity visualization for compact to mid-sized automated machinery. Featuring a 9-inch high-resolution widescreen TFT display capable of rendering 65,536 colors, this panel supports both resistive touch operation and tactile membrane function keys for flexible operator interaction.

Engineered for seamless integration with Siemens SIMATIC S7 PLCs via the built-in PROFINET interface, the KTP900 Basic panel gives plant personnel real-time control over machine speed, alarms, recipe execution, and operational status. For factory managers, system integrators, and panel builders in Bangladesh, this unit offers an economical, durable, and space-efficient interface that optimizes production throughput while reducing operational overhead.

Key Features

• Hybrid Key & Touch Interface: Combines an analog-resistive touch screen with configurable tactile function keys for fast, accurate operator inputs.
• Vivid 9-Inch Widescreen Display: Sharp $800 \times 480$ WVGA resolution displaying up to 65,536 colors with dimmable backlighting.
• PROFINET Ethernet Port: Integrated RJ45 Ethernet port supporting PROFINET communication protocols for high-speed network connectivity.
• WinCC Engineering Suite Support: Simple, fast setup using WinCC Basic V13 or higher within the Siemens TIA Portal environment.
• USB Interface: Equipped with an onboard USB port for flash drives, firmware updates, keyboard connections, or project backups.

Technical Advantages

• High Efficiency: Reduced startup times and quick screen navigation enhance machine throughput and operator response speed.
• Durable Construction: Built with an IP65-rated front panel housing that protects internal electronics against factory airborne dust and moisture.
• Safety Protection: Built-in alarm logging, password user groups, and system diagnostics safeguard equipment against unauthorized adjustments.
• Energy Saving: Low-power ARM processor and energy-efficient LED backlighting minimize panel heat generation and power consumption.
• Easy Maintenance: Quick panel-mounting mechanism and standard 24V DC wiring make hardware replacements fast and hassle-free.

Applications

• Industrial: Food and beverage processing lines, plastics manufacturing, chemical mixing, and automated packaging equipment.
• Factory: Textile spinning, weaving, dyeing machinery, pharmaceutical manufacturing, and garment finishing setups.
• Commercial: Central HVAC monitoring, water treatment plants, and energy management systems.
• Project Installation: Machine retrofitting, control panel assembly, and factory automation upgrades throughout Bangladesh.

Why Choose This Product?

• Reliability: Engineered by Siemens to offer a Mean Time Between Failures (MTBF) of up to 20,000 hours under continuous industrial usage.
• Performance: Crisp graphical rendering, responsive touch performance, and real-time alarm reporting.
• Cost Effectiveness: Delivers standard HMI features at an attractive price point, saving overall capital expenditure for control cabinet projects.
• After-Sales Value: Supported by genuine product verification, warranty guarantees, and expert technical advice from LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Widescreen 9-inch 65,536-color TFT display ($800 \times 480$ resolution)

✓ Hybrid touch screen and tactile function key operation

✓ Integrated PROFINET (1x RJ45) fieldbus interface

✓ IP65 dust-tight and splash-water resistant front housing

✓ Configurable via WinCC Basic V13 / STEP 7 Basic V13 or higher

Benefits For Customers

• Improves Operational Reliability: Real-time diagnostics display exact process fault locations for quick troubleshooting.
• Saves Maintenance Cost: Low power consumption and rugged IP65 enclosure prevent premature component breakdown.
• Increases Production Speed: Clear visual graphics and physical function keys speed up routine machine adjustments.
• Suitable for Bangladesh Environment: Designed to withstand warm, humid, and dusty factory conditions common across BD.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out a panel mounting opening measuring $251 \text{ mm} \times 166 \text{ mm}$ on the cabinet door.
2. Place the supplied rubber sealing gasket around the front bezel to ensure an IP65 tight seal.
3. Insert the KTP900 unit into the cutout and tighten all mounting clamps evenly.
4. Connect a regulated 24V DC power supply line to the terminal block and attach the PROFINET Ethernet cable securely.

Maintenance Tips:

• Gently clean the front display using a dry, soft microfiber cloth or non-abrasive screen wipe.
• Avoid exposing the panel to aggressive solvent-based chemical sprays.
• Ensure control cabinet exhaust fans remain clean to maintain ambient operating temperatures below 50°C.

Safety Instructions:

• Always turn off the main control cabinet power before connecting or disconnecting power wires.
• Ensure proper earthing/grounding of the metal panel housing to protect against electrostatic discharge.
