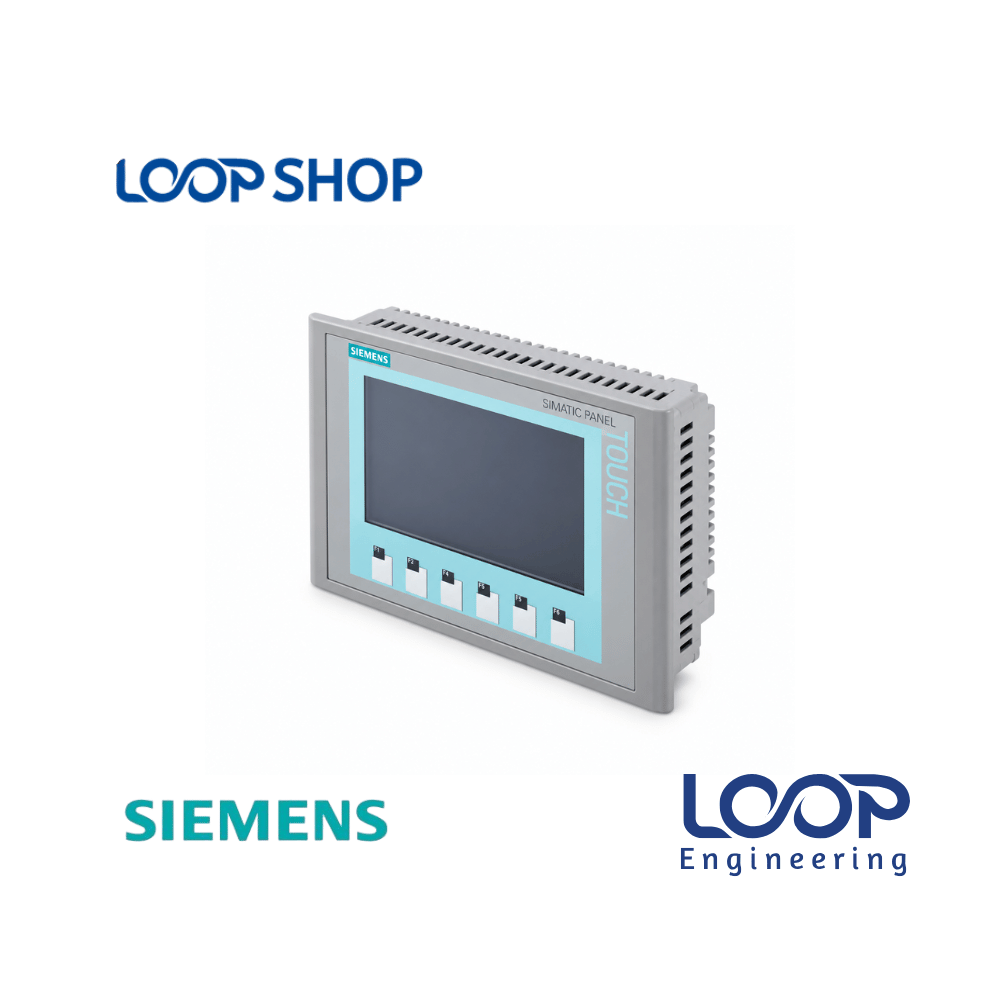

Siemens KTP600 Basic Color PN 6AV6647-0AD11-3AX0 HMI Panel BD

Description

The Siemens SIMATIC HMI KTP600 Basic Color PN Panel (6AV6647-0AD11-3AX0) is an industrial-grade operator interface engineered for efficient process control and monitoring on compact to mid-sized automated machinery. Featuring a 5.7-inch TFT display rendering 256 bright colors at $320 \times 240$ pixel resolution, this panel allows operators to manage process parameters, navigate system screens, track real-time alarms, and inspect machine diagnostics smoothly.

Equipped with an integrated RJ45 Industrial Ethernet port supporting PROFINET and TCP/IP protocols, the KTP600 Basic Color PN connects directly to Siemens SIMATIC S7-1200, S7-1500, S7-300, and S7-400 automation controllers. Widely utilized on textile processing machinery—including auxiliary operator stations on Brückner stenters, dyeing ranges, and packaging lines—this original panel provides factory engineers, machine builders, and maintenance specialists in Bangladesh with an authentic replacement unit that eliminates costly line stoppages.

Key Features

• 5.7-Inch Color TFT Display: Sharp $320 \times 240$ pixel matrix rendering 256 bright colors for clear visual process status and icon display.
• Hybrid Touch & Key Operation: Combines an analog-resistive touch screen with 6 tactile, freely assignable membrane function keys for flexible operator inputs.
• PROFINET Ethernet Interface: Integrated RJ45 Ethernet port supporting high-speed PROFINET and TCP/IP communication protocols.
• Flexible Mounting Orientation: Supports both horizontal (landscape) and vertical (portrait) installation to fit tight control cabinet doors.
• WinCC Flexible & TIA Portal Support: Easily configured using Siemens WinCC flexible 2008 (or higher) or WinCC Basic within TIA Portal.

Technical Advantages

• High Efficiency: Swift screen navigation and low latency over PROFINET Ethernet networks shorten batch setup times and streamline routine adjustments.
• Durable Construction: Features an IP65-rated front faceplate that protects internal electronics against factory airborne dust, lint, and moisture splatters.
• Safety Protection: Built-in multi-level password security and active system alarm logging ensure protected process access.
• Energy Saving: Dimmable LED backlight technology minimizes operational power consumption ($9 \text{ W}$ typical) and limits cabinet heat buildup.
• Easy Maintenance: Standard 24V DC pluggable terminal block and clip-in cabinet mounting simplify hardware installation and panel servicing.

Applications

• Industrial: Brückner stenter auxiliary control, textile dyeing machines, plastic extrusion, and automated packaging equipment.
• Factory: Textile yarn spinning, garment finishing, pharmaceutical processing lines, chemical dosing units, and printing presses.
• Commercial: Building HVAC control panels, pump stations, and water purification plants.
• Project Installation: Control cabinet assembly, OEM machine retrofitting, and PLC-HMI panel maintenance across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles ($50,000 \text{ hours}$ backlight MTBF).
• Performance: Bright color graphics, responsive touch tracking, and fast Industrial Ethernet communication with S7 PLCs.
• Cost Effectiveness: Delivers essential color visualization at a cost-effective price point, saving overall capital expenditure for machine repairs.
• After-Sales Value: Fully supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 5.7-inch 256-color TFT display panel ($320 \times 240$ pixel resolution)

✓ Dual-input operation: analog resistive touch screen and 6 tactile function keys

✓ Integrated RJ45 Ethernet port supporting PROFINET and TCP/IP communication

✓ IP65 dust-tight and splash-water resistant front bezel for industrial protection

✓ Configurable via Siemens WinCC Basic (TIA Portal) or WinCC flexible

Benefits For Customers

• Saves Maintenance Cost: Direct replacement for broken PROFINET 6-inch HMI panels without altering existing PLC logic.
• Improves Operational Reliability: Real-time alarm logging displays exact fault messages for instant operator response.
• Saves Cabinet Space: Shallow enclosure depth ($44 \text{ mm}$) allows easy fitting into compact control boxes.
• Suitable for Bangladesh Environment: Rugged IP65 front face defends against dusty, humid, and warm factory conditions in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel door cutout measuring $197 \text{ mm} \times 141 \text{ mm}$.
2. Position the supplied front rubber sealing gasket around the bezel to maintain its IP65 moisture seal.
3. Insert the KTP600 module into the cutout and tighten all mounting clamps evenly.
4. Wire a regulated 24V DC power supply line to the power connector and attach the RJ45 PROFINET Ethernet cable securely.

Maintenance Tips:

• Clean the display surface gently using a soft, non-abrasive dry microfiber cloth.
• Avoid applying alcohol, harsh chemical solvents, or abrasive cleaning wipes directly on the display screen.
• Check terminal blocks and RJ45 connector latches periodically to ensure solid contact despite machine vibration.

Safety Instructions:

• Always disconnect main electrical power prior to handling panel terminals or dismounting the HMI.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on Ethernet lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens KTP600 6AV6 647-0AD11-3AX0 for Stenter machine in Bangladesh?

A: The current sales price of the Siemens KTP600 Basic Color PN (6AV6647-0AD11-3AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy Siemens KTP600 6AV6 647-0AD11-3AX0 for Stenter machine in Bangladesh?

A: You can purchase the genuine Siemens KTP600 Basic Color PN panel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($197 \text{ mm} \times 141 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFINET Ethernet cable.

Q: Is the Siemens KTP600 Basic Color PN suitable for Brückner stenter machines?

A: Yes, it is widely utilized on Brückner stenters and textile finishing machinery as an auxiliary or sub-system operator display.

Q: What is the difference between KTP600 DP and KTP600 PN?

A: The KTP600 PN model (6AV6647-0AD11-3AX0) uses an RJ45 Ethernet port for PROFINET communication, whereas DP models use RS422/RS485 for PROFIBUS DP.

Q: Which software is used to program the Siemens KTP600 Basic Color HMI?

A: It is programmed using Siemens WinCC flexible 2008 (or higher) or WinCC Basic within TIA Portal.

Q: Does this panel feature function keys?

A: Yes, it includes 6 tactile, freely assignable function keys below the touch screen display area.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
