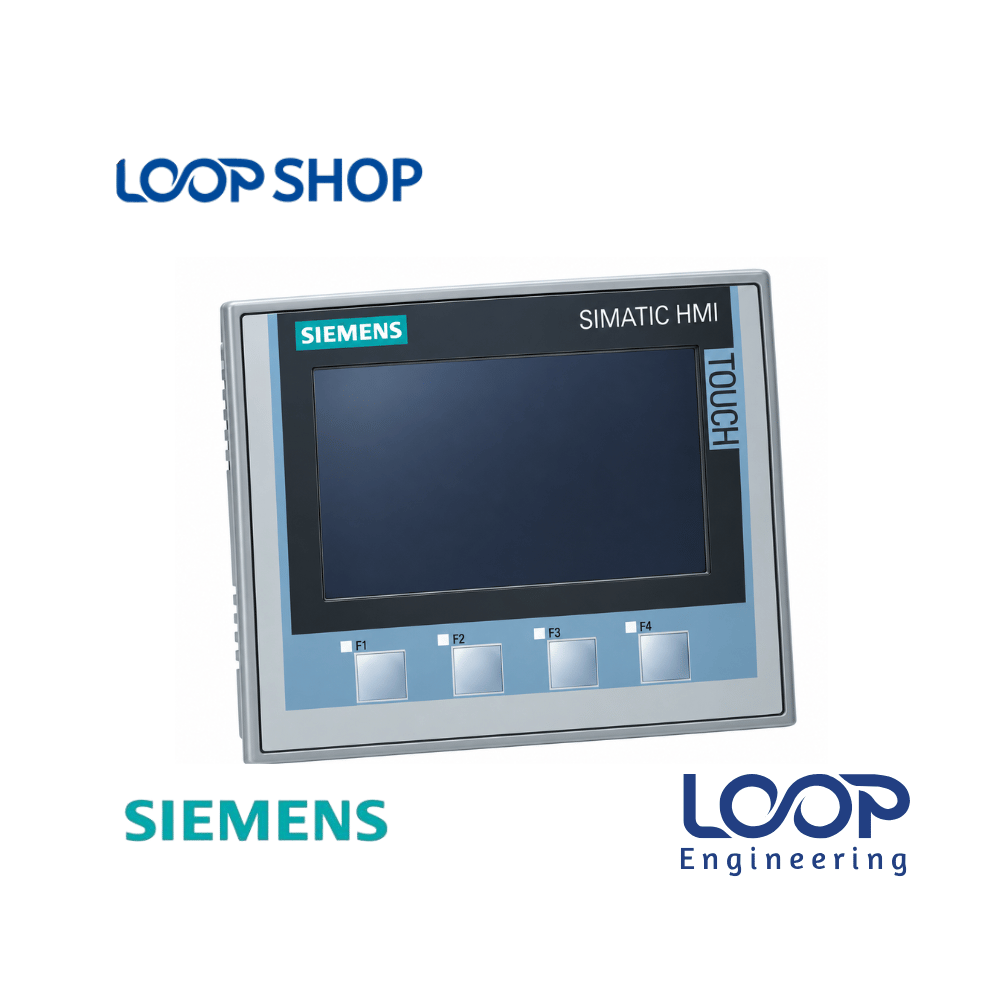

Siemens KTP400 Comfort HMI Panel 4-Inch 6AV2124-2DC01-0AX0 Touch

Description

The Siemens SIMATIC HMI KTP400 Comfort Panel (6AV2124-2DC01-0AX0) is an advanced, high-performance operator interface designed for compact automated machines requiring top-tier visualization and control capabilities. Featuring a 4.3-inch widescreen active-matrix TFT display rendering up to 16 million vibrant colors at $480 \times 272$ pixel resolution, this panel combines an intuitive analog-resistive touch overlay with 4 tactile, freely assignable function keys.

Powered by Windows CE and equipped with 4 MB of non-volatile user memory, the KTP400 Comfort executes demanding visual scripts, recipe databases, and high-speed process data logging effortlessly. For flexible fieldbus integration, it features an integrated PROFINET Industrial Ethernet port alongside an RS422/RS485 combo interface for MPI and PROFIBUS DP networks. For panel builders, OEMs, and maintenance technicians in Bangladesh, this original Comfort panel provides an authentic replacement or upgrade solution that guarantees high machine uptime and precise operational supervision.

Key Features

• 4.3-Inch Widescreen TFT Display: High-definition $480 \times 272$ pixel resolution with 16 million colors for crisp process mimic diagrams, status icons, and trend graphics.
• Hybrid Key & Touch Control: Combines a responsive touch screen with 4 tactile membrane function keys for versatile operator inputs.
• 4 MB Configuration Memory: Dedicated internal memory capacity for storing complex WinCC projects, alarm archives, and detailed recipe tables.
• Integrated PROFINET & PROFIBUS: Features an RJ45 PROFINET Industrial Ethernet port alongside an RS422/RS485 interface supporting MPI and PROFIBUS DP protocols.
• TIA Portal WinCC Engineering: Configured seamlessly using Siemens SIMATIC WinCC Comfort (within TIA Portal V11 or higher).

Technical Advantages

• High Efficiency: Rapid screen refresh rates and fast fieldbus polling prevent communication delays on high-speed automated lines.
• Durable Construction: Rugged front bezel with an IP65 moisture- and dust-resistant seal withstands harsh factory contaminants.
• Safety Protection: Integrated multi-level user password administration, active system diagnostic logs, and security protocols prevent operational errors.
• Energy Saving: Dimmable LED backlighting ($80,000 \text{ hours}$ MTBF at $25^\circ\text{C}$) lowers active power draw ($12 \text{ W}$ typical) and limits cabinet heat buildup.
• Easy Maintenance: Integrated USB 2.0 host port permits rapid project updates, firmware backups, and peripheral device connections via standard flash drives.

Applications

• Industrial: High-speed packaging machinery, plastic sealing equipment, chemical dosing units, and conveyor sorting systems.
• Factory: Textile yarn spinning auxiliaries, garment processing machinery, pharmaceutical tablet presses, and labeling lines.
• Commercial: Centralized building automation boxes, small pump stations, and water purification units.
• Project Installation: Control cabinet retrofitting, OEM machine builds, and high-end PLC-HMI panel modernization projects across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ highest industrial standards for continuous 24/7 duty cycles under demanding plant conditions.
• Performance: Exceptional graphical rendering power, dual fieldbus connectivity (PROFINET & PROFIBUS), and responsive touch tracking across S7 automation architectures.
• Cost Effectiveness: Sourcing an original KTP400 Comfort panel replaces damaged hardware directly without requiring expensive complete system re-engineering.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 4.3-inch widescreen TFT display with 16 million colors ($480 \times 272$ resolution)

✓ Dual-input operation: analog resistive touch screen and 4 tactile function keys

✓ 4 MB onboard user memory for complex scripts, recipe management, and trend logs

✓ Integrated PROFINET Ethernet (RJ45) and RS422/RS485 (MPI/PROFIBUS DP) ports

✓ Heavy-duty IP65 dust-tight and splash-water resistant front bezel

Benefits For Customers

• Saves Maintenance Capital: Replaces damaged 4-inch Comfort panels directly without altering host PLC code or cabinet layouts.
• Reduces Cabinet Space: Compact enclosure dimensions ($140 \text{ mm} \times 116 \text{ mm}$) fit easily on shallow control box doors.
• Improves Operational Reliability: High-definition widescreen workspace displays exact fault codes and process trends for fast operator response.
• Suitable for Bangladesh Environment: Rugged IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel door cutout measuring $123 \text{ mm} \times 98 \text{ mm}$ to match the KTP400 Comfort mounting profile.
2. Position the perimeter rubber seal properly within the bezel groove to preserve its IP65 moisture rating.
3. Insert the unit into the cutout, tighten all cabinet mounting clamps evenly, and connect the 24V DC power terminals alongside network cables.
4. Maintain adequate ventilation clearance behind the rear chassis inside the electrical enclosure.

Maintenance Tips:

• Clean the touch screen surface using a soft, non-abrasive dry microfiber cloth.
• Avoid applying harsh industrial chemical solvents, strong alcohol, or abrasive cleaning wipes directly onto the display glass.
• Periodically check terminal connections and Ethernet latches inside the cabinet to prevent loosening caused by machine vibration.

Safety Instructions:

• Always disconnect main electrical power to the panel before handling wiring connectors or dismounting the HMI.
• Ensure proper protective earthing (PE) of the mounting frame to eliminate electromagnetic interference on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens ktp400 HMI 6AV2 124-2DC01-0AX0 Comfort Panel in Bangladesh?

A: The current sales price of the Siemens KTP400 Comfort Panel (6AV2124-2DC01-0AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and pricing details.

Q: Where can I buy Siemens ktp400 HMI 6AV2 124-2DC01-0AX0 Comfort Panel in Bangladesh?

A: You can purchase the genuine Siemens KTP400 Comfort Panel online directly from loopshop.com.bd with secure courier delivery across all industrial regions in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is engineered for demanding industrial plants in BD.

Q: How to install this product?

A: Prepare the cabinet door cutout ($123 \text{ mm} \times 98 \text{ mm}$), insert the unit with its sealing ring, secure mounting clamps, wire 24V DC power terminals, and attach the PROFINET or PROFIBUS network cables.

Q: Which software is used to program the Siemens KTP400 Comfort Panel?

A: It is programmed using Siemens SIMATIC WinCC Comfort within the TIA Portal engineering framework (V11 or higher).

Q: What is the difference between KTP400 Basic and KTP400 Comfort?

A: The KTP400 Comfort (6AV2124-2DC01-0AX0) offers 16 million colors, 4 MB memory, higher processing speed, scripts, and dual fieldbus ports (PROFINET + PROFIBUS DP), whereas Basic models feature fewer colors and single interface options.

Q: What communication protocols are available on this model?

A: It features an integrated RJ45 PROFINET Industrial Ethernet port as well as an RS422/RS485 port supporting PROFIBUS DP and MPI.

Q: Can I back up project data using a USB flash drive?

A: Yes, the built-in USB 2.0 host port allows project backups, recipe data transfers, and firmware updates using a standard USB flash drive.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation products to Chittagong, Gazipur, Narayanganj, Savar, and all other industrial zones across Bangladesh.
