Siemens KTP400 Basic Color PN 6AV6647-0AK11-3AX0 HMI Panel BD

Description

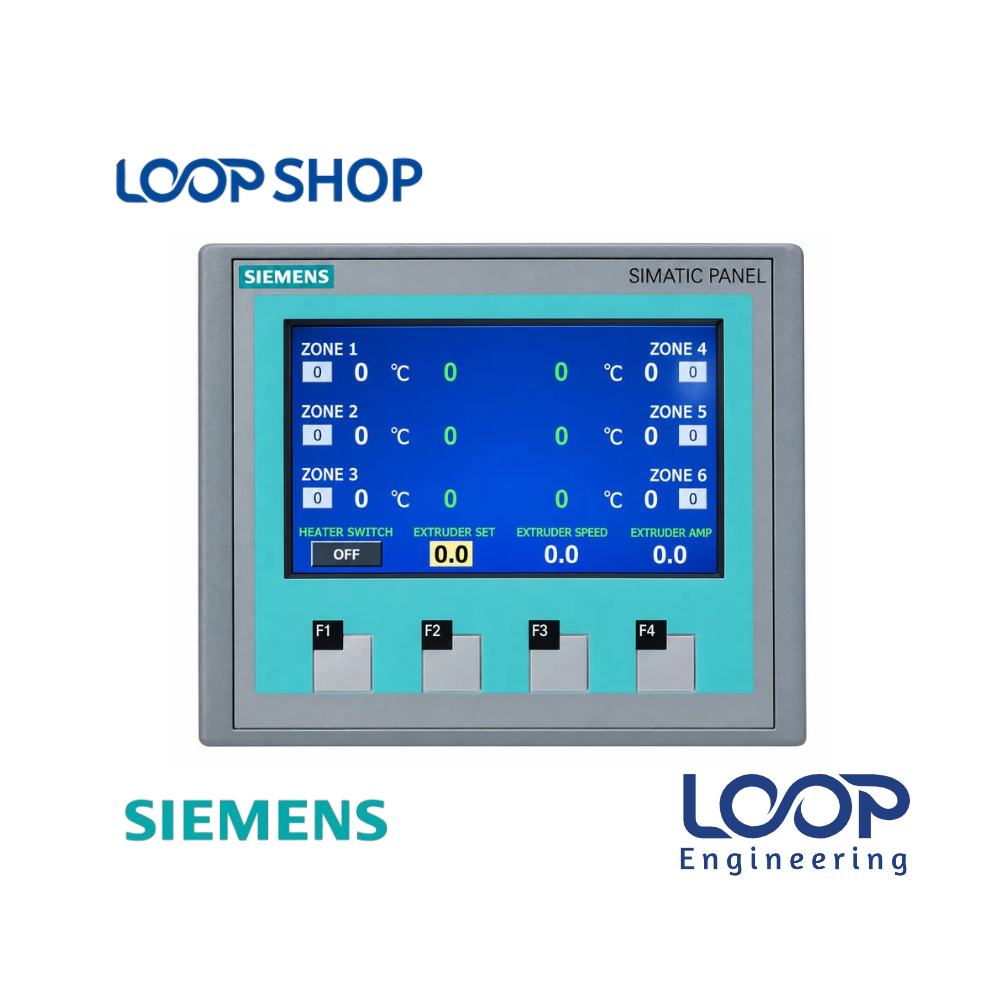

The Siemens SIMATIC HMI KTP400 Basic Color PN Panel (6AV6647-0AK11-3AX0) is an entry-level operator interface engineered for straightforward process visualization and control on small-to-medium machinery. Featuring a bright 3.8-inch widescreen TFT display rendering 256 colors at $480 \times 272$ pixel resolution, this panel combines analog-resistive touch operation with 4 tactile, freely assignable function keys for flexible operator control.

Equipped with an integrated RJ45 Industrial Ethernet port supporting PROFINET communication protocols, the KTP400 Basic Color PN connects directly to Siemens SIMATIC S7-1200, S7-1500, S7-300, and LOGO! controllers. For factory managers, control panel builders, and maintenance engineers in Bangladesh, this unit serves as a compact, budget-friendly replacement panel that restores real-time diagnostic reporting and parameter monitoring while keeping downtime to a minimum.

Key Features

• 3.8-Inch Widescreen Color TFT: Sharp $480 \times 272$ pixel resolution displaying 256 colors for clear status icons, parameter readouts, and alarm text.
• Hybrid Touch & Key Operation: Combines an analog-resistive touch screen with 4 tactile function keys for flexible operator input.
• PROFINET Ethernet Interface: Integrated RJ45 Ethernet port supporting PROFINET and TCP/IP protocols for high-speed fieldbus data transfer.
• Compact Footprint: Space-saving panel dimensions designed to fit shallow enclosure doors and small operator control boxes.
• TIA Portal & WinCC Flexible Support: Easily configured using Siemens WinCC Basic V11 SP2 / STEP 7 Basic V11 SP2 or higher engineering suites.

Technical Advantages

• High Efficiency: Swift screen navigation and low communication latency shorten setup times during routine batch changes.
• Durable Construction: Features an IP65-rated front panel faceplate that protects internal electronics against factory airborne dust, lint, and light splatters.
• Safety Protection: Built-in multi-level user password administration and active alarm archives ensure safe, controlled system access.
• Energy Saving: Efficient LED backlight technology minimizes operational power consumption ($3 \text{ W}$ typical) and limits internal cabinet heating.
• Easy Maintenance: Standard 24V DC pluggable terminal block and clip-in mounting clamps simplify hardware installation and servicing.

Applications

• Industrial: Compact packaging machinery, plastic sealing equipment, chemical dosing systems, and conveyor sorting lines.
• Factory: Textile yarn spinning auxiliaries, garment processing machinery, pharmaceutical tablet presses, and labeling units.
• Commercial: Building management systems, small pump stations, and water filtration control boxes.
• Project Installation: Control cabinet builds, OEM machine retrofitting, and PLC-HMI panel maintenance across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles under plant floor conditions.
• Performance: Clear 256-color graphics, responsive touch tracking, and seamless Industrial Ethernet networking with SIMATIC PLCs.
• Cost Effectiveness: Delivers essential color visualization at a cost-effective price point, saving overall capital expenditure for machine repairs.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 3.8-inch 256-color TFT widescreen display ($480 \times 272$ pixel resolution)

✓ Dual-input operation: touch screen and 4 tactile, freely assignable function keys

✓ Integrated RJ45 Ethernet port supporting PROFINET communication

✓ IP65 dust-tight and splash-water resistant front bezel

✓ Configurable via WinCC Basic V11 SP2 or higher in TIA Portal

Benefits For Customers

• Saves Maintenance Cost: Direct replacement for broken 4-inch PROFINET HMI panels without rewriting host PLC logic.
• Reduces Cabinet Space: Compact dimensions ($140 \text{ mm} \times 116 \text{ mm}$) allow easy fitting on shallow enclosure doors.
• Improves Operational Reliability: Real-time alarm logging displays exact fault messages for instant operator response.
• Suitable for Bangladesh Environment: Rugged IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel cutout measuring $123 \text{ mm} \times 98 \text{ mm}$ on the cabinet door.
2. Position the supplied front rubber sealing gasket around the bezel to maintain its IP65 moisture rating.
3. Insert the KTP400 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire a regulated 24V DC power supply line to the power connector and attach the RJ45 PROFINET Ethernet cable securely.

Maintenance Tips:

• Gently clean the display surface using a soft, non-abrasive dry microfiber cloth.
• Avoid applying alcohol, harsh chemical solvents, or abrasive cleaning wipes directly on the touch screen face.
• Check terminal blocks and Ethernet connector latches periodically to ensure solid contact despite machine vibration.

Safety Instructions:

• Always turn off main control panel power before connecting power terminals or mounting the panel.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI KTP400 BASIC COLOR PN 6AV6 647-0AK11-3AX0 in Bangladesh?

A: The current sales price of the Siemens KTP400 Basic Color PN (6AV6647-0AK11-3AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy Siemens HMI KTP400 BASIC COLOR PN 6AV6 647-0AK11-3AX0 in Bangladesh?

A: You can purchase the genuine Siemens KTP400 Basic Color PN panel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($123 \text{ mm} \times 98 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFINET Ethernet cable.

Q: What is the difference between KTP400 Basic Color PN and KTP400 Basic Color DP?

A: The KTP400 Basic Color PN model (6AV6647-0AK11-3AX0) uses an RJ45 Ethernet port for PROFINET communication, whereas DP models use RS422/RS485 for PROFIBUS DP.

Q: Which software is used to program the Siemens KTP400 Basic Color PN HMI?

A: It is programmed using Siemens WinCC Basic V11 SP2 (or STEP 7 Basic V11 SP2) and newer versions within TIA Portal.

Q: Does this panel feature tactile function keys?

A: Yes, it features 4 tactile, freely assignable function keys located beneath the touch screen display area.

Q: Can this HMI connect directly to a Siemens S7-1200 PLC?

A: Yes, it connects seamlessly to S7-1200, S7-1500, S7-300, and LOGO! controllers via its integrated RJ45 PROFINET Ethernet port.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
