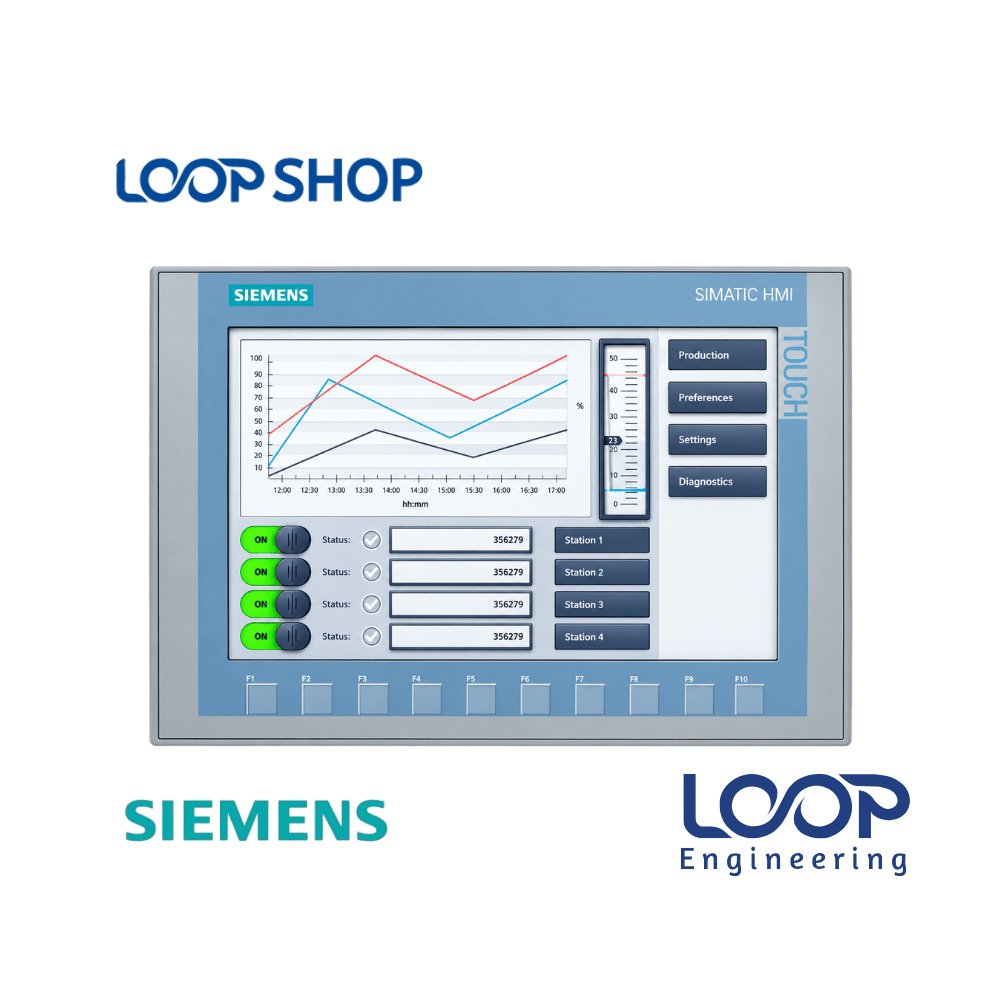

Siemens KTP1200 Basic HMI Panel 12-Inch Touch Display 6AV2123-2MB03-0AX0

Description

The Siemens SIMATIC HMI KTP1200 Basic (6AV2123-2MB03-0AX0) is a high-efficiency Human Machine Interface designed for advanced visualization and process control in industrial environments. Featuring a spacious 12-inch high-resolution widescreen TFT display, it allows plant engineers and operators to monitor, manage, and diagnose complex automated systems with high precision.

By providing seamless integration with various PLCs and field devices, the KTP1200 Basic converts complex process data into clear graphics, alarms, and real-time trends. Automation engineers and plant managers across Bangladesh rely on this HMI panel for its robust construction, stable continuous operation, and reliable multi-device connectivity.

Key Features

• 12-Inch High-Resolution TFT Display: Delivers crisp 1280 x 800 pixel resolution with 65,536 colors and dimmable LED backlighting.
• Touch & Key Operation: Combines touch screen control with 10 configurable function keys for rapid tactile execution.
• PROFIBUS Interface: Features integrated PROFIBUS DP (RS422/RS485) communication ports for smooth connection to S7 PLCs and legacy controllers.
• High IP Rating: IP65 protected front enclosure ensures full defense against dust, moisture, and chemical splashes.
• Flexible Mounting: Supports both vertical (portrait) and horizontal (landscape) installation modes.
• TIA Portal Configuration: Easily engineered using WinCC Basic or higher versions in Siemens TIA Portal.

Technical Advantages

• Durable Construction: Industrial-grade housing designed to withstand extreme vibration, electrical noise, and hostile ambient conditions.
• Energy-Efficient LED Backlight: Features long-life, dimmable LED backlighting (0–100%) that reduces thermal output and conserves power.
• Easy Maintenance: Quick project updates and data backup functionality using standard memory tools via TIA Portal.
• Safety Protection: Integrated user administration, password-protected security levels, and non-volatile alarm buffering.

Applications

• Industrial Facilities: Machine automation, packaging plants, automated assembly lines, and material handling systems.
• Factory Environments: Textile mills, spinning units, dyeing machines, and food & beverage production lines.
• Commercial & Utility Projects: Water purification plants, HVAC systems, and power distribution control panels.
• Project Installation: Ideal for system integrators executing new automation installations or retrofitting older machines across Bangladesh.

Why Choose This Product?

• High Operational Reliability: Premium Siemens engineering ensures long service life with minimal maintenance downtime.
• Optimized Performance: Fast response times for screen changes, alarm triggers, and graphic rendering.
• Cost-Effective Scalability: Offers high-end 12-inch display capabilities at an economical price point for mid-tier to large factory projects.
• Trusted Local Sourcing: Backed by authentic product sourcing and reliable customer service through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

• ✓ 12-inch widescreen TFT display (1280 x 800 resolution)
• ✓ Integrated touch screen with 10 tactile function keys
• ✓ Built-in PROFIBUS DP / MPI communication interface
• ✓ IP65 rated front protection against water and industrial dust
• ✓ Configurable with Siemens WinCC (TIA Portal) V13 or higher
• ✓ Energy-saving dimmable LED backlight

Benefits For Customers

• Improves Operational Reliability: Large, detailed display layout minimizes operator errors and speeds up process monitoring.
• Reduces Maintenance Cost: Rugged build reduces mechanical failure risks and downtime in harsh environments.
• Saves Energy: Low power consumption through intelligent LED backlight dimming.
• Suitable for Bangladesh Environment: Operates smoothly under high ambient temperatures (up to 50 °C) common in local factory floors.

Installation & Maintenance Guide

Installation Requirements:

• Mount the unit in a clean control panel cutout (Cutout dimensions: 344 mm x 222 mm).
• Ensure at least 15 mm clearance around the rear enclosure for proper air circulation and thermal dissipation.
• Connect to a stable, regulated 24 V DC power line with proper external circuit protection.

Maintenance Tips:

• Periodically inspect wiring terminals, grounding cables, and communication connectors for tight, corrosion-free contact.
• Clean the touchscreen surface using a soft, dry cloth or mild industrial glass cleaner; never use abrasive chemicals or acetone.
• Keep regular software project backups on your host system or USB storage via TIA Portal.

Safety Instructions:

• Always isolate electrical power from the cabinet before installing, removing, or wiring the HMI unit.
• Properly ground the device ground terminal to protect sensitive electronics against static discharge and line noise.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SIMATIC HMI KTP1200 Basic 6AV2123-2MB03-0AX0 in Bangladesh?

A: For current pricing, stock availability, and official quotation details in Bangladesh, please visit loopshop.com.bd or contact our customer support.

Q: Where can I buy original Siemens KTP1200 Basic HMI in Bangladesh?

A: You can purchase genuine Siemens industrial products online directly from LOOP Shop at loopshop.com.bd.

Q: What is the display size and resolution of the KTP1200 Basic?

A: The KTP1200 Basic features a 12.0-inch widescreen TFT display with a resolution of 1280 x 800 pixels and 65,536 colors.

Q: Does this model support PROFIBUS or PROFINET?

A: The part number 6AV2123-2MB03-0AX0 specifically features a PROFIBUS DP / MPI communication port (RS422/RS485).

Q: What warranty does this product have?

A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific details.

Q: Is this suitable for Bangladesh climate?

A: Yes, it features an IP65 rated front panel resistant to dust and moisture and operates in ambient temperatures up to 50 °C.

Q: How to install this product?

A: Cut a 344 mm x 222 mm opening in the control panel door, secure the HMI using the provided mounting clamps, and connect to a 24 V DC power supply.

Q: Which engineering software is required for programming?

A: It is programmed using Siemens SIMATIC WinCC Basic (or higher) in the TIA Portal framework.

Q: Does it support both touch and button operations?

A: Yes, it has an analog resistive touch screen along with 10 tactile, freely assignable function keys.

Q: Can LOOP Shop deliver this product outside Dhaka?

A: Yes, LOOP Shop delivers industrial automation equipment to all districts and industrial zones across Bangladesh.
