Siemens KTP1200 Basic HMI Panel 12-Inch 6AV2123-2MB03-0AX0 PN

Description

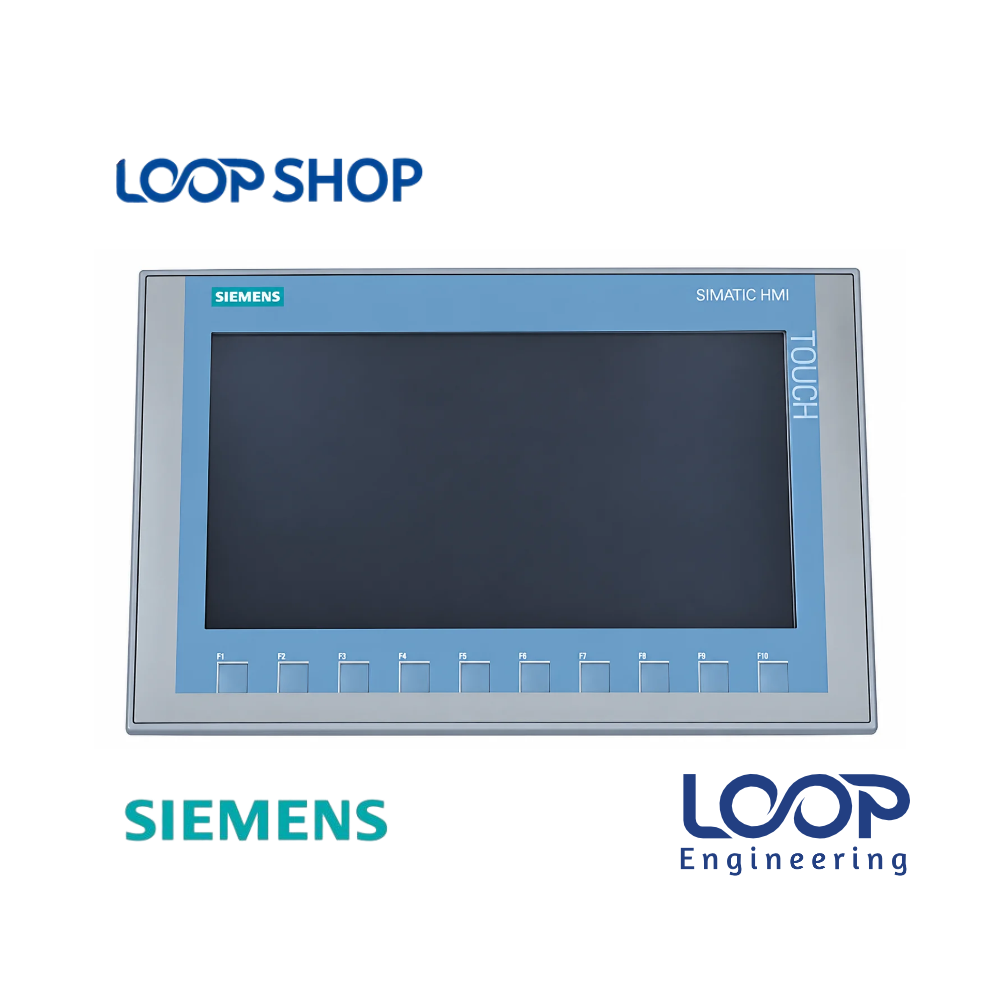

The Siemens SIMATIC HMI KTP1200 Basic PN Panel (6AV2123-2MB03-0AX0) is an advanced 12-inch industrial operator interface designed to bring clear visualization and reliable control to mid-to-large automated systems. Featuring a high-resolution $1280 \times 800$ pixel WXGA TFT widescreen display rendering 65,536 vivid colors, this panel combines analog-resistive touch operation with 10 tactile, freely assignable function keys for versatile operator interaction.

Equipped with an integrated PROFINET Ethernet (RJ45) interface, the KTP1200 Basic PN connects directly to Siemens SIMATIC S7-1200, S7-1500, S7-300, S7-400, and LOGO! controllers over standard Industrial Ethernet networks. For factory managers, panel builders, and automation engineers in Bangladesh, this unit provides a spacious, cost-effective display terminal that enhances real-time process monitoring, alarm tracking, and recipe execution while minimizing operational downtime.

Key Features

• 12-Inch Widescreen Display: High-resolution $1280 \times 800$ WXGA display presenting 65,536 colors with wide viewing angles for detailed process schematics.
• Hybrid Touch & Key Control: Combines an analog resistive touch screen with 10 tactile membrane function keys for flexible operator inputs.
• PROFINET Ethernet Port: Built-in RJ45 Ethernet interface supporting PROFINET communication protocols for high-speed PLC data transfer.
• USB Host Port: Integrated USB 2.0 port for easy flash drive backups, recipe transfers, keyboard connection, and firmware updates.
• TIA Portal Engineering: Easily configured using Siemens WinCC Basic (TIA Portal V13 or higher) engineering software.

Technical Advantages

• High Efficiency: Swift screen navigation, quick boot times, and responsive touch tracking shorten batch changeover times.
• Durable Construction: Built with an IP65-rated front panel bezel that resists airborne dust, lint, and light liquid splatters.
• Safety Protection: Built-in user password administration, active alarm archives, and real-time system diagnostic displays prevent operator errors.
• Energy Saving: Dimmable LED backlight technology reduces total power draw ($510 \text{ mA}$ at 24V DC) and limits heat buildup inside control cabinets.
• Easy Maintenance: Standardized cabinet mounting clamps and 24V DC terminal blocks simplify hardware installation and maintenance.

Applications

• Industrial: Automated packaging equipment, plastics manufacturing, chemical mixing tanks, and conveyor sorting lines.
• Factory: Textile spinning, weaving, and dyeing machinery, pharmaceutical tablet presses, and food processing lines.
• Commercial: Central building control systems, water filtration plants, and power distribution monitoring.
• Project Installation: Control cabinet modernization, OEM machinery assembly, and PLC-HMI panel retrofitting across Bangladesh.

Why Choose This Product?

• Reliability: Built to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles ($20,000 \text{ hours}$ backlight MTBF).
• Performance: Expansive 12-inch visual workspace, fast Ethernet data polling, and clear trend curve rendering.
• Cost Effectiveness: Delivers large-format visualization at a cost-effective price point, saving overall capital expenditure for panel projects.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ Large 12-inch 65,536-color TFT widescreen display ($1280 \times 800$ resolution)

✓ Hybrid touch screen with 10 tactile, freely assignable function keys

✓ Integrated RJ45 Ethernet port supporting PROFINET communication

✓ IP65 dust-tight and splash-water resistant front bezel

✓ Configurable via WinCC Basic V13 (TIA Portal) or higher

Benefits For Customers

• Saves Maintenance Cost: Direct replacement panel for broken PROFINET HMIs without altering existing PLC code.
• Improves Operational Reliability: Displays real-time alarm codes and trend graphs across a spacious 12-inch workspace for instant troubleshooting.
• Minimizes Production Downtime: Quick drop-in installation gets processing plants back online fast.
• Suitable for Bangladesh Environment: IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel cutout measuring $344 \text{ mm} \times 222 \text{ mm}$ on the cabinet door.
2. Position the supplied rubber sealing gasket around the bezel to ensure an IP65 moisture-tight seal.
3. Insert the KTP1200 panel into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire a regulated 24V DC power supply line to the terminal block and attach the RJ45 PROFINET Ethernet cable securely.

Maintenance Tips:

• Gently clean the front display using a dry, soft microfiber cloth or non-abrasive wipe.
• Avoid spraying alcohol, harsh chemical solvents, or abrasive liquids directly on the touch screen face.
• Check terminal blocks and Ethernet connector latches periodically to ensure solid contact despite machine vibration.

Safety Instructions:

• Always turn off main control panel power before connecting power terminals or mounting the panel.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI 6AV2 123-2MB03-0AX0 | KTP1200 BASIC PANEL in Bangladesh?

A: The current sales price of the Siemens KTP1200 Basic PN HMI (6AV2123-2MB03-0AX0) in BD is listed on loopshop.com.bd. Contact us directly or visit our online store for live pricing and stock availability.

Q: Where can I buy Siemens HMI 6AV2 123-2MB03-0AX0 | KTP1200 BASIC PANEL in Bangladesh?

A: You can purchase the genuine Siemens KTP1200 Basic PN panel online directly from loopshop.com.bd with delivery options across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard warranty provided by LOOP Shop to guarantee product authenticity and working order upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature limit up to 50°C, it is well suited for industrial factory conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($344 \text{ mm} \times 222 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFINET Ethernet cable.

Q: What is the difference between KTP1200 Basic PN and KTP1200 Basic DP?

A: The KTP1200 Basic PN model (6AV2123-2MB03-0AX0) features PROFINET Ethernet (RJ45) communication, whereas the DP model uses PROFIBUS DP / MPI (RS422/RS485).

Q: Which software is used to program the Siemens KTP1200 Basic PN HMI?

A: It is programmed using Siemens WinCC Basic V13 (or STEP 7 Basic V13) and newer versions within TIA Portal.

Q: Does this panel support function keys?

A: Yes, it features 10 tactile membrane function keys positioned alongside the touch screen display area.

Q: Can I backup data using a USB flash drive?

A: Yes, the built-in USB host port allows recipe transfers, project backups, and firmware updates via a standard USB flash drive.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
