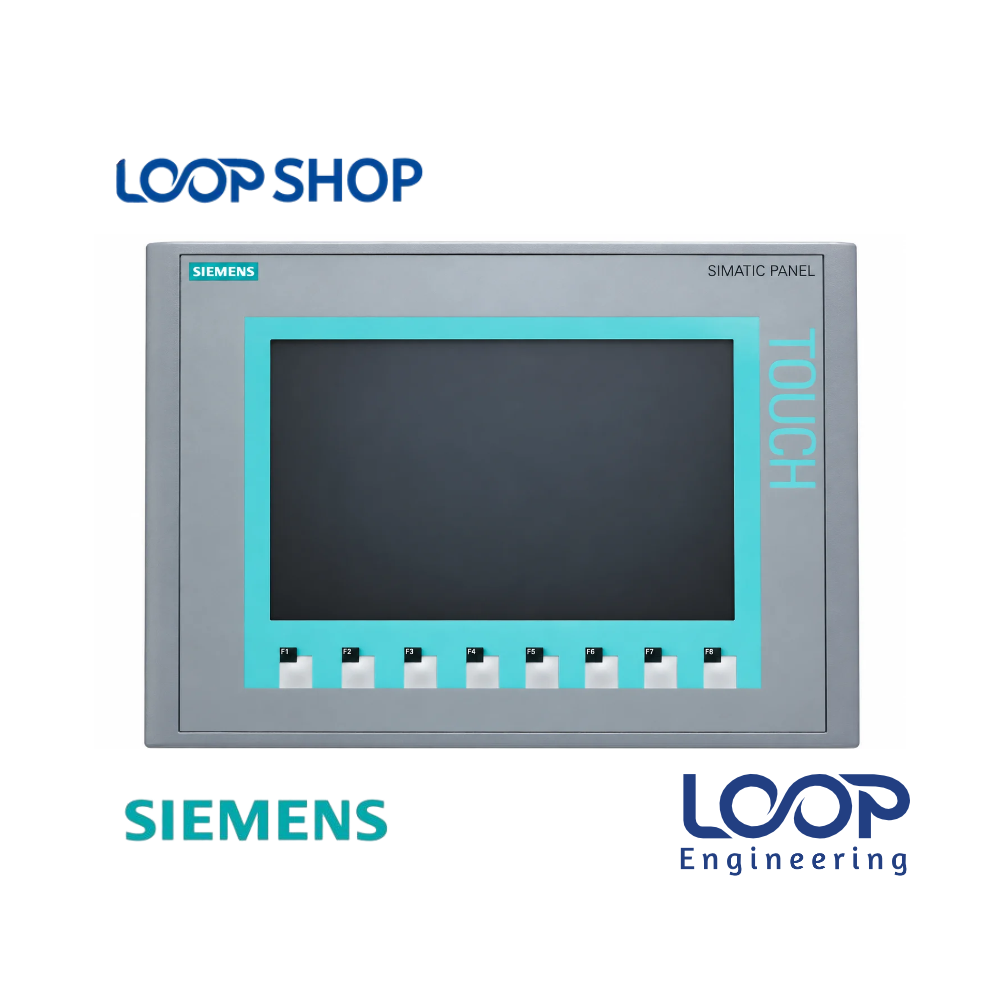

Siemens KTP1000 Basic Color DP 6AV6647-0AE11-3AX0 HMI Panel BD

Description

The Siemens SIMATIC HMI KTP1000 Basic Color DP Panel (6AV6647-0AE11-3AX0) is an industrial operator interface designed to bring comprehensive process visualization and reliable tactile control to medium-and-large automated systems. Featuring a crisp 10.4-inch TFT display rendering 256 bright colors at $640 \times 480$ pixel VGA resolution, this panel combines an intuitive touch screen with 8 tactile, freely assignable function keys for flexible operator interaction.

Equipped with an integrated SUB-D 9-pin RS422/RS485 fieldbus interface supporting MPI and PROFIBUS DP protocols (up to $12 \text{ Mbit/s}$), the KTP1000 Basic Color DP connects directly to Siemens SIMATIC S7-300, S7-400, and S7-1200/1500 controllers. For factory managers, control panel builders, and maintenance engineers in Bangladesh, this unit provides a spacious, cost-effective display terminal that enhances real-time process monitoring, alarm tracking, and recipe execution while minimizing operational downtime.

Key Features

• 10.4-Inch Color TFT Display: Sharp $640 \times 480$ pixel VGA matrix rendering 256 colors with wide viewing angles for detailed process schematics.
• Hybrid Touch & Key Control: Combines an analog-resistive touch screen with 8 tactile membrane function keys for flexible operator inputs.
• PROFIBUS DP & MPI Fieldbus: Integrated SUB-D 9-pin RS422/RS485 port supporting high-speed PROFIBUS DP (up to $12 \text{ Mbit/s}$) and MPI networks.
• WinCC Flexible & TIA Portal Support: Configurable using Siemens WinCC flexible 2008 SP2 (or higher), WinCC Basic V11, or STEP 7 Basic V11 in TIA Portal.
• Industrial IP65 Bezel: Dust-tight and splash-proof front panel housing engineered specifically for demanding plant floor environments.

Technical Advantages

• High Efficiency: Swift screen navigation, fast boot times, and responsive touch tracking shorten batch setup times and streamline routine adjustments.
• Durable Construction: Built with an IP65-rated front faceplate that protects internal electronics against airborne industrial dust, lint, and light splatters.
• Safety Protection: Built-in multi-level user password administration, active system alarm logging, and real-time diagnostic displays prevent operator errors.
• Energy Saving: Efficient LED backlight technology minimizes total power consumption ($15 \text{ W}$ typical) and limits heat buildup inside control enclosures.
• Easy Maintenance: Standard 24V DC terminal connector block and clamp mounting simplify hardware installation and panel servicing.

Applications

• Industrial: Automated packaging machinery, plastic extrusion lines, chemical mixing tanks, and conveyor sorting lines.
• Factory: Textile yarn spinning, fabric dyeing ranges, garment finishing, pharmaceutical packaging, and food processing lines.
• Commercial: Central building control systems, water filtration plants, and pump station monitoring.
• Project Installation: Control cabinet modernization, OEM machinery assembly, and PLC-HMI panel retrofitting across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ rigorous industrial standards for continuous 24/7 duty cycles ($20,000 \text{ hours}$ backlight MTBF).
• Performance: Expansive 10.4-inch visual workspace, fast fieldbus data polling over PROFIBUS DP, and crisp graphical rendering.
• Cost Effectiveness: Delivers large-format color visualization at a cost-effective price point, saving overall capital expenditure on control panel repairs.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ Large 10.4-inch 256-color TFT display panel ($640 \times 480$ pixel VGA resolution)

✓ Dual-input operation: analog resistive touch screen and 8 tactile function keys

✓ Integrated RS422/RS485 fieldbus interface for PROFIBUS DP and MPI

✓ IP65 dust-tight and splash-water resistant front bezel for industrial protection

✓ Configurable via Siemens WinCC flexible 2008 SP2 or WinCC Basic V11 (TIA Portal)

Benefits For Customers

• Saves Maintenance Cost: Direct replacement for broken PROFIBUS HMI panels without rewriting host PLC logic.
• Improves Operational Reliability: Displays real-time alarm codes and trend graphs across a spacious 10.4-inch workspace for fast operator response.
• Minimizes Production Downtime: Quick drop-in installation gets processing plants back into production quickly.
• Suitable for Bangladesh Environment: Rugged IP65 front face protects against dusty, humid, and warm factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel cutout measuring $310 \text{ mm} \times 248 \text{ mm}$ on the cabinet door.
2. Position the supplied front rubber sealing gasket around the bezel to maintain its IP65 moisture rating.
3. Insert the KTP1000 module into the cutout and tighten all cabinet mounting clamps evenly.
4. Wire a regulated 24V DC power supply line to the terminal block and attach the SUB-D 9-pin PROFIBUS cable securely.

Maintenance Tips:

• Gently clean the front display surface using a soft, non-abrasive dry microfiber cloth.
• Avoid applying alcohol, harsh chemical solvents, or abrasive cleaning wipes directly on the display screen.
• Check terminal blocks and fieldbus connector screws periodically to ensure solid contact despite machine vibration.

Safety Instructions:

• Always disconnect main electrical power prior to handling panel terminals or dismounting the HMI.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on fieldbus communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI KTP1000 BASIC COLOR DP 6AV6 647-0AE11-3AX0 10INCH TFT DISPLAY in Bangladesh?

A: The current sales price of the Siemens KTP1000 Basic Color DP (6AV6647-0AE11-3AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy Siemens HMI KTP1000 BASIC COLOR DP 6AV6 647-0AE11-3AX0 10INCH TFT DISPLAY in Bangladesh?

A: You can purchase the genuine Siemens KTP1000 Basic Color DP panel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full working condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial factory conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($310 \text{ mm} \times 248 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power, and attach the PROFIBUS DP cable.

Q: What is the difference between KTP1000 PN and KTP1000 DP?

A: The KTP1000 DP model (6AV6647-0AE11-3AX0) uses RS422/RS485 for PROFIBUS DP / MPI communication, whereas the PN model features an RJ45 Ethernet port for PROFINET.

Q: Which software is used to program the Siemens KTP1000 Basic Color DP HMI?

A: It is programmed using Siemens WinCC flexible 2008 SP2 (or higher), WinCC Basic V11, or STEP 7 Basic V11 in TIA Portal.

Q: Does this panel feature function keys?

A: Yes, it features 8 tactile, freely assignable function keys positioned alongside the touch screen display area.

Q: What are the cabinet cutout dimensions for the KTP1000 Basic Color panel?

A: The required cabinet door cutout dimensions measure $310 \text{ mm} \text{ (width)} \times 248 \text{ mm} \text{ (height)}$.

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
