Siemens KP300 Basic Mono PN 3-Inch 6AV6647-0AH11-3AX0 HMI Panel BD

Description

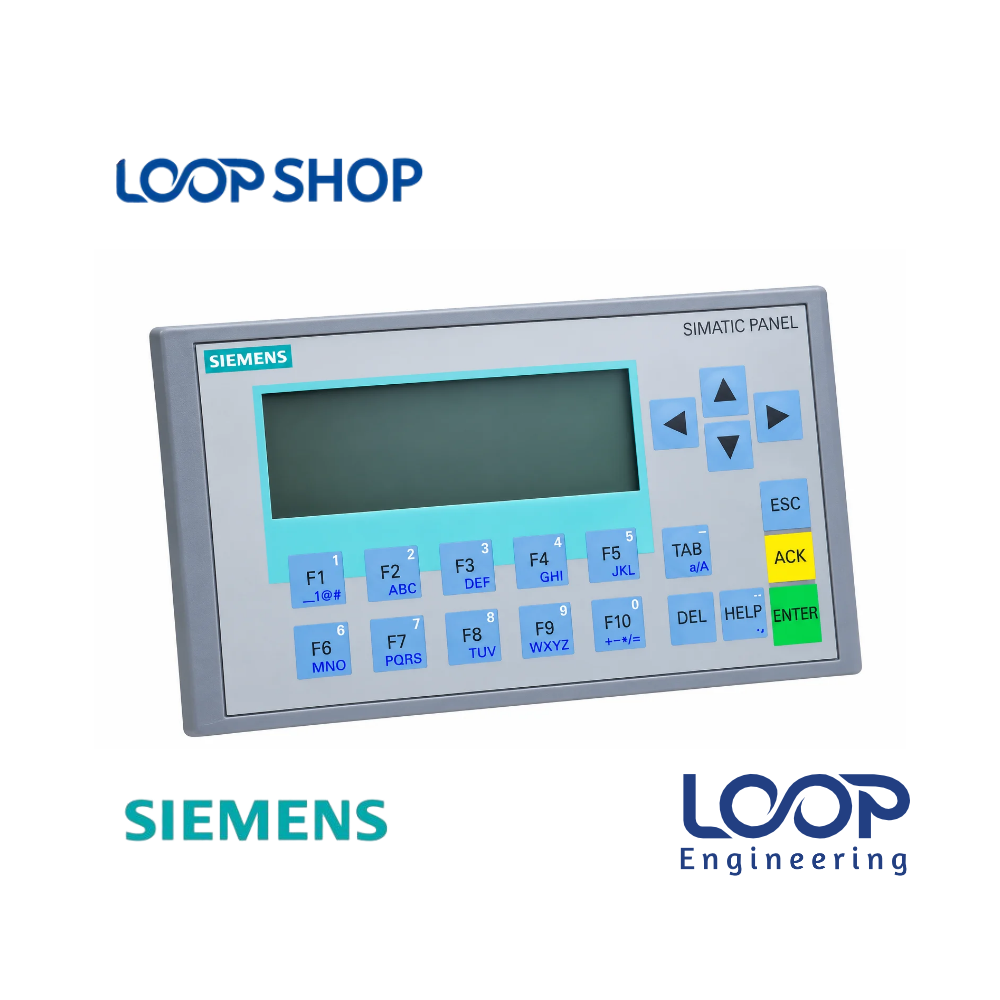

The Siemens SIMATIC HMI KP300 Basic Mono PN Panel (6AV6647-0AH11-3AX0) is an ultra-compact operator interface engineered for straightforward visualization and control of small-scale automated machinery. Featuring a 3.6-inch FSTN monochrome LCD with 4 grayscale levels and a $240 \times 80$ pixel resolution, this panel allows operators to navigate machine parameters, view system alarms, and manage process variables using 10 tactile, freely assignable function keys.

Powered by a 32-bit RISC ARM CPU and equipped with 1 MB of non-volatile user memory alongside an integrated 10/100 Mbit/s RJ45 Industrial Ethernet port (supporting PROFINET, Modbus TCP, and Ethernet/IP protocols), the KP300 Basic Mono connects effortlessly to Siemens SIMATIC S7-1200, S7-1500, S7-300, and LOGO! controllers. For panel builders, machine manufacturers, and maintenance engineers in Bangladesh, this unit provides a budget-friendly, rugged interface that restores operational reliability to compact machine control units.

Key Features

• 3.6-Inch Monochromatic FSTN LCD: Sharp $240 \times 80$ pixel resolution with 4 grayscales for clear text and icon display under factory lighting.
• 10 Tactile Function Keys: Physical keypad membrane with 10 programmable function keys for precise operator input without touch-glass wear.
• 10/100 Mbit/s RJ45 PROFINET Port: Built-in Industrial Ethernet interface supporting PROFINET, Modbus TCP, and Ethernet/IP communication.
• 32-Bit RISC ARM Processor: High-performance ARM CPU with 1 MB user memory for smooth screen transitions and reliable data execution.
• WinCC Basic V11 / STEP 7 Integration: Configurable using WinCC Basic V11 / STEP 7 Basic V11 or higher within the TIA Portal framework.

Technical Advantages

• High Efficiency: Low boot time and rapid communication polling speed across Ethernet networks streamline daily operation.
• Durable Construction: Industrial-grade IP65 front membrane protects internal circuitry against dust, lint, and light moisture exposure.
• Safety Protection: Built-in multi-level password protection and active alarm text displays safeguard against unauthorized adjustments.
• Energy Saving: Extremely low operating power consumption ($3 \text{ W}$ typical) minimizes heat buildup inside small enclosures.
• Easy Maintenance: Compact enclosure cutout and clip-in mounting make hardware installation fast and straightforward.

Applications

• Industrial: Small packaging machinery, plastic sealing equipment, conveyor sorters, and chemical dosing systems.
• Factory: Textile yarn spinning auxiliaries, garment processing machinery, pharmaceutical tablet press panels, and labeling units.
• Commercial: Building management systems, small pump stations, and water filtration control boxes.
• Project Installation: Compact control cabinet builds, machine retrofitting, and legacy PLC panel maintenance across Bangladesh.

Why Choose This Product?

• Reliability: Manufactured to Siemens’ rigorous industrial standards for long service life under continuous 24/7 duty cycles.
• Performance: Direct Industrial Ethernet integration guarantees reliable, high-speed data transmission without signal drops.
• Cost Effectiveness: Offers essential machine visualization at an economical price point, saving capital expenditure on control panel projects.
• After-Sales Value: Supported by genuine product verification, checking warranty guarantees, and prompt delivery through LOOP Shop in BD.

Technical Specification Table

Features List

✓ 3.6-inch FSTN monochrome LCD screen ($240 \times 80$ pixels, 4 grayscales)

✓ 10 tactile, freely programmable function keys for manual inputs

✓ Integrated 10/100 Mbit/s RJ45 PROFINET / Industrial Ethernet port

✓ Powered by a 32-bit RISC ARM CPU with 1 MB configuration memory

✓ IP65 dust-tight and splash-water resistant front bezel

Benefits For Customers

• Saves Maintenance Cost: Direct replacement for broken KP300 screens without altering cabinet structures or PLC software logic.
• Reduces Cabinet Space: Ultra-shallow enclosure depth ($30 \text{ mm}$) fits easily on compact control box doors.
• Improves Operational Reliability: Tactile key operation eliminates touchscreen wear in oily or dusty environments.
• Suitable for Bangladesh Environment: Rugged IP65 front face protects against dusty, humid, and warm industrial factory environments in BD.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean panel door cutout measuring $149 \text{ mm} \times 82 \text{ mm}$.
2. Position the supplied front rubber seal ring correctly around the bezel to ensure an IP65 moisture-tight fit.
3. Insert the KP300 panel into the cutout and tighten the mounting clamps securely.
4. Wire a 24V DC power supply line to the terminal block and attach the RJ45 Industrial Ethernet cable securely.

Maintenance Tips:

• Gently clean the front membrane keys using a soft, non-abrasive dry microfiber cloth.
• Avoid using aggressive chemical solvents, alcohol, or abrasive cleaning wipes on the display window.
• Check Ethernet cable seating and terminal block tightness periodically inside vibrating machine panels.

Safety Instructions:

• Always turn off the main control power supply before connecting power terminals or mounting the panel.
• Ensure proper earthing/grounding of the cabinet frame to prevent static discharge on communication lines.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens HMI KP300 BASIC MONO PN KEY OPERATION 3INCH DISPLAY 6AV6 647-0AH11-3AX0 in Bangladesh?

A: The current sales price of the Siemens KP300 Basic Mono PN (6AV6647-0AH11-3AX0) in BD is listed on loopshop.com.bd. Contact us directly or check our website for live stock and price details.

Q: Where can I buy Siemens HMI KP300 BASIC MONO PN KEY OPERATION 3INCH DISPLAY 6AV6 647-0AH11-3AX0 in Bangladesh?

A: You can purchase the genuine Siemens KP300 Basic Mono panel online directly from loopshop.com.bd with courier delivery across all districts in Bangladesh.

Q: What warranty does this product have?

A: It comes with a standard testing and checking warranty from LOOP Shop to confirm full operational condition upon delivery.

Q: Is this suitable for Bangladesh climate?

A: Yes, featuring an IP65 dust- and water-resistant front bezel and an operating temperature threshold up to 50°C, it is well suited for industrial conditions in BD.

Q: How to install this product?

A: Cut the designated panel opening ($149 \text{ mm} \times 82 \text{ mm}$), insert the unit with its sealing ring, tighten mounting clamps, connect 24V DC power terminals, and attach the RJ45 Ethernet cable.

Q: Which software is used to program the Siemens KP300 Basic Mono HMI?

A: It is programmed using Siemens WinCC Basic V11 (or STEP 7 Basic V11) and newer versions within TIA Portal.

Q: Does the Siemens KP300 Basic Mono PN feature a touch screen?

A: No, the KP300 Basic Mono is a key-operated panel featuring 10 tactile membrane function keys.

Q: Can this HMI connect directly to a Siemens S7-1200 PLC?

A: Yes, it connects seamlessly to S7-1200, S7-1500, S7-300, and LOGO! controllers via its integrated RJ45 PROFINET Ethernet port.

Q: What power voltage is required for the KP300 Basic Mono panel?

A: It requires a standard 24V DC industrial power supply (19.2V to 28.8V DC range).

Q: Does LOOP Shop provide courier delivery outside Dhaka?

A: Yes, LOOP Shop ships industrial automation equipment to Gazipur, Savar, Narayanganj, Chittagong, and all other industrial regions across Bangladesh.
