Siemens ET 200SP 6ES7134-6GD01-0BA1 Analog Input Module 4AI 2/4-Wire PLC

Description

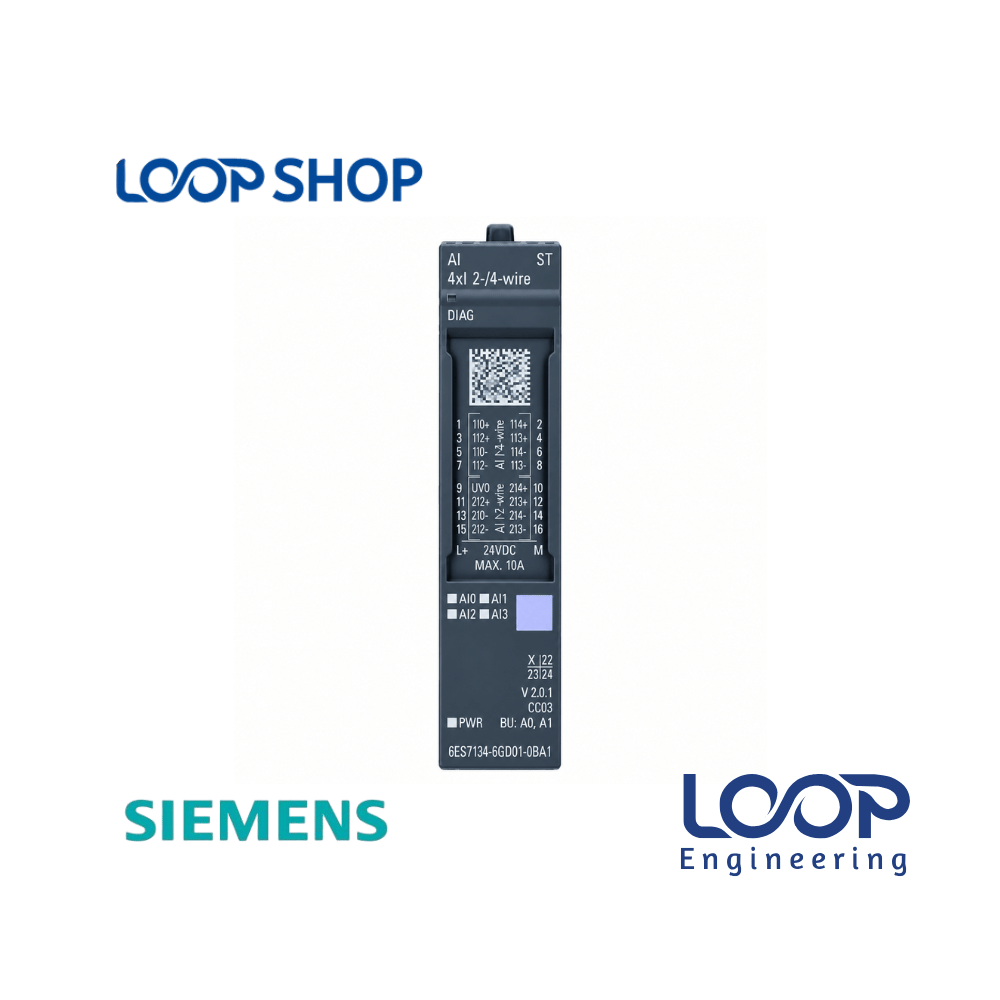

The Siemens SIMATIC ET 200SP Analog Input Module (Part Number: 6ES7134-6GD01-0BA1 / 6ES7134-6GD01-0BA1) is a high-performance electronic input card designed for the distributed I/O architecture of the SIMATIC ET 200SP system. This module features 4 analog current input channels capable of interfacing with both 2-wire and 4-wire industrial transmitters (0–20 mA or 4–20 mA).

Positioned between field sensors and central Siemens PLC CPUs (such as S7-1200, S7-1500, or S7-300), it converts continuous analog physical signals into precise digital data. Automation engineers, panel builders, and maintenance teams across Bangladesh rely on this module for continuous real-time process monitoring in critical industrial control environments.

Key Features

• 4 Current Input Channels: Flexible input configuration supporting both 2-wire (loop-powered) and 4-wire (externally powered) current transmitters.
• 16-Bit Resolution: High-resolution signal conversion guarantees maximum measurement accuracy for sensitive process loops.
• Integrated Diagnostics: Comprehensive diagnostic monitoring identifies wire breaks, short circuits, and parameter errors immediately.
• BaseUnit Compatibility: Snaps effortlessly onto compatible Siemens ET 200SP BaseUnits (e.g., Type A0/A1, Color Code CC03).
• Hot-Swappable Functionality: Enables quick module replacement during live backplane operation without interrupting peripheral power.

Technical Advantages

• High Efficiency: Low thermal loss design prevents heat build-up inside compact control cabinets.
• Durable Construction: Industrial IP20 thermoplastic enclosure resists ambient electrical noise (EMI) and physical vibration.
• Safety Protection: Built-in channel isolation and short-circuit protection protect upstream PLC racks from field surges.
• Energy Saving: Optimized power consumption directly from the ET 200SP 24 V DC backplane bus.
• Easy Maintenance: Tool-less Push-In terminals on the BaseUnit simplify wiring, testing, and routine maintenance.

Applications

• Industrial: Measuring process parameters via pressure transmitters, magnetic flowmeters, level sensors, and temperature transducers.
• Factory: Textile dyeing temperature control, garment processing flow management, chemical batching, and pharmaceutical liquid metering in Bangladesh.
• Commercial: Building automation, large-scale HVAC chilled water differential pressure monitoring, and pump stations.
• Project Installation: Distributed I/O expansion, control cabinet assembly, and factory process modernization projects.

Why Choose This Product?

• High Operational Reliability: Accurate 16-bit analog sampling prevents process drift and keeps automated lines running smoothly.
• Minimized Plant Downtime: Onboard LED indicators and diagnostic alarms help technicians troubleshoot sensor faults instantly.
• Compact Footprint: Compact 15 mm module width saves significant mounting rail space inside control panels.
• Trusted Local Sourcing: Authentic Siemens parts backed by fast nationwide delivery and technical support from loopshop.com.bd.

Technical Specification Table

Features List

✓ 4 analog current input channels (0–20 mA / 4–20 mA)

✓ Supports both 2-wire and 4-wire current transmitters

✓ High 16-bit analog-to-digital resolution

✓ Built-in channel diagnostics for wire break and short circuit

✓ Push-in terminal installation on standard ET 200SP BaseUnits

✓ Compact 15 mm module width for high-density panel design

Benefits For Customers

• Improves Operational Reliability: Precise sensor feedback maintains tight process tolerance across continuous production lines.
• Saves Maintenance Cost: Instant diagnostic detection pinpoints field sensor cabling faults before they cause extended shutdowns.
• Versatile Field Wiring: Compatible with both loop-powered and externally powered instruments without extra converter modules.
• Suitable for Bangladesh Environment: Built to perform reliably in ambient panel temperatures up to +60 °C found in BD manufacturing plants.

Installation & Maintenance Guide

Installation Requirements:

1. Disconnect main 24 V DC power from the ET 200SP station before installing or removing modules.
2. Ensure you are using a compatible BaseUnit (Type A0 or A1).
3. Align the 6ES7134-6GD01-0BA1 module with the BaseUnit guide slot and push firmly until the latch engages.
4. Wire 2-wire or 4-wire transmitter cables to the designated Push-In terminals using shielded cables grounded at the terminal strip.
5. Parameterize input current ranges and diagnostic limits in Siemens STEP 7 or TIA Portal.

Maintenance Tips:

1. Inspect status LEDs regularly: RUN (Green) for normal operation and DIAG (Red) for active faults.
2. Keep enclosure ventilation slots free from industrial dust and moisture buildup.
3. Check cable shield connections periodically to maintain immunity against electromagnetic interference.

Safety Instructions:

1. Installation must be conducted by qualified electrical personnel or automation technicians.
2. Always ground sensor signal shielding to prevent electrical ground loops from damaging sensitive analog inputs.
3. Do not exceed the maximum allowable input current ratings to prevent module damage.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6ES7134-6GD01-0BA1 in Bangladesh?

A: Prices depend on import currency exchange rates and stock levels. Check loopshop.com.bd or contact our sales team for an updated quotation in BDT.

Q: Where can I buy Siemens 6ES7134-6GD01-0BA1 in Bangladesh?

A: You can purchase directly online from loopshop.com.bd with delivery across Dhaka, Chattogram, Gazipur, Narayanganj, and island-wide industrial zones.

Q: What warranty does this product have?

A: loopshop.com.bd provides standard seller/vendor warranty coverage against manufacturing defects.

Q: Is this suitable for Bangladesh climate?

A: Yes, it is rated for operating temperatures up to +60 °C, making it durable for hot control rooms and factory floors in Bangladesh.

Q: How to install this product?

A: Mount the module onto a compatible ET 200SP BaseUnit, wire your 2-wire or 4-wire current transmitters to the Push-In terminals, and set channel parameters in TIA Portal.

Q: What is the difference between 2-wire and 4-wire input modes on this module?

A: 2-wire mode supplies loop power directly to the sensor through the module, while 4-wire mode receives current signals from externally powered sensors.

Q: Which BaseUnit should I use with 6ES7134-6GD01-0BA1?

A: This module is compatible with Siemens ET 200SP BaseUnit Type A0 and A1 (Color Code CC03).

Q: Does this analog module support hot swapping?

A: Yes, SIMATIC ET 200SP modules allow hot swapping while the system backplane remains powered.

Q: What current signal ranges are supported?

A: It supports standard industrial current signal ranges of 0–20 mA and 4–20 mA.

Q: Does loopshop.com.bd offer original Siemens automation parts in BD?

A: Yes, loopshop.com.bd supplies 100% genuine Siemens industrial automation components and PLC spare parts.
