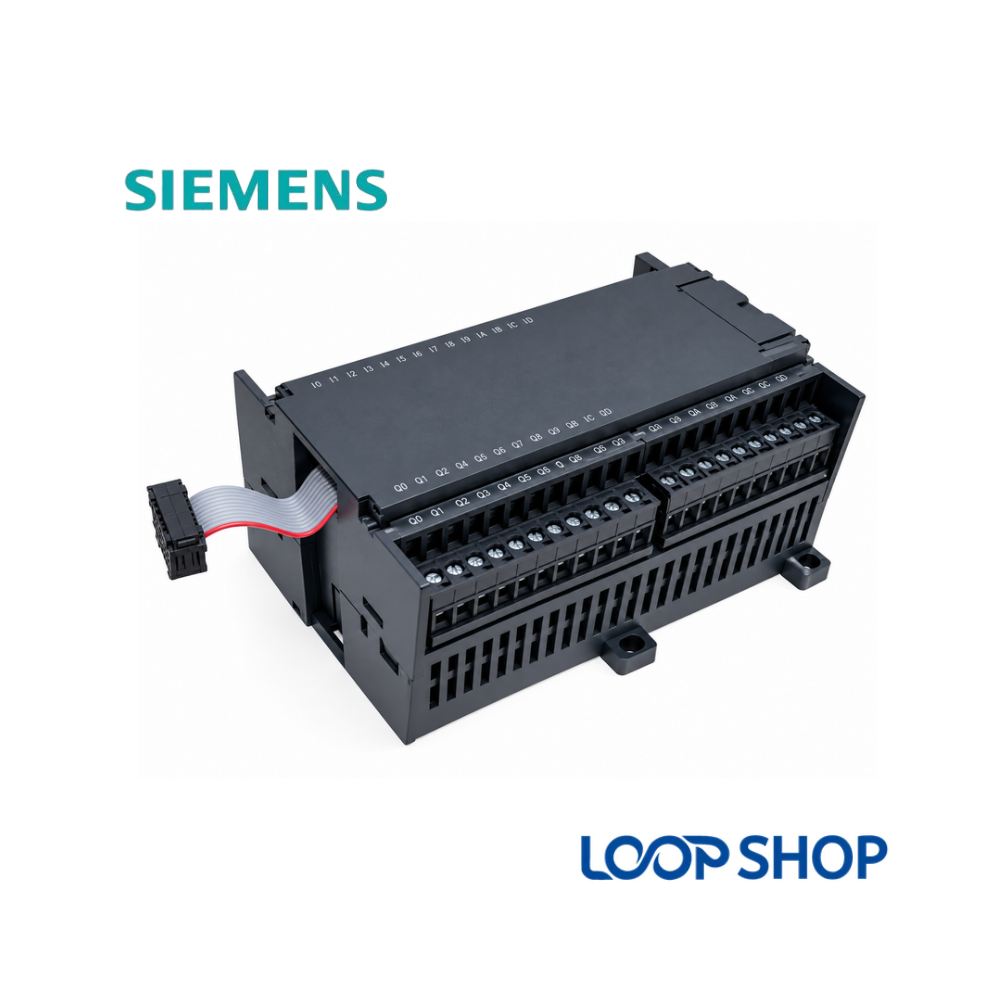

SIEMENS EM 223 Digital Input Output Expansion Module 6ES7 223-1BL22-0XA0

Description

The SIEMENS SIMATIC S7-200 EM 223 (6ES7 223-1BL22-0XA0) is a digital combination expansion module engineered specifically for Siemens S7-22X series CPU controllers. It acts as an efficient I/O expansion unit, enabling PLCs to monitor additional field sensors and actuate external loads without upgrading the main processor.

Main Features

This module provides a total of 32 digital points, divided into 16 digital inputs operating at 24V DC (supporting both Sink and Source connections) and 16 digital transistor outputs operating at 24V DC. It features optical isolation between the internal backplane bus and field circuits, along with status LEDs for each channel to streamline troubleshooting and system monitoring.

Benefits

• High Channel Density: Adds 16 inputs and 16 outputs in a single expansion block, optimizing cabinet space.
• Transistor Outputs: Delivers fast, wear-free switching suitable for high-frequency operations.
• Flexible Field Wiring: Supports both sink and source input configurations to match standard industrial sensors.
• Seamless Integration: Plugs directly into the S7-200 CPU expansion bus for fast system setup.

Applications

The module is widely used in automated packaging machinery, textile equipment, conveyor systems, material handling lines, and custom control panel manufacturing across industrial sectors.

Key Features

• 32 Total I/O Channels: Consists of 16 digital inputs and 16 digital outputs.
• 24V DC Input Voltage: Compatible with standard 24V DC industrial switches and sensors.
• Sink/Source Input Flexibility: Accommodates PNP and NPN field devices.
• Solid-State Transistor Outputs: Provides 24V DC transistor switching with fast response times.
• Optical Isolation: Protects internal PLC electronics from field-level electrical noise and surges.
• Status LEDs: Onboard LED indicators for individual input and output channel diagnostics.
• Modular Expansion: Direct bus connection to SIMATIC S7-22X series CPUs.

Technical Specification Table

Frequently Asked Questions (FAQ)

Q1: Which Siemens PLCs are compatible with the EM 223 6ES7 223-1BL22-0XA0 module?

A: This module is compatible exclusively with the Siemens SIMATIC S7-200 series (specifically S7-22X series CPUs such as CPU 221, 222, 224, 224XP, and 226).

Q2: Does this module feature transistor or relay outputs?

A: This specific model features 16 digital transistor (solid-state) outputs operating at 24V DC.

Q3: Can I connect both NPN and PNP sensors to the inputs?

A: Yes, the 16 digital inputs support both Sink and Source wiring configurations, accommodating both NPN and PNP sensors.

Q4: How does the expansion module connect to the main PLC CPU?

A: It connects directly using the integrated ribbon cable expansion bus that plugs into the adjacent S7-200 CPU or expansion module.

Q5: What is the output current capacity per channel?

A: The transistor outputs provide up to 0.75A per output point at 24V DC.

Q6: Does this module require an external 24V DC power supply for field wiring?

A: Yes, external 24V DC power must be wired to the module terminals to power the output loads and input field circuits.
