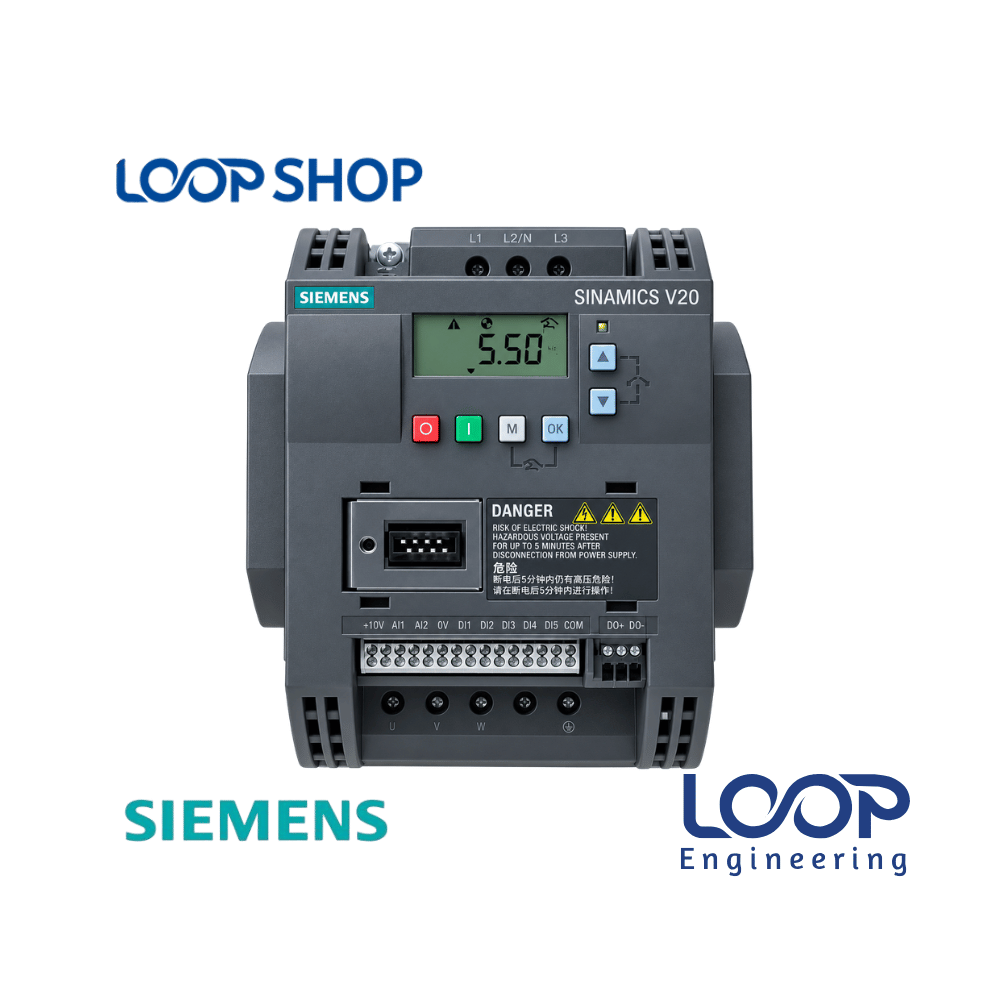

Siemens 6SL3210-5BE27-5UV0 SINAMICS V20 7.5kW VFD Industrial Drive

Description

The Siemens 6SL3210-5BE27-5UV0 SINAMICS V20 is an efficient 7.5 kW (10 HP) Variable Frequency Drive (VFD) designed for dynamic motor speed regulation and energy management. Operating on a 3-phase 380V–480V AC utility supply, it converts input AC power into precise variable frequency and voltage to drive 3-phase induction motors across diverse automated operations.

This drive is ideal for plant electrical engineers, automation system integrators, panel builders, and facility maintenance supervisors. In Bangladesh, where industrial plants demand reliable equipment operation alongside energy conservation, the SINAMICS V20 provides smooth motor modulation, reducing operational costs and extending machine service life.

Key Features

• High overload capability handling 150% rated overload for 60 seconds during high-torque startup periods.
• Integrated Basic Operator Panel (BOP) built right into the front face for straightforward parameter adjustment and diagnostics.
• Native USS and Modbus RTU communication protocols for direct PLC and SCADA automation system networking.
• Integrated braking chopper for dynamic deceleration and fast stopping in high-inertia machinery.
• Flexible control I/O interface featuring 4 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, and 1 Analog Output.
• Energy-saving Eco Mode with automatic flux adaptation for minimum power consumption at partial load demands.
• “Keep Running Mode” allowing reliable operation under line power drops and voltage dips.

Technical Advantages

• High Efficiency: Operates with high electrical conversion efficiency, minimizing internal heat loss inside control enclosures.
• Durable Construction: Features conformal-coated printed circuit boards (Frame Size D) to resist industrial dust and moisture.
• Safety Protection: Integrated electrical protection guards against overvoltage, undervoltage, motor overload, earth faults, and short circuits.
• Energy Saving: Advanced V/f, V2/f, and Flux Current Control (FCC) algorithms optimize power delivered to connected motor loads.
• Easy Maintenance: Supports quick parameter cloning without mains supply power using optional battery-operated loaders or micro-SD cards.

Applications

• Residential: Hydro-pneumatic water booster pump sets and HVAC ventilation control in high-rise residential towers.
• Commercial: Air Handling Units (AHU), chilled water pumps, exhaust blowers, and central cooling towers in commercial complexes.
• Industrial: Conveyor systems, industrial agitators, mixers, textile machinery, and plastic processing machinery.
• Factory: Automated packaging lines, industrial blowers, compressors, and material handling systems.
• Office: Automated ventilation blowers, booster pumps, and building service systems.
• Project Installation: Motor Control Centers (MCC), OEM machine builder control panels, and municipal water pumping stations.

Why Choose This Product?

• Reliability: Manufactured to Siemens global engineering standards for long-term operational uptime.
• Performance: Provides smooth acceleration, exact speed regulation, and consistent torque control under fluctuating loads.
• Cost Effectiveness: Delivers quick ROI through immediate power savings and reduced mechanical wear on driving components.
• After-Sales Value: Supported by extensive Siemens documentation, readily available technical resources, and local support in Bangladesh.

Technical Specification Table

Features List

✓ High-performance V/f and vector motor control modes

✓ Integrated Basic Operator Panel (BOP) for on-site programming

✓ Built-in USS and Modbus RTU communication interfaces

✓ Energy-optimized Eco Mode for lower electricity bills

✓ Conformal coated electronic circuit boards for harsh environments

Benefits For Customers

• Reduces Electricity Cost: Matches motor speed directly to real-time process demands, cutting power consumption during partial load runs.
• Improves Operational Reliability: Eliminates direct-on-line starting stress, preventing pressure surges, belt slippage, and mechanical shocks.
• Saves Maintenance Cost: Extends mechanical life of gearboxes, bearings, and motor windings, avoiding unbudgeted downtime.
• Suitable for Bangladesh Environment: Operates dependably despite regional ambient temperature swings and power network unstable voltages.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, solid backplate inside an IP54 or appropriate protective electrical enclosure.
• Maintain minimum clearance space (at least 100mm above and below) for free cooling airflow around the heatsink.
• Use properly shielded control cables and route signal wiring in separate conduits away from 3-phase high-voltage power lines.
• Securely attach main protective earth (PE) ground conductors to the terminal block as specified by Siemens manuals.

Maintenance Tips:

• Clean heat sinks and cooling fans periodically using dry, oil-free compressed air to remove dust accumulation.
• Periodically check and re-torque power terminal screws to maintain low-resistance electrical connections.
• Keep control cabinet filters clean and ensure cabinet cooling fans function efficiently.

Safety Instructions:

• Always disconnect and isolate main electrical power before conducting installation, wiring, or maintenance work.
• Allow a minimum discharge time of 5 minutes after power supply disconnection before touching internal DC bus terminals or wiring.

Ensure installation, programming, and service are conducted solely by trained electrical technicians

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SINAMICS V20 7.5kW VFD in Bangladesh?

A: The price of the Siemens SINAMICS V20 7.5kW VFD (6SL3210-5BE27-5UV0) in Bangladesh varies based on stock availability and import duties. Visit loopshop.com.bd or contact customer support for current pricing.

Q: Where can I buy original Siemens SINAMICS V20 7.5kW VFD in Bangladesh?

A: You can purchase genuine Siemens VFDs online at LOOP Shop (loopshop.com.bd) with fast delivery to Dhaka, Chattogram, and all across Bangladesh.

Q: What warranty does this Siemens VFD product have?

A: This VFD comes with standard manufacturer/supplier warranty coverage against manufacturing defects. Check specific warranty terms on loopshop.com.bd at checkout.

Q: Is this Siemens VFD suitable for Bangladesh climate?

A: Yes, with conformal-coated electronic circuit boards and an operating limit up to 60°C (with derating), it is suited for warm industrial conditions in Bangladesh.

Q: How to install this Siemens 7.5kW VFD?

A: Mount vertically inside a panel, connect 3-phase 380V–480V input to L1/L2/L3 terminals and motor leads to U/V/W terminals, ground the unit, and configure parameters via the integrated BOP.

Q: Does this drive include an integrated braking chopper?

A: Yes, Frame Size D of the SINAMICS V20 includes a built-in braking chopper for connecting dynamic braking resistors.

Q: What is the model number of this Siemens 7.5kW VFD?

A: The specific Siemens part/model number is 6SL3210-5BE27-5UV0 (6SL32105BE275UV0).

Q: Does it support Modbus RTU communication protocol?

A: Yes, USS and Modbus RTU communication protocols are natively integrated into the unit.

Q: What power output does this VFD deliver?

A: It delivers a rated output power of 7.5 kW (10 HP) for 3-phase AC induction motor speed control.

Q: Is technical support available for setting up this VFD in Bangladesh?

A: Yes, technical assistance and guidance for product selection and configuration are available through LOOP Shop technical representatives.
