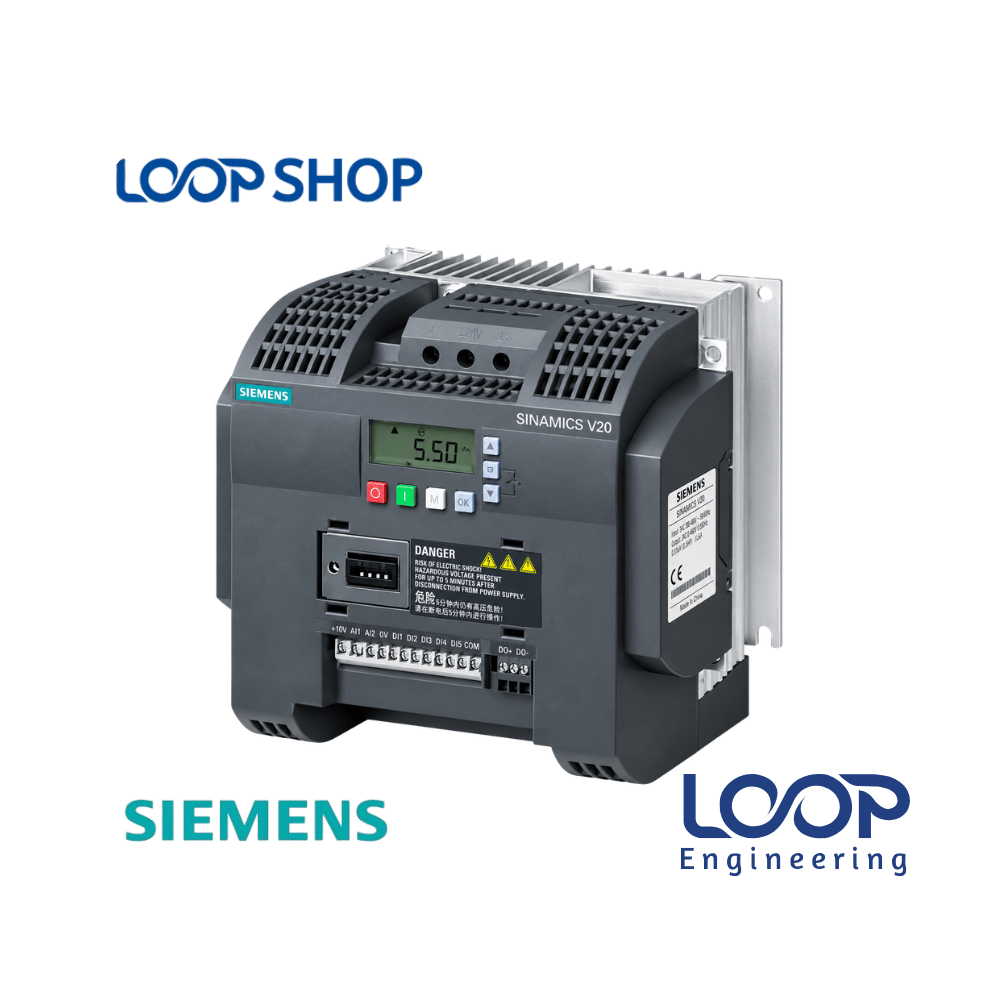

Siemens 6SL3210-5BE25-5UV0 SINAMICS V20 5.5kW VFD Industrial Drive

Description

The Siemens 6SL3210-5BE25-5UV0 SINAMICS V20 is a high-efficiency 5.5 kW (7.5 HP) Variable Frequency Drive (VFD) designed for dynamic AC motor speed regulation and energy optimization. Operating on a 3-phase 380V–480V AC power supply, it converts incoming AC voltage into a variable frequency and voltage output to precisely control motor velocity and torque performance.

This drive is essential for plant maintenance engineers, automation system integrators, control panel builders, and industrial facility managers. In Bangladesh, where factories face grid voltage variations and increasing operational power overhead, the SINAMICS V20 provides smooth motor modulation, lowering energy bills and protecting production equipment from electrical and mechanical wear.

Key Features

• High overload capability handling 150% rated overload for 60 seconds to ensure dependable heavy-load startups.
• Integrated Basic Operator Panel (BOP) on the drive front face for direct on-site setup, parameter tuning, and diagnostics.
• Native USS and Modbus RTU communication protocols for seamless PLC and SCADA automation network integration.
• Integrated braking chopper enabling dynamic braking and rapid deceleration for high-inertia equipment.
• Flexible I/O configuration featuring 4 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, and 1 Analog Output.
• Energy-saving Eco Mode with automatic flux adaptation for optimized electrical efficiency during partial-load demand.
• “Keep Running Mode” allowing uninterrupted operation through unstable power mains and line voltage dips.

Technical Advantages

• High Efficiency: Delivers up to 98% conversion efficiency, keeping internal thermal losses inside control enclosures to a minimum.
• Durable Construction: Built with conformal-coated electronic circuit boards (Frame Size C) to resist dust, humidity, and airborne industrial pollutants.
• Safety Protection: Integrated protection suite guards against overvoltage, undervoltage, motor thermal overload, earth faults, and short circuits.
• Energy Saving: Advanced V/f, V2/f, and Flux Current Control (FCC) modes optimize electrical current draw relative to motor load demand.
• Easy Maintenance: Quick parameter cloning options without main power using optional battery loaders or micro-SD memory cards.

Applications

• Residential: Centralized water booster pumps and HVAC pressure management systems in high-rise residential complexes.
• Commercial: Air Handling Units (AHU), chilled water circulation pumps, exhaust extraction blowers, and central cooling towers.
• Industrial: Conveyor belts, agitators, mixers, textile spinning machines, and plastic processing extruders.
• Factory: Automated assembly lines, packaging machinery, industrial blowers, and pneumatic compression systems.
• Office: Automated ventilation blowers, elevator hydraulic systems, and facility booster pumps.
• Project Installation: Custom Motor Control Centers (MCC), OEM machinery control panels, and municipal water pumping stations.

Why Choose This Product?

• Reliability: Built to Siemens strict global engineering standards to maximize continuous process uptime.
• Performance: Delivers exact speed control, rapid torque reaction, and smooth acceleration across varying operational loads.
• Cost Effectiveness: Accelerates Return on Investment (ROI) through immediate electricity conservation and reduced component wear.
• After-Sales Value: Supported by extensive Siemens documentation, readily available spare parts, and local service support across Bangladesh.

Technical Specification Table

Features List

✓ High-efficiency V/f and vector motor speed control

✓ Built-in Basic Operator Panel (BOP) for parameter setup

✓ Integrated USS and Modbus RTU communication interfaces

✓ Energy-saving Eco Mode for automatic flux adjustment

✓ Conformal coated circuit boards for high durability

Benefits For Customers

• Reduces Electricity Cost: Regulates motor speed in response to dynamic load demand, significantly cutting power consumption.
• Improves Operational Reliability: Soft-starting and soft-stopping eliminate mechanical shock, belt slippage, and water-hammer effects.
• Saves Maintenance Cost: Lessens mechanical strain on motor bearings, gearboxes, and couplings to prevent unplanned downtime.
• Suitable for Bangladesh Environment: Operates dependably despite regional utility voltage instability and high atmospheric temperatures.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-flammable backplate inside an IP54 or appropriate protective control cabinet.
• Maintain minimum clearance space (at least 100mm above and below) for unhindered cooling airflow around the heatsink.
• Use properly shielded control cables and route signal wiring in separate conduits away from 3-phase high-voltage lines.
• Ground the unit solidly to the main protective earth (PE) busbar following Siemens installation guidelines.

Maintenance Tips:

• Clean heatsink cooling fins and cooling fans regularly using dry, oil-free compressed air to prevent thermal buildup.
• Periodically check and re-torque power terminal screws to maintain low-resistance electrical contacts.
• Keep control cabinet filter pads clean and verify that internal cooling fans operate without noise.

Safety Instructions:

• Disconnect and isolate main electrical power lines before inspecting, wiring, or servicing terminals.
• Wait at least 5 minutes after power disconnection to allow internal DC bus capacitors to fully discharge.
• Ensure all wiring, programming, and maintenance tasks are performed strictly by qualified electrical personnel.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SINAMICS V20 5.5kW VFD in Bangladesh?

A: The price of the Siemens SINAMICS V20 5.5kW VFD (6SL3210-5BE25-5UV0) in Bangladesh depends on import stock and market conditions. Visit loopshop.com.bd or contact customer support for current pricing.

Q: Where can I buy original Siemens SINAMICS V20 5.5kW VFD in Bangladesh?

A: You can purchase original Siemens VFDs online at LOOP Shop (loopshop.com.bd) with fast shipping across Dhaka and all over Bangladesh.

Q: What warranty does this Siemens VFD product have?

A: This VFD comes with standard manufacturer/supplier warranty coverage against manufacturing defects. Check specific warranty terms on loopshop.com.bd at checkout.

Q: Is this Siemens VFD suitable for Bangladesh climate?

A: Yes, with conformal-coated electronic circuit boards and an operating limit up to 60°C (with derating), it is suited for warm industrial environments in Bangladesh.

Q: How to install this Siemens 5.5kW VFD?

A: Mount vertically inside a control panel, connect 3-phase 380V–480V input to L1/L2/L3 terminals and motor leads to U/V/W terminals, ground the chassis, and set parameters via the integrated BOP.

Q: Does this drive include an integrated braking chopper?

A: Yes, Frame Size C of the SINAMICS V20 includes a built-in braking chopper for connecting dynamic braking resistors.

Q: What is the model number of this Siemens 5.5kW VFD?

A: The specific Siemens part/model number is 6SL3210-5BE25-5UV0 (6SL32105BE255UV0).

Q: Does it support Modbus RTU communication protocol?

A: Yes, USS and Modbus RTU communication protocols are natively integrated into the unit.

Q: What power output does this VFD deliver?

A: It delivers a rated output power of 5.5 kW (7.5 HP) with a 12.5A rated current for 3-phase AC induction motors.

Q: Is technical support available for setting up this VFD in Bangladesh?

A: Yes, technical assistance and guidance for product selection and parameter setup are available through LOOP Shop technical representatives.
