Siemens 6ES7221-1EF22-0XA0 S7-200 EM 221 8DI 120/230V AC Input Module

Description

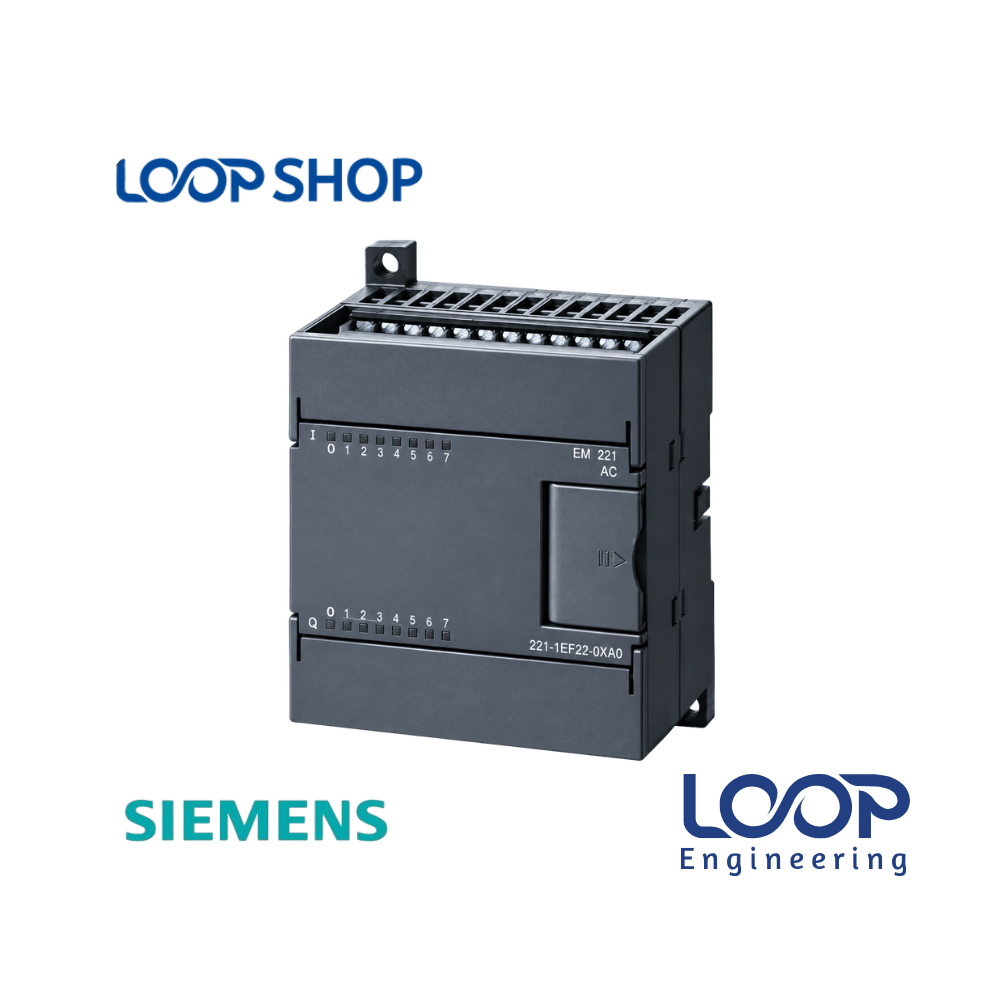

The Siemens SIMATIC S7-200 EM 221 Digital Input Module (6ES7221-1EF22-0XA0 / 6ES7 221-1EF22-0XA0) is an isolated 8-channel AC digital input expansion unit designed for the SIMATIC S7-200 PLC family.

Unlike standard 24V DC input modules, this specialized EM 221 module accepts high-voltage AC field signals directly—ranging from 120V AC up to 230V AC. It converts incoming AC sensor states, limit switch signals, pushbuttons, and auxiliary contactor outputs into low-voltage logic signals processed by the S7-200 CPU. Engineers and automation technicians across Bangladesh utilize this module to streamline electrical control cabinets by connecting high-voltage field devices directly to the PLC without requiring separate signal isolation relays.

Key Features

• 8 Isolated AC Digital Inputs: Features 8 individual digital input channels configured to process 120V AC / 230V AC field logic.
• Galvanic Isolation: Provides robust optical/galvanic isolation between high-voltage AC field circuits and sensitive low-voltage CPU backplane electronics.
• Integrated Expansion Bus: Connects directly to the main S7-200 CPU (or adjacent expansion modules) via the ribbon expansion bus cable.
• Status LED Indicators: Front panel status LEDs provide clear, real-time visual feedback for every input channel state to simplify diagnostic work.
• Removable Terminal Blocks: Features pluggable screw-type terminal headers for quick maintenance and wiring convenience.

Technical Advantages

• Direct High-Voltage Interfacing: Allows direct connection of 120/230V AC field devices, bypassing external interposing relays and reducing panel component counts.
• Galvanic Noise & Surge Isolation: Protects internal PLC processors from high-voltage transients, electrical noise, and ground loops common in heavy industrial environments.
• Compact Footprint: High channel density in a compact DIN-rail mountable housing conserves valuable space inside control enclosures.
• Simple Module Configuration: Automatic detection by S7-200 CPUs via the expansion bus eliminates complex software setup steps.
• Durable Construction: Built with industrial-grade housing to withstand heat, dust, and continuous operation in demanding factory conditions.

Applications

• Industrial & Factory Automation: Textile spinning and weaving machinery, packaging lines, motor control centers (MCC), and conveyor systems.
• Commercial & Infrastructure Systems: Large pump control panels, HVAC central plant ventilation, water purification plants, and boiler controls.
• Project Installation & Machine OEM: Ideal for panel builders and system integrators performing machine upgrades and retrofits across Bangladesh.

Why Choose This Product?

• Genuine Siemens Reliability: Built to exact SIMATIC engineering standards for high operational reliability and long service life.
• Cost-Effective System Simplification: Directly monitoring 230V AC field circuits saves hardware costs, reduces cabinet space, and cuts down on relay wiring labor.
• High Noise Immunity: Engineered to resist severe industrial electrical disturbances, line spikes, and harmonic noise.
• Prompt Local Availability: Available for online purchase at loopshop.com.bd with reliable technical support and fast delivery throughout Bangladesh.

Technical Specification Table

Features List

✓ 8 Digital Inputs accepting 120V AC / 230V AC field signals

✓ Galvanically isolated input groups for high circuit protection

✓ Direct ribbon cable bus connection to S7-200 CPUs

✓ Individual channel LED indicators for rapid signal diagnostics

✓ Compact DIN-rail mountable enclosure with removable terminal blocks

Benefits For Customers

• Eliminates Extra Relays: Directly processes 230V AC field signals without requiring interposing 24V DC convert relays.
• Protects Main CPU Electronics: Optical isolation prevents high-voltage spikes from damaging the central CPU.
• Simplifies Troubleshooting: Front LEDs provide instant visual confirmation of input signals during field debugging.
• Optimized for Bangladesh Power Grids: Designed to handle standard 220V–230V AC control voltage levels smoothly.

 Installation & Maintenance Guide

Installation Requirements:

• Always disconnect the main power supply to the CPU and field circuits before physically installing or removing expansion modules.
• Mount the EM 221 module horizontally on a standard 35mm DIN rail directly adjacent to the S7-200 CPU or another expansion module.
• Connect the flexible ribbon expansion bus cable securely into the expansion port of the preceding module/CPU.
• Wire 120/230V AC input signals to the appropriate terminal block screws, observing correct phase and neutral/common connections.

Maintenance Tips:

• Periodically inspect terminal block screws for tightness to ensure solid electrical contact under machinery vibration.
• Keep module ventilation slots clean and clear of dust, lint, or debris accumulation.
• Ensure cabinet cooling or ventilation maintains ambient operating temperatures below 55°C.

Safety Instructions:

• High-voltage AC (120/230V) is present on input terminals; installation must be performed by qualified automation technicians or electricians.
• Ensure proper earthing/grounding of the control panel structure.
• Never connect 24V DC power sources to the high-voltage AC input terminals of this module.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens 6ES7221-1EF22-0XA0 in Bangladesh?

A: The price of the Siemens S7-200 EM 221 8DI 120/230V AC module in Bangladesh depends on market availability and import rates. Please visit loopshop.com.bd or contact our sales team for updated live pricing.

Q: Where can I buy Siemens 6ES7221-1EF22-0XA0 in Bangladesh?

A: You can purchase the authentic Siemens 6ES7221-1EF22-0XA0 digital input module online at loopshop.com.bd with fast delivery to Dhaka, Chittagong, Gazipur, Narayanganj, and across Bangladesh.

Q: What warranty does this product have?

A: Please check the warranty terms directly on the loopshop.com.bd product page or inquire with customer service prior to purchase.

Q: Is this suitable for Bangladesh climate?

A: Yes, it is rated to operate reliably in industrial cabinet environments at temperatures up to 55°C.

Q: How to install this product?

A: Turn off system power, latch the module onto a 35mm DIN rail, connect the flexible bus ribbon cable to the S7-200 CPU port, wire your 120/230V AC field inputs to the terminal block, and turn on the power.

Q: What type of signals can the EM 221 6ES7221-1EF22-0XA0 accept?

A: This specific module accepts high-voltage AC digital signals ranging from 120V AC to 230V AC.

Q: Can I connect 24V DC inputs to this module?

A: No, this module is specifically built for 120/230V AC signals. For 24V DC inputs, use standard EM 221 24V DC input modules (such as 6ES7221-1BF22-0XA0).

Q: Which PLC CPUs are compatible with this expansion module?

A: It is compatible with Siemens SIMATIC S7-200 series CPUs, including the CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226.

Q: How many digital input channels does this module provide?

A: It provides 8 galvanically isolated digital input channels.

Q: Does this module require external power supply wiring?

A: The internal logic power is drawn directly from the CPU via the expansion ribbon cable, while the field signals power the input circuits.
