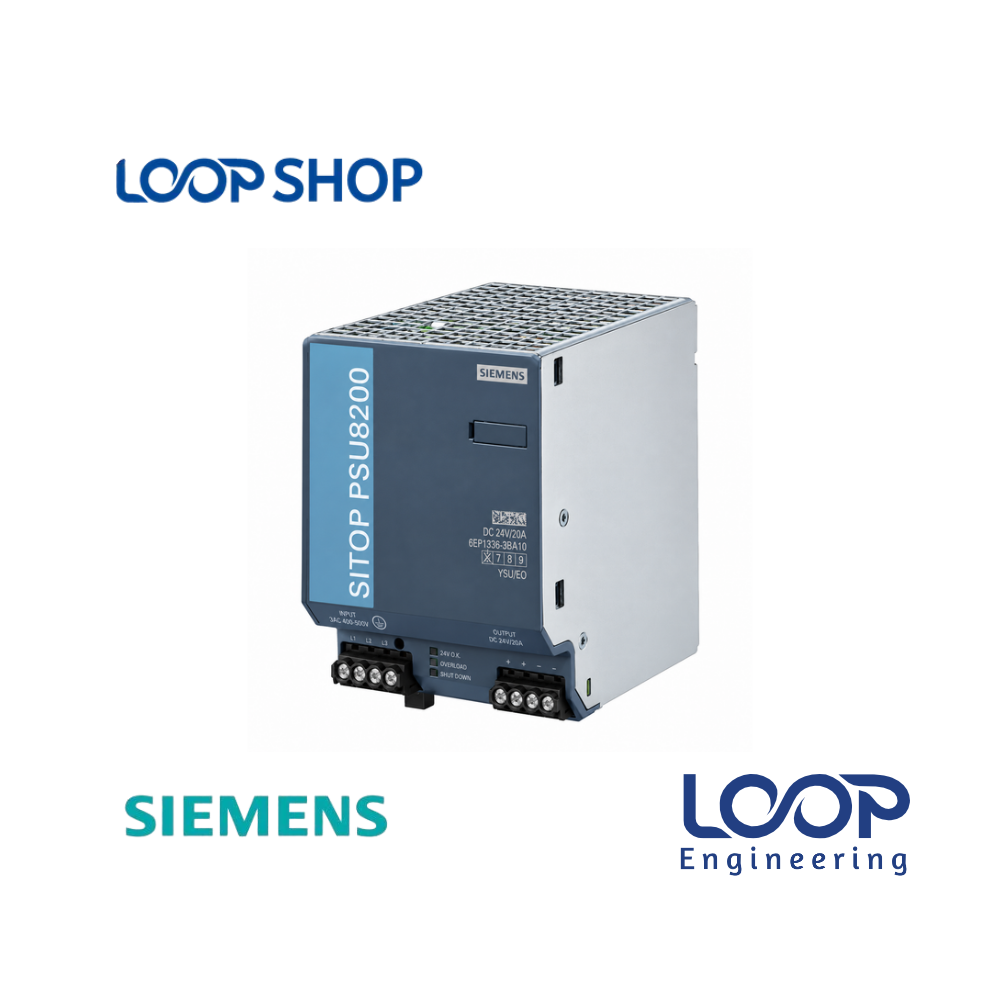

Siemens 6EP1336-3BA10 SITOP PSU8200 24V 20A 480W Industrial Power Supply

Description

The Siemens SITOP PSU8200 (Model: 6EP1336-3BA10) is a premium technology industrial switch mode power supply (SMPS) engineered for single-phase AC and DC networks. Delivering a regulated 24 V DC output at up to 20 A (480 W total continuous output power), this power supply acts as the reliable backbone for high-demand industrial automation systems, heavy PLC racks, motor drives, and sensor networks.

The PSU8200 technology line is designed for maximum performance under extreme industrial conditions. Featuring ultra-high efficiency (up to 93%), low heat dissipation, and an integrated wide-range input (120–230 V AC / 110–220 V DC), it protects sensitive downstream automation hardware against severe line voltage drops and transients. For control engineers, system integrators, and plant maintenance teams across Bangladesh, this Siemens technology power supply ensures uninterruptible operation and eliminates unplanned downtime in demanding factory environments.

Key Features

• Wide-Range AC/DC Input: Accepts 120–230 V AC nominal (85–275 V AC max range) and 110–220 V DC nominal (88–350 V DC max range) to absorb severe voltage variations.
• High Output Capacity: Delivers 20 A continuous output current at 24 V DC, generating up to 480 W total output power.
• Power Boost & Extra Power: Delivers 3 times nominal current for short durations to trip protective devices and 150% Extra Power for short-term overloads.
• Adjustable Output Voltage: Output voltage can be fine-tuned via potentiometer from 24 V DC to 28.8 V DC to compensate for line voltage drops across long wiring runs.
• Integrated Signal Contact: Features a signaling contact for “24 V DC OK” to integrate direct operational diagnostics into the PLC system.

Technical Advantages

• Ultra-High Efficiency: Operates at up to ~93% efficiency, dramatically reducing cabinet thermal buildup and cooling energy requirements.
• Robust Noise & Surge Immunity: High immunity against electrical noise, line spikes, and electromagnetic interference common in heavy industrial setups.
• Durable Compact Design: Heavy-duty IP20 metal housing with a narrow 90 mm width saves precious space on the DIN rail.
• Comprehensive Circuit Protection: Features electronic short-circuit protection, overload protection, thermal shutdown, and automatic restart functions.
• Easy Installation & Wiring: Front-accessible screw terminals ensure quick, secure wiring and simple panel inspection.

Applications

• Residential: Powering central smart home automation server racks and building management controllers.
• Commercial: Data center auxiliary power systems, elevator controllers, and complex HVAC panels.
• Industrial: Heavy machinery automation, SCADA systems, motion control systems, and PLC I/O racks.
• Factory: Textile spinning/weaving mills, garment manufacturing, pharmaceuticals, and food processing lines.
• Office: Main power conditioning for central security control systems and access control panels.
• Project Installation: Industrial panel upgrades, OEM machinery building, and automation retrofits.

Why Choose This Product?

• Premium Siemens Reliability: Built to global industrial technology standards, ensuring decades of continuous 24/7 operational capability.
• Superior Overload Performance: Easily starts heavy loads with high inrush currents without triggering nuisance system shutdowns.
• Cost Effectiveness: Reduces energy consumption and avoids costly plant outages caused by power line disturbances.
• After-Sales Value: Supported by loopshop.com.bd with dedicated technical support and prompt delivery across Bangladesh.

Technical Specification Table

Features List

• ✓ Ultra-high efficiency operation (~93%)
• ✓ 1-phase AC and DC wide-range input capability
• ✓ Power Boost (3x rated current) and 150% Extra Power capacity
• ✓ Compact 90 mm wide DIN-rail metal housing
• ✓ Adjustable 24 V to 28.8 V DC output voltage range

Benefits For Customers

• Reduces Electricity Cost: Industry-leading ~93% efficiency reduces wasted energy and panel heat generation.
• Improves Operational Reliability: Prevents PLC reboots and machine halts during heavy grid fluctuations or voltage sags.
• Saves Maintenance Cost: Built-in Power Boost trips circuit breakers cleanly without blowing the power supply unit.
• Suitable for Bangladesh Environment: Operates reliably in harsh conditions from -25 °C up to +70 °C inside industrial panels across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Snap the unit securely onto a standard 35 mm DIN rail (EN 60715 35×7.5/15).
• Mount vertically inside the control cabinet to facilitate natural convection cooling airflow.
• Maintain at least 50 mm clearance space above and below the module, and 5 mm laterally from adjacent heat sources.
• Connect input wiring (AC line/neutral or DC supply) to the designated input screw terminals with proper earthing (PE terminal).

Maintenance Tips:

• Periodically check terminal screw connections to ensure wires remain tight against heavy machine vibrations.
• Keep top and bottom cooling vents clean and free of accumulated industrial dust or lint.
• Monitor front-panel status LEDs (“24 V OK”, “OVERLOAD”, “SHUTDOWN”) during routine cabinet inspections.

Safety Instructions:

• Always isolate and turn off main power before performing any mounting, wiring, or maintenance tasks.
• Installation must be carried out only by qualified automation engineers or licensed electricians.
• Do not operate the unit in environments exceeding its IP20 rating without putting it in an appropriate enclosed cabinet.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SITOP PSU8200 20A Power Supply 6EP1336-3BA10 in Bangladesh?

A: You can check the latest price for the Siemens 6EP1336-3BA10 SMPS directly on loopshop.com.bd or contact our customer support for bulk order quotes.

Q: Where can I buy Siemens SITOP PSU8200 20A Power Supply 6EP1336-3BA10 in Bangladesh?

A: You can buy genuine Siemens 6EP1336-3BA10 power supplies online directly from loopshop.com.bd with fast delivery across Bangladesh.

Q: What warranty does this product have?

A: Warranty specifications depend on current manufacturer stocking and distribution terms. Please check loopshop.com.bd or contact sales before placing an order.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an operating temperature rating from -25 °C to +70 °C and wide AC/DC input range, it is built to handle high ambient heat and power line instability in Bangladesh factories.

Q: How to install this product?

A: Mount the SMPS on a 35 mm DIN rail inside your panel, wire the input AC/DC power supply to the input terminals, and connect your 24 V DC load to the output terminals.

Q: Can the 6EP1336-3BA10 accept DC input voltage?

A: Yes, it features a wide-range input that accepts both AC (120–230 V) and DC (110–220 V) input sources.

Q: What is the rated output capacity of this Siemens SITOP power supply?

A: The Siemens 6EP1336-3BA10 delivers a 20 A continuous output current at 24 V DC, providing 480 W of total output power.

Q: Can I adjust the output voltage on the PSU8200 20A unit?

A: Yes, the output voltage can be adjusted between 24 V DC and 28.8 V DC via the front-facing potentiometer.

Q: What is Power Boost in the Siemens PSU8200 series?

A: Power Boost delivers up to 3 times the rated current for short intervals, allowing downstream circuit breakers to trip safely during short-circuit events.

Q: Is loopshop.com.bd a trusted seller for Siemens automation parts in BD?

A: Yes, loopshop.com.bd is a leading online store in Bangladesh offering authentic industrial automation components and electrical hardware.
