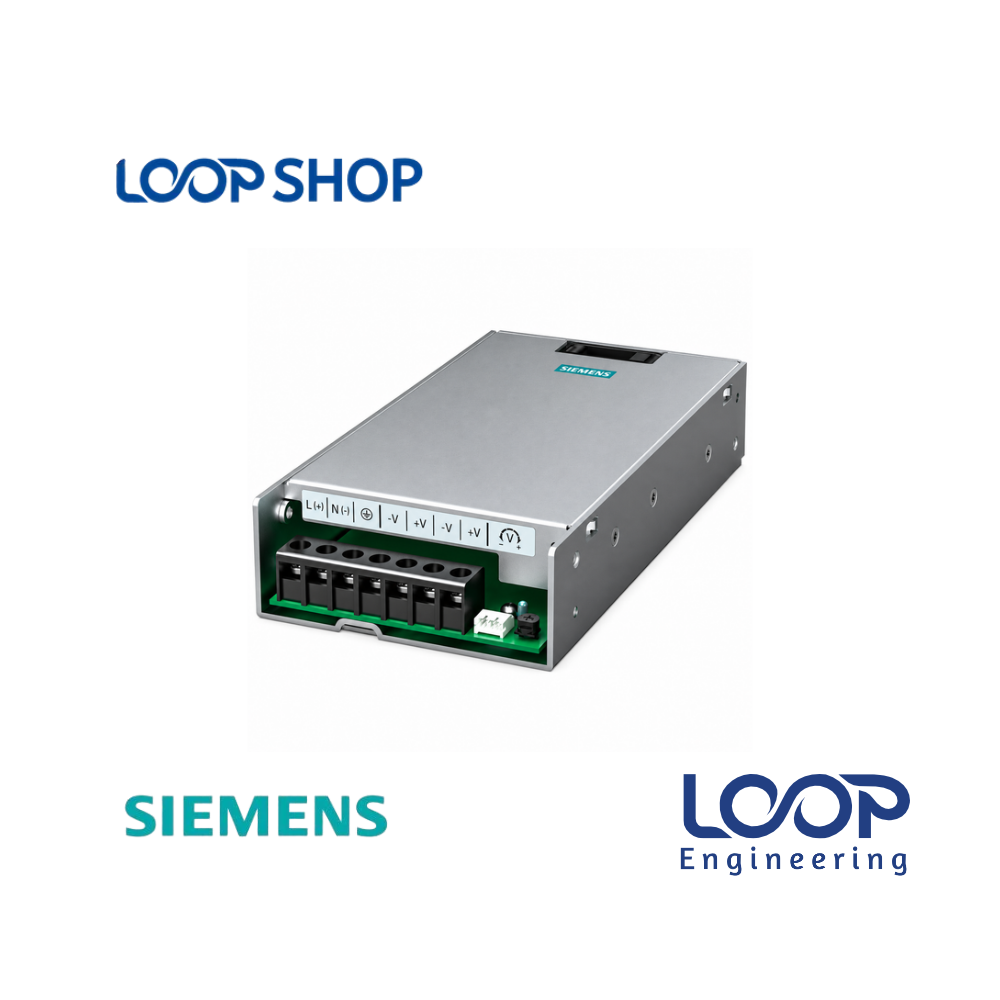

Siemens 6EP1334-1LD00 SITOP PSU100D SMPS 24V 12.5A 300W Industrial Supply

Description

The Siemens SITOP PSU100D (Model: 6EP1334-1LD00) is an industrial-grade Switch Mode Power Supply (SMPS) engineered for wall-mounted installation in control panels and machinery. Operating on a wide 1-phase AC input range, it delivers a regulated 24V DC supply up to 12.5A (300W total output power).

Industrial automation panels, PLCs, sensors, and actuators rely on steady DC power. The 6EP1334-1LD00 handles input line transients and heavy electrical noise to keep downstream electronics operating smoothly. Designed for seamless integration, its flat metal housing fits into tight spaces where standard DIN-rail profiles might be restricted. For engineers, automation integrators, and plant maintenance teams across Bangladesh, this Siemens unit offers consistent power conditioning for critical production assets.

Key Features

• Wide-Range AC Input: Accepts 100V to 240V AC nominal input to absorb line voltage fluctuations effortlessly.
• High Power Output: Delivers up to 12.5 A at 24 V DC (300 W output power capacity).
• Adjustable Output Voltage: Output can be fine-tuned from 22V to 28V DC to compensate for line voltage drops over long cable runs.
• Direct Wall Mounting: Rugged aluminum enclosure designed for direct screw mounting in any orientation.
• Rugged Industrial Housing: IP20-rated metal casing built to withstand thermal stress, shock, and vibration.

Technical Advantages

• High Efficiency Operation: Converts power with up to ~86% efficiency, minimizing internal thermal buildup in control cabinets.
• Durable Construction: Heavy-duty aluminum chassis protects internal components against harsh environmental conditions.
• Safety Protection: Built-in short-circuit protection, overload protection, and automatic fault reset keep connected devices safe.
• Energy Saving: Low standby losses reduce overall electrical consumption during idle operating cycles.
• Easy Maintenance: Screw clamp terminals enable quick, secure wiring inspections and maintenance routines.

Applications

• Residential: Custom automation control panels in smart residential setups.
• Commercial: Building management systems (BMS), elevator controls, and HVAC panels.
• Industrial: Heavy-duty automation machinery, packaging lines, and process engineering.
• Factory: Textile mills, garment factories, pharmaceuticals, and food processing plants.
• Office: Main power conditioning for central security and access control panels.
• Project Installation: Custom OEM equipment panels and automation retrofits.

Why Choose This Product?

• Reliability: Siemens SITOP units are internationally benchmarked for long-life performance in critical industrial systems.
• Performance: Maintains constant output voltage under varying load demands and fluctuating main power feeds.
• Cost Effectiveness: Prevents expensive downtime and damage to high-value PLC/automation hardware.
• After-Sales Value: Full technical backing and genuine product guarantee from loopshop.com.bd.

Technical Specification Table

Features List

• ✓ High efficiency operation (~86%)
• ✓ Advanced short-circuit and overload protection
• ✓ Rugged aluminum casing with direct wall-mount capability
• ✓ Wide input range (100–240 V AC) for voltage stability
• ✓ Adjustable 24 V DC voltage output (22 V – 28 V DC)

Benefits For Customers

• Reduces Electricity Cost: High efficiency limits waste heat generation and electrical overhead in control panels.
• Improves Operational Reliability: Prevents PLC reboots, sensor glitches, and machine trips caused by grid power dips.
• Saves Maintenance Cost: Durable components and built-in protection reduce maintenance calls and hardware replacement fees.
• Suitable for Bangladesh Environment: Operates up to +70 °C and copes with grid fluctuations common across Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically or horizontally on a flat wall or panel plate using standard screw fasteners.
• Maintain at least 50 mm clearance above and below the unit to permit natural air convection cooling.
• Wire the input line (100–240V AC) to the L and N screw terminals, ensuring proper earth grounding (PE connection).
• Verify that total load connected to the output terminals does not exceed 12.5 A continuous current.

Maintenance Tips:

• Periodically check terminal screw connections to ensure wires remain tightly fastened against operational vibration.
• Keep cooling vents free from excessive lint, dust, or oil film accumulation common in industrial environments.
• Use the front-facing potentiometer to trim voltage if long cable runs cause a voltage drop at terminal points.

Safety Instructions:

• Disconnect main AC input power before carrying out any wiring or panel maintenance.
• Installation must be performed by a qualified electrician or control system engineer.
• Do not expose the IP20 enclosure to direct water spray, high humidity, or conductive contaminants.

Frequently Asked Questions (FAQ)

Q: What is the price of Siemens SITOP PSU100D SMPS 6EP1334-1LD00 in Bangladesh?

A: You can check the latest updated price for the Siemens 6EP1334-1LD00 SMPS on loopshop.com.bd or contact our customer support team for live price quotes and bulk discounts.

Q: Where can I buy Siemens SITOP PSU100D SMPS 6EP1334-1LD00 in Bangladesh?

A: You can order original Siemens SITOP power supplies directly online through loopshop.com.bd with reliable island-wide delivery across Bangladesh.

Q: What warranty does this product have?

A: Warranty specifications depend on current manufacturer stocking and distribution policies. Please verify terms on loopshop.com.bd or contact sales before buying.

Q: Is this suitable for Bangladesh climate?

A: Yes, with an operating temperature rating up to +70 °C and wide AC input tolerance, it is well suited for factories and control cabinets in Bangladesh.

Q: How to install this product?

A: Secure the SMPS to your panel wall using screw mounts, connect single-phase AC power to the input terminals, and attach your 24V DC load to the output terminals.

Q: Can the output voltage be adjusted on the 6EP1334-1LD00?

A: Yes, the output voltage can be adjusted between 22V and 28V DC using the built-in trimming potentiometer.

Q: Is this a DIN-rail mounted power supply?

A: No, the SITOP PSU100D series features a flat aluminum enclosure specifically built for direct wall or panel screw mounting.

Q: What is the maximum current output of this unit?

A: The Siemens 6EP1334-1LD00 provides up to 12.5A continuous output at 24V DC (300W output capacity).

Q: Does this SMPS protect against short circuits?

A: Yes, it includes automatic short-circuit and overload protection to safeguard connected hardware.
