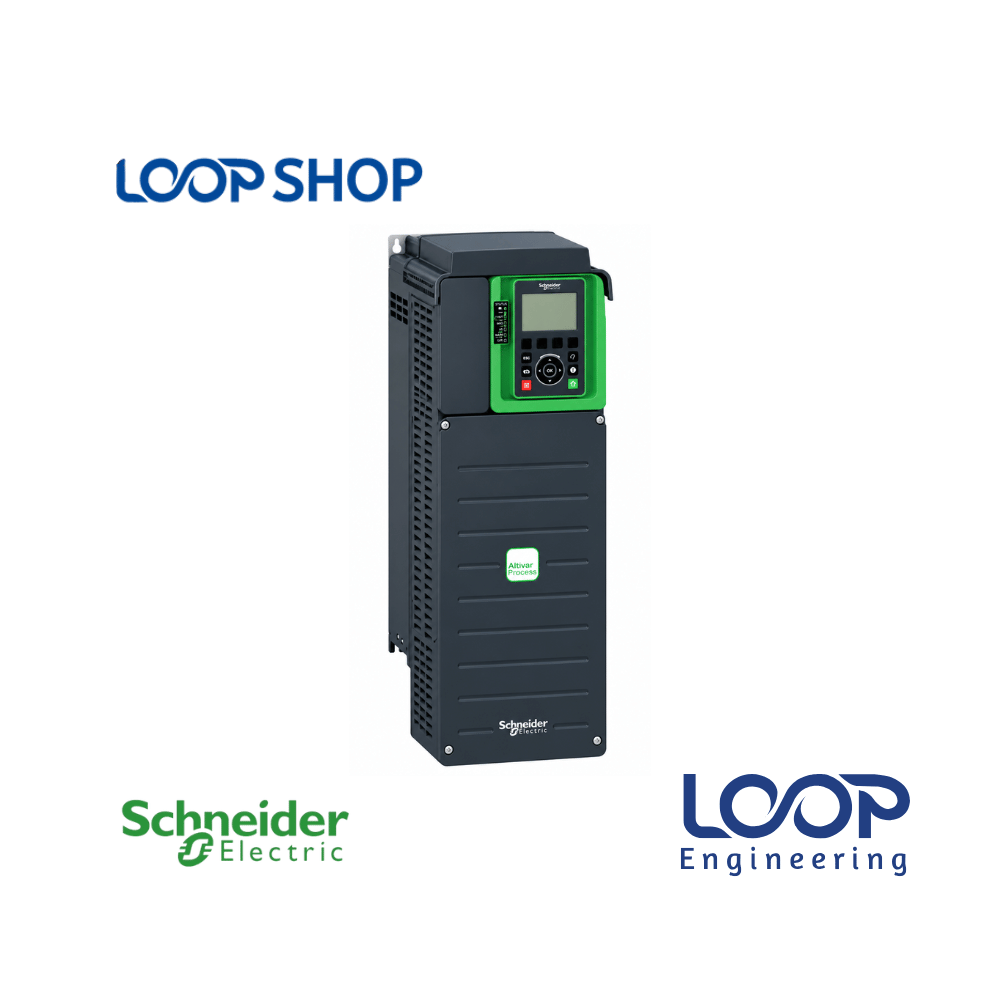

Schneider ATV630 18.5KW VFD ATV630D18N4 Variable Speed Drive

Description

The Schneider Electric Altivar Process ATV630 18.5KW VFD (ATV630D18N4) is a premium service-oriented Variable Frequency Drive designed for continuous process optimization and heavy-duty motor management. Operating across a standard 380V to 480V 3-phase supply, it converts fixed-frequency utility power into dynamic AC output to deliver accurate motor speed and torque regulation.

Ideal for plant maintenance managers, automation system integrators, and OEM equipment builders across Bangladesh, the ATV630 integrates real-time energy measurement, system performance analytics, and asset management functions without needing secondary metering devices.

Key Features

• Embedded Network Protocols: Dual-port Ethernet connectivity with Modbus TCP and Ethernet/IP ensures immediate integration into industrial control networks.
• Integrated Energy Metering: Built-in power monitoring features measure system consumption (margin of error < 5%) to help calculate power efficiency and ROI.
• Specialized Fluid Handling Features: Includes pre-programmed pump curves, pipe fill management, anti-jamming sequences, and dry-run protection for water systems.
• Graphic Display Terminal: High-resolution multi-language display keyboard offers visual parameter tuning, trending graphs, and step-by-step startup guides.
• Built-in EMC Filter: Integrated Class C3 EMC filter suppresses high-frequency electromagnetic noise, preserving signal integrity for sensitive control sensors.

Technical Advantages

• High Efficiency: Maintains over 97% efficiency at nominal rating, significantly lowering internal heat generation and electrical wastage.
• Durable Construction: Class 3C3 (corrosive gas resistance) and 3S3 (dust resistance) coated PCBs protect internal circuit boards against ambient environmental stress.
• Safety Protection: Built-in Safe Torque Off (STO) function meeting SIL 3 / PL e safety standards prevents accidental motor start-ups during routine maintenance.
• Energy Saving Mode: Adapts output voltage according to instantaneous load demands to cut energy consumption during partial load conditions.
• Easy Maintenance: Dynamic QR code display enables instant diagnostic monitoring and troubleshooting directly via mobile devices.

Applications

• Industrial Manufacturing: Textile processing lines, paper mills, chemical manufacturing, and plastic production plants.
• Commercial Buildings: Centralized HVAC chillers, supply/exhaust air fans, and cooling tower circulating pumps.
• Water & Wastewater: Booster pumping stations, submersible pumps, sewage lift stations, and agricultural irrigation systems.
• Factory Automation: Conveyors, mixers, agitators, centrifuges, and industrial air blowers.
• Project Installation: Municipal water schemes, infrastructure projects, and industrial zone facility management systems.

Why Choose This Product?

• Reliability: Manufactured according to Schneider Electric’s stringent quality standards for continuous 24/7 industrial service life.
• Performance: Excellent dynamic torque response and smooth acceleration/deceleration control under heavy mechanical loads.
• Cost Effectiveness: Delivers tangible reductions in electricity costs while extending mechanical motor and pump life.
• After-Sales Value: Supported by expert technical assistance, original documentation, and dependable service through loopshop.com.bd.

Technical Specification Table

Features List

✓ High efficiency 18.5KW motor speed control

✓ Integrated dual-port Modbus TCP & Ethernet/IP

✓ Built-in Safe Torque Off (STO) safety standard

✓ Conformal coated PCBs (3C3/3S3) for humidity protection

✓ Real-time energy monitoring and diagnostic display

Benefits For Customers

• Reduces Electricity Cost: Minimizes power draw during non-peak load periods, lowering monthly power bills for industrial units.
• Improves Operational Reliability: Soft-starting eliminates high inrush current spikes and violent water hammer in pipeline networks.
• Saves Maintenance Cost: Early protective alerts prevent motor burnout and reduce expensive unscheduled facility downtime.
• Suitable for Bangladesh Environment: Designed with thermal protection and coated electronics to endure humid, warm industrial spaces in Bangladesh.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-flammable surface inside a well-ventilated enclosure or electrical panel room.
• Ensure clear surrounding clearance of at least 50 mm on both sides and 100 mm above and below the drive for natural convection cooling.
• Connect the 380–480V 3-phase mains supply to input terminals L1, L2, L3, and output terminals U, V, W to motor leads with heavy-gauge ground connections.
• Use shielded power and control cables to suppress electromagnetic interference (EMI).

Maintenance Tips:

• Clean cooling fans and heat sink fins regularly to remove dust or lint buildup.
• Periodically check terminal block connections to ensure proper tightness against thermal expansion and vibration.
• Check operational log history using the graphic terminal to track load cycles and temperature profiles.

Safety Instructions:

• Always disconnect main AC power and wait at least 15 minutes for internal DC capacitors to discharge fully before servicing internal wiring.
• Verify that ground wiring is securely grounded before turning power ON.
• Installation, wiring, and parameter setup must be carried out by qualified electrical technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Schneider ATV630 Series 18.5KW VFD ATV630D18N4 in Bangladesh?

A: The price of the Schneider ATV630 18.5KW VFD in Bangladesh depends on import costs and stock availability. Please check live prices or request a quote directly on loopshop.com.bd.

Q: Where can I buy original Schneider ATV630D18N4 VFD in Bangladesh?

A: You can purchase 100% genuine Schneider Electric ATV630 series VFDs directly online from loopshop.com.bd with nationwide delivery across Bangladesh.

Q: What warranty does the Schneider ATV630D18N4 product have?

A: This product is backed by standard warranty coverage against manufacturing defects. Complete warranty policies are provided upon purchase on loopshop.com.bd.

Q: Is the Schneider ATV630 18.5KW VFD suitable for Bangladesh climate conditions?

A: Yes, it features 3C3 and 3S3 conformal coated circuit boards designed to resist atmospheric humidity, dust, and continuous elevated ambient temperatures in Bangladesh.

Q: How do I install the Schneider ATV630D18N4 18.5KW VFD?

A: Installation requires vertical panel mounting, wiring a 380-480V 3-phase AC power input, connecting the output motor cables, proper grounding, and configuring motor parameters using the graphic panel keypad.

Q: What is the output power rating of the Schneider ATV630D18N4 drive?

A: The ATV630D18N4 drive is rated for 18.5 kW (25 HP) under normal duty conditions and 15 kW (20 HP) under heavy-duty conditions.

Q: Does the ATV630D18N4 VFD support Ethernet communication?

A: Yes, it comes equipped with embedded Modbus TCP and Ethernet/IP protocols for seamless networking with PLCs and SCADA systems.

Q: Can this 18.5KW drive be used for water pumps and HVAC fans?

A: Yes, the Altivar Process ATV630 series includes dedicated pump and fan functions such as anti-jamming, pipe filling, and energy-optimizing speed control.

Q: What protective features are built into this Schneider VFD?

A: It includes Safe Torque Off (STO), overcurrent, overvoltage, undervoltage, phase imbalance, thermal overload, and short-circuit protections.

Q: Can I get technical support for setting up Schneider VFDs in Bangladesh?

A: Yes, loopshop.com.bd offers technical assistance, parameter documentation, and setup guidance for industrial automation customers in Bangladesh.
