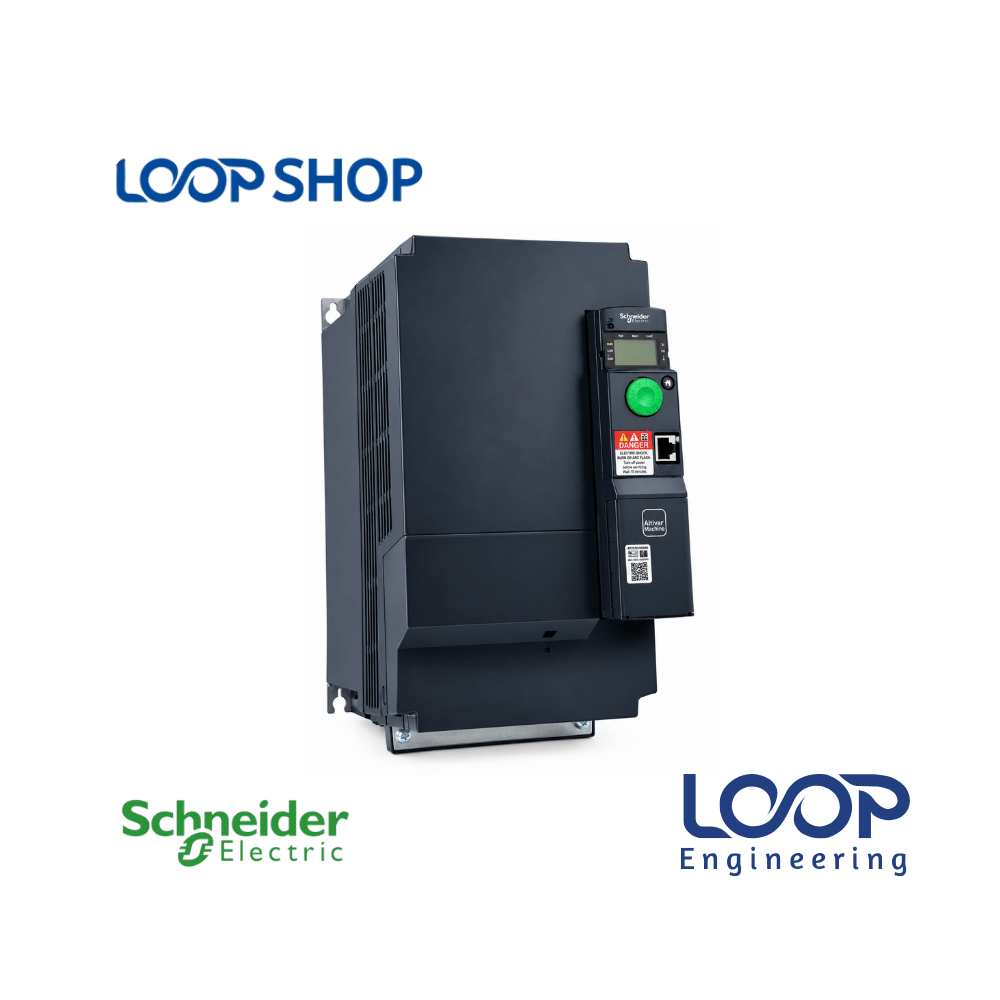

Schneider ATV320 15kW VFD ATV320D15N4B Variable Speed Drive

Description

The Schneider Electric Altivar Machine ATV320 15kW VFD (ATV320D15N4B) is an advanced, heavy-duty Variable Frequency Drive designed specifically for industrial original equipment manufacturers (OEMs) and process automation lines. Operating on a 380V to 500V 3-phase AC power supply, this drive regulates the output frequency and voltage to deliver precise speed, acceleration, and torque control for 3-phase motors.

Ideal for factory engineers, automation integrators, and maintenance technicians in Bangladesh, the ATV320D15N4B combines exceptional dynamic motor control with built-in safety logic, eliminating the need for expensive external safety relays while maximizing operational uptime.

Key Features

• Book Form Factor Architecture: Sleek, space-saving design allows direct side-by-side mounting inside control enclosures without thermal derating.
• Integrated Safety Functions: Features embedded Safe Torque Off (STO) alongside SS1, SLS, SMS, and GDL safety logic to safeguard machine operators and mechanical components.
• Flexible Communication: Native support for Modbus RTU and CANopen, with optional snap-in fieldbus modules for Ethernet/IP, Profinet, and EtherCAT.
• Enhanced Motor Compatibility: Delivers accurate vector control for both standard asynchronous induction motors and high-efficiency permanent magnet synchronous motors.
• Integrated Class C3 EMC Filter: Built-in line filter minimizes high-frequency electromagnetic noise, ensuring stable performance near sensitive sensors and controllers.

Technical Advantages

• High Efficiency: Delivers over 97% drive efficiency at full load, reducing thermal losses inside control panels and lowering total power usage.
• Durable Construction: Class 3C3 and 3S3 conformal coated printed circuit boards (PCBs) protect internal electronics against dust accumulation, humidity, and aggressive chemical gases.
• Safety Protection: Integrated hardware safety inputs eliminate redundant safety contactors and simplify SIL3 / PL e machine safety compliance.
• Energy Saving: Dynamic energy-optimizing control modes automatically lower voltage under light-load conditions to cut motor electricity consumption.
• Easy Maintenance: Plug-and-play parameter duplication via simple navigation keys or software tools allows quick drive replacement and short setup times.

Applications

• Industrial Manufacturing: Textile dyeing machinery, spinning frames, packaging machines, and material handling systems.
• Commercial Buildings: HVAC supply/exhaust fans, booster pumps, and elevator/hoist control mechanisms.
• Factory Automation: Belt conveyors, screw feeders, mixers, agitators, and industrial blowers.
• Woodworking & Metal Processing: Saws, cutting tools, metal lathes, and bending machines.
• Project Installation: Custom OEM machinery installations, utility plants, and commercial infrastructure projects across Bangladesh.

Why Choose This Product?

• Reliability: Built to Schneider Electric’s global industrial standards, ensuring uninterrupted 24/7 service under tough operating conditions.
• Performance: High dynamic torque response and smooth acceleration/deceleration control across full speed ranges.
• Cost Effectiveness: Compact footprint cuts control cabinet sizing costs, while embedded safety logic eliminates extra wiring and components.
• After-Sales Value: Supported by comprehensive documentation, parameter backup, and local technical assistance via loopshop.com.bd.

Technical Specification Table

Features List

✓ High efficiency 15kW heavy-duty motor speed control

✓ Compact book form factor for space-saving panel installation

✓ Integrated STO and multi-function machine safety protection

✓ Conformal coated circuit boards (3C3/3S3) for harsh environments

✓ Built-in Class C3 EMC filter for reduced noise interference

Benefits For Customers

• Reduces Electricity Cost: Optimizes energy draw based on real-time load requirements, cutting operating costs for manufacturing plants.
• Improves Operational Reliability: Soft-starting capabilities eliminate heavy line-current surges and mechanical stress on gearboxes and couplings.
• Saves Maintenance Cost: Early fault detection and built-in motor protection guard against motor winding burnout and unexpected line shutdowns.
• Suitable for Bangladesh Environment: Tropicalized circuit board coatings safeguard sensitive internal electronics against high atmospheric humidity and ambient dust.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a rigid, non-combustible panel inside a clean, well-ventilated control enclosure.
• Leave at least 50 mm clearance on the left and right, and 100 mm above and below the unit for natural convection air circulation.
• Connect input 380–500V 3-phase mains lines to terminals L1, L2, L3 and motor supply leads to output terminals U, V, W.
• Utilize shielded cabling for motor connections and control signals to prevent electromagnetic interference (EMI).

Maintenance Tips:

• Periodically check and clean internal cooling fans and external heat sink cooling channels to prevent dust accumulation.
• Tighten power and control terminal screws regularly to avoid high-resistance loose connections caused by machinery vibration.
• Inspect ambient cabinet operating temperatures to ensure cooling fans maintain optimal operating limits.

Safety Instructions:

• Disconnect main AC supply and wait at least 15 minutes for internal DC bus capacitors to discharge completely before servicing.
• Verify that protective earthing (grounding) conductors are connected tightly before applying electrical power.
• Wiring, configuration, and maintenance work must strictly be performed by trained electrical engineers.

Frequently Asked Questions (FAQ)

Q: What is the price of Schneider ATV320 Series 15kW VFD ATV320D15N4B in Bangladesh?

A: The price of the Schneider ATV320 15kW VFD in Bangladesh varies according to market availability and currency exchange rates. Please check current live pricing or request a formal quote on loopshop.com.bd.

Q: Where can I buy original Schneider ATV320D15N4B VFD in Bangladesh?

A: You can purchase genuine Schneider Electric ATV320 series VFDs online from loopshop.com.bd with reliable delivery options across Bangladesh.

Q: What warranty does the Schneider ATV320D15N4B product have?

A: This product is covered by standard supplier warranty against factory manufacturing defects. Specific warranty terms are detailed upon purchase at loopshop.com.bd.

Q: Is the Schneider ATV320 15kW VFD suitable for Bangladesh climate conditions?

A: Yes, it features 3C3 and 3S3 conformal coated circuit boards, making it highly resistant to high humidity, atmospheric dust, and continuous ambient heat common in Bangladesh.

Q: How to install the Schneider ATV320D15N4B 15kW VFD?

A: Installation requires vertical cabinet mounting, wiring 380-500V 3-phase AC input power, connecting the motor output terminals, grounding properly, and setting up basic parameters using the keypad.

Q: What is the difference between “Book” and “Compact” form factors in the ATV320 series?

A: The ATV320D15N4B features a “Book” form factor, which is tall and narrow, allowing side-by-side mounting to optimize panel width in control cabinets.

Q: What power supply voltage does the ATV320D15N4B support?

A: The drive operates on a 3-phase 380V to 500V AC power supply at 50/60 Hz.

Q: Does the ATV320 15kW VFD support permanent magnet synchronous motors?

A: Yes, the Altivar Machine ATV320 drive range is engineered to control both asynchronous induction motors and synchronous permanent magnet motors.

Q: What safety functions are built into this drive?

A: It includes built-in Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), and Guard Door Locking (GDL) safety logic.

Q: Can I get technical support for setting up Schneider VFDs in Bangladesh?

A: Yes, loopshop.com.bd provides technical guidance, product specification sheets, and setup advice for industrial automation customers across Bangladesh.
