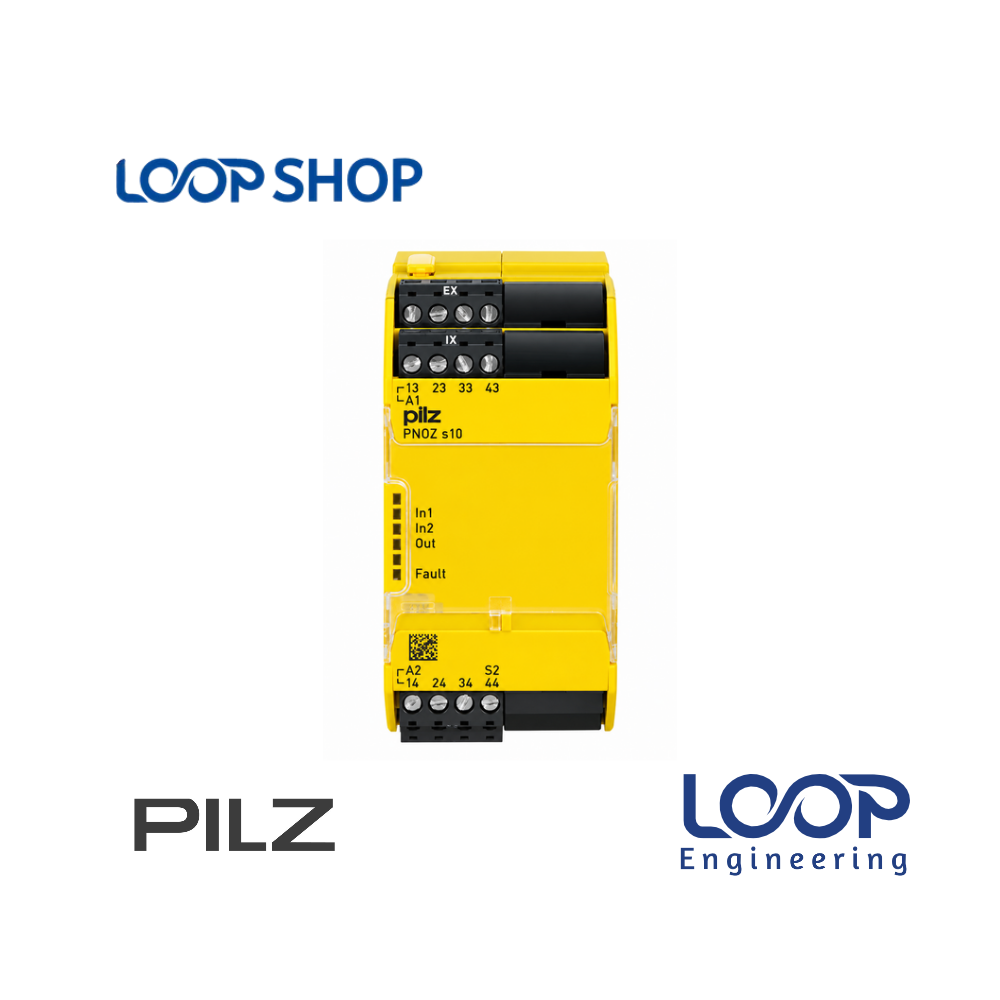

Pilz PNOZ S10 750110 Safety Relay 24VDC 4NO 1NC Expansion Unit

Description

The Pilz PNOZ S10 750110 is an advanced safety relay expansion module from the renowned PNOZsigma series engineered by Pilz. Built to combine decades of safety engineering expertise with modern compact housing design, the PNOZ S10 acts as a reliable contact expansion unit for safety gates, emergency stops, and industrial control circuits.

When triggered by safety switches or base control modules, the PNOZ S10 immediately isolates power to connected actuators or machinery, preventing accidental startup and ensuring operator safety.

This relay is essential for control panel builders, automation engineers, maintenance leads, and industrial factory operators. In Bangladesh, where industrial compliance, workplace safety, and uninterrupted production lines are top priorities—especially in textile, RMG, packaging, and pharmaceutical sectors—the Pilz PNOZ S10 provides an internationally certified, highly dependable safety switching solution.

Key Features

• Expanded Safety Outputs: Equipped with 4 Normally Open (NO) instantaneous safety contacts and 1 Normally Closed (NC) auxiliary contact for status feedback.
• Standard 24V DC Powering: Operates reliably on standard 24V DC power supplies across industrial control cabinets.
• PNOZsigma Compact Housing: Ultra-narrow body width offers maximum safety functionality in minimum cabinet space.
• Fast & Flexible Wiring: Designed for fast mounting and seamless interlocking with base PNOZ control units.
• Visual Status LEDs: Front panel LED indicators deliver immediate visual diagnostic feedback for power and contact switching status.

Technical Advantages

• Durable Construction: Rugged enclosure engineered to endure harsh industrial environments and electrical panel heat generation.
• Safety Protection: Delivers maximum functional safety ratings up to PL e / SIL CL 3 for high-risk industrial machinery protection.
• Energy Saving: Highly efficient coil design minimizes power consumption and panel heat build-up.
• Easy Maintenance: Plug-in terminals and quick modular expansion cut servicing times and reduce plant downtime.

Applications

• Industrial: Automated manufacturing systems, stamping machinery, and heavy production lines.
• Factory: Garment (RMG) factories, textile looms, pharmaceutical machinery, and packaging lines.
• Commercial: Elevator safety systems, escalator control units, and automated building access panels.
• Project Installation: Ideal for system integrators upgrading existing panel safety circuits to international compliance standards.

Why Choose This Product?

• Reliability: Proven German safety relay technology guarantees instant shutoff execution when emergency conditions arise.
• Performance: High contact switching capability and rapid response time protect both human operators and costly machinery.
• Cost Effectiveness: Expands system safety contacts cost-effectively without replacing entire safety controller architectures.
• After-Sales Value: Supported locally by loopshop.com.bd with authentic sourcing, reliable delivery, and technical guidance across Bangladesh.

Technical Specification Table

Features List

✓ 4 Instantaneous Safety Contacts (NO)

✓ 1 Auxiliary Monitoring Contact (NC)

✓ 24V DC Operating Control Voltage

✓ Ultra-Compact PNOZsigma Space-Saving Housing

✓ High-Level Functional Safety (PL e / SIL CL 3)

✓ Front LED Indicators for Fast Diagnostics

Benefits For Customers

• Improves Operational Reliability: Guarantees precise safety contact opening during emergency stop or gate interlocking events.
• Saves Maintenance Cost: Plug-in modular structure and LED diagnostics lower troubleshooting time and maintenance expenses.
• Saves Control Panel Space: Compact module design allows system integrators to fit more automation functionality into small enclosures.
• Suitable for Bangladesh Environment: Designed to maintain stable electrical operation under continuous ambient humidity and industrial temperatures in local factories.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on standard 35mm DIN rail inside an IP54-rated industrial panel enclosure.
• Turn off and lock out main cabinet power before connecting or disconnecting control wires.
• Wire input and output terminals strictly according to Pilz PNOZ S10 schematic guidelines and base module expansion connectors.

Maintenance Tips:

• Perform periodic visual checks on terminal connection tightness to prevent loose wiring caused by panel vibration.
• Keep cabinet interiors clean of dust, fluff, and moisture buildup common in textile and garment environments.
• Monitor front LED diagnostic indicators during routine pre-shift machinery safety checks.

Safety Instructions:

• Installation, commissioning, and wiring must be performed only by qualified electrical and automation personnel.
• Do not dismantle, alter, or attempt internal repairs on the safety relay module.
• Always perform a functional trip test after initial installation or maintenance intervention.

Frequently Asked Questions (FAQ)

Q: What is the price of Pilz Safety Relay PNOZ S10 750110 in Bangladesh?

A: You can check the latest updated price for the Pilz PNOZ S10 750110 directly on loopshop.com.bd or request a custom quotation from our sales team.

Q: Where can I buy Pilz Safety Relay PNOZ S10 750110 in Bangladesh?

A: You can order original Pilz safety relays online from loopshop.com.bd with fast delivery to Dhaka, Chittagong, Gazipur, Narayanganj, and nationwide.

Q: What warranty does this product have?

A: It comes backed by a standard manufacturer defect warranty and product testing guarantee provided via Loopshop BD.

Q: Is this suitable for Bangladesh climate?

A: Yes, the unit is constructed with durable IP40/IP20 rated housing intended for continuous industrial operation in tropical ambient cabinet conditions.

Q: How to install this product?

A: It snaps onto a standard 35mm DIN rail and connects to the base PNOZ safety relay module using expansion terminals and panel wiring.

Q: Can the PNOZ S10 750110 be used for safety gate monitoring?

A: Yes, it is explicitly engineered as a gate safety relay expansion module to monitor safety interlocks and protective doors.

Q: How many safety outputs does the PNOZ S10 750110 provide?

A: It features 4 Normally Open (NO) safety contacts and 1 Normally Closed (NC) auxiliary feedback contact.

Q: What operating voltage does this safety relay require?

A: The module requires a standard 24V DC power input for proper relay activation.

Q: Is this relay suitable for RMG and textile factory compliance in BD?

A: Absolutely. It complies with international machine safety standards required for buyer audits in Bangladesh garment and industrial sectors.

Q: Are products sold on Loopshop BD authentic?

A: Yes, loopshop.com.bd supplies 100% genuine industrial automation parts and electrical components directly sourced from certified channels.
