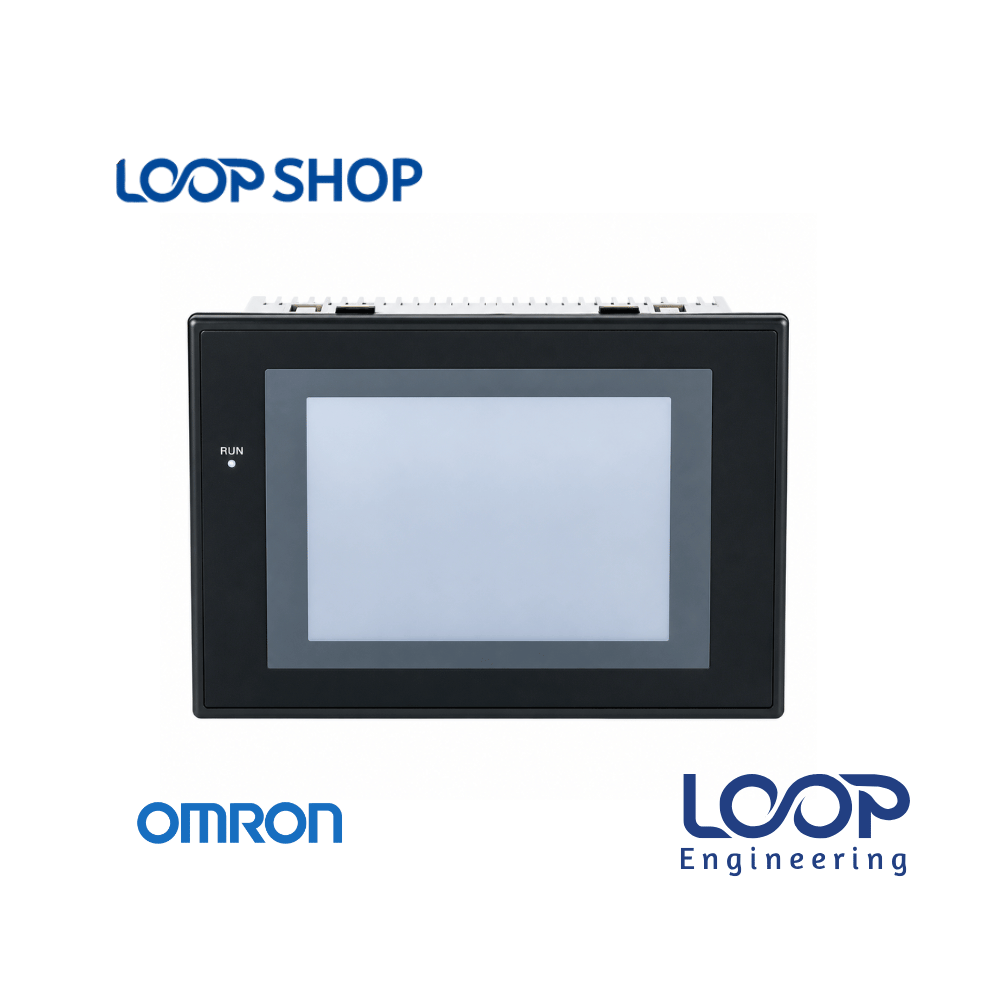

Omron NS5-SQ10B-V2 5.7 Inch Touch Screen HMI Display Panel Industrial

Description

The Omron NS5-SQ10B-V2 is a compact 5.7-inch TFT color touch screen Human Machine Interface (HMI) designed for efficient machine control, real-time data monitoring, and interactive process visualization. Engineered to work seamlessly with Omron CS, CJ, and CP-series PLCs as well as third-party automation controllers, this NS-series display acts as a centralized visual interface for industrial machinery.

By translating complex PLC ladder code and sensor feedback into intuitive graphical screens, alarm banners, and operational trend logs, the NS5-SQ10B-V2 simplifies daily machine management. It is an ideal solution for factory engineers and panel builders across Bangladesh looking to enhance machine operating safety, lower downtime, and modernize enclosure panel designs.

Key Features

• 5.7-Inch Color TFT Touch Screen: Delivers vivid color rendering with high touch precision for smooth operator navigation.
• Dual RS-232C Serial Interfaces: Provides multi-device connectivity options for direct interface with PLCs, temperature controllers, and industrial drives.
• Smart Active Parts (SAP) Library: Speeds up UI layout programming and includes built-in troubleshooting functions.
• Onscreen Ladder Monitoring: Allows service technicians to check and troubleshoot PLC sequence logic directly on the screen without using a laptop.
• Multi-Language Screen Support: Features comprehensive multi-language project localization capabilities for international equipment support.
• Black Bezel Frame: Sleek black bezel design fits modern industrial panel aesthetics.

Technical Advantages

• Durable Construction: Industrial-grade front bezel construction resists ambient vibrations, airborne dust, and moisture ingress in demanding production environments.
• Energy-Efficient Operation: Low power operational profile using standard 24 VDC industrial power supplies.
• Compact Footprint: Fits smoothly into space-constrained control cabinets and small OEM machine panels.
• Easy Maintenance: Quick project updates, self-diagnostics, and rapid screen maintenance streamline plant operations.

Applications

• Industrial & Factory Automation: Textile machines, plastics machinery, automatic packaging lines, food & beverage processing units, and pharmaceutical equipment.
• Commercial Systems: Water packaging units, industrial boiler monitoring, and commercial HVAC control cabinets.
• Project Installation: Control panel retrofitting, custom OEM panel fabrication, and automated process control setups.

Why Choose This Product?

• Japanese Quality & Reliability: Engineered to Omron’s rigorous quality standards, offering dependable long-term field operation.
• Enhanced Field Diagnostics: Built-in ladder monitoring and troubleshooting functions substantially reduce equipment troubleshooting times.
• Cost Effectiveness: Delivers robust industrial features and flexible serial connectivity at a very competitive price point.
• After-Sales Support: Supported by authentic product availability, competitive pricing, and local customer guidance through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Clear 5.7-inch TFT color touch screen display

✓ Dual RS-232C serial communication ports

✓ Onscreen PLC Ladder Monitor for direct sequence debugging

✓ Smart Active Parts (SAP) library with trouble-shooter support

✓ IP65 front panel protection against dust and water splash

✓ Energy-efficient 24 VDC industrial power requirement

✓ Space-saving compact housing for easy panel mounting

Benefits For Customers

• Faster Downtime Resolution: Technicians can inspect PLC program status and diagnose faults directly on the HMI screen without deploying a programming laptop.
• Saves Panel Space: The compact 5.7-inch form factor fits easily into tight control boxes without compromising operational visibility.
• Reduces System Integration Costs: Built-in serial ports allow straightforward connections with existing industrial automation setups.
• Suitable for Bangladesh Environment: IP65 front panel structure protects the internal display assembly from ambient humidity, high heat, and industrial dust common in Bangladesh factories.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the electrical cabinet door according to the official Omron 5.7-inch NS series cutout dimensions.
2. Insert the HMI into the cutout and secure it firmly using the provided side panel clamps to achieve an IP65 front seal.
3. Keep sufficient clearance behind the rear casing for adequate airflow and thermal management.
4. Supply a clean, regulated 24 VDC power line with proper frame grounding to protect electronic components from power line transients.

Maintenance Tips:

1. Clean the front touch screen periodically using a soft, dry cloth. Avoid harsh chemical cleaners, alcohol, or abrasive cloths.
2. Ensure ventilation openings around the control panel cabinet remain free of dust buildup.
3. Keep backed-up copies of the display project files and parameter configurations on secure storage media.

Safety Instructions:

• Always disconnect main power to the cabinet before performing wiring, panel mounting, or terminal maintenance.
• Verify input DC voltage polarity before turning on the device to prevent circuit board damage.
• Avoid using sharp metallic objects, screwdrivers, or extreme force when tapping the touch screen.

Frequently Asked Questions (FAQ)

Q: What is the price of Omron NS5-SQ10B-V2 HMI in Bangladesh?

A: The price of the Omron NS5-SQ10B-V2 in Bangladesh depends on import costs and current stock availability. Please check the product page on LOOP Shop or contact us directly for an updated price quote.

Q: Where can I buy original Omron NS5-SQ10B-V2 in Bangladesh?

A: You can purchase genuine Omron NS5-SQ10B-V2 touch screen display HMIs online directly from LOOP Shop (loopshop.com.bd) with fast delivery service across Bangladesh.

Q: What warranty does this product have?

A: The Omron NS5-SQ10B-V2 comes with standard manufacturer warranty coverage against manufacturing defects, handled via LOOP Shop customer support.

Q: Is this product suitable for Bangladesh industrial climate?

A: Yes, featuring an IP65 rated front panel and operating thermal resilience up to 50°C, it is fully capable of continuous operation in Bangladesh industrial environments.

Q: How to install this product?

A: Mount the unit into the cut out panel space on your control cabinet door, secure it using the side mounting brackets, attach your 24 VDC power supply and RS-232C serial cables, and download your project software.

Q: What is the main difference between NS5-SQ10B-V2 and NS5-SQ11-V2?

A: The NS5-SQ10B-V2 relies on dual RS-232C serial communication ports, whereas the NS5-SQ11-V2 model includes an integrated Ethernet port.

Q: What programming software is used for the Omron NS5-SQ10B-V2?

A: The Omron NS series HMIs are programmed using Omron’s CX-Designer screen creation software tool.

Q: Can I monitor PLC ladder diagrams directly on this screen?

A: Yes, a built-in Ladder Monitor feature comes standard on this model, enabling live sequence troubleshooting without a laptop.

Q: What power voltage does this touch screen require?

A: It requires a standard 24 VDC industrial power source.

Q: Can this HMI connect to non-Omron PLCs?

A: Yes, the Omron NS series supports communication protocols for several popular third-party PLC brands over serial connections.
