Omron NB5Q-TW00B 5.6 Inch Touch Screen HMI Display Panel Industrial Automation

Description

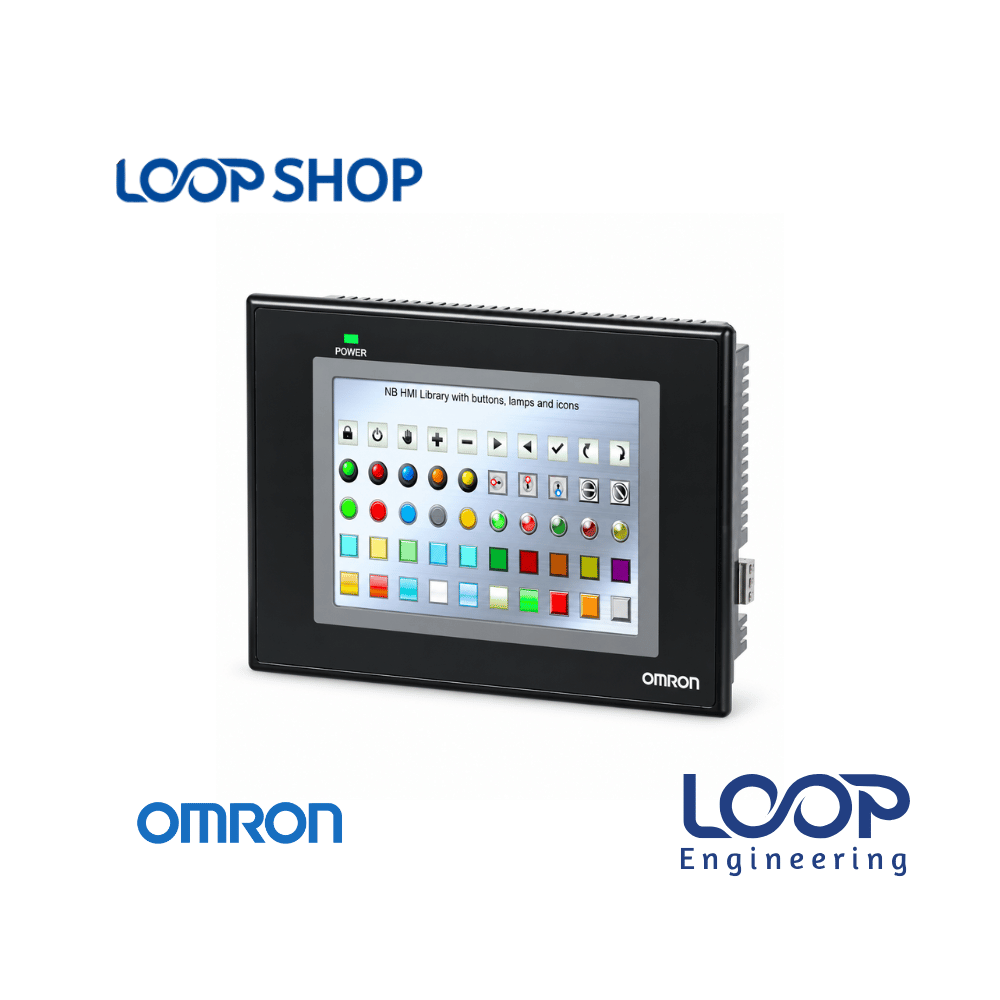

The Omron NB5Q-TW00B is a versatile and compact 5.6-inch TFT touch screen Human Machine Interface (HMI) designed to offer intuitive real-time monitoring and control for modern industrial automation systems. Operating as a bridge between operators and machine controllers, this HMI visually displays system statuses, operating parameters, alarms, and graphical trends.

Engineered with advanced processing capability and programmed via Omron’s free NB-Designer software, the NB5Q-TW00B simplifies complex machine processes into user-friendly touch controls. It is an ideal solution for automation projects across Bangladesh, enabling plant engineers to upgrade panel designs, minimize machine downtime, and improve operating efficiency.

Key Features

• 5.6-Inch Color TFT Display: Provides clear visibility with support for 65,536 colors and adjustable brightness.
• Dual Serial Communication: Includes embedded RS-232C and RS-422A/485 ports for multi-device networking.
• USB Host & Device Ports: Supports direct PC programming via USB client and fast project upload/download via USB drive.
• Portrait & Landscape Orientation: Offers flexibility in enclosure panel design and space optimization.
• Comprehensive Graphics Library: Allows customization of dynamic screens, trend graphs, historical data logs, and alarm management.
• Multi-Language Support: Enables flexible user interface localization for diverse technical teams.

Technical Advantages

• Durable Construction: Rugged front bezel structure designed for demanding environments with protection against dirt, dust, and water splash.
• Energy-Efficient Operation: Low power consumption powered by a standard 24 VDC industrial power source with long LED backlight lifecycle.
• High System Compatibility: Native protocol support for Omron PLCs (CP1E, CP1L, CJ2M, CS1, etc.) alongside major third-party controller brands.
• Easy Maintenance: Quick screen calibration, self-diagnostics, and hassle-free firmware/project updates via USB drive save field engineering hours.

Applications

• Industrial & Factory Automation: Textile machinery, packaging equipment, food and beverage processing, plastics machinery, and pharmaceuticals.
• Commercial Systems: Water treatment plants, HVAC control panels, automated car washes, and building management systems.
• Project Installation: OEM machinery integration, control panel modernization, and custom PLC-HMI panel fabrication.

Why Choose This Product?

• Proven Reliability: Omron’s world-renowned Japanese quality guarantees stable long-term operation with minimal failure rates.
• Optimal Performance: Smooth touch reaction time combined with clear visual rendering enhances machine operation safety and user comfort.
• Cost Effectiveness: Outstanding balance of industrial-grade features at a competitive price point, ensuring low total cost of ownership (TCO).
• After-Sales Support: Wide availability of documentation, programming tools, and regional technical support in Bangladesh.

Technical Specification Table

Features List

✓ Clear 5.6-inch TFT LCD touch screen display

✓ Dual serial communication ports (RS-232C & RS-422A/485)

✓ USB host port for quick data logging and project transfers

✓ IP65 front-panel ingress protection rating

✓ Free and user-friendly NB-Designer software

✓ Energy-efficient 24 VDC power requirement

✓ Robust alarm handling and real-time trend graphic display

Benefits For Customers

• Reduces System Downtime: Real-time diagnostics and status visual alerts allow technicians to troubleshoot and fix operational faults quickly.
• Improves Operational Efficiency: Simple visual controls and intuitive layout design reduce operator training time and human errors.
• Saves Panel Space: Compact form factor fits smoothly into tight electrical enclosure cutouts without compromising display area.
• Suitable for Bangladesh Environment: IP65 front protection withstands high dust levels, humidity, and varying industrial operating conditions common in Bangladeshi plants.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a panel cutout measuring 172.4 mm (W) × 130.4 mm (H).
2. Insert the HMI panel into the cutout and secure it using the provided panel mounting brackets and screws.
3. Ensure adequate spacing around the rear housing for heat dissipation and cable bend radius.
4. Supply a clean 24 VDC regulated power source with proper grounding to avoid electrical noise.

Maintenance Tips:

1. Regularly clean the touch surface with a soft, clean, dry cloth or mild glass cleaner; avoid abrasive materials or aggressive chemical solvents.
2. Ensure surrounding ventilation slots remain dust-free.
3. Keep periodic backups of the project files on an external USB storage drive.

Safety Instructions:

• Always disconnect input power before carrying out wiring or installation work.
• Do not apply excessive mechanical pressure or touch the screen using sharp tools.
• Wire the power supply according to recommended polarity and wiring diagrams to prevent internal circuitry damage.

Frequently Asked Questions (FAQ)

Q: What is the price of Omron NB5Q-TW00B HMI in Bangladesh?

A: The price of the Omron NB5Q-TW00B HMI in Bangladesh varies depending on stock availability and import duties. Please check the product page on LOOP Shop or contact our customer team for the current competitive price quote.

Q: Where can I buy original Omron NB5Q-TW00B in Bangladesh?

A: You can purchase genuine Omron NB5Q-TW00B touch screen HMIs directly online from LOOP Shop (loopshop.com.bd) with fast delivery service across Bangladesh.

Q: What warranty does this product have?

A: The Omron NB5Q-TW00B comes with standard manufacturer warranty against manufacturing defects, subject to verification by LOOP Shop technical support.

Q: Is this product suitable for Bangladesh industrial climate?

A: Yes, with an IP65 rated front panel and operating temperature tolerance up to 50°C, it is well-suited for high heat, humidity, and dusty industrial environments in Bangladesh.

Q: How to program the Omron NB5Q-TW00B HMI?

A: It is programmed using Omron’s freely available NB-Designer software. You can connect the unit to your PC using a standard USB cable or upload project files via a USB memory stick.

Q: Does the Omron NB5Q-TW00B support Ethernet communication?

A: No, the NB5Q-TW00B model features serial ports (RS-232C, RS-422A/485) and USB ports. For Ethernet connectivity, consider the Omron NB5Q-TW01B model.

Q: Can I connect this HMI to non-Omron PLCs?

A: Yes, the Omron NB series supports communications protocols for various popular third-party PLCs and industrial automation controllers.

Q: What is the display size and resolution of NB5Q-TW00B?

A: It features a 5.6-inch TFT LCD color screen with a resolution of 320 × 234 pixels.

Q: What power supply voltage is required for operation?

A: It requires a standard regulated 24 VDC power supply.

Q: Does LOOP Shop provide technical support or assistance for installation?

A: Yes, LOOP Shop offers customer support and guidance on product specs, compatibility, and programming resources for engineers and panel builders in Bangladesh.
