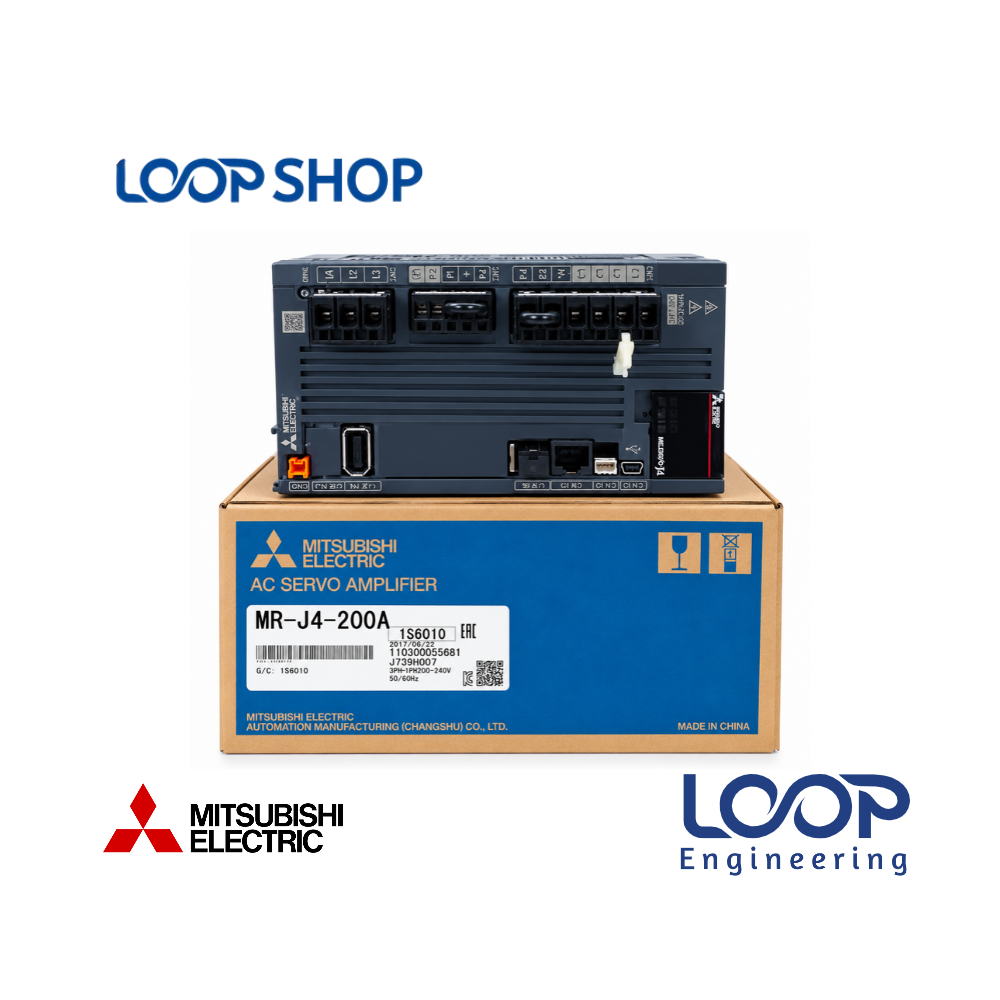

Mitsubishi MR-J4-200A 2kW AC Servo Drive High Precision Industrial

Description

The Mitsubishi MR-J4-200A 2kW AC Servo Drive is a top-tier industrial motion control amplifier manufactured by Mitsubishi Electric. Belonging to the flagship MELSERVO-J4 series, this 2.0kW general-purpose AC drive converts digital and analog control commands into exact electrical outputs to drive matching AC servo motors with sub-micron positioning precision.

Engineered for machine builders, panel integrators, and industrial automation engineers across Bangladesh, the MR-J4-200A delivers unmatched speed response and motion stability. Equipped with Advanced One-Touch Auto-Tuning, real-time vibration suppression filters, and built-in safety functions (STO), this drive guarantees maximum productivity, reduced machine settling times, and long-term operating safety under heavy factory duty cycles.

Key Features

• 2000W (2kW) output capacity engineered for 3-phase 200V–240V AC industrial power networks
• General-purpose interface (“A” series) supporting Pulse Train input, Analog Voltage control, and RS-422 communication
• Industry-leading 2.5 kHz speed frequency response bandwidth for ultra-fast motion loops
• Supports 22-bit high-resolution absolute/incremental encoder feedback (4,194,304 pulses/rev)
• Advanced One-Touch Auto-Tuning automatically adjusts gain parameters to fit mechanical loads
• Advanced Vibration Suppression Control II and adaptive notch filters eliminate machine chatter
• Built-in Safe Torque Off (STO) functional safety standards compliance

Technical Advantages

• High Efficiency Engine: High-frequency sine-wave PWM vector control algorithm minimizes electrical power losses and heat generation.
• Durable Construction: Built with heavy-duty aluminum thermal heatsinks and IP20-rated industrial enclosure housing for prolonged operational life.
• Safety Protection: Integrated hardware safety circuits shield against overcurrent, overvoltage, undervoltage, thermal overload, and motor phase faults.
• Energy Saving Operation: Dynamic current management modulates power consumption strictly relative to real-time load demand.
• Easy Maintenance & Diagnostics: USB setup interface, digital status display, and PC-based MR Configurator2 diagnostic software streamline setup and tuning.

Applications

• Industrial: High-precision CNC milling and turning machinery, robotic automation cells, electronic assembly equipment, and wire machinery.
• Factory: High-speed packaging machinery, textile spinning and weaving equipment, printing presses, and automated labeling heads.
• Project Installation: Automated material handling systems, high-speed linear positioning gantries, and custom factory automation lines.

Why Choose This Product?

• Flagship Japanese Quality: Built by Mitsubishi Electric, setting global standards in motion control performance, accuracy, and reliability.
• Unmatched Speed & Precision: 2.5 kHz response bandwidth combined with 22-bit encoder support eliminates positioning lag and mechanical chatter.
• Cost Effectiveness: Built-in auto-tuning and vibration suppression prolong mechanical component life and cut maintenance expenses.
• After-Sales Value: Available via loopshop.com.bd with localized customer support, technical documentation, and fast delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-performance flagship 2000W AC servo drive amplifier

✓ Exceptional 2.5 kHz speed response frequency bandwidth

✓ Supports 22-bit high-resolution absolute/incremental encoder feedback

✓ Advanced One-Touch Auto-Tuning and Advanced Vibration Suppression Control II

✓ Built-in Safe Torque Off (STO) functional safety functionality

Benefits For Customers

• Reduces Electricity Cost: Sine-wave PWM vector execution limits unnecessary reactive power draw during high-speed motion loops.
• Improves Operational Reliability: Sub-micron positioning feedback eliminates position drift and production defect rates.
• Saves Maintenance Cost: Real-time vibration suppression and auto-tuning minimize mechanical strain on couplings and gearboxes.
• Suitable for Bangladesh Environment: Rugged IP20 metal housing functions dependably in ambient temperatures up to 55 °C inside BD factory panels.

Installation & Maintenance Guide

Installation Requirements:

• Mount the drive unit vertically inside a clean, well-ventilated metal enclosure to ensure adequate natural convective cooling airflow.
• Maintain recommended clearance margins above, below, and on both sides of the drive unit as specified by Mitsubishi layout guidelines.
• Connect 3-phase 200V AC main power using proper circuit breakers and bond the Protective Earth (PE) terminal firmly.
• Use shielded twisted-pair cables for pulse input, analog signals, and encoder communication to mitigate electrical noise.

Maintenance Tips:

• Periodically inspect drive heat sinks and clean away ambient industrial dust to maintain heat dissipation efficiency.
• Verify screw terminal tightness on power inputs, motor output phases (U, V, W), and ground leads.
• Inspect control panel exhaust fans to ensure cabinet temperatures remain within safe operating limits.

Safety Instructions:

• Always disconnect main line AC power before conducting wiring, inspection, or terminal maintenance work.
• Wait at least 15 minutes post power-off to allow internal high-voltage storage capacitors to fully discharge before touching connection terminals.
• Never apply main AC line power directly to motor output terminals U, V, and W, as doing so will cause catastrophic damage to the drive.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi MR-J4-200A 2kW Servo Drive in Bangladesh?

A: Pricing depends on import tariff rates and live stock availability. Please check loopshop.com.bd or contact our customer support team for an updated live quotation.

Q: Where can I buy Mitsubishi 2kW Servo Drive MR-J4-200A in Bangladesh?

A: You can purchase genuine Mitsubishi MR-J4-200A servo drives online directly through loopshop.com.bd with nationwide delivery across BD.

Q: What power input supply is required for the MR-J4-200A drive?

A: It requires a 3-Phase 200V to 240V AC main line power supply (50/60 Hz).

Q: What warranty does this product have?

A: It includes a standard manufacturer warranty covering technical and manufacturing defects. Check loopshop.com.bd for specific warranty terms.

Q: Is this servo drive suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial thermal engineering allow it to perform reliably in factory panel conditions up to 55 °C.

Q: Which servo motors pair with the MR-J4-200A amplifier?

A: It is designed to drive matching 2.0kW Mitsubishi HG series AC servo motors (such as model HG-SR152 / HG-SR202).

Q: What control interfaces are available on the MR-J4-200A?

A: It features pulse train input for position control, analog voltage input for speed/torque control, and RS-422 serial communication.

Q: How to install this product?

A: Mount vertically inside a metal cabinet, connect 3-phase 200V AC power, ground PE terminal, motor power phases (U, V, W), and encoder lines. Commission using Mitsubishi MR Configurator2 software.

Q: What encoder resolution does the MR-J4-200A support?

A: It supports 22-bit high-resolution absolute/incremental encoders delivering 4,194,304 pulses per revolution.

Q: Is post-purchase technical support available in BD?

A: Yes, loopshop.com.bd provides sales verification, technical datasheets, and guidance for industrial products purchased through our store.
