Description

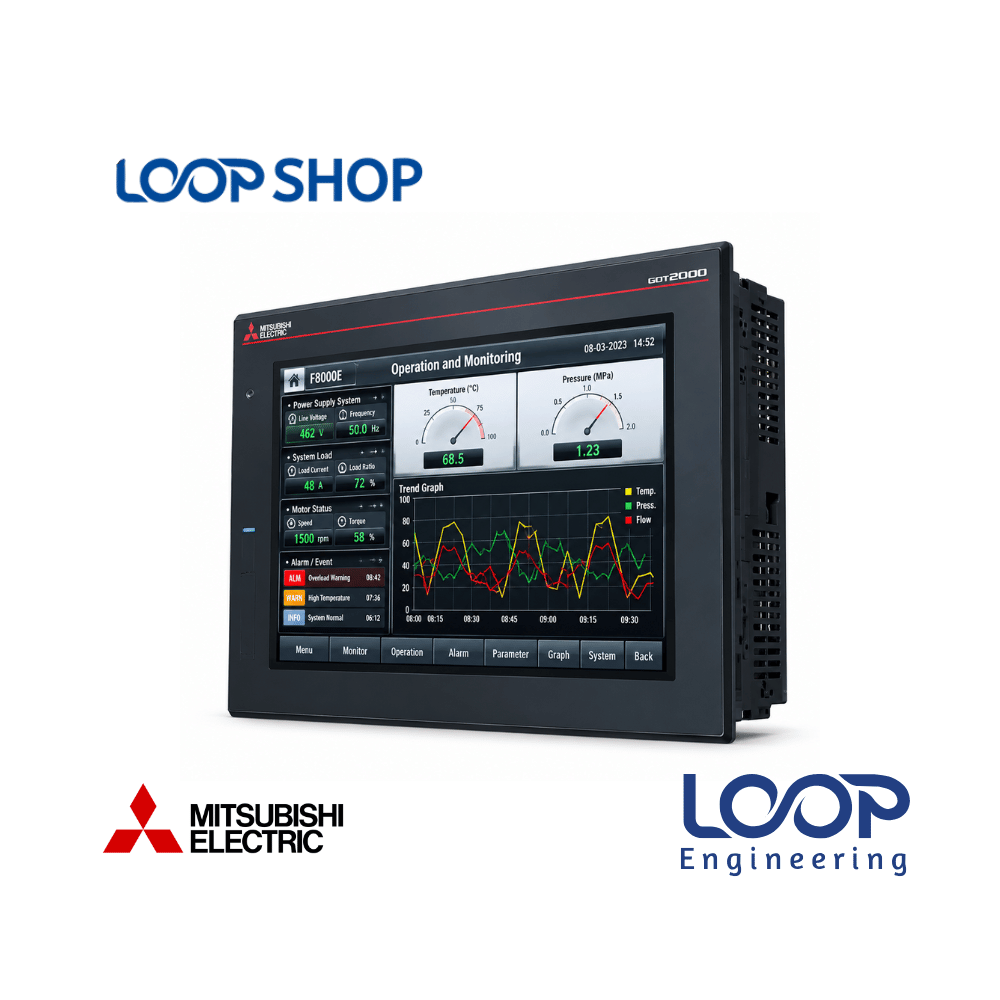

The Mitsubishi Electric GT2715-XTBD Graphic Operator Terminal (GOT2000 Series) is a flagship 15-inch Human Machine Interface designed for high-level machine control, process visualization, and factory automation. Featuring a 15-inch XGA TFT LCD, it displays complex multi-loop processes, system alarms, and real-time operational parameters with exceptional visual clarity.
Operating on a 24 V DC supply and supporting CC-Link fieldbus architecture alongside Ethernet, RS-232, RS-422/485, USB, and SD card interfaces, the GT2715-XTBD seamlessly integrates into Mitsubishi MELSEC PLC systems and multi-vendor automation networks. Plant managers, automation engineers, and machine operators across Bangladesh rely on this GOT2000 panel for central control desks, machinery retrofits, and non-stop 24/7 industrial runtime.
Key Features
- 15-Inch XGA TFT Color Display: Crisp 1024 x 768 resolution for detailed visual layouts and complete plant monitoring.
- 24 V DC Power Supply: Standard 24 V DC voltage input for seamless integration into industrial control panels.
- CC-Link & Multi-Port Connectivity: Supports CC-Link fieldbus communication, Ethernet, RS-232, RS-422/485, USB Host/Device, and SD memory card slots.
- Advanced Multi-Channel Control: Enables simultaneous communication with multiple PLCs and industrial field devices.
- Gesture & Touch Controls: Highly responsive touch interface for smooth screen navigation, recipe adjustments, and trend logging.
- GT Works3 Engineering: Configurable using Mitsubishi Electric GT Works3 (GT Designer3) software.
Technical Advantages
- Durable Construction: Heavy-duty enclosure engineered to absorb mechanical vibration, electrical noise, and thermal expansion on factory floors.
- High Efficiency & Speed: Fast processing engine ensures rapid screen transitions and zero-latency updates for real-time telemetry.
- Easy Maintenance & Backups: USB and SD card interfaces allow quick parameter transfers, recipe management, and automated logging backups without PC connections.
- Enhanced System Security: Password security administration guards critical machine parameters against unauthorized operator changes.
Applications
- Industrial Facilities: Central control desks, automated packaging lines, material handling systems, and assembly machinery.
- Factory Environments: Textile spinning mills, dyeing plants, garment finishing machines, food processing lines, and chemical processing facilities.
- Commercial & Utility Projects: Water treatment plants, central HVAC monitoring units, and power distribution systems.
- Project Installation: Ideal for machine builders, automation integrators, and plant engineers upgrading complex machine panels across Bangladesh.
Why Choose This Product?
- World-Class Mitsubishi Reliability: Proven GOT2000 platform guarantees industry-leading hardware longevity in demanding factory environments.
- Comprehensive Operator Overview: Large 15-inch screen format minimizes navigation steps, lowering operator error and speeding up setup times.
- Cost-Effective Long-Term ROI: High reliability reduces operational downtime and lowers maintenance overhead over years of continuous service.
- Trusted Local Sourcing: Backed by direct sourcing, technical guidance, and nationwide delivery through LOOP Shop in Bangladesh.
Technical Specification Table
| Specification |
Details |
| Model |
GT2715-XTBD |
| Brand |
Mitsubishi Electric |
| Series |
GOT2000 Series |
| Display Size |
15.0 Inch |
| Display Type |
XGA TFT Color LCD |
| Resolution |
1024 x 768 pixels |
| Supply Voltage |
24 V DC |
| Network Communication |
CC-Link Compatible |
| Interfaces |
Ethernet, RS-232, RS-422/485, USB Host/Device, SD Card Slot |
| Rated Power |
Not Available |
| Current |
Not Available |
| Frequency |
Not Available |
| Efficiency |
High-performance industrial display terminal |
| Protection |
IP65F (Front) / IP20 (Rear) |
| Dimension |
Not Available |
| Weight |
Not Available |
| Operating Temperature |
0 °C to +52 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
- ✓ 15-inch XGA TFT color display for detailed graphical layouts
- ✓ Powered by standard 24 V DC industrial power supply
- ✓ Supports CC-Link fieldbus, Ethernet, RS-232, RS-422/485, USB, and SD card
- ✓ Advanced multi-channel communication with PLCs and controllers
- ✓ Front panel IP65F protected against dust and liquid splash
- ✓ Configurable via Mitsubishi Electric GT Works3 software
Benefits For Customers
- Improves Operational Reliability: High-resolution display layout gives operators a complete view of complex machinery to prevent downtime.
- Simplifies Data Management: Built-in USB and SD card ports enable quick retrieval of production logs and recipe transfers.
- Reduces Maintenance Cost: Heavy-duty build lowers component failure rates and extends operating lifespan in harsh factory environments.
- Suitable for Bangladesh Environment: Performs reliably under high ambient temperatures (up to 52 °C) and humid conditions in BD.
Installation & Maintenance Guide
Installation Requirements:
- Prepare a clean vertical cutout on the control cabinet door matching GT2715-XTBD physical frame dimensions.
- Maintain at least 10 mm clear ventilation space around the rear chassis to facilitate passive heat dissipation.
- Connect to a stable 24 V DC industrial power supply line equipped with surge protection and grounding.
Maintenance Tips:
- Gently clean the touchscreen front surface using a soft, non-abrasive, dry cloth; do not use harsh chemical solvents.
- Inspect terminal blocks, grounding leads, and CC-Link/Ethernet cables periodically for tight signal contact.
- Maintain updated digital backups of panel runtime projects on an external SD card or USB drive.
Safety Instructions:
- Always disconnect main line power before mounting, wiring, or servicing the HMI unit inside the cabinet.
- Ground the dedicated grounding terminal securely to protect internal electronics against static charges and noise interference.
Frequently Asked Questions (FAQ)
Q: What is the price of Mitsubishi GT2715-XTBD HMI in Bangladesh?
A: For live stock updates, competitive pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer support team via website, Facebook, or WhatsApp.
Q: Where can I buy original Mitsubishi GT2715-XTBD in Bangladesh?
A: You can purchase genuine Mitsubishi GOT2000 HMI panels directly online from LOOP Shop at loopshop.com.bd.
Q: What power voltage does the Mitsubishi GT2715-XTBD require?
A: The GT2715-XTBD operates on a standard 24 V DC supply voltage, unlike the XTBA version which uses AC power.
Q: Does the GT2715-XTBD support CC-Link communication?
A: Yes, it supports CC-Link fieldbus network communication alongside Ethernet, RS-232, RS-422/485, USB, and SD card slots.
Q: What display size and resolution does this panel offer?
A: It features a 15.0-inch XGA TFT color display with a resolution of 1024 x 768 pixels.
Q: What warranty does this product have?
A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.
Q: Is this product suitable for Bangladesh climate conditions?
A: Yes, with an IP65F rated front panel and operating temperature tolerance up to 52 °C, it performs reliably in local factory settings.
Q: How to install this product?
A: Cut out the designated opening on your cabinet door, insert the HMI unit, clamp it securely from the rear, and wire the 24 V DC power and CC-Link/communication lines.
Q: What software is used to program Mitsubishi GT2715-XTBD?
A: It is configured using Mitsubishi GT Works3 (GT Designer3) engineering software.
Q: Does LOOP Shop provide nationwide delivery in Bangladesh?
A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
