Description

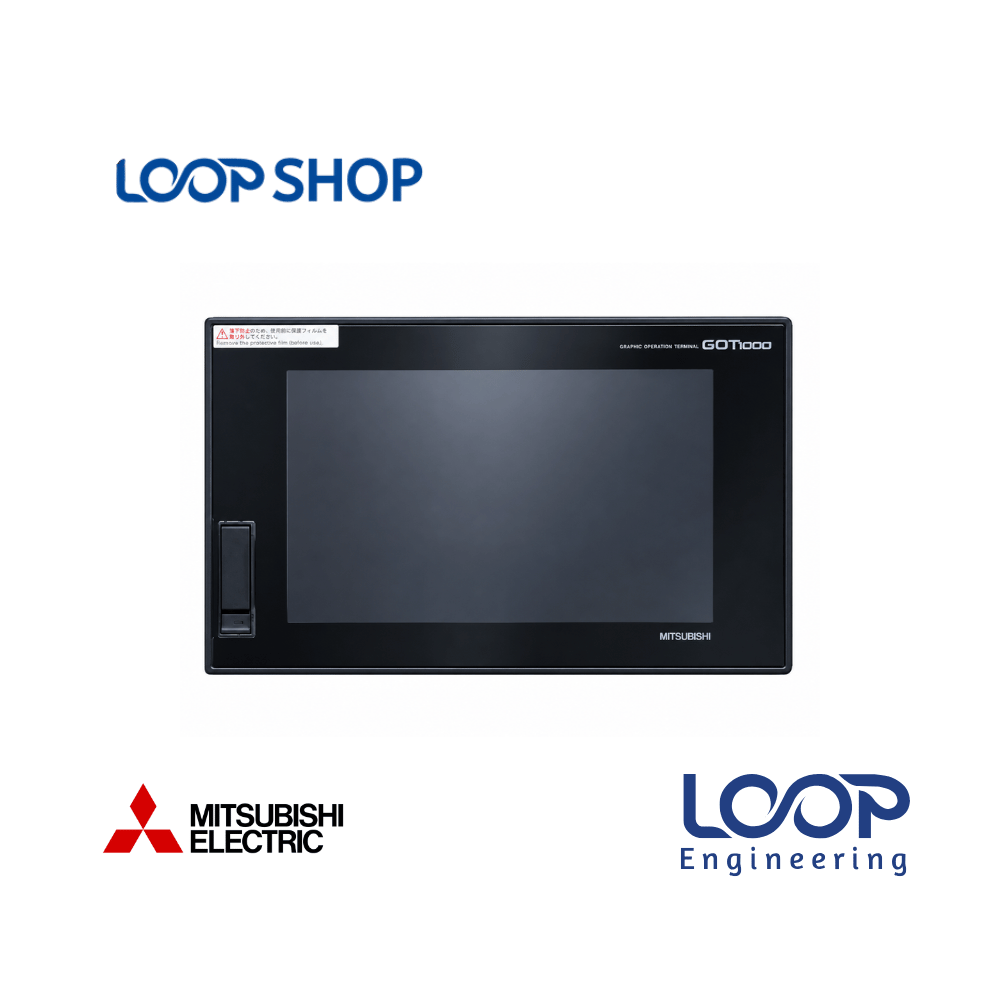

The Mitsubishi GT1675M-STBA GOT1000 Series Touch Screen HMI (10.4-Inch) is an advanced Human Machine Interface engineered for complex machine visualization and real-time process monitoring. Operating on a vivid 10.4-inch SVGA TFT display, this panel translates intricate PLC telemetry into dynamic graphical layouts, process trends, and active alarm warnings.
Built to withstand demanding production environments, the GT1675M-STBA features built-in USB connectivity for real-time production data recording, system diagnostics, and configuration backups. Factory managers, automation engineers, and machine operators across Bangladesh rely on this GOT1000 panel for smooth machine control, retrofitting legacy equipment, and ensuring unbroken continuous factory operations.
Key Features
- 10.4-Inch SVGA TFT Display: Offers high visual clarity and wide viewing angles for monitoring multi-stage machine operations.
- High-Precision Touch Screen: Smooth matrix touch interface built for rapid tactile response and accurate operator inputs.
- USB Host & Device Ports: Supports USB flash drives for real-time production logging, recipe transfers, and project updates.
- Multi-Protocol Connectivity: Integrates seamlessly with Mitsubishi MELSEC series PLCs as well as various third-party industrial controllers.
- Advanced Alarm & Trend Capabilities: Features historical alarm buffering, graphical trend plotting, and multi-language operator navigation.
- Rugged Front Panel: IP65-rated front housing sealed against industrial dust, dirt, and liquid splashes.
Technical Advantages
- Durable Construction: Heavy-duty front frame designed to withstand continuous physical touch inputs, mechanical vibration, and thermal shifts.
- High Efficiency Data Handling: Fast processor ensures rapid screen transitions and zero-latency update speeds for real-time telemetry.
- Easy Maintenance & Backups: Direct USB data recording reduces diagnostic overhead and simplifies parameter recovery during maintenance.
- Safety & Security Access: Multi-level password administration guards critical machine parameters against unauthorized operator changes.
Applications
- Industrial Facilities: Automated packaging systems, material handling lines, conveyor starters, and automated assembly equipment.
- Factory Environments: Textile spinning mills, garment finishing machinery, plastic extrusion lines, and food processing plants.
- Commercial & Utility Projects: Water treatment facilities, central HVAC monitoring, and power distribution panels.
- Project Installation: Ideal for machine builders, automation integrators, and plant engineers upgrading machine panels across Bangladesh.
Why Choose This Product?
-
- Proven Mitsubishi Engineering: World-renowned GOT1000 hardware platform delivers long-term operational stability in heavy factory settings.
- Enhanced Production Tracking: USB data logging empowers plant managers to analyze production throughput and maintain quality logs easily.
- High ROI & Service Life: Minimizes operator error, speeds up machine setup times, and lowers long-term maintenance expenditure.
- Trusted Local Support & Repair Availability: Sourced with technical precision and backed by sales support and repair assistance through LOOP Shop in Bangladesh.
Technical Specification Table
| Specification |
Details |
| Model |
GT1675M-STBA |
| Brand |
Mitsubishi Electric |
| Series |
GOT1000 Series |
| Display Size |
10.4 Inch |
| Display Type |
TFT Color Display |
| Resolution |
SVGA (800 x 600 pixels) |
| Interface Ports |
USB, Serial (RS-232 / RS-422/485), Ethernet / Bus Interface Slot |
| Rated Power |
Not Available |
| Voltage |
100-240 V AC |
| Current |
Not Available |
| Frequency |
50/60 Hz |
| Efficiency |
High-efficiency industrial display panel |
| Protection |
IP65 (Front) / IP20 (Rear) |
| Dimension |
Not Available |
| Weight |
Not Available |
| Operating Temperature |
0 °C to +52 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
- ✓ 10.4-inch SVGA TFT display panel for clear graphical monitoring
- ✓ High-sensitivity resistive touch screen interface
- ✓ USB support for production data records and system backup
- ✓ Broad compatibility with Mitsubishi MELSEC and third-party PLCs
- ✓ Front panel IP65 protected against dust and liquid splash
- ✓ Advanced alarm logging, recipe management, and trend charts
Benefits For Customers
- Improves Operational Reliability: Real-time visual alarms and graphical trends allow operators to resolve process issues immediately.
- Simplifies Data Logging: USB port integration enables easy retrieval of production records without dedicated software tools.
- Reduces Maintenance Cost: Robust industrial construction lowers failure risks and extends hardware service life.
- Suitable for Bangladesh Environment: Performs reliably under high ambient factory temperatures (up to 52 °C) common in BD.
Installation & Maintenance Guide
Installation Requirements:
- Prepare a clean vertical cutout on the control cabinet door matching GT1675M-STBA mounting frame dimensions.
- Maintain at least 10 mm clear ventilation space around the rear chassis for adequate air dissipation.
- Connect to a stable 100-240 V AC main power supply line equipped with appropriate circuit protection and grounding.
Maintenance Tips:
- Gently clean the touchscreen front surface using a soft, non-abrasive, dry cloth; do not use harsh chemical solvents or abrasive pads.
- Inspect terminal blocks, grounding leads, and serial/Ethernet cables periodically for tight signal contact.
- Maintain updated digital backups of panel runtime projects on an external USB flash drive.
Safety Instructions:
- Always disconnect main line electrical power before mounting, wiring, or servicing the HMI unit.
- Connect the dedicated grounding terminal securely to shield internal electronics against static charges and line noise.
Frequently Asked Questions (FAQ)
Q: What is the price of Mitsubishi GT1675M-STBA Touch Screen HMI in Bangladesh?
A: For live stock updates, competitive pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer sales team.
Q: Where can I buy original Mitsubishi GT1675M-STBA in Bangladesh?
A: You can purchase genuine Mitsubishi GOT1000 HMI panels directly online from LOOP Shop at loopshop.com.bd.
Q: What is the display size of the GT1675M-STBA HMI?
A: This model features a 10.4-inch SVGA TFT color display panel.
Q: Does the Mitsubishi GT1675M-STBA support USB data logging?
A: Yes, it includes built-in USB ports for production data logging, recipe management, and easy project transfers.
Q: What software is used to program Mitsubishi GOT1000 series HMIs?
A: Mitsubishi GOT1000 series HMIs are configured using Mitsubishi GT Works3 (GT Designer3) software.
Q: What warranty does this product have?
A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.
Q: Is this HMI panel suitable for Bangladesh factory conditions?
A: Yes, with an IP65 rated front panel and operating temperature tolerance up to 52 °C, it performs reliably in local factory environments.
Q: How to install this product?
A: Cut out the designated opening on your cabinet door, insert the HMI unit, clamp it securely from the rear, and wire the AC power and communication lines.
Q: Can LOOP Shop assist with repair services for Mitsubishi HMI panels?
A: Yes, repair assistance and spare part support for Mitsubishi HMI panels are available through LOOP Shop.
Q: Does LOOP Shop deliver across all districts in Bangladesh?
A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
