Description

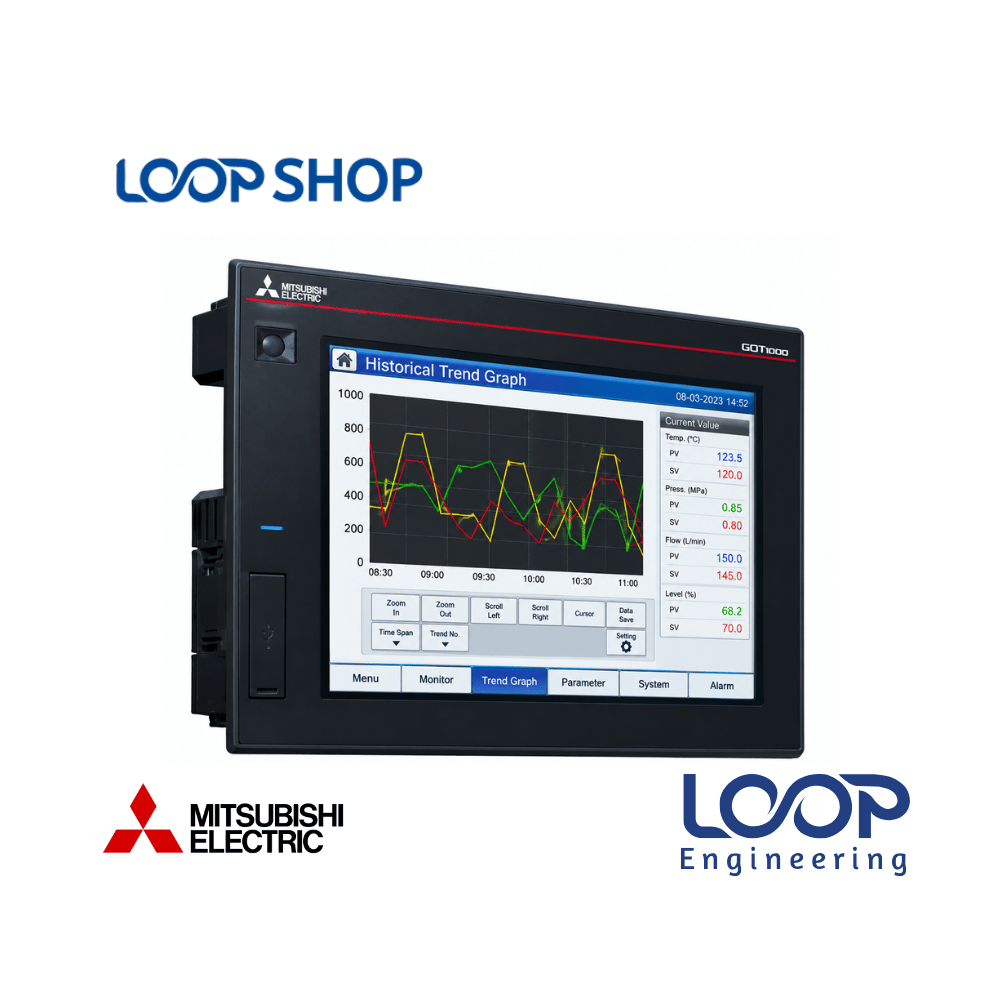

The Mitsubishi Electric GT1585-STBA Graphics Operation Panel (GOT1000 Series) is a heavy-duty 12.1-inch Human Machine Interface engineered for high-level machine control, process visualization, and industrial automation. Operating on a spacious SVGA TFT display, this panel translates complex PLC telemetry into intuitive graphic layouts, active alarm notifications, and dynamic trend curves.
Built with advanced electrical protection, the GT1585-STBA withstands severe noise interference up to 1,500 Vp-p and accommodates power dips up to 20 ms. Factory managers, automation engineers, and machine operators across Bangladesh rely on this GOT1000 operator terminal for central control desks, machinery retrofits, and non-stop 24/7 industrial runtime.
Key Features
- 12.1-Inch SVGA TFT Display: Large screen layout delivers high optical clarity for tracking multi-stage manufacturing operations on a single view.
- Universal Industrial Power Supply: Operates reliably across a broad input voltage range from 100 V AC to 240 V AC at 50/60 Hz.
- High Noise Immunity: Shielded against high-frequency electrical noise via 1,500 Vp-p noise simulator testing (1 µs width, 25 to 60 Hz).
- Dielectric & Electrical Isolation: Withstands 1,500 V AC for 1 minute across AC external terminals and earth, with 10 MΩ+ insulation resistance.
- Power Failure Ride-Through: Features a 20 ms power failure time buffer (at 100 V AC or higher) to prevent system restarts during minor grid blips.
- IP65 Rated Front Protection: Heavy-duty front frame protected against airborne dust, oil grime, and water splashes in hostile plant environments.
Technical Advantages
- Durable Heavy-Duty Frame: Industrial-grade enclosure engineered to absorb mechanical vibration, electrical noise, and thermal expansion on factory floors.
- High Operational Reliability: Electrical isolation and noise suppression prevent display resets and communication errors during heavy motor switching.
- Easy Maintenance & Parameter Management: Simplifies diagnostic troubleshooting through clear graphical fault logs, minimizing factory downtime.
- Enhanced System Security: Multi-tier password protection guards critical machine parameters against unauthorized operator changes.
Applications
- Industrial Facilities: Central control desks, automated assembly lines, packaging plants, and material handling systems.
- Factory Environments: Textile spinning and dyeing machinery, garment finishing equipment, plastic extrusion lines, and food processing plants.
- Commercial & Utility Projects: Water treatment facilities, central HVAC monitoring units, and power distribution management panels.
- Project Installation: Ideal for machine builders, automation integrators, and plant engineers upgrading complex machine panels across Bangladesh.
Why Choose This Product?
- World-Class Mitsubishi Engineering: Proven GOT1000 platform guarantees long-term operational longevity in demanding factory environments.
- Comprehensive Operator Overview: Large 12.1-inch display format minimizes navigation steps, lowering operator error and speeding up machine setup.
- High ROI & Service Life: High electrical immunity reduces unexpected hardware downtime and extends operating service life over years of continuous use.
- Trusted Local Supply: Sourced with technical precision and backed by fast nationwide delivery through LOOP Shop in Bangladesh.
Technical Specification Table
| Specification |
Details |
| Model |
GT1585-STBA |
| Brand |
Mitsubishi Electric |
| Series |
GOT1000 Series |
| Display Size |
12.1 Inch |
| Display Type |
SVGA TFT Color Display |
| Voltage |
100 V AC to 240 V AC |
| Frequency |
50/60 Hz |
| Noise Immunity |
1,500 Vp-p (Noise width: 1 µs, frequency: 25 to 60 Hz) |
| Dielectric Withstand Voltage |
1,500 V AC for 1 minute across AC external terminals and earth |
| Insulation Resistance |
10 MΩ or larger (500 V DC megger) |
| Power Failure Ride-Through |
20 ms (at 100 V AC or longer) |
| Rated Power |
Not Available |
| Current |
Not Available |
| Efficiency |
High-performance industrial display terminal |
| Protection |
IP65 (Front) / IP20 (Rear) |
| Dimension |
Not Available |
| Weight |
Not Available |
| Operating Temperature |
0 °C to +52 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
- ✓ 12.1-inch SVGA TFT display for clear graphic rendering
- ✓ Powered by global industrial 100 V AC to 240 V AC supply
- ✓ High noise immunity against 1,500 Vp-p noise pulses
- ✓ 1,500 V AC dielectric withstand voltage and 10 MΩ+ insulation
- ✓ 20 ms power failure ride-through buffer to handle power fluctuations
- ✓ IP65 rated front panel enclosure against dust, oil, and moisture
Benefits For Customers
- Improves Operational Reliability: Advanced electrical noise immunity prevents erratic display behavior and communication drops.
- Prevents Sudden Shutdowns: 20 ms power failure buffer keeps the screen alive during brief voltage sags or phase changes.
- Saves Maintenance Cost: Rugged industrial construction lowers hardware failure rates and extends operating lifespan in dusty environments.
- Suitable for Bangladesh Environment: Handles high ambient factory temperatures (up to 52 °C) and unstable grid power standard in BD.
Installation & Maintenance Guide
Installation Requirements:
- Prepare a clean vertical cutout on the control cabinet door matching GT1585-STBA physical frame mounting dimensions.
- Maintain at least 10 mm clear ventilation space around the rear chassis to facilitate passive heat dissipation.
- Connect to a stable 100 V AC to 240 V AC main power supply line equipped with proper surge protection and earthing.
Maintenance Tips:
- Gently clean the touchscreen front surface using a soft, non-abrasive, dry cloth; do not use harsh chemical solvents.
- Inspect terminal blocks, grounding leads, and communication connections periodically for tight signal contact.
- Maintain updated digital backups of panel runtime projects on an external media drive or engineering workstation.
Safety Instructions:
- Always disconnect main electrical power before mounting, wiring, or servicing the HMI unit inside the cabinet.
- Ground the dedicated earth terminal securely to ensure dielectric protection and noise suppression operate effectively.
Frequently Asked Questions (FAQ)
Q: What is the price of Mitsubishi GT1585-STBA HMI in Bangladesh?
A: For live stock updates, competitive pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer support team.
Q: Where can I buy original Mitsubishi GT1585-STBA in Bangladesh?
A: You can purchase genuine Mitsubishi GOT1000 HMI panels directly online from LOOP Shop at loopshop.com.bd.
Q: What is the display size of the Mitsubishi GT1585-STBA?
A: This model features a 12.1-inch SVGA TFT color display panel.
Q: What power supply voltage does the GT1585-STBA accept?
A: The GT1585-STBA operates on a wide global AC input voltage range of 100 V AC to 240 V AC at 50/60 Hz.
Q: How does the GT1585-STBA handle power interruptions?
A: It features a built-in power failure ride-through time buffer of 20 ms (at 100 V AC or higher) to ride through minor power blips.
Q: What warranty does this product have?
A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.
Q: Is this product suitable for Bangladesh climate conditions?
A: Yes, with high noise immunity, IP65 front protection, and an operating temperature limit up to 52 °C, it performs reliably in local factory settings.
Q: How to install this product?
A: Cut out the designated opening on your cabinet door, insert the HMI unit, clamp it securely from the rear, and wire the 100–240 V AC power and communication lines.
Q: What is the insulation resistance of the GT1585-STBA?
A: It features a high insulation resistance of 10 MΩ or larger across AC external terminals and earth.
Q: Does LOOP Shop provide nationwide delivery in Bangladesh?
A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
