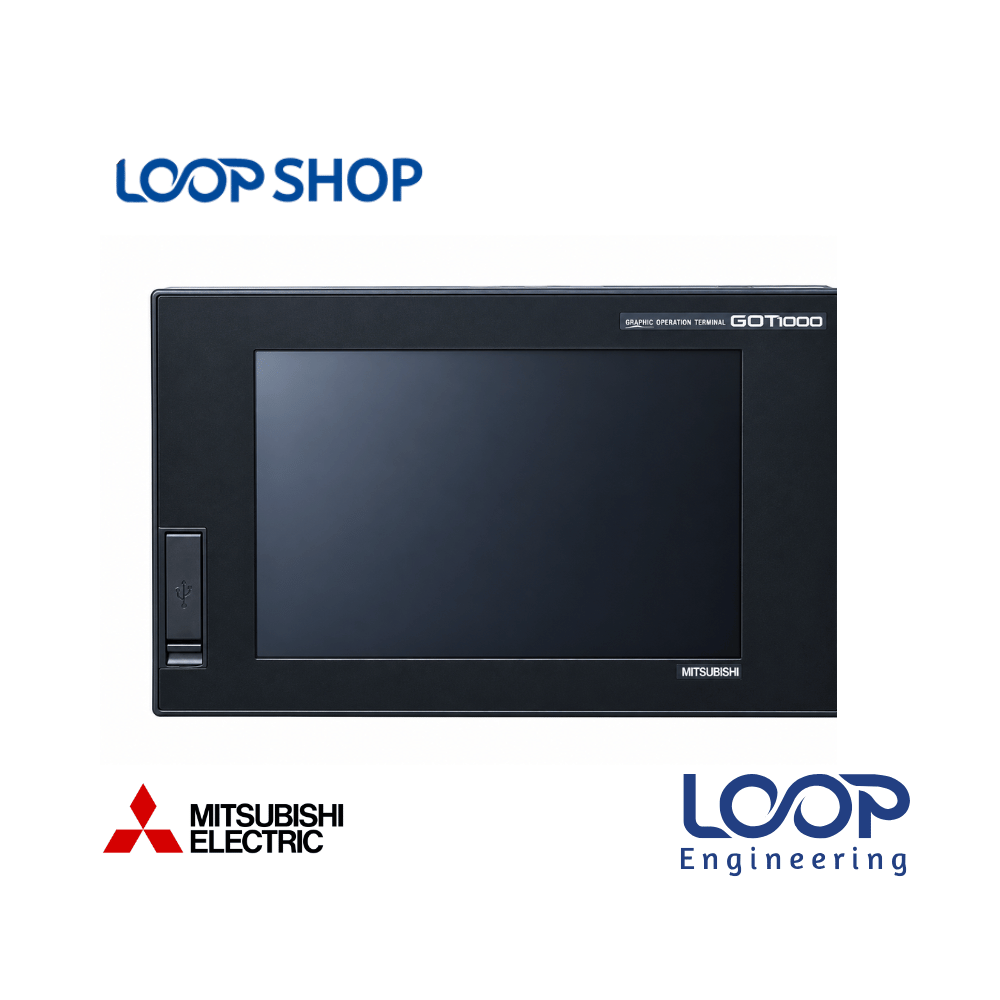

Mitsubishi GT1575-VTBA GOT1000 HMI 10.4-Inch Display Panel Industrial

Description

The Mitsubishi Electric GT1575-VTBA GOT1000 Series Touch Screen HMI (10.4-Inch) is a high-performance Human Machine Interface designed for complex machine visualization, real-time process monitoring, and industrial control. Featuring a 10.4-inch VGA TFT color LCD display, this panel translates intricate PLC system telemetry into clear graphical layouts, color-coded alarm banners, and dynamic trend curves.

Engineered to operate on a universal 100 V AC to 240 V AC power input, the GT1575-VTBA seamlessly integrates into Mitsubishi MELSEC PLC architectures and multi-vendor fieldbus networks. Plant managers, automation engineers, and maintenance specialists across Bangladesh rely on this legacy GOT1000 operator terminal for central control desks, retrofitting legacy machinery, and maintaining non-stop 24/7 industrial runtime without costly complete system overhauls.

Key Features

• 10.4-Inch VGA TFT Color Display: Delivers crisp visual resolution with wide viewing angles for tracking multi-stage manufacturing operations.
• Universal AC Input Power: Accepts wide AC supply voltages from 100 V AC to 240 V AC at 50/60 Hz for easy control cabinet integration.
• Seamless PLC Fieldbus Connectivity: Connects natively with Mitsubishi MELSEC series PLCs as well as diverse third-party field controllers.
• Advanced Process Visualization: Supports real-time alarm buffering, historical event tracking, dynamic trend plotting, and multi-language operator displays.
• Rugged Industrial Housing: IP65-rated front panel enclosure protects internal electronics against airborne dust, oil grime, and water splashes.
• GT Works3 Engineering: Fully configurable using Mitsubishi Electric GT Works3 (GT Designer3) software.

Technical Advantages

• Durable Heavy-Duty Frame: Industrial-grade construction built to absorb mechanical vibration, electrical noise, and thermal expansion on factory floors.
• High Efficiency & Speed: Fast processing engine ensures rapid screen transitions and zero-latency real-time parameter updates.
• Easy Maintenance & Retrofitting: Direct drop-in replacement functionality for existing GOT1000 series panels minimizes machine setup downtime.
• Enhanced System Security: Password security administration guards critical machine parameters against unauthorized operator changes.

Applications

• Industrial Facilities: Central control desks, automated assembly lines, packaging plants, and material handling systems.
• Factory Environments: Textile spinning mills, fabric dyeing ranges, garment finishing machinery, plastic extrusion lines, and food processing plants.
• Commercial & Utility Projects: Water treatment plants, central HVAC monitoring units, and power distribution control panels.
• Project Installation: Ideal for machine builders, automation integrators, and plant engineers upgrading or replacing machine panels across Bangladesh.

Why Choose This Product?

• World-Class Mitsubishi Reliability: Proven GOT1000 platform guarantees industry-leading hardware longevity in demanding factory environments.
• Preserves Machinery Capital: Replaces damaged HMI hardware without requiring expensive modifications or complete reprogramming of host PLCs.
• Minimized Production Downtime: Fast hardware replacement gets stalled factory production lines back up and running rapidly.
• Trusted Local Supply: Sourced with technical precision and backed by nationwide delivery through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

• ✓ 10.4-inch VGA TFT color display panel for high-clarity graphics
• ✓ Powered by global industrial 100 V AC to 240 V AC supply
• ✓ Seamless communication with Mitsubishi MELSEC and third-party PLCs
• ✓ Real-time alarm logging, recipe management, and dynamic trend charts
• ✓ Front panel IP65 protected against dust, oil, and moisture
• ✓ Configurable via Mitsubishi Electric GT Works3 (GT Designer3) software

Benefits For Customers

• Improves Operational Reliability: High-resolution visual layout gives operators a full overview of complex machinery to prevent downtime.
• Reduces Maintenance Cost: Robust industrial construction lowers component failure rates and extends operating lifespan in dusty environments.
• Preserves Legacy Equipment: Replaces failed operator panels without needing expensive control cabinet redesigns or PLC upgrades.
• Suitable for Bangladesh Environment: Performs reliably under high ambient factory temperatures (up to 52 °C) common in BD.

Installation & Maintenance Guide

Installation Requirements:

• Prepare a clean vertical cutout on the control cabinet door matching GT1575-VTBA physical frame mounting dimensions.
• Maintain at least 10 mm clear ventilation space around the rear chassis to facilitate passive heat dissipation.
• Connect to a stable 100 V AC to 240 V AC main power supply line equipped with surge protection and proper grounding.

Maintenance Tips:

• Gently clean the touchscreen front surface using a soft, non-abrasive, dry cloth; do not use harsh chemical solvents.
• Inspect terminal blocks, grounding leads, and communication cables periodically for tight signal contact.
• Maintain updated digital backups of panel runtime projects on an external storage drive or engineering workstation.

Safety Instructions:

• Always disconnect main line electrical power before mounting, wiring, or servicing the HMI unit inside the cabinet.
• Ground the dedicated grounding terminal securely to shield internal electronics against static charges and noise interference.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi GT1575-VTBA HMI in Bangladesh?

A: For live stock updates, competitive pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer sales team.

Q: Where can I buy original Mitsubishi GT1575-VTBA in Bangladesh?

A: You can purchase genuine Mitsubishi GOT1000 HMI panels directly online from LOOP Shop at loopshop.com.bd.

Q: What is the display size and type of the Mitsubishi GT1575-VTBA?

A: This model features a 10.4-inch VGA TFT color display touch panel.

Q: What power voltage does this panel require?

A: The GT1575-VTBA operates on a wide global supply voltage range of 100 V AC to 240 V AC at 50/60 Hz.

Q: Which software is used to program the GT1575-VTBA HMI?

A: It is configured using Mitsubishi GT Works3 (GT Designer3) software.

Q: What warranty does this product have?

A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.

Q: Is this product suitable for Bangladesh climate conditions?

A: Yes, with an IP65 rated front panel and operating temperature tolerance up to 52 °C, it performs reliably in tropical factory environments.

Q: How to install this product?

A: Cut out the designated opening on your cabinet door, insert the HMI unit, clamp it securely from the rear, and wire the 100–240 V AC power and communication lines.

Q: Is the GT1575-VTBA compatible with Mitsubishi FX and Q series PLCs?

A: Yes, it features native communication driver support for Mitsubishi MELSEC FX, Q, and L series controllers.

Q: Does LOOP Shop provide nationwide delivery in Bangladesh?

A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
