Description
- Main Product Purpose: High-performance serial communication interface block designed to establish reliable, full-duplex RS-232C data exchange between Mitsubishi FX series programmable logic controllers (PLCs) and external peripheral devices.
- Important Specifications: Mitsubishi model FX2N-232-IF, RS-232C compliant standard, 9-pin D-Sub male connector, maximum 15-meter transmission distance, photocoupler electrical isolation.
- Customer Benefits: Enables seamless connection with personal computers, printers, bar code readers, and third-party controllers, improving data monitoring efficiency and device integration.
- Bangladesh Market Relevance: A sought-after industrial automation spare part utilized by local factory system integrators, textile panel builders, and maintenance engineers across Bangladesh.
- Full Product Description
Product Overview

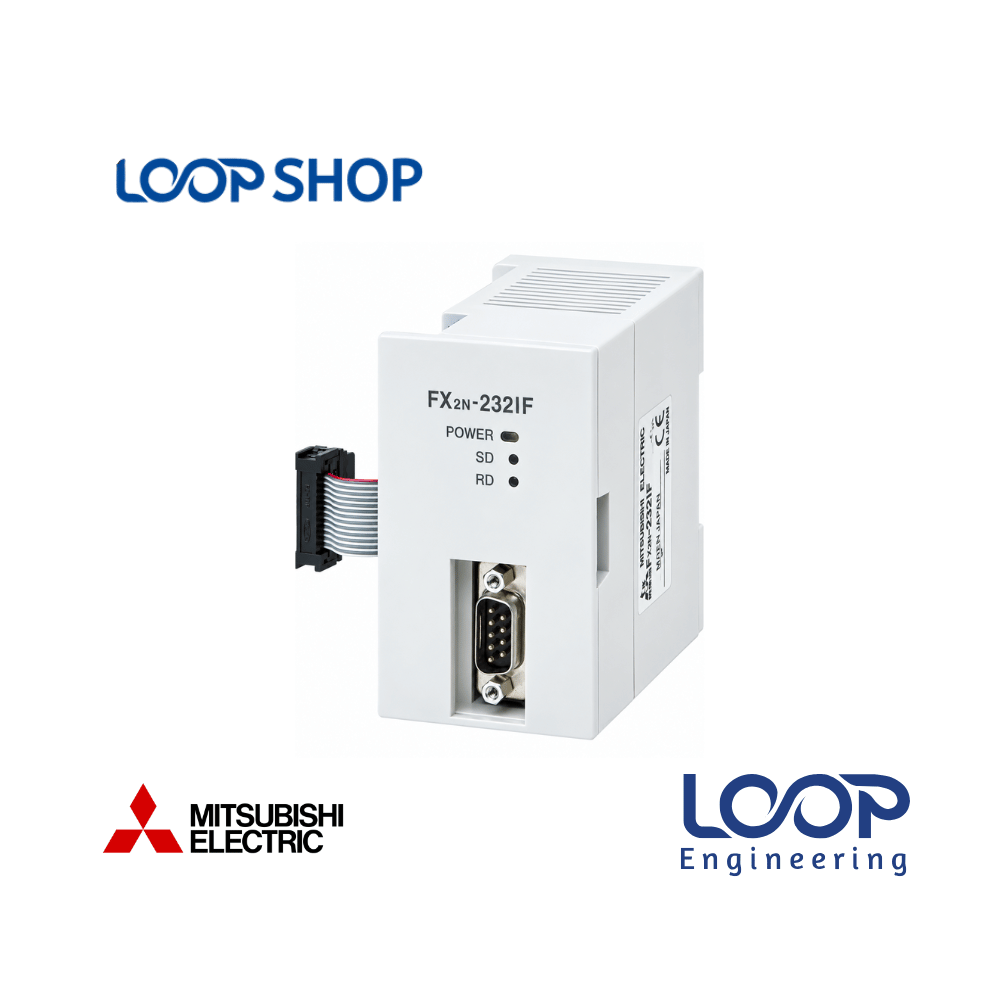

- What is this product? The Mitsubishi PLC Interface Block FX2N-232-IF is a dedicated special function communication module built to link compatible Mitsubishi FX series PLCs with external RS-232C devices.
- How does it work? It attaches to the controller system block to convert internal signals into standard RS-232C serial data protocols, supporting full-duplex bidirectional communication with computers or serial printers.
- Who needs this product? Industrial automation technicians, PLC programmers, panel builders, and factory maintenance teams.
- Why is it useful in Bangladesh? It facilitates effortless data logging, parameter uploading/downloading, and device integration, keeping automated production and processing plants running smoothly throughout Bangladesh.
Key Features
- RS-232C compliant serial communication standard.
- Standard 9-pin D-Sub male connector interface for external devices.
- Photocoupler isolation protecting internal hardware from surges.
- Front panel LED indicators for RD, SD, and POWER status monitoring.
- DIN-rail and direct installation flexibility.
Technical Advantages
- High efficiency: Full-duplex bidirectional transmission supporting fast non-procedural communication.
- Durable construction: Robust industrial housing built to endure demanding factory floor conditions.
- Safety protection: Built-in photocoupler isolation preventing electrical noise interference.
- Energy saving: Low internal power consumption design.
- Easy maintenance: Clear diagnostic LEDs and accessible terminal connections for swift system checks.
Applications
- Industrial PLC-to-PC programming and data logging
- Serial printer and barcode reader integration
- Factory automation and machine monitoring systems
- Process control networking loops
- Textile machinery and packaging equipment
- Project Installation
Why Choose This Product?
- Reliability: Genuine Mitsubishi Electric engineering ensuring long-term operational stability.
- Performance: Stable signal transmission up to 15 meters over RS-232C wiring.
- Cost effectiveness: Extends existing PLC connectivity options without needing expensive controller overhauls.
- After-sales value: Backed by dependable technical sourcing and availability across Bangladesh via loopshop.com.bd.
Technical Specification Table
| Specification |
Details |
| Model |
FX2N-232-IF (FX2N-232IF) |
| Brand |
Mitsubishi Electric |
| Rated Power |
Not Available |
| Voltage |
5V DC (Internal) / 24V DC ±10% (External) |
| Current |
40 mA (Internal) / 80 mA (External) |
| Frequency |
Not Applicable |
| Efficiency |
Not Available |
| Protection |
IP20 (Photocoupler Isolation) |
| Dimension |
Standard FX special block format |
| Weight |
Approx. 0.3 kg |
| Operating Temperature |
0 °C to 55 °C |
| Warranty |
Standard Manufacturer Warranty |
Features List
✓ RS-232C compliant serial interface block
✓ Full-duplex bidirectional communication support
✓ 9-Pin D-Sub male connector for external devices
✓ Photocoupler electrical isolation protection
✓ RD, SD, and POWER status LED indicators
✓ Compatible with Mitsubishi FX series PLCs
✓ Supports non-procedural communication protocols
✓ Up to 15 meters maximum transmission distance
✓ DIN-rail or direct screw mounting options
✓ Genuine Mitsubishi factory build quality
Benefits For Customers
- Bridges serial devices smoothly with your core PLC network
- Enhances data collection, logging, and remote supervision capability
- Prevents communication faults with built-in electrical isolation
- Operates dependably in industrial factory environments
- Readily accessible for automation upgrades across Bangladesh via loopshop.com.bd
Installation & Maintenance Guide
- Installation requirements: Ensure system power is completely turned off. Mount the FX2N-232-IF module securely onto a DIN rail or base plate, connect extension cables properly, and wire the 24V DC external power supply if required.
- Maintenance tips: Routinely check the D-Sub cable connections, inspect RD/SD LED blinking activity during data transfer, and keep control panel filters clean.
- Safety instructions: Always disconnect main electrical power before plugging or unplugging communication expansion blocks to avoid short circuits or component damage.
Frequently Asked Questions (FAQ)
Q: What is the price of Mitsubishi FX2N-232-IF in Bangladesh?
A: Pricing depends on current import batches and stock availability. Contact loopshop.com.bd directly for an updated price quotation.
Q: Where can I buy Mitsubishi FX2N-232-IF in Bangladesh?
A: You can purchase genuine Mitsubishi PLC interface blocks securely online from loopshop.com.bd with nationwide delivery in Bangladesh.
Q: What warranty does this product have?
A: Warranty terms align with standard manufacturer guidelines. Please confirm specific warranty coverage with loopshop.com.bd prior to purchase.
Q: Is this suitable for Bangladesh climate?
A: Yes, it is rated for standard industrial operating temperatures up to 55 °C, though installation inside a protected control enclosure is recommended.
Q: How to install this product?
A: It mounts onto a DIN rail, connects to the main PLC via an extension bus, and interfaces with external devices through a 9-pin D-Sub cable.
Q: What communication standard does it use?
A: It complies with the RS-232C serial communication standard.
Q: What is the maximum transmission distance?
A: The maximum transmission distance is 15 meters.
Q: Does it require an external power supply?
A: It utilizes internal 5V DC power from the PLC base unit alongside an 80mA external 24V DC power supply.
Q: Which PLCs are compatible with this module?
A: It is designed for use with compatible Mitsubishi FX series programmable logic controllers.
Q: Is this product original Mitsubishi?
A: Yes, loopshop.com.bd supplies 100% authentic and certified Mitsubishi Electric industrial automation hardware.
