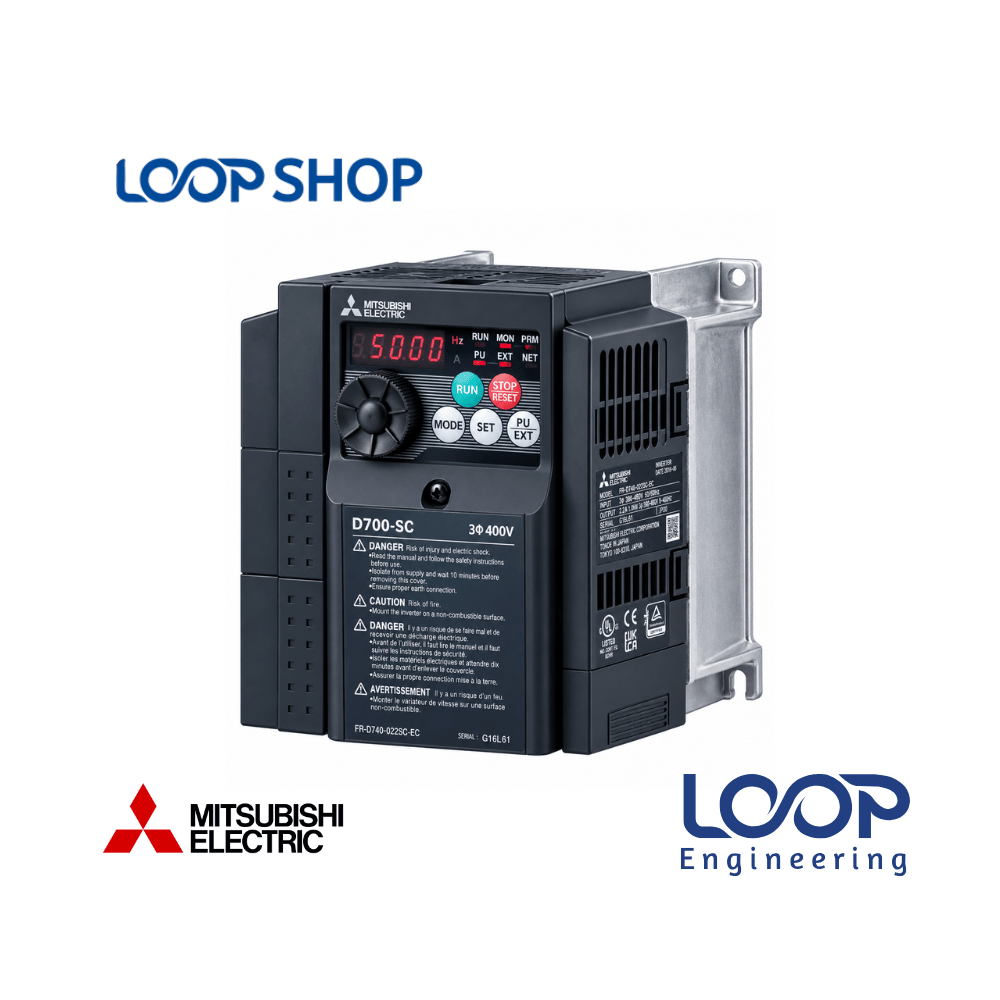

Mitsubishi FR-D740-3.7K D700 Series 3.7kW VFD Industrial AC Drive

Description

The Mitsubishi FR-D740-3.7K is a compact, high-performance 3.7kW (5 HP) Variable Frequency Drive (VFD) from Mitsubishi Electric’s FREQROL-D700 Series. Built to regulate the velocity, acceleration, and torque output of 3-phase AC induction motors, it delivers robust motor control within a space-saving chassis designed to optimize electrical panel space.

Equipped with sophisticated power failure auto-restart parameters (Pr. 57) and power failure deceleration stop functions (Pr. 261), the FR-D740-3.7K provides reliable operation even during low line voltage or temporary power interruptions. For textile mills, manufacturing plants, packaging systems, and commercial HVAC projects across Bangladesh, this AC drive ensures maximum process continuity, energy savings, and motor protection.

Key Features

• General-Purpose Magnetic Flux Vector Control: Delivers robust starting torque (up to 150% at 1Hz) for smooth acceleration under heavy mechanical starting loads.
• Power Failure Management (Pr. 57 & Pr. 261): Built-in automatic restart and controlled stop settings manage low bus voltage levels during instantaneous utility interruptions.
• Integrated Safety Stop Function: Complies with European machinery safety standards for hardware-level emergency output shutdown.
• Compact Enclosure Footprint: High power density layout permits side-by-side mounting inside control cabinets to minimize footprint.
• Integrated Digital Dial Keypad: Simple rotary control dial and LED screen facilitate swift parameter configuration, tuning, and monitoring.

Technical Advantages

• High Efficiency: Advanced solid-state power switching topology minimizes internal heat build-up and electrical losses.
• Durable Construction: Conformal-coated PCBs shield internal circuitry against high humidity, industrial airborne dust, and corrosive factory atmospheres.
• Safety Protection: Comprehensive protective features guard against overcurrent, overvoltage, short circuit, earth fault, phase loss, and thermal overload.
• Energy Saving: Dynamic excitation voltage tuning reduces electrical current draw during partial motor load conditions.
• Easy Maintenance: Quick-release cooling fans and clear diagnostic fault codes enable straightforward routine maintenance with minimal operational downtime.

Applications

• Industrial & Manufacturing: Industrial conveyors, extruders, mixers, agitators, and automatic packaging machinery.
• Factory Automation: Textile spinning and weaving machines, paper convertors, and plastic processing units.
• Commercial Facilities: HVAC supply and exhaust blowers, cooling tower fans, and booster water pump panels.
• Project Installation: Industrial control panel construction and retrofitting projects executed by engineering contractors across Bangladesh.

Why Choose This Product?

• Reliability: Built to Mitsubishi Electric’s world-class quality standards for uninterrupted 24/7 continuous industrial duty.
• Performance: Smooth speed modulation and rapid overload response prevent machine stalling under fluctuating mechanical load demands.
• Cost Effectiveness: Delivers high precision motor control at an accessible price point while lowering monthly electricity usage.
• After-Sales Value: Supported in Bangladesh by Loop Shop with technical parameter guidance, verified genuine sourcing, and customer service.

Technical Specification Table

Features List

✓ General-Purpose Magnetic Flux Vector Control

✓ Power failure auto-restart (Pr. 57) and stop control (Pr. 261)

✓ Integrated safety stop hardware function

✓ Conformal-coated PCBs for humid industrial environments

✓ Intuitive digital dial keypad for easy parameter tuning

Benefits For Customers

• Reduces Electricity Cost: Dynamic motor voltage optimization lowers monthly power bills under partial load cycles.
• Improves Operational Reliability: Soft-starting eliminates abrupt mechanical starting shocks, extending belt, gear, and coupling service life.
• Saves Maintenance Cost: Early diagnostic warnings alert technical crews to electrical anomalies before critical motor failure occurs.
• Suitable for Bangladesh Environment: Handles grid voltage dips and high ambient factory temperatures across Bangladeshi industrial zones.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside an IP54-rated, well-ventilated electrical control panel to protect against airborne dust, oil, and lint.
• Maintain recommended vertical and horizontal clearances around the drive chassis for unrestricted cooling airflow over heat sink fins.
• Connect a dedicated 3-phase earth ground and use shielded control cabling to prevent electromagnetic interference (EMI).

Maintenance Tips:

• Clean heat sink fins and cooling fans regularly using dry, low-pressure compressed air.
• Inspect electrical terminal block screw tightness at scheduled intervals to prevent loose connections caused by machine vibration.
• Review fault diagnostic alarm codes on the digital keypad display or software tools during routine plant maintenance checks.

Safety Instructions:

• Always disconnect incoming 3-phase AC power lines and wait at least 10 minutes for internal DC bus capacitors to discharge completely before touching terminal screws.
• Electrical installation, parameter tuning, and commissioning must be carried out by qualified electrical engineers or technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi FR-D740-3.7K 3.7kW VFD in Bangladesh?

A: Product prices vary depending on stock availability and import logistics. Please check the current updated price directly on loopshop.com.bd or contact our sales hotline.

Q: Where can I buy original Mitsubishi FR-D740-3.7K VFD in Bangladesh?

A: You can purchase genuine Mitsubishi industrial automation products online directly from Loop Shop Bangladesh at loopshop.com.bd.

Q: What warranty does this product have?

A: It carries a standard supplier/manufacturer warranty. Detailed terms are available on the Loop Shop policy page during checkout.

Q: Is this VFD suitable for Bangladesh climate conditions?

A: Yes, the FR-D740 series features coated PCBs and robust heat dissipation designed to resist high ambient temperatures and humidity in Bangladesh.

Q: How to install this product?

A: Mount vertically inside a protective electrical enclosure. Connect 3-phase AC input power, motor output lines, and ground wiring following the official Mitsubishi manual.

Q: What motor horsepower is compatible with this 3.7kW VFD?

A: This 3.7kW inverter is rated to drive standard 5 HP 3-phase AC induction motors.

Q: How does the drive handle unexpected power failure or voltage drops?

A: It features configurable parameters such as Pr. 57 (power failure restart) and Pr. 261 (power failure stop) to manage transient power loss safely.

Q: Does Loop Shop supply VFDs across all districts in Bangladesh?

A: Yes, Loop Shop delivers industrial automation equipment nationwide, including Dhaka, Chittagong, Gazipur, Narayanganj, and Sylhet.

Q: Does this drive support RS-485 Modbus communication?

A: Yes, it includes a built-in RS-485 Modbus-RTU communication port for system integration and parameter setup.

Q: Can I get parameter configuration support from Loop Shop?

A: Yes, Loop Shop provides basic parameter guidance and technical support for industrial customers in Bangladesh.
