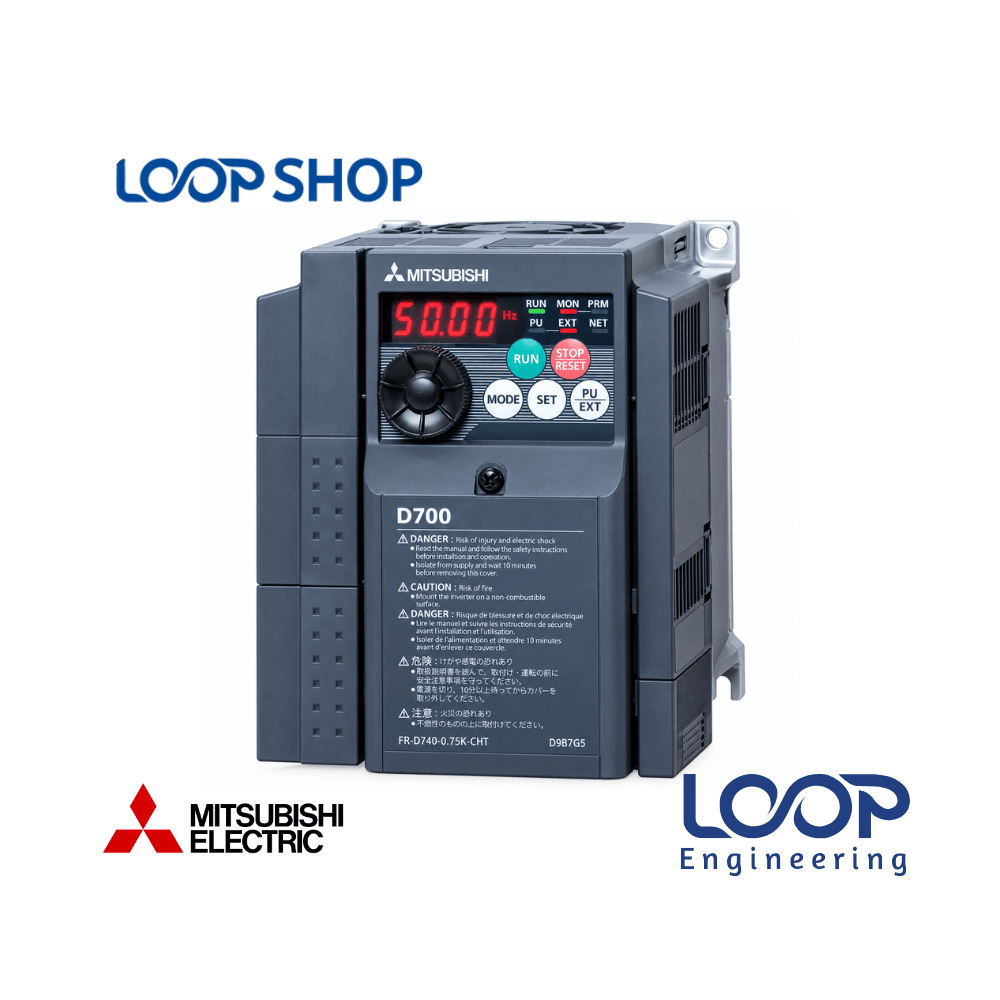

Mitsubishi FR-D740-0.75K D700 Series 0.75kW VFD Industrial Motor Drive

Description

The Mitsubishi FR-D740-0.75K is a compact, high-performance 0.75kW (1 HP / 750W) Variable Frequency Drive (VFD) from Mitsubishi Electric’s widely used FREQROL-D700 Series. Built to regulate the velocity, torque, and power output of small 3-phase AC induction motors, it delivers precise drive performance within a space-saving chassis designed to optimize electrical control panel space.

Utilizing General-Purpose Magnetic Flux Vector Control, the FR-D740-0.75K maintains stable low-speed torque (up to 150% at 1Hz) and smooth dynamic response under changing mechanical load conditions. For garment machinery, small packaging setups, light conveyor systems, and HVAC equipment in Bangladesh, this drive ensures reduced electricity costs, minimal maintenance downtime, and extended motor service life.

Key Features

• General-Purpose Magnetic Flux Vector Control: Delivers robust starting torque (150% at 1Hz) for smooth startup under load without motor stalling.
• Integrated Safety Stop Function: Complies with EU Machinery Directives for hardware-level emergency power shutdown to the motor without extra external contactors.
• Compact Footprint Design: High power density layout permits side-by-side mounting in control cabinets to maximize panel space efficiency.
• Digital Dial Operating Panel: Simple setting knob and clear LED display facilitate fast parameter configuration, tuning, and real-time monitoring.
• Built-in Modbus-RTU Communication: Features RS-485 Modbus-RTU serial communication support for seamless integration with PLCs, HMIs, and SCADA networks.

Technical Advantages

• High Efficiency: Advanced solid-state power switching circuitry minimizes internal thermal dissipation and reduces electrical power losses.
• Durable Construction: Industrial-grade physical build with coated PCBs shields delicate electronics from atmospheric humidity, lint, and dust.
• Safety Protection: Comprehensive protective features guard against overcurrent, overvoltage, output short circuit, earth fault, phase loss, and thermal overload.
• Energy Saving: Dynamic excitation voltage management automatically tunes power consumption under partial motor load conditions.
• Easy Maintenance: Long-life cooling fan design and clear diagnostic alarm codes simplify routine maintenance procedures.

Applications

• Industrial & Manufacturing: Small conveyor systems, packaging machines, labeling units, mixers, and light material handling lines.
• Factory Automation: Garment manufacturing equipment, textile spinning/weaving machines, and plastic processing units.
• Commercial Facilities: HVAC supply and exhaust blowers, small booster water pumps, and commercial appliance drives.
• Project Installation: Industrial control panel construction and retrofitting projects built by engineering contractors across Bangladesh.

Why Choose This Product?

• Reliability: Engineered by Mitsubishi Electric to stringent international quality standards for long-term 24/7 continuous industrial duty.
• Performance: Smooth velocity regulation and rapid torque response prevent motor stalling during sudden load variations.
• Cost Effectiveness: Delivers precision speed control and safety integration at an accessible price point while lowering monthly electricity bills.
• After-Sales Value: Supported in Bangladesh by Loop Shop with technical parameter guidance, verified genuine sourcing, and reliable customer support.

Technical Specification Table

Features List

✓ General-Purpose Magnetic Flux Vector Control

✓ Integrated safety stop hardware function

✓ Built-in RS-485 Modbus-RTU communication

✓ Conformal-coated PCBs for humid industrial environments

✓ Intuitive digital dial keypad for easy parameter tuning

Benefits For Customers

• Reduces Electricity Cost: Dynamic motor voltage optimization lowers monthly factory power bills under dynamic load cycles.
• Improves Operational Reliability: Soft-starting eliminates abrupt mechanical starting shocks, extending belt, gear, and coupling service life.
• Saves Maintenance Cost: Early diagnostic warnings alert technical crews to power anomalies before critical motor failure occurs.
• Suitable for Bangladesh Environment: Rugged build quality handles local line voltage variations and elevated ambient factory temperatures.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside an IP54-rated, well-ventilated electrical control panel to protect against airborne dust, oil, and lint.
• Maintain recommended vertical and horizontal clearances around the drive chassis for unrestricted cooling airflow over heat sink fins.
• Connect a dedicated 3-phase earth ground and use shielded control cables to prevent electromagnetic interference (EMI).

Maintenance Tips:

• Clean heat sink fins and cooling fans regularly using dry, low-pressure compressed air.
• Inspect electrical terminal block screw tightness at scheduled intervals to prevent loose connections caused by machine vibration.
• Review fault diagnostic alarm codes on the digital keypad display during routine plant maintenance checks.

Safety Instructions:

• Always disconnect incoming 3-phase AC power lines and wait at least 10 minutes for internal DC bus capacitors to discharge completely before touching terminal screws.
• Electrical installation, parameter tuning, and commissioning must be carried out by qualified electrical engineers or technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of Mitsubishi FR-D740-0.75K 0.75kW VFD in Bangladesh?

A: Product prices vary depending on stock availability and import logistics. Please check the current updated price directly on loopshop.com.bd or contact our customer support team.

Q: Where can I buy original Mitsubishi FR-D740-0.75K VFD in Bangladesh?

A: You can purchase genuine Mitsubishi industrial automation products online directly from Loop Shop Bangladesh at loopshop.com.bd.

Q: What warranty does this product have?

A: It carries a standard supplier/manufacturer warranty. Detailed terms are available on the Loop Shop policy page during checkout.

Q: Is this VFD suitable for Bangladesh climate conditions?

A: Yes, the FR-D740 series features coated PCBs and robust heat dissipation designed to handle elevated ambient temperatures and humidity in Bangladesh.

Q: How to install this product?

A: Mount vertically inside a protective electrical enclosure. Connect 3-phase AC input power, motor output lines, and ground wiring following the official Mitsubishi manual.

Q: What motor horsepower is compatible with this 0.75kW VFD?

A: This 0.75kW (750W) inverter is rated to drive standard 1 HP 3-phase AC induction motors.

Q: Does this drive include a safety stop feature?

A: Yes, it features an integrated safety stop function complying with EU Machinery Directives for fast, reliable hardware-level output shutdown.

Q: Does Loop Shop supply VFDs across all districts in Bangladesh?

A: Yes, Loop Shop delivers industrial automation equipment nationwide, including Dhaka, Chittagong, Gazipur, Narayanganj, and Sylhet.

Q: Does this drive support RS-485 Modbus communication?

A: Yes, it includes a built-in RS-485 Modbus-RTU communication port for system integration and centralized monitoring.

Q: Can I get parameter configuration support from Loop Shop?

A: Yes, Loop Shop provides basic parameter guidance and technical support for industrial customers in Bangladesh.
