Description

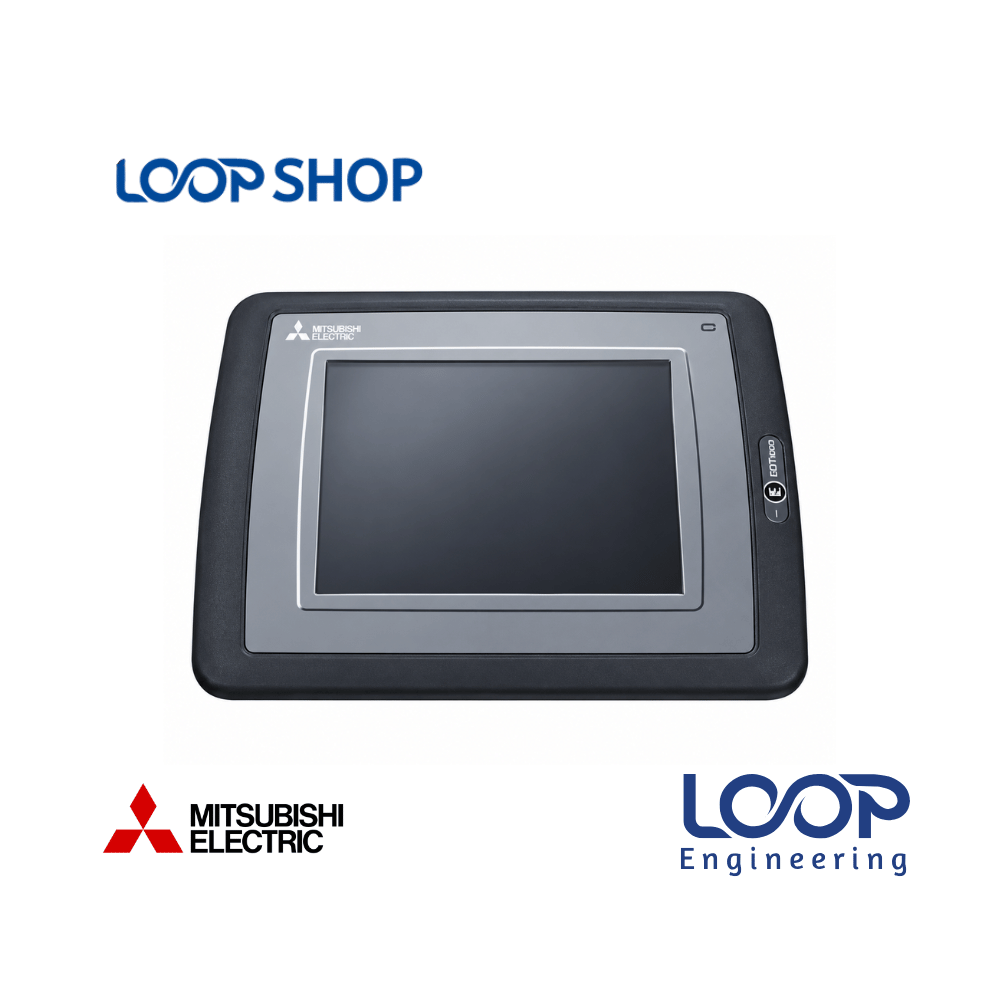

The Mitsubishi Electric E1061 Touch Screen HMI Panel (Type 07905) from the acclaimed E1000 Series is a high-functionality Human Machine Interface engineered to replace traditional control consoles and streamline complex machine operations. Featuring a 5.7-inch TFT color touch display supporting 65,536 colors, this panel delivers clear visualization of dynamic plant processes, alarms, and operating setpoints.
Built around flexible display block architecture, the E1061 operates natively alongside the Mitsubishi MELSEC PLC lineup as well as multi-vendor industrial networks. Factory managers, automation engineers, and machine operators across Bangladesh rely on the E1061 07905 panel for smooth machine-level control, retrofitting legacy equipment, and ensuring 24/7 continuous operational stability.
Key Features
- 5.7-Inch TFT Color Touch Screen: 320 x 240 pixel resolution displaying 65,536 colors with dimmable backlight for clear operator interaction.
- Multi-Protocol Connectivity: Integrated 10/100 Mbit Ethernet (RJ45), RS232, and RS422/RS485 serial communication interfaces.
- USB Host Port Integration: Features a USB type-A port for connecting external peripheral devices such as keyboards, flash drives, or printers.
- Rugged IP66 Sealed Front Panel: IP66-rated powder-coated aluminum front frame protects internal components against water jets and airborne industrial dust.
- 12 MB Application Memory: Integrated 12 MB flash memory for user project files, graphic displays, historical logs, and parameter storage.
- Flexible Software Architecture: Configured using E-Designer software suite with modular display block configurations.
Technical Advantages
- Durable Aluminum Construction: Heavy-duty powder-coated aluminum housing absorbs mechanical vibration and withstands tough thermal environments.
- High Operational Efficiency: Fast processing reduces screen transitions and ensures zero-latency telemetry updates during machine execution.
- Easy Maintenance & Parameter Backup: USB host capability enables quick parameter transfers and project backups directly on the shop floor.
- Enhanced System Security: Password administration levels prevent unauthorized changes to critical PLC machine configurations.
Applications
- Industrial Facilities: Machine automation desks, conveyor starters, material handling systems, and automated packaging machinery.
- Factory Environments: Textile spinning mills, garment machinery, plastic extrusion lines, and food processing plants.
- Commercial & Utility Projects: Water treatment stations, central HVAC air handler monitoring, and generator control panels.
- Project Installation: Ideal for machine builders, automation integrators, and plant engineers assembling or retrofitting machine panels across Bangladesh.
Why Choose This Product?
- Proven Mitsubishi Quality: World-renowned hardware engineering guarantees reliable, long-term continuous operation in heavy factory environments.
- Seamless Legacy Replacement: Direct drop-in replacement option for aging E1000 series panels, preserving existing MELSEC PLC programs.
- Cost-Effective Modernization: Replaces complex hardwired control consoles with a compact, centralized touch panel interface.
- Trusted Local Supply: Sourced with technical precision and backed by fast nationwide delivery through LOOP Shop in Bangladesh.
Technical Specification Table
| Specification |
Details |
| Model |
E1061 (Type: 07905) |
| Brand |
Mitsubishi Electric |
| Display Size |
5.7 Inch Diagonal |
| Display Type |
TFT Color Touch Screen (65,536 Colors) |
| Resolution |
320 x 240 Pixels |
| Operating Voltage |
24 V DC (20 to 30 V DC range) |
| Power Consumption |
Max 6 W (Current Draw: 0.25 A to 0.45 A) |
| Internal Memory |
12 MB Flash Application Memory |
| Interfaces |
1 x 10/100 Mbit Ethernet (RJ45), 1 x RS232, 1 x RS422/RS485, 1 x USB Host |
| Front Protection |
IP66 (Front Panel) / IP20 (Rear) |
| Cutout Dimension |
180 mm x 130 mm |
| Overall Dimension |
202 mm x 152 mm x 63.3 mm |
| Weight |
Approx. 0.9 kg |
| Operating Temperature |
0 °C to +50 °C |
| Warranty |
Standard Manufacturer Warranty |
| Warranty |
Standard Manufacturer / Supplier Warranty |
Features List
- ✓ 5.7-inch TFT display panel supporting 65K colors
- ✓ Integrated 10/100 Mbit Ethernet and dual RS232/RS422/RS485 ports
- ✓ USB host interface for printer, memory stick, or peripheral connection
- ✓ IP66-rated powder-coated aluminum front panel enclosure
- ✓ 12 MB application memory for project graphics and event logs
- ✓ Native communication support for Mitsubishi MELSEC and major PLC brands
Benefits For Customers
- Improves Operational Reliability: Vibrant color display and precise touch layout reduce operator entry errors and simplify monitoring.
- Saves Maintenance Cost: Rugged aluminum build and IP66 front protection lower failure rates in dusty factory environments.
- Simplifies Peripheral Connection: USB host port allows easy export of data logs and backup files without PC connections.
- Suitable for Bangladesh Environment: Operates reliably under high ambient factory temperatures (up to 50 °C) and humid conditions in BD.
Installation & Maintenance Guide
Installation Requirements:
- Prepare a clean vertical cutout on the control panel door matching 180 mm x 130 mm cutout dimensions.
- Ensure at least 57 mm mounting depth clearance behind the panel for passive thermal dissipation and cable routing.
- Connect to a clean, regulated 24 V DC power supply line (20-30 V DC range) with proper circuit fusing.
Maintenance Tips:
- Gently clean the front touchscreen surface using a soft, dry, non-abrasive cloth; do not use aggressive solvents.
- Inspect terminal blocks, ground connections, and Ethernet/serial cables periodically for tight signal contact.
- Maintain updated digital backups of panel application projects on a USB flash drive or workstation host.
Safety Instructions:
- Always disconnect main electrical power before mounting, wiring, or servicing the HMI unit inside the cabinet.
- Connect the dedicated grounding lead securely to protect internal circuitry against electrostatic discharges and noise.
Frequently Asked Questions (FAQ)
Q: What is the price of Mitsubishi E1061 07905 HMI in Bangladesh?
A: For live stock availability, pricing, and official commercial quotes in BD, please visit loopshop.com.bd or contact our customer sales team.
Q: Where can I buy original Mitsubishi E1061 Touch Screen HMI in Bangladesh?
A: You can purchase genuine Mitsubishi E1000 series HMI panels directly online from LOOP Shop at loopshop.com.bd.
Q: What is the screen size and resolution of the Mitsubishi E1061?
A: It features a 5.7-inch TFT color display with a resolution of 320 x 240 pixels supporting 65,536 colors.
Q: What communication ports are available on the E1061 07905 model?
A: It comes equipped with 1 x 10/100 Mbit Ethernet port, 1 x RS232 port, 1 x RS422/RS485 port, and 1 x USB host port.
Q: What operating voltage does this HMI require?
A: The Mitsubishi E1061 operates on a standard 24 V DC power supply line (20 to 30 V DC tolerance range).
Q: What warranty does this product have?
A: Standard supplier/manufacturer warranty terms apply when purchased through LOOP Shop. Contact our support team for specific terms.
Q: Is this product suitable for Bangladesh climate conditions?
A: Yes, with an IP66 rated front panel and operating temperature capability up to 50 °C, it performs reliably in tropical factory settings.
Q: How to install this product?
A: Cut an 180 mm x 130 mm opening on your cabinet door, insert the HMI, clamp it securely from the rear, and wire the 24 V DC power and network cables.
Q: What software is used to program the Mitsubishi E1061?
A: Mitsubishi E1000 series panels are configured using E-Designer engineering software.
Q: Does LOOP Shop provide nationwide delivery in Bangladesh?
A: Yes, LOOP Shop provides nationwide delivery to all major districts and industrial zones across Bangladesh.
