• Appliance Compatibility: Universal mounting plate designed for Maple Armor Series 2 horns, strobes, and horn strobes (FW2961, FW2971, FW2981)
• Fast Pre-Wiring Rough-In: Enables complete line wiring and circuit continuity testing prior to attaching the active signaling head
• Intuitive Twist-Lock Action: Securely locks the notification appliance head onto the base with a simple clockwise rotation
• Robust Wire Terminals: Heavy-duty terminal clamping plates supporting wire sizes from 18 AWG to 12 AWG (0.82 mm² to 3.31 mm²)
• Multi-Box Mounting Flexibility: Directly mounts to standard North American 2×4 inch, 4×4 inch, and 4-inch octagonal junction boxes
• Durable Life-Safety Finish: Manufactured from flame-retardant high-impact thermoplastic in an architectural White finish
• Standard Agency Listings: Certified to UL and ULC life-safety standards for fire alarm signaling accessories
The Maple Armor FW901W Notification Appliance Base is an architectural white universal mounting plate engineered to provide a secure physical seat and reliable electrical termination for Series 2 audible and visual signaling devices.
Compliant with UL and ULC life-safety standards, the Maple Armor FW901W Notification Appliance Base features a clockwise twist-lock mechanism that ensures seamless electrical contact with Maple Armor FW2961 horn strobes, FW2971 horns, and FW2981 strobes.
| Product Model | FW901W (Series 2 Notification Appliance Mounting Base) |
| Manufacturer & Brand | Maple Armor Technologies Inc. |
| Country of Origin | China |
| Color / Enclosure Finish | Architectural White (High-impact flame-retardant thermoplastic) |
| Compatible Notification Appliances | Maple Armor FW2961 (Horn Strobe), FW2971 (Horn), FW2981 (Strobe) |
| Locking Mechanism | Clockwise twist-lock engagement with captive electrical contacts |
| Electrical Backbox Compatibility | Standard North American 2×4 inch (1-Gang), 4×4 inch (2-Gang / 4″ Square), and 4-inch Octagonal boxes |
| Field Wiring Terminals | 18 AWG to 12 AWG (0.82 mm² to 3.31 mm²) solid or stranded copper lines |
| Terminal Construction | Heavy-duty in-and-out captive screw clamping plates |
| Operating Environment | 32°F to 120°F (0°C to 49°C), 0% to 93% RH non-condensing (Dry indoor locations) |
| Regulatory Compliance | UL / ULC Listed Accessory for Fire Protective Signaling Systems |
Verify junction box depth allowances, terminal screw torques, and line polarity continuity in compliance with national NFPA 72 Fire Alarm Code Standards before mounting the notification head.
Pair this mounting base with our compatible Maple Armor Fire Alarm Systems to complete your site installation.
The primary advantage of the Maple Armor FW901W Notification Appliance Base is its two-piece plug-in installation method.
Once building finishes are complete, technicians align the appliance head and rotate it clockwise until the Maple Armor FW901W Notification Appliance Base locks firmly into place. The integrated copper terminal blades establish immediate, vibration-resistant electrical continuity across the system.
Q1: What notification appliances can be mounted onto the Maple Armor FW901W base?

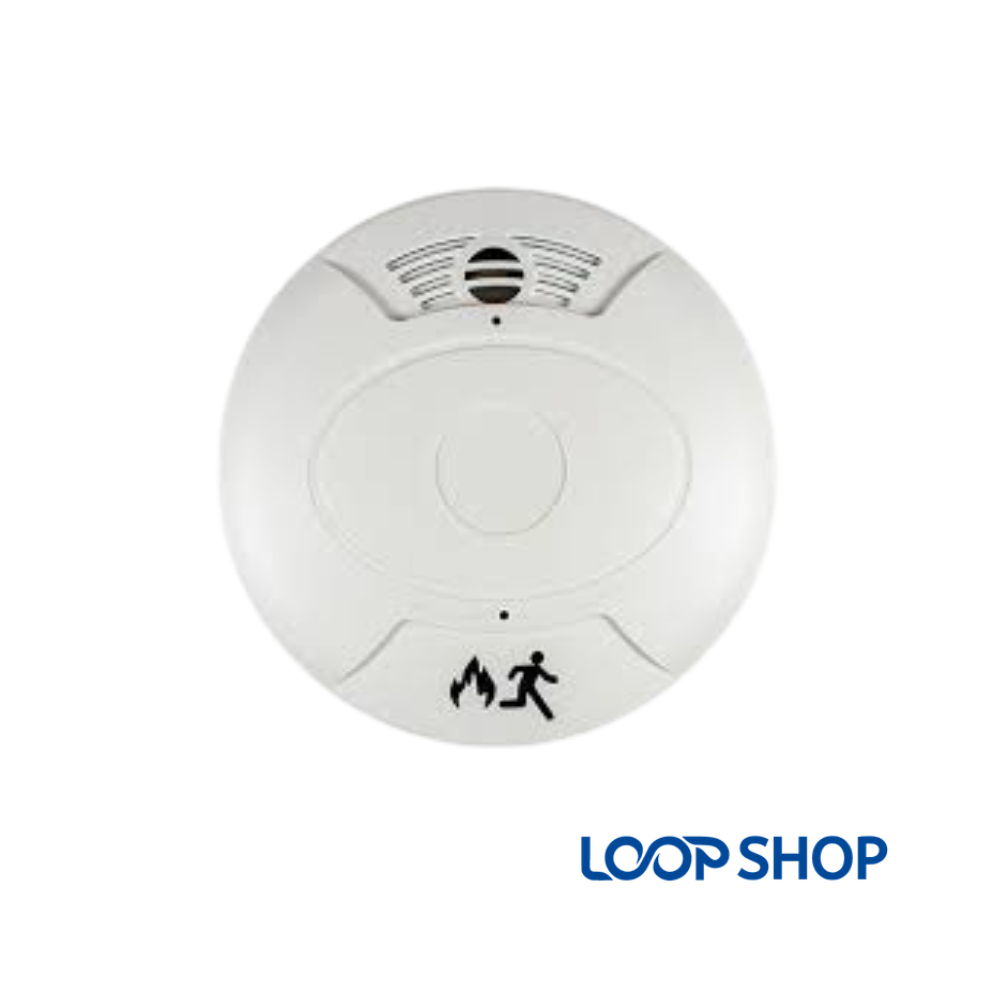

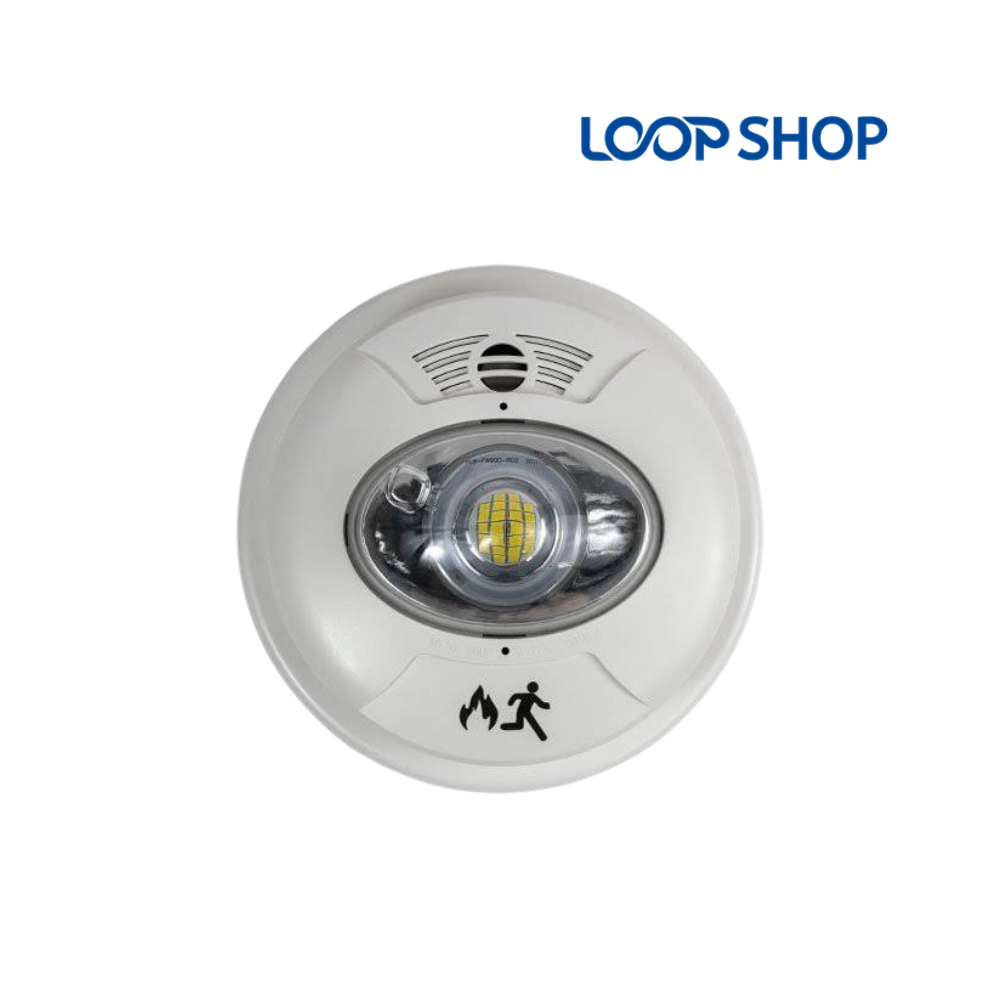

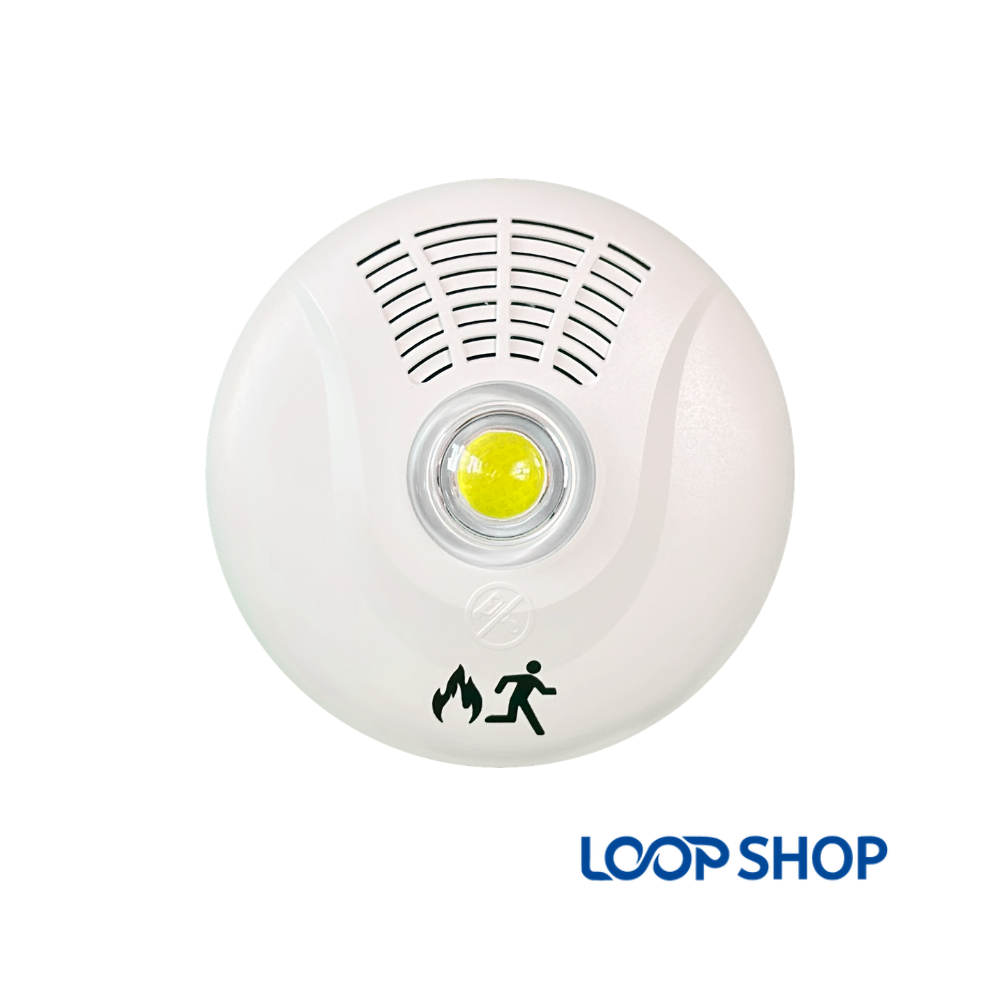

A: The FW901W is designed for Maple Armor Series 2 notification appliances, including the FW2961 horn strobe, FW2971 audible horn, and FW2981 visual strobe.
Q2: What is the purpose of installing a separate base instead of a one-piece appliance?
A: A separate base allows full wiring rough-in and continuity testing during early construction phases, preventing delicate optical and acoustic components from being damaged by drywall dust or paint.
Q3: How does the appliance head attach to the FW901W base?
A: The appliance head mates via a clockwise twist-lock action, securely latching onto the internal terminal contacts without extra fastening tools.
Q4: What size electrical backboxes are compatible with this base?
A: It mounts directly onto standard 2×4 inch (single gang), 4×4 inch (double gang / 4″ square), and 4-inch octagonal electrical backboxes.
Q5: What wire gauge can be connected to the base terminals?
A: The screw terminal blocks accommodate solid or stranded copper wire from 18 AWG to 12 AWG (0.82 mm² to 3.31 mm²).
Q6: What certifications does the FW901W base hold?
A: It is fully listed and certified under UL and ULC standards as an approved fire protective signaling accessory.
