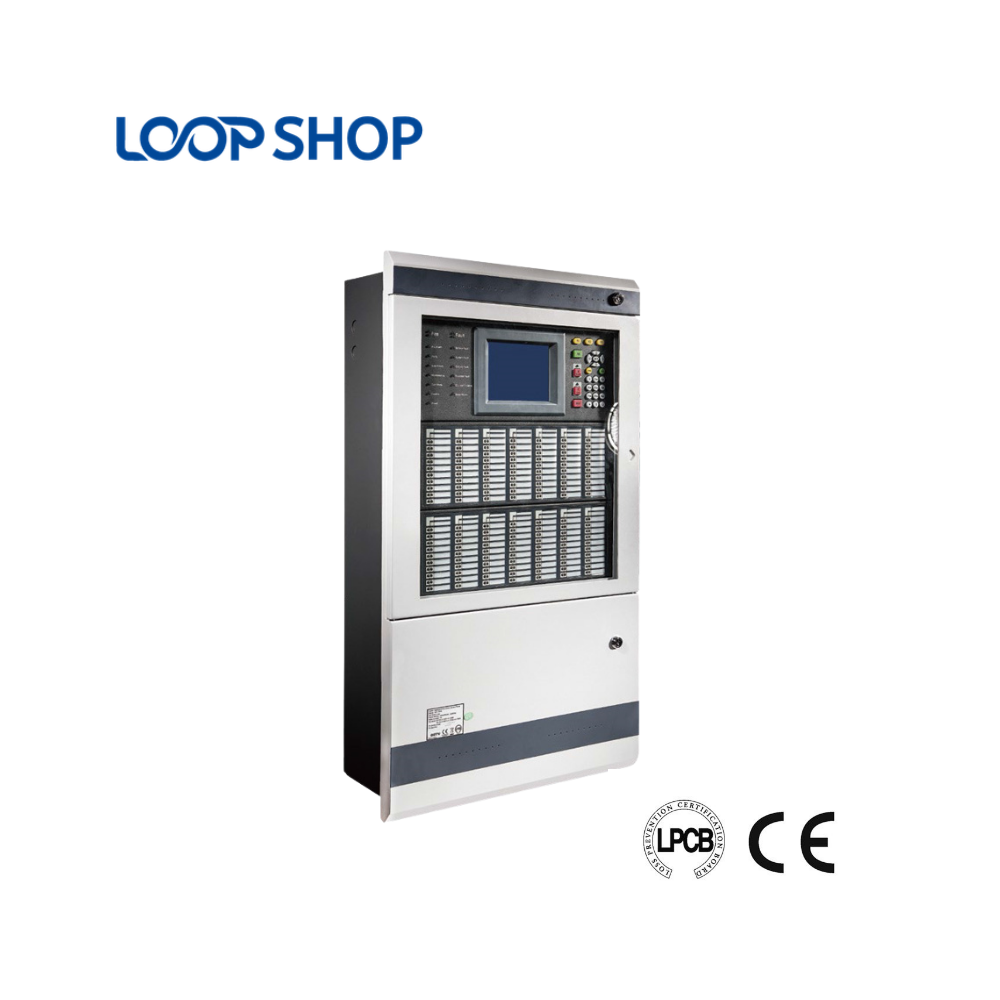

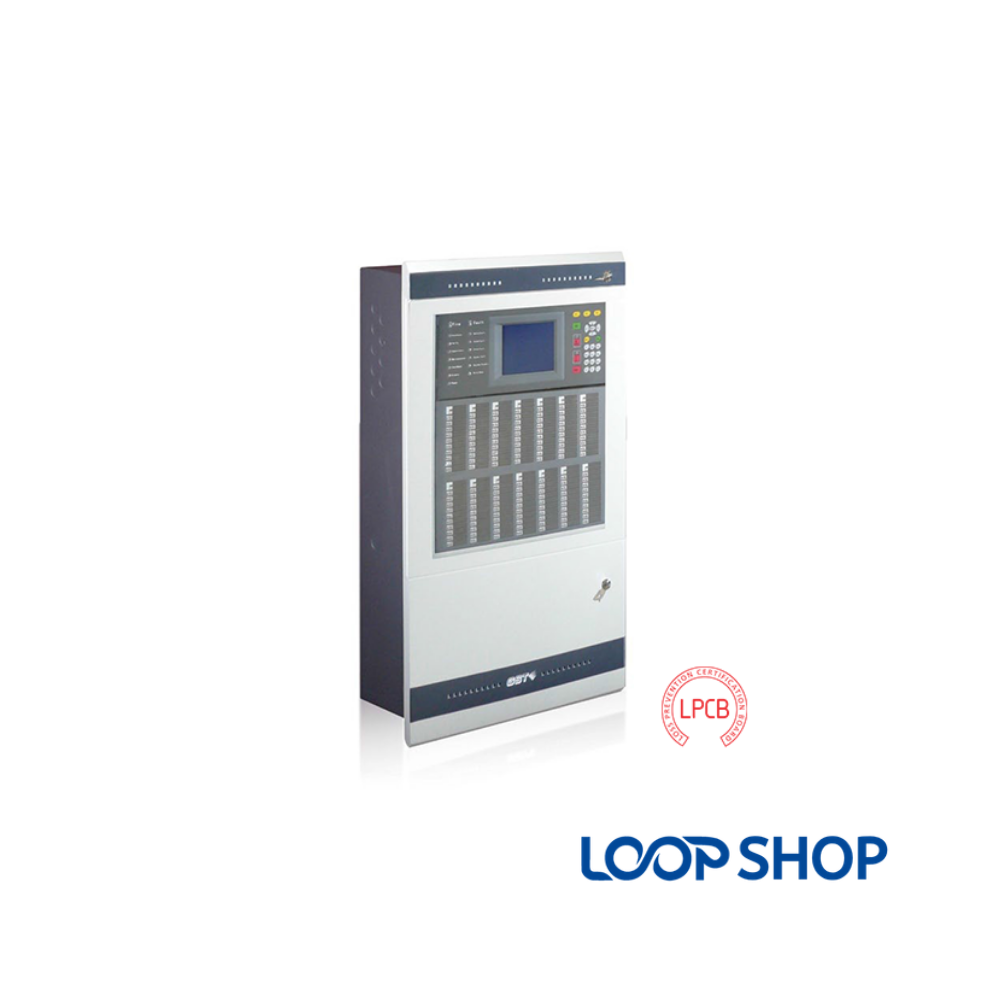

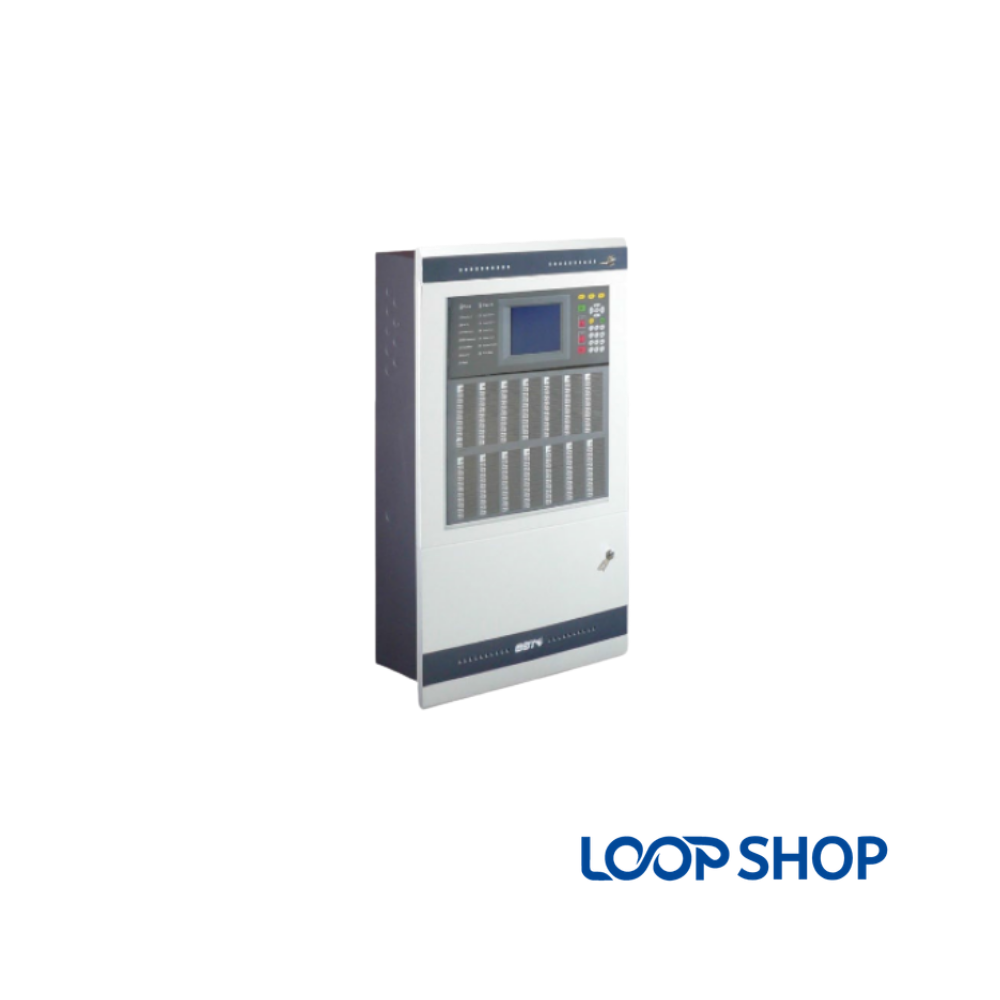

GST GST-IFP8 Addressable Fire Alarm Control Panel (LPCB Certified)

Description

The GST GST-IFP8 Addressable Fire Alarm Control Panel is a modular, high-capacity life-safety master station designed to provide intelligent fire detection, advanced diagnostic analysis, and distributed networking for enterprise-grade facilities. Engineering teams deploy the GST GST-IFP8 across large commercial towers, educational campuses, industrial complexes, and healthcare institutions where multi-zone segmentation and pinpoint device addressability are critical. Engineered in full compliance with European EN54-2 and EN54-4 standards and verified by rigorous LPCB third-party testing, this panel coordinates intelligent detectors, manual call points, control interfaces, and notification appliances across a resilient, multi-loop architecture.

Technical Specifications Table

Intelligent Digital Polling & Modular GST GST-IFP8 System Architecture

The core computational efficiency of the GST GST-IFP8 master station is powered by advanced fuzzy logic algorithms and digital signal evaluation. By continuously interrogating up to 1,936 individual field devices, the GST GST-IFP8 processes real-time environmental data to differentiate genuine smoke and thermal spikes from transient industrial interference, dust build-up, and electromagnetic noise. Built-in dirty detector reporting alerts maintenance technicians when individual optical chambers require servicing long before a false alarm condition can occur.

For complex industrial plants, commercial centers, and multi-building facilities, the GST GST-IFP8 offers flexible networking via CAN Bus and RS485 protocols. Utilizing CAN Class B modules, up to 240 panels can share global cause-and-effect commands across thousands of input/output addresses. Facilities linking into central Building Automation Systems (BAS) can leverage dedicated Modbus and TCP/IP cards to stream fire status data straight into centralized SCADA platforms.

• Modular Slot-Based Architecture: Expands easily from 2 to 8 detection loops using plug-in LCIFP8 cards without requiring external chassis additions.
• Built-In Hardware Zone Annunciation: Features 140 front-panel zone LEDs with insertable text labels for rapid visual localization during emergencies.
• Comprehensive Event Logging: Retains 999 fire alarms and 999 general events in non-volatile memory unaffected by battery depletion or power resets.
• On-Board Thermal Printer: Generates real-time hard-copy diagnostic logs during commissioning, annual fire audits, and live alarm activations.

Frequently Asked Questions (FAQ)

Q1: What is the maximum device address capacity of the GST GST-IFP8 panel?
A: The GST GST-IFP8 supports up to 8 loops, with each Class A loop hosting up to 242 addressable devices, providing a total maximum system capacity of 1,936 addressable points.

Q2: How many physical zone indicators are available on the front panel of the GST GST-IFP8?
A: While the internal software supports up to 999 programmable zones, the front panel features 140 dedicated hardware zone modules, each complete with its own fire alarm LED, fault/disable LED, and customizable label window.

Q3: Can the GST GST-IFP8 control panel communicate with Building Management Systems (BMS)?
A: Yes. By installing the optional P-9935ModBus card or P-9935TCPIP interface card, the GST GST-IFP8 seamlessly exports panel statuses, alarms, and supervisory registers to third-party BMS and SCADA networks.

Q4: What are the primary cable specifications required for the addressable loops on the GST GST-IFP8?
A: Addressable loop lines require fire-rated twisted pairs with a minimum cross-section of 1.0 mm² (1.5 mm² recommended) for runs up to 1,500 meters.

Q5: What battery backup specifications are engineered for the GST GST-IFP8 control cabinet?
A: The panel includes an internal dual-rate charger engineered to maintain up to a 24 VDC / 38 Ah sealed lead-acid battery bank (maximum battery internal resistance ≤ 0.7 Ω).

Q6: Is the GST GST-IFP8 compatible with conventional sounders and notification appliances?
A: Yes. The panel incorporates a dedicated monitored 24 VDC / 1A sounder circuit output (terminated with a 4.7 kΩ end-of-line resistor) capable of driving standard conventional sounders and strobes.
