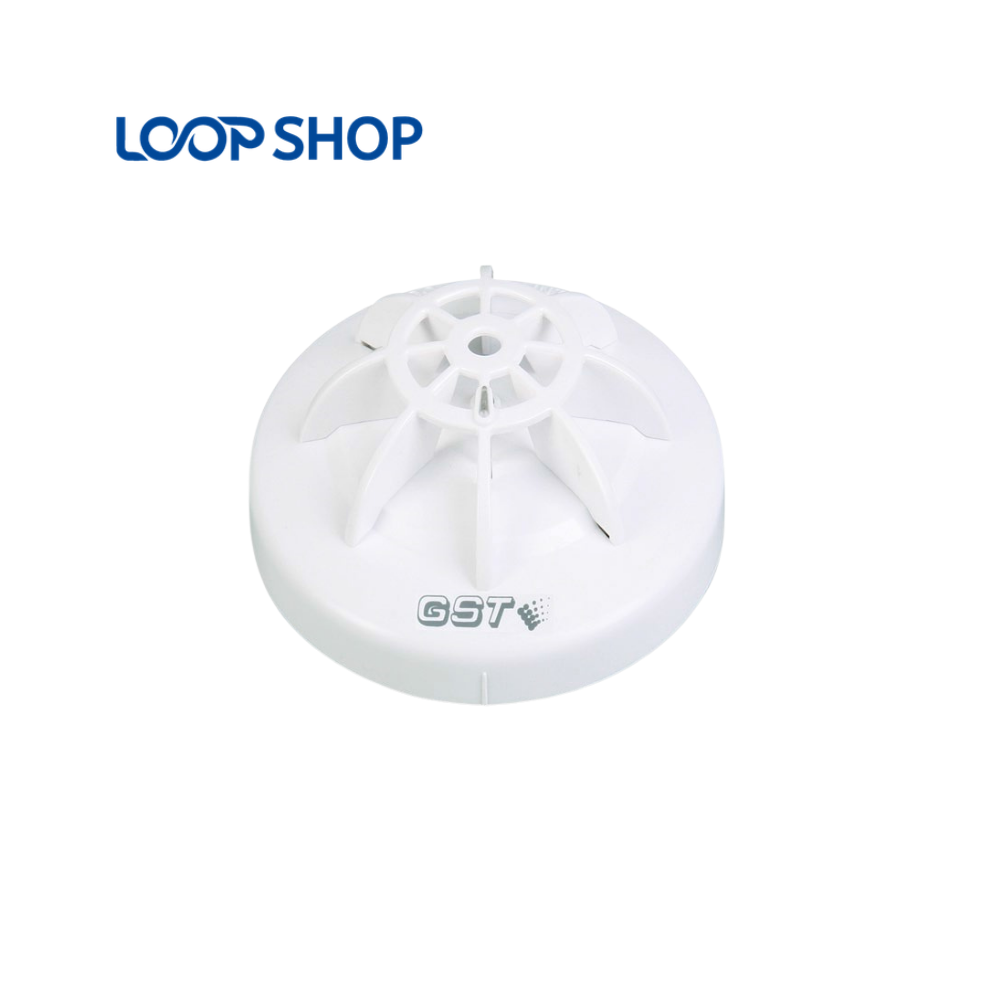

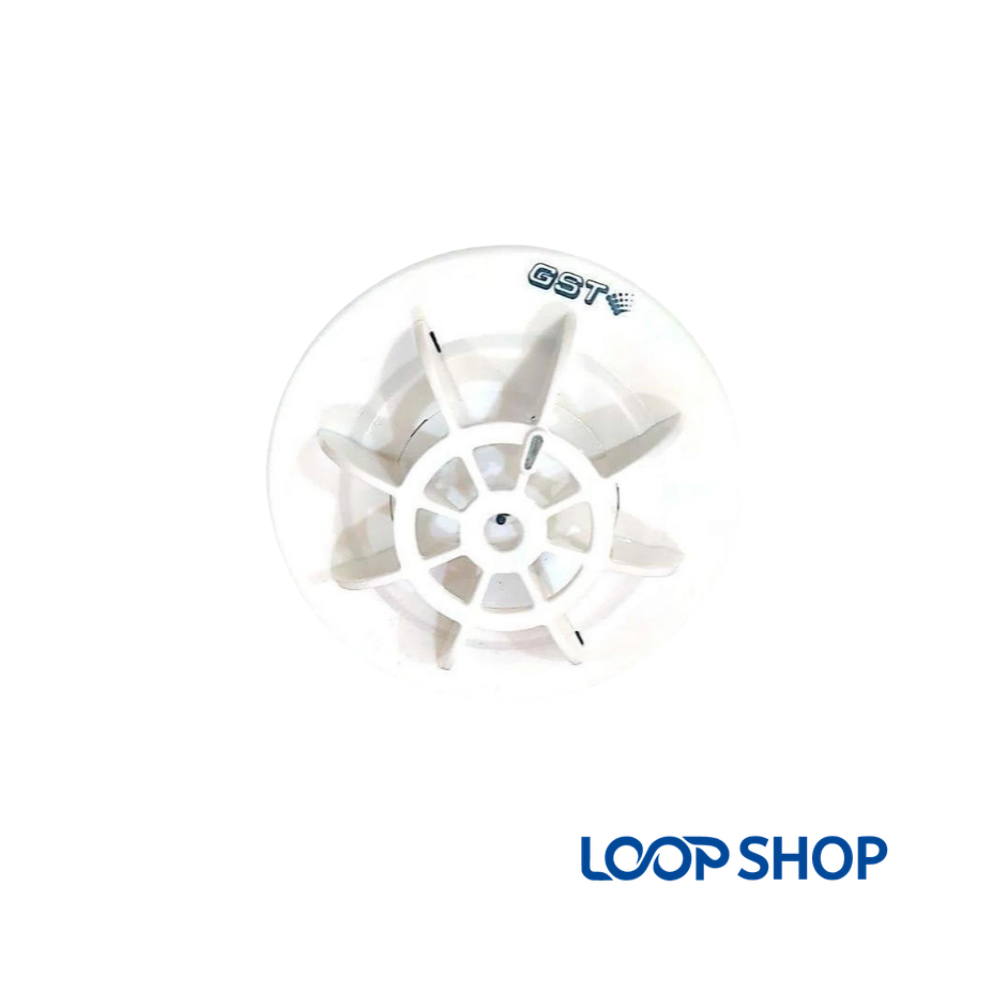

GST DI-9103E Addressable Heat Detector with DB-01 Base (LPCB Certified)

Description

The GST DI-9103E Addressable Heat Detector with DB-01 Base is a high-precision, intelligent thermal fire sensor engineered by GST (Carrier) to provide rapid fire warning in challenging environments. Utilizing an ultra-responsive semiconductor thermistor element, the GST DI-9103E continuously samples ambient air temperature to identify sudden thermal spikes (Rate-of-Rise) or static temperature limits (Fixed Temperature). Supplied complete with the matching GST DB-01 twist-lock base, the GST DI-9103E is specifically designed for installation in areas where airborne dust, cooking fumes, humidity, or exhaust gases make optical smoke detectors prone to false alarms.

Technical Specifications Table

Tri-Class Thermal Response & False Alarm Immunity with GST DI-9103E

The internal processing core of the GST DI-9103E utilizes advanced microprocessor-driven thermal curve tracking. While standard smoke sensors cannot be installed in steam-heavy or dusty environments without generating frequent false alarms, the GST DI-9103E monitors temperature gradient changes exclusively. When exposed to a rapidly accelerating fire condition, the rate-of-rise algorithm detects sudden shifts within seconds, transmitting an authenticated digital alarm to the central control panel across the signaling loop.

System configurability is a key strength of the GST DI-9103E. By using the GST P-9910B handheld programmer, commissioning engineers can tailor each detector to its exact installation environment by selecting one of three standardized EN 54-5 temperature operating classes: Class A1R (58°C rate-of-rise for general areas), Class A2S (62°C static fixed temperature for boiler rooms or commercial kitchens), or Class BS (77°C high fixed temperature for industrial drying areas and boiler plants).

Every GST DI-9103E unit is built with an integrated magnetic reed switch to simplify routine testing. Technicians can trigger a full functional sensor test by placing a magnetic commissioning wand near the labeled test marker, eliminating the need to apply open heat sources directly to the sensor head. The detector also includes a polarized output terminal on the DB-01 base to drive external remote indicator LEDs outside concealed ceiling voids or locked electrical panels.

• 3-in-1 Programmable Detection Modes: Supports Class A1R, Class A2S, and Class BS thermal settings for diverse room environments.
• Complete Nuisance Alarm Immunity: Unaffected by dust, steam, kitchen vapors, and exhaust particulates that disrupt optical sensors.
• Electronic Address Configuration: Set loop addresses (1 to 242) and sensitivity parameters digitally using the P-9910B tool.
• 360-Degree Omnidirectional LED: Twin light-pipe prism delivers clear visual status verification from any approach direction.

Frequently Asked Questions (FAQ)

Q1: In what applications should the GST DI-9103E be chosen instead of a smoke detector?
A: The GST DI-9103E is ideal for commercial kitchens, boiler rooms, workshops, automotive garages, electrical generator rooms, and laundry facilities where steam, dust, or combustion by-products would trigger optical smoke detectors.

Q2: Does this product include the DB-01 mounting base?
A: Yes. This package includes both the GST DI-9103E addressable heat detector head and the matching GST DB-01 standard twist-lock base.

Q3: What are the differences between Class A1R, A2S, and BS on the GST DI-9103E?
A: Class A1R triggers on a combination of rate-of-rise and a 58°C fixed threshold; Class A2S triggers strictly on a fixed 62°C threshold; and Class BS triggers at a higher fixed temperature threshold of 77°C for high-heat environments.

Q4: Can the flashing polling LED on the GST DI-9103E be turned off?
A: Yes. For environments where flashing lights are distracting, the polling LED can be turned off via programmer parameter settings while remaining fully operational to illuminate steady red during an alarm.

Q5: What are the loop wiring and remote indicator connections on the DB-01 base?
A: Connect the 2-wire SLC loop across Terminals 1 and 3 (non-polarized). Terminals 2 (positive) and 4 (negative) provide a dedicated polarized drive circuit for an external remote indicator lamp (such as the GST C-9314P).

Q6: How can maintenance technicians test the GST DI-9103E during routine site visits?
A: The detector features a built-in magnetic reed switch. Placing a magnetic commissioning wand near the marked test zone initiates a functional alarm test to verify loop signal transmission and control panel annunciation without using a heat gun.
