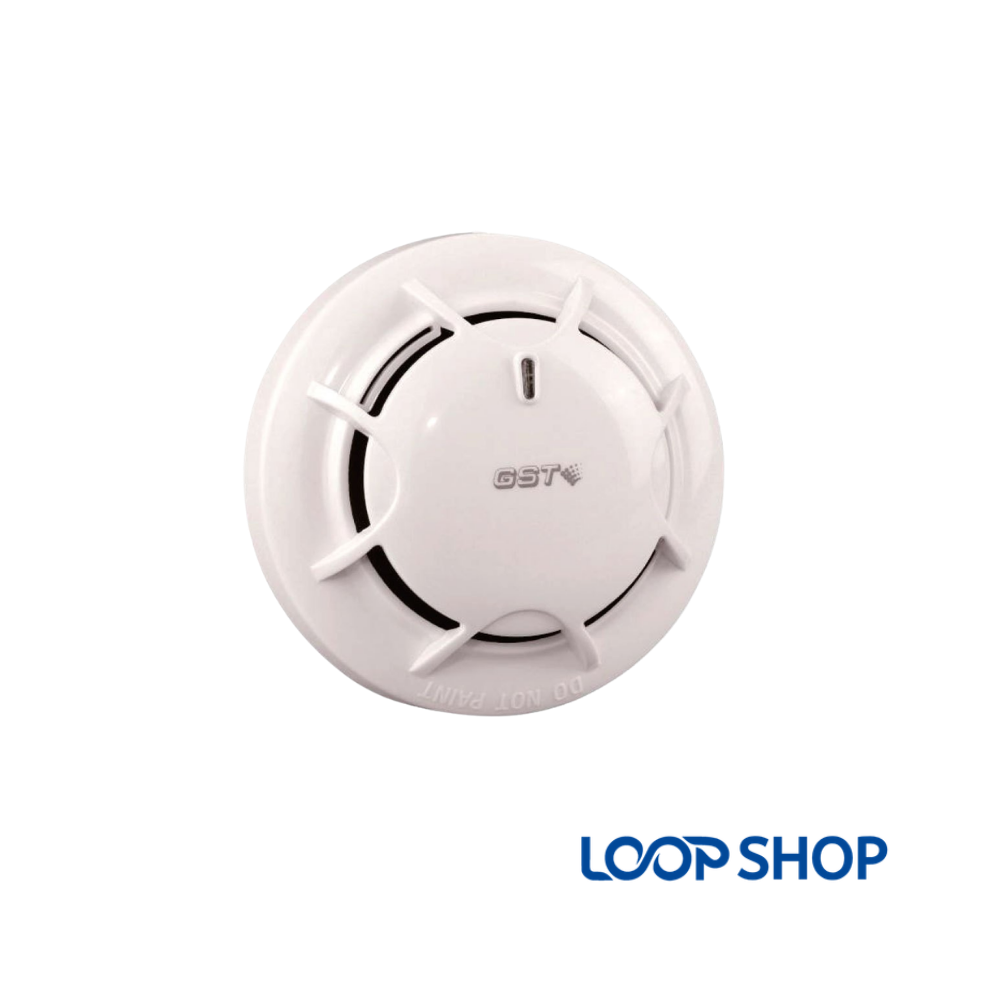

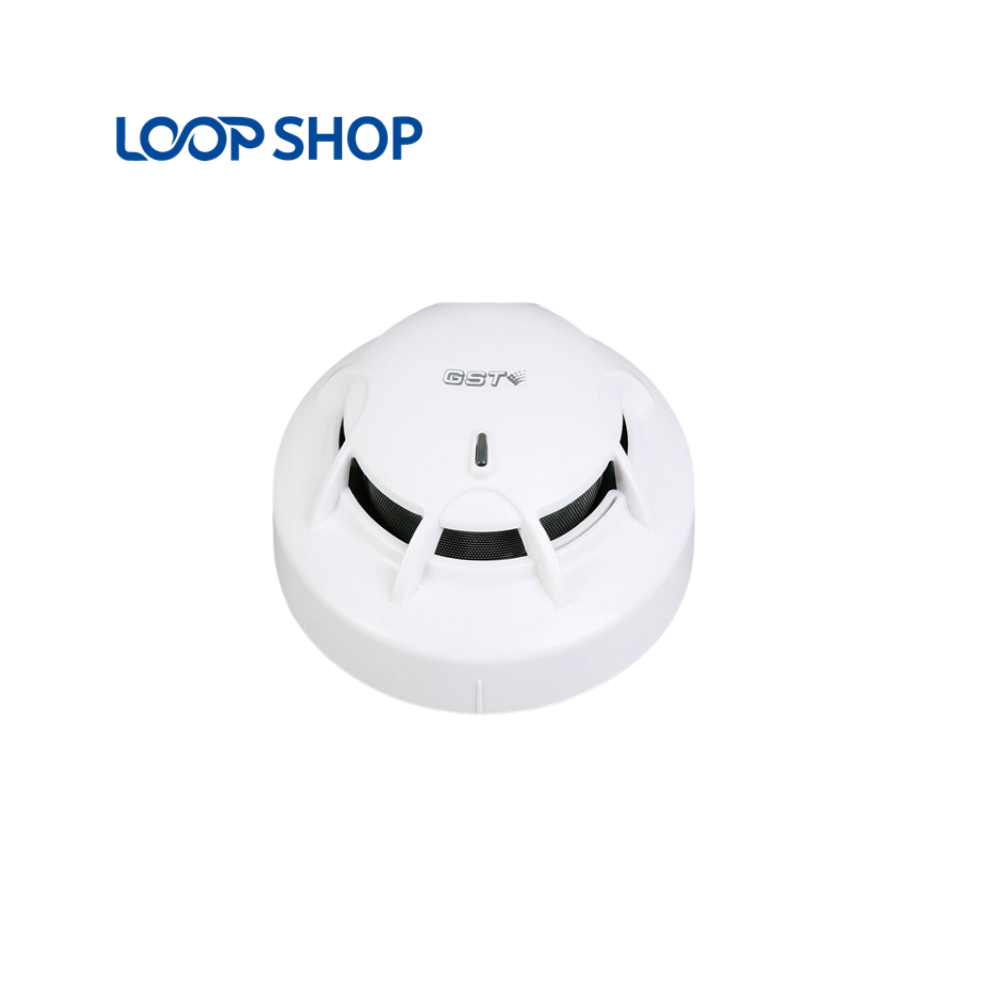

GST DI-9102E Addressable Smoke Detector with DB-01 Base (LPCB Certified)

Description

The GST DI-9102E Addressable Smoke Detector with DB-01 Base is an advanced, point-type intelligent optical fire sensor manufactured by GST (Carrier) to deliver early warning life-safety protection. Utilizing infrared light-scattering technology and digital signal evaluation, the GST DI-9102E identifies slow-smoldering fires, airborne particulates, and dense smoke with high precision. Packaged complete with the standard DB-01 mounting base, this detector is engineered for commercial office buildings, educational institutions, hospitality suites, server rooms, and industrial storage areas requiring dependable EN 54-7 and LPCB certified fire protection.

Technical Specifications Table

Infrared Light-Scattering Precision & Drift-Compensated GST DI-9102E Performance

The core detection mechanism of the GST DI-9102E utilizes an advanced optical sensing chamber that measures infrared light scattered by smoke particles entering the maze. When combustion occurs, airborne particles refract the internal pulsed beam into a high-gain photodiode receiver. The onboard micro-controller immediately evaluates the obscuration curve, rejecting ambient light interference and transient electrical surges to communicate an authenticated alarm signal to the central fire panel within one second.

To eliminate false alarms caused by long-term environmental factors, the GST DI-9102E features an integrated drift compensation algorithm. As airborne dust, humidity fluctuations, and slight lens contamination occur over time, the detector dynamically shifts its internal baseline reference value. This automated adjustment ensures that the precise amount of smoke required to trigger a fire alarm remains constant throughout the lifespan of the device, preventing nuisance alarms without reducing sensitivity.

Routine field servicing and preventative maintenance are straightforward due to the modular construction of the GST DI-9102E. Technicians can release the outer cover with a standard screwdriver to unclip the sensing chamber for thorough cleaning with compressed air or alcohol swabs. Loop addresses from 1 to 242 and dual sensitivity parameters are programmed electronically using the GST P-9910B handheld programmer, removing the risk of mechanical contact wear associated with traditional rotary switches.

• Intelligent Drift Compensation: Dynamically adjusts baseline reference levels to maintain uniform sensitivity despite dust accumulation.
• Removable Sensing Chamber: Patented detachable optical chamber allows on-site cleaning without replacing internal electronics.
• Electronic Address Configuration: Facilitates swift digital addressing and parameter changes via the P-9910B programmer.
• All-Angle LED Confirmation: Dual-element 360-degree light pipe ensures visual alarm status verification from any location below.

Frequently Asked Questions (FAQ)

Q1: What application areas are best suited for the GST DI-9102E optical smoke detector?
A: The GST DI-9102E is recommended for commercial offices, hotel corridors, educational facilities, banks, server rooms, libraries, and warehouses where early detection of smoldering fires is essential.

Q2: Does this product include the DB-01 detector mounting base?
A: Yes. This item includes both the GST DI-9102E addressable photoelectric smoke detector head and the matching GST DB-01 standard mounting base.

Q3: How is the address programmed on the GST DI-9102E detector?
A: The detector is addressed electronically (from address 1 to 242) using the GST P-9910B handheld programmer, eliminating physical DIP switches and rotary dials.

Q4: Can the flashing polling LED on the GST DI-9102E be disabled?
A: Yes. In environments such as hotel bedrooms or screening areas where blinking lights are undesirable, the polling LED can be turned off via programmer parameter settings while remaining fully functional during an alarm.

Q5: What are the loop wiring and remote indicator requirements for the DB-01 base?
A: Connect the 2-wire SLC loop to Terminals 1 and 3 (non-polarized). Terminals 2 (positive) and 4 (negative) provide a dedicated polarized drive circuit for an external remote indicator lamp (such as the GST C-9314P).

Q6: How can field engineers perform testing on the GST DI-9102E without test gas?
A: The detector includes a built-in magnetic reed switch. Placing a magnetic commissioning tool against the marked test zone activates an internal test alarm to confirm loop communication and sounder response.
