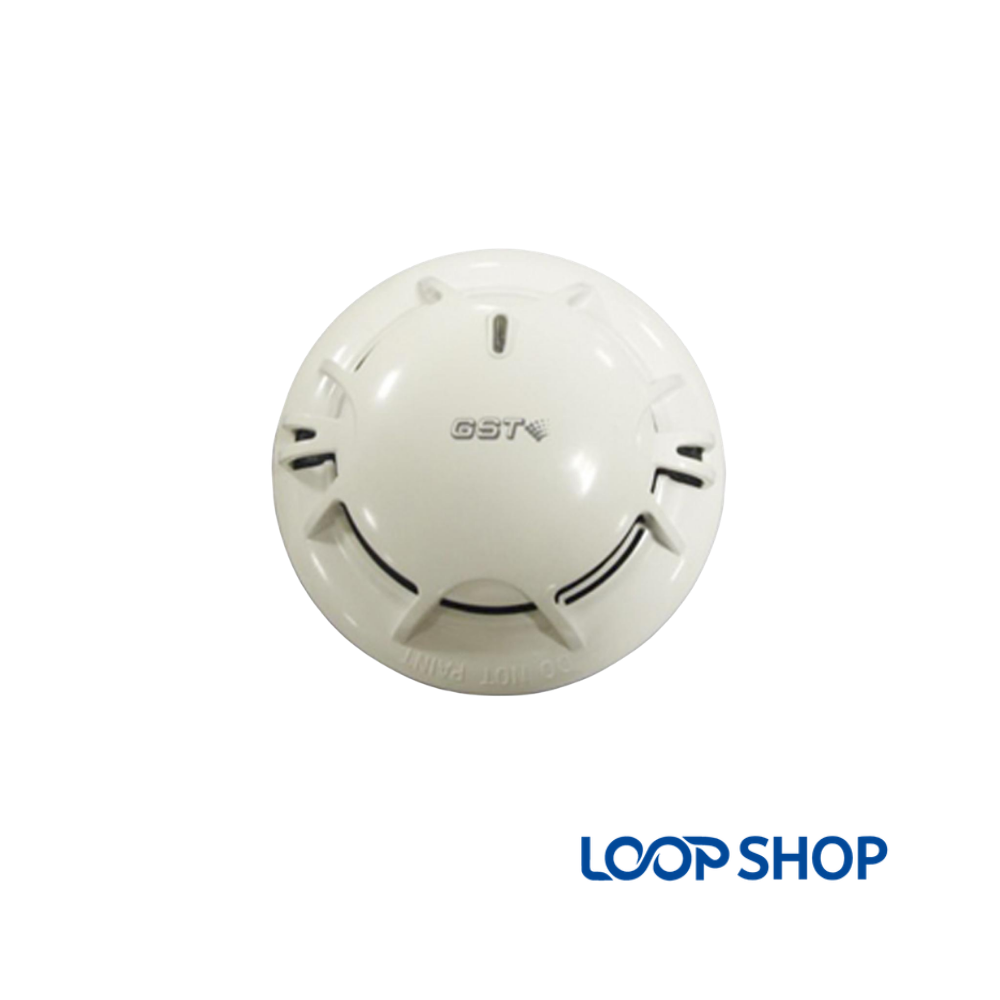

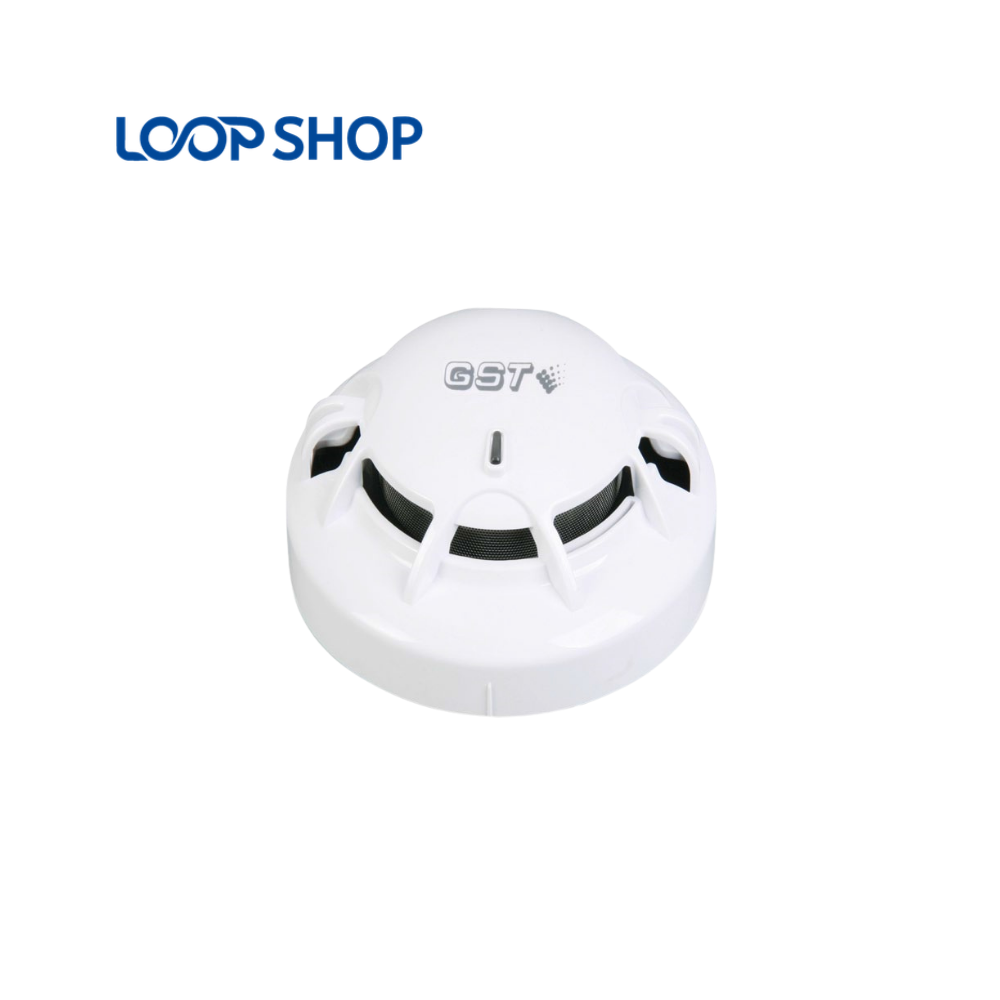

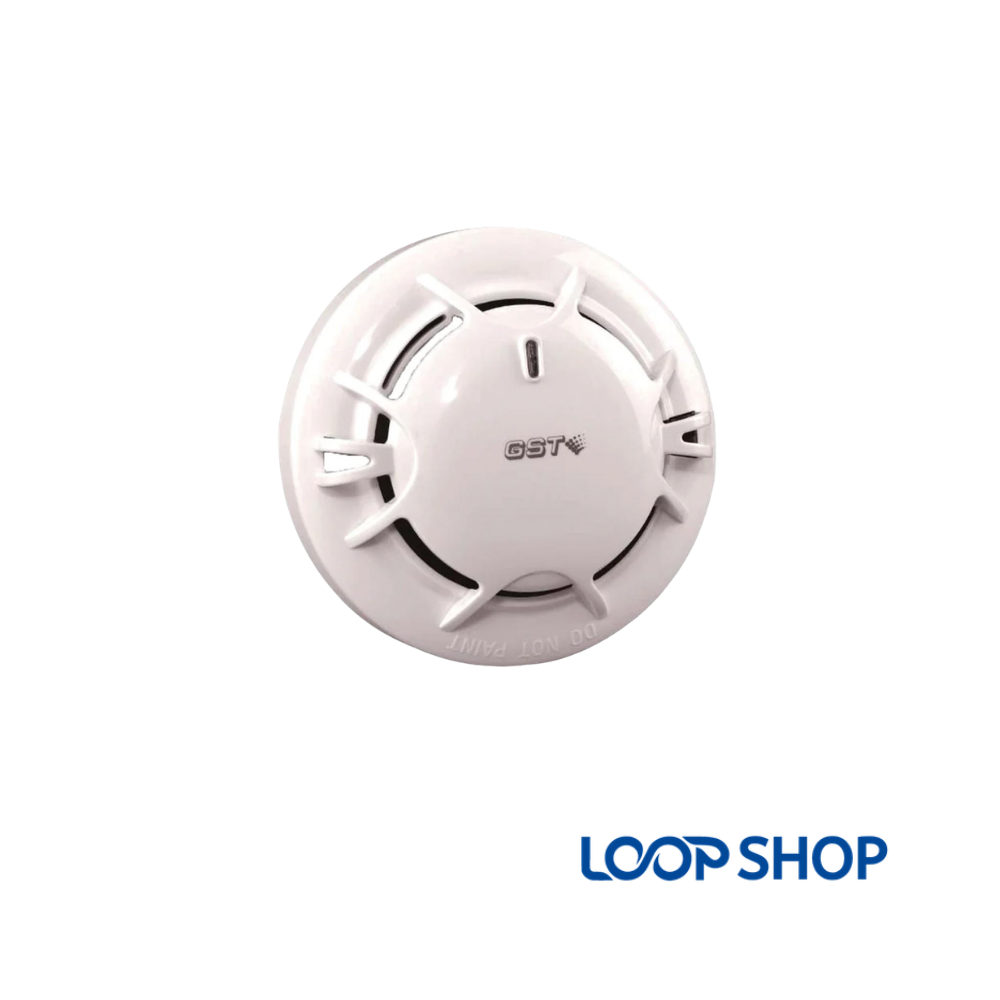

GST DI-9101E Addressable Multi Detector with DB-01 Base (LPCB Certified)

Description

The GST DI-9101E Addressable Multi Detector with DB-01 Base is a high-performance, multi-criteria life-safety sensor engineered by GST (Carrier) to provide early warning detection across diverse fire types. By combining an advanced photoelectric optical chamber with a precision semi-conductor thermistor, the GST DI-9101E detects both slow-smoldering combustion with heavy smoke and fast-burning, clean-flame thermal signatures such as alcohol or chemical fires. Packaged complete with the standard DB-01 mounting base, the GST DI-9101E delivers reliable commercial and industrial fire protection while actively preventing false alarms through integrated signal filtering and environmental drift compensation.

Technical Specifications Table

Multi-Criteria Sensing & Drift-Compensated GST DI-9101E Reliability

The operational core of the GST DI-9101E combines optical scattering with rate-of-rise thermal monitoring into a single unified enclosure. Standard single-technology optical sensors can struggle with dark, particulate-heavy smoke or fast-spreading, smokeless alcohol fires. The GST DI-9101E eliminates these detection blind spots by continuously analyzing simultaneous changes in smoke density and ambient temperature. If a sudden temperature spike occurs alongside trace obscuration, the internal micro-controller accelerates decision algorithms to broadcast an addressable fire warning to the central panel in under one second.

Long-term field stability is sustained by automated environmental drift compensation. As dust, lint, and ambient airborne particles accumulate over months of operation, the internal firmware of the GST DI-9101E continuously recalibrates its baseline reference threshold. This ongoing compensation maintains consistent sensitivity over time, preventing false triggers without reducing responsiveness to real fires. If the optical chamber eventually exceeds cleanable boundaries, the sensor triggers a dirty chamber alert during routine diagnostic sweeps.

Installation and servicing workflows are streamlined through electronic address programming and a removable chamber design. Using the GST P-9910B handheld programming unit, technicians set loop addresses from 1 to 242 and customize smoke sensitivity profiles electronically, avoiding manual DIP switches and mechanical rotary dials. When annual maintenance is required, the optical chamber of the GST DI-9101E unclips easily from the main sensor body for swift cleaning and reassembly on site.

• Dual-Sensor Multi-Criteria Logic: Merges optical light scatter with Class A2R thermal detection to capture flaming and smoldering fires.
• Intelligent Baseline Drift Compensation: Auto-adjusts sensitivity thresholds against dust build-up to prevent nuisance alarms.
• Electronic Device Addressing: Eliminates physical address dials and simplifies loop commissioning via handheld programming tools.
• 360-Degree LED Alarm Visibility: Dual-prism light piping ensures clear visual status confirmation from any ceiling approach angle.

Frequently Asked Questions (FAQ)

Q1: What types of fire hazards is the GST DI-9101E multi-sensor best suited for?
A: The GST DI-9101E is ideal for commercial, hotel, educational, and light industrial facilities where both smoldering combustion (wood, paper, textiles) and fast-flaming thermal hazards (solvents, electrical gear, alcohol) may occur.

Q2: Does this product listing include the detector base?
A: Yes. This package includes both the GST DI-9101E addressable multi-criteria detector head and the matching GST DB-01 standard twist-lock base.

Q3: How is the loop address configured on the GST DI-9101E?
A: Loop addresses (from 1 to 242) and sensitivity parameters are configured electronically using the GST P-9910B handheld digital programmer, eliminating manual rotary switches.

Q4: Can the flashing polling LED on the GST DI-9101E be turned off for sensitive rooms?
A: Yes. In environments such as hotel guest rooms or hospital wards where blinking lights may cause a disturbance, the polling LED can be turned off via programmer parameters while maintaining full alarm illumination.

Q5: What are the wiring requirements for connecting the DB-01 base to the fire alarm loop?
A: The signaling line circuit connects to Terminals 1 and 3 using non-polarized 2-core fire-resistant cable (1.0 mm² to 1.5 mm²). Terminals 2 (positive) and 4 (negative) provide a dedicated polarized drive circuit for an external remote indicator lamp.

Q6: How can technicians perform local testing on the GST DI-9101E without smoke canisters?
A: The detector contains a built-in magnetic reed switch. Placing a magnetic commissioning tool near the marked test zone activates an alarm test routine to verify loop transmission and panel signaling.
