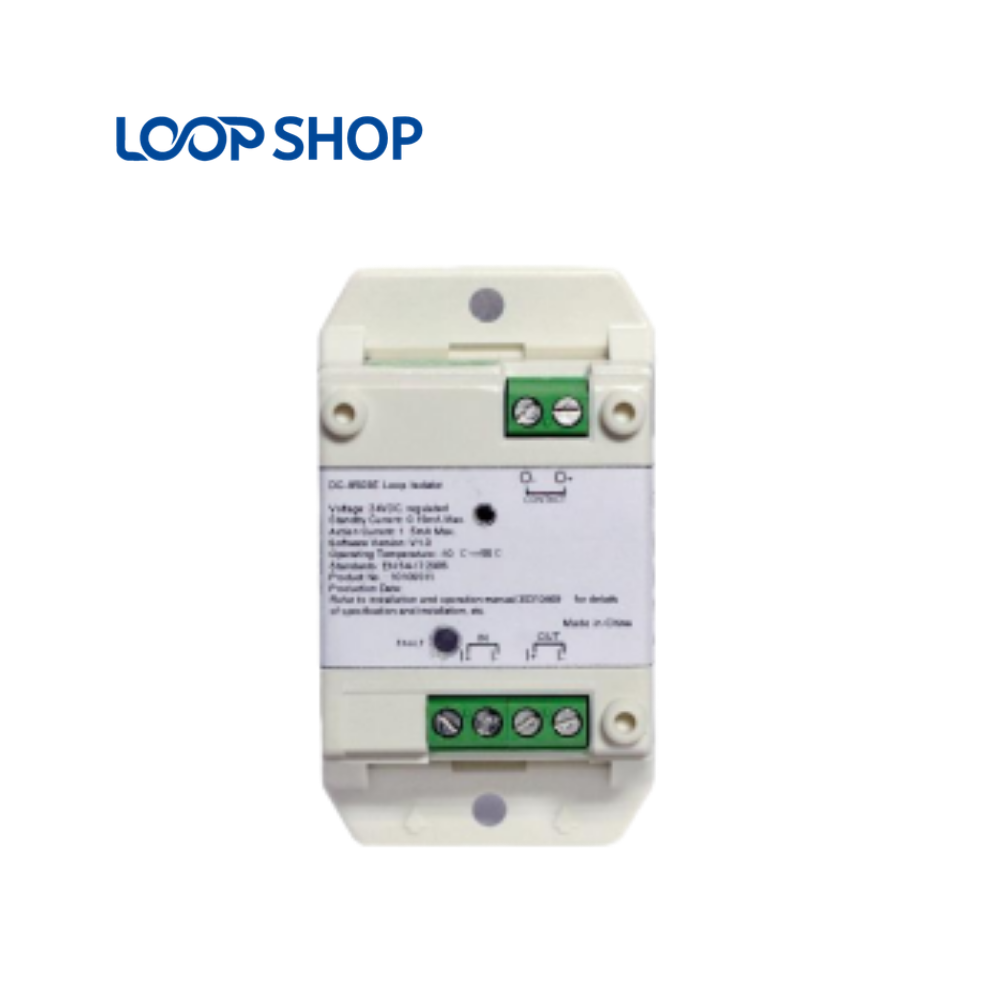

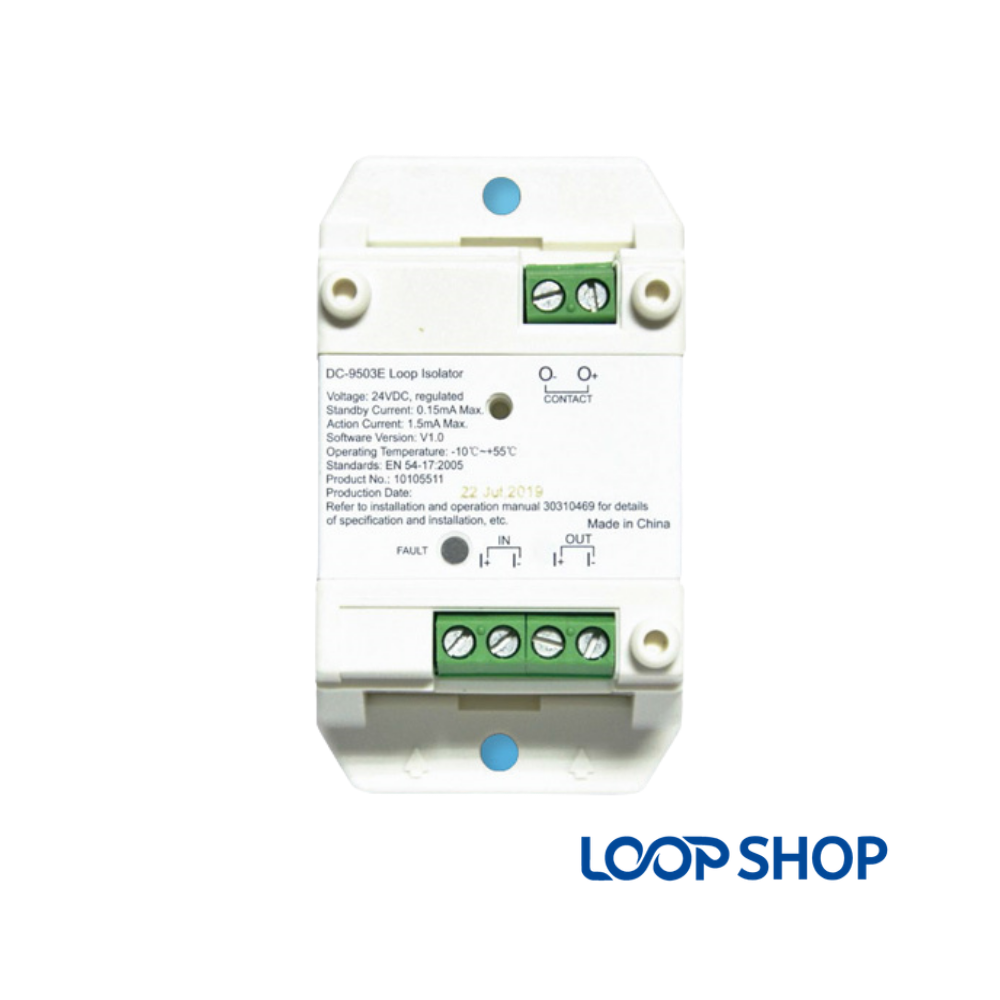

GST DC-9503E Addressable Loop Fault Isolator Module (LPCB Certified)

Description

The GST DC-9503E Addressable Loop Fault Isolator Module is an essential life-safety network protection device engineered by GST (Carrier) to preserve signaling loop integrity during electrical faults. In large addressable fire alarm systems, an unisolated short circuit on a single detector branch can incapacitate the entire signaling line circuit (SLC). The GST DC-9503E automatically detects and disconnects faulted cable sections in under 10 milliseconds, allowing all remaining detectors, sounders, and control interfaces on the loop to continue operating without disruption. Certified under rigorous European EN 54-17:2005 standards and approved by LPCB, the GST DC-9503E automatically reconnects isolated segments the moment field technicians clear the short circuit.

Technical Specifications Table

Automatic Short-Circuit Isolation & Restorative GST DC-9503E Performance

The core electrical purpose of the GST DC-9503E isolator is to partition addressable signaling loops into independently protected zones. In commercial high-rises, industrial factories, and educational institutions, physical cable damage from construction work or water ingress can cause a direct short circuit. When a fault occurs on a protected line, the solid-state switching circuitry inside the GST DC-9503E opens within milliseconds, isolating the affected cable segment and limiting the disruption solely to that physical section while the central panel registers an isolated fault condition.

Unlike disposable fuses or manual reset switches, the GST DC-9503E is completely self-restoring. The onboard micro-circuitry continuously samples line voltage across the isolated terminals using ultra-low supervisory pulses. As soon as field technicians remove the physical short circuit or replace damaged cable, the GST DC-9503E senses the restored impedance threshold, closes its solid-state switch, and re-introduces all downstream detectors and modules back into the active polling loop without requiring a manual panel reset.

Installation workflows are highly efficient due to the compact chassis and dual-mounting versatility of the GST DC-9503E. The module mounts directly onto standard 35mm DIN rails inside distribution cabinets or fastens to walls and junction boxes using rear screw slots. Supporting up to 70 intelligent devices per segment and an ultra-low closed impedance of only 0.15 Ω, system designers can incorporate multiple GST DC-9503E modules throughout a building floor without causing significant voltage drop along extended cable runs.

• Instantaneous Solid-State Isolation: Rapidly isolates shorted loop segments in < 10 ms to prevent complete system collapse.
• Automatic Network Restoration: Reconnects isolated devices immediately once the field wiring short circuit is repaired.
• High Device Loading: Safely shields up to 70 addressable sensors, modules, and manual call points per isolator zone.
• Visible Diagnostic Annunciation: Front-facing yellow LED indicates standby health and latches steady to highlight fault locations.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the GST DC-9503E loop isolator module?
A: The GST DC-9503E protects addressable signaling loops by isolating short-circuited wiring sections, ensuring that a wire fault on one branch does not take down the entire fire alarm network.

Q2: Does the GST DC-9503E require a manual reset after a short circuit is fixed?
A: No. The GST DC-9503E features automatic restoration circuitry that detects when the short circuit is cleared and seamlessly re-integrates all isolated devices back into the system.

Q3: How many addressable devices can be connected between two GST DC-9503E isolators?
A: Up to 70 addressable devices (smoke detectors, heat sensors, input/output modules, call points) can be placed between two GST DC-9503E isolator units.

Q4: Does the GST DC-9503E occupy an address on the fire alarm control panel?
A: No. The GST DC-9503E is an unaddressed loop protection device that operates automatically based on electrical line impedance, meaning it does not consume an address from the panel’s loop capacity.

Q5: Can the GST DC-9503E be used on both Class A and Class B wiring topologies?
A: Yes. The GST DC-9503E is fully compatible with Class A ring circuits as well as Class B radial spurs and T-tapped branch lines.

Q6: What do the LED signals indicate on the front of the GST DC-9503E?
A: The yellow LED flashes periodically during normal standby polling to confirm loop power and illuminates steady yellow when the module is actively isolating a short circuit.
