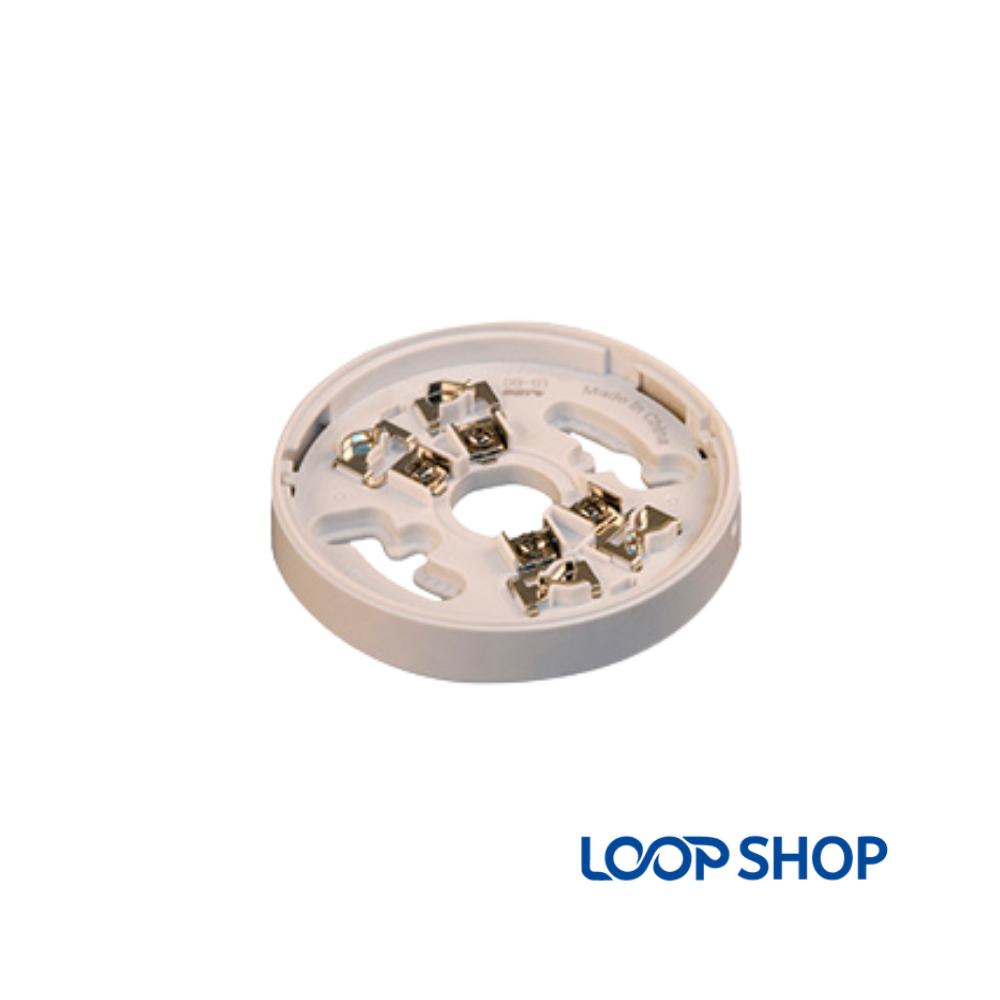

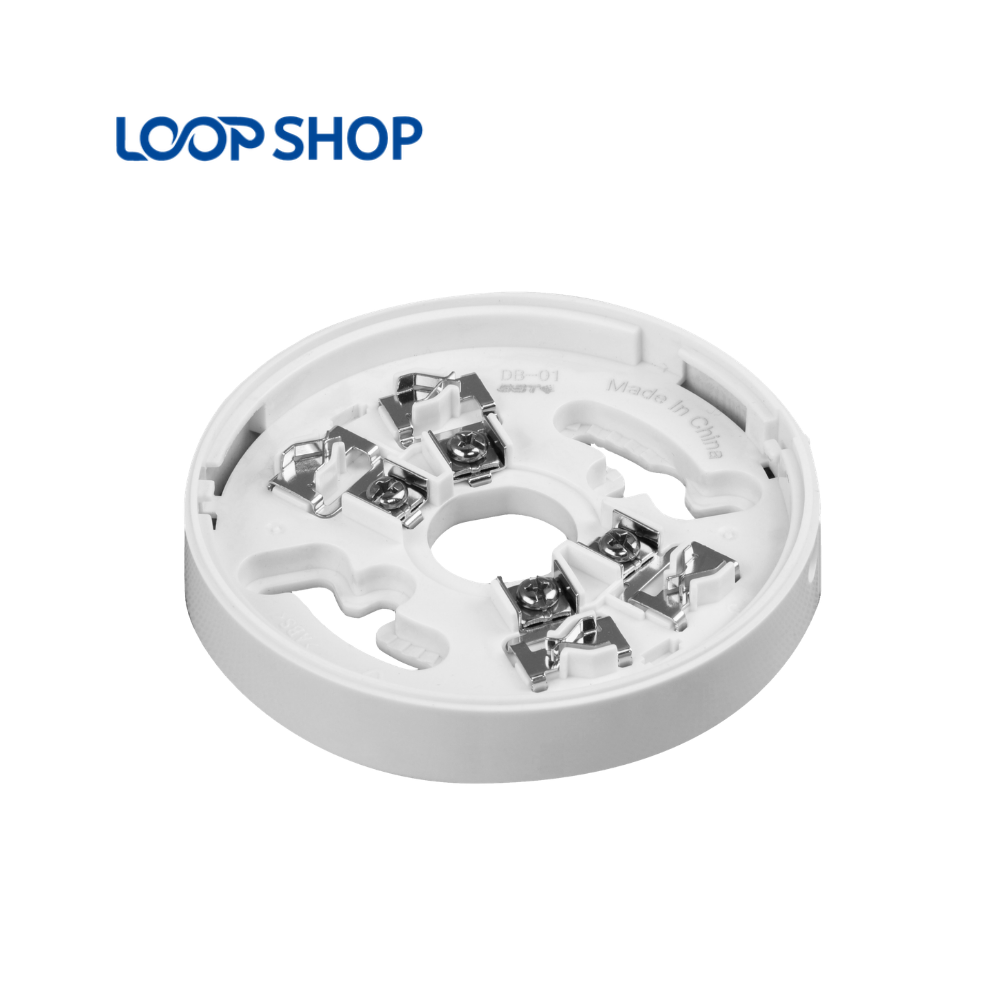

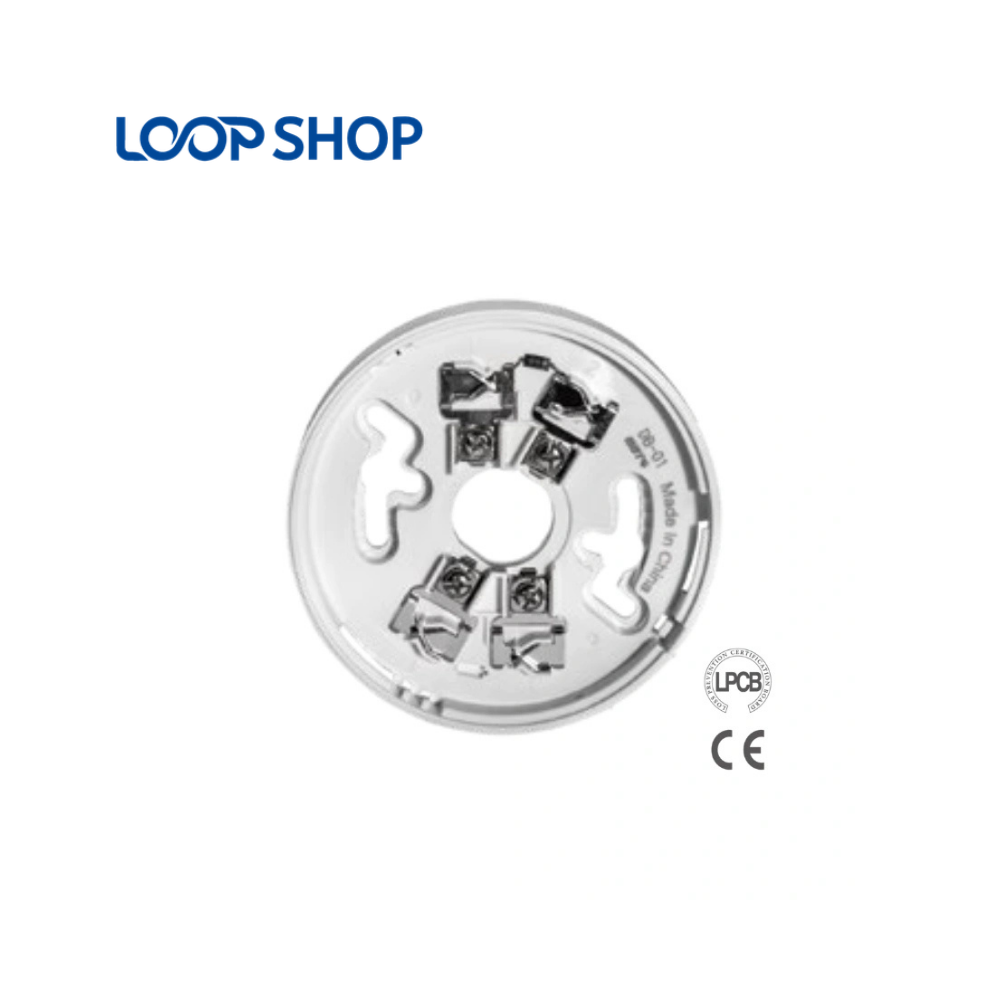

GST DB-01 Common Detector Base (Universal Mounting Base)

Description

The GST DB-01 Common Detector Base is a universal, low-profile mounting platform manufactured by GST (Carrier) to provide secure mechanical fixing and electrical termination for point-type fire sensors. Engineered as a standard interface across both intelligent addressable (DI-9000E series) and conventional (DC-9000E series) product lines, the GST DB-01 accommodates optical smoke, rate-of-rise/fixed temperature heat, and multi-criteria combination detectors. Built from flame-retardant ABS plastic, the GST DB-01 features a robust twist-lock mechanism that maintains long-term electrical contact pressure while ensuring swift detector maintenance and replacement.

Technical Specifications Table

Universal Compatibility & Reliable Twist-Lock Architecture in GST DB-01

The primary engineering strength of the GST DB-01 detector base is its universal multi-system design. Because it contains no active silicon or circuit boards, the GST DB-01 operates as a purely passive, high-integrity mechanical conduit. Electrical contractors can install and terminate hundreds of bases during initial building rough-in, test loop continuity and insulation resistance with multimeters, and subsequently plug in addressable (DI series) or conventional (DC series) detector heads during final commissioning without rewiring terminals.

Terminal reliability is maintained by heavy-duty spring-assisted screw clamps designed to hold solid or stranded fire-alarm conductors up to 2.5 mm². Terminals 1 and 3 provide a non-polarized loop connection, eliminating polarity errors during cable termination. Terminals 2 and 4 are specifically allocated to drive external remote indicator lamps (such as the GST C-9314P), providing immediate visual alarm confirmation outside locked electrical closets, hotel rooms, or ceiling service hatches.

To prevent vandalism and accidental tampering in public spaces, the GST DB-01 incorporates an anti-tamper locking mechanism. When engaged, the detector head securely locks into the base upon rotation and cannot be removed by hand. Releasing the detector requires inserting a small jeweler’s screwdriver into the release slot, ensuring life-safety compliance in schools, shopping centers, and public transit facilities.

• Unified Detector Platform: Accepts all GST optical smoke, thermal heat, and multi-criteria fire sensors.
• Non-Polarized Loop Terminals: Speeds up installation and eliminates reverse-polarity wiring mistakes on site.
• Dedicated Remote LED Output: Direct terminal connection for external indicators without requiring extra relays.
• Anti-Tamper Lock Mechanism: Prevents unauthorized removal of detector heads in high-traffic public buildings.

Frequently Asked Questions (FAQ)

Q1: Which fire detector models are compatible with the GST DB-01 base?
A: The GST DB-01 is compatible with all GST intelligent addressable sensors (DI-9101E multi-sensor, DI-9102E optical smoke, DI-9103E heat detector) as well as GST conventional detectors (DC-9101E, DC-9102E, DC-9103E, DI-9405, DI-9406).

Q2: Does the GST DB-01 base contain any electronic components or address DIP switches?
A: No. The GST DB-01 is a purely passive mechanical base with no internal circuitry. Addressing and digital communication take place entirely within the intelligent detector head itself.

Q3: How are the 4 terminals on the GST DB-01 wired?
A: Terminals 1 and 3 connect to the main 2-wire signaling loop or conventional zone line (non-polarized). Terminal 2 is the positive output and Terminal 4 is the negative output for connecting an external remote indicator LED lamp.

Q4: Can the GST DB-01 be mounted onto standard electrical back-boxes?
A: Yes. The base features elongated mounting slots supporting fixing hole centres from 45 mm to 75 mm, making it compatible with standard European round and square conduit junction boxes.

Q5: How does the anti-tamper locking feature work on the GST DB-01?
A: The base includes a locking tab that engages with the detector head upon full clockwise rotation. Once locked, the detector head can only be uninstalled by inserting a slim tool into the release hole to depress the locking pin.

Q6: Is the GST DB-01 base flame retardant?
A: Yes. The base is constructed from high-grade ABS engineering polymer rated UL94 V-0 flame-retardant in a clean white finish (RAL 9016).
