• System Loop Architecture: 2 high-capacity Class A Style 7 Signalling Line Circuit (SLC) loops
• Massively Scalable Capacity: Handles up to 200 soft-addressing detector points per individual loop circuit
• Core Compliance Standard: Fully certified and listed under strict UL 864 9th Edition provisions
• Dynamic User Interface: Large, versatile touchscreen graphical user interface engineered for effortless navigation
• Onboard Visual Diagnostics: Features 96 dedicated zone display fire LEDs for immediate point source identification
• Fast Network Topologies: Fully networkable system architecture supporting robust connection up to 126 control nodes
• Automated System Setup: Reduced commissioning and test times through soft addressing and auto-learn configurations
• Supervised Power Protection: Integrated primary 120V/240V AC power supply with built-in standby battery chargers
• Notification Appliance Circuits: 4 independent Class B Style Y notification loops shared across power-limited relays
• Structural Logging Ledger: Continuous non-volatile event history buffer logging up to 9,999 distinct events
• Industrial Chassis Enclosure: Durable mild steel back box pairing safely with a flame-retardant ABS front door

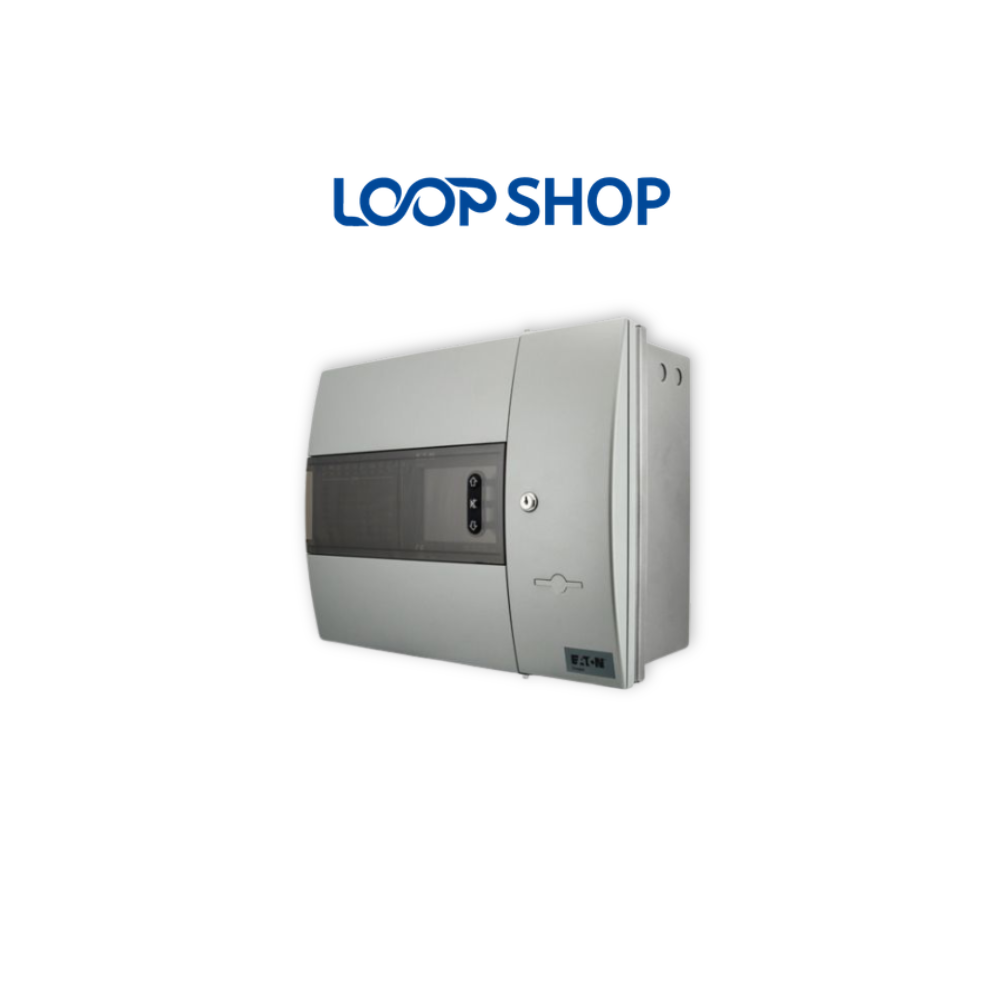

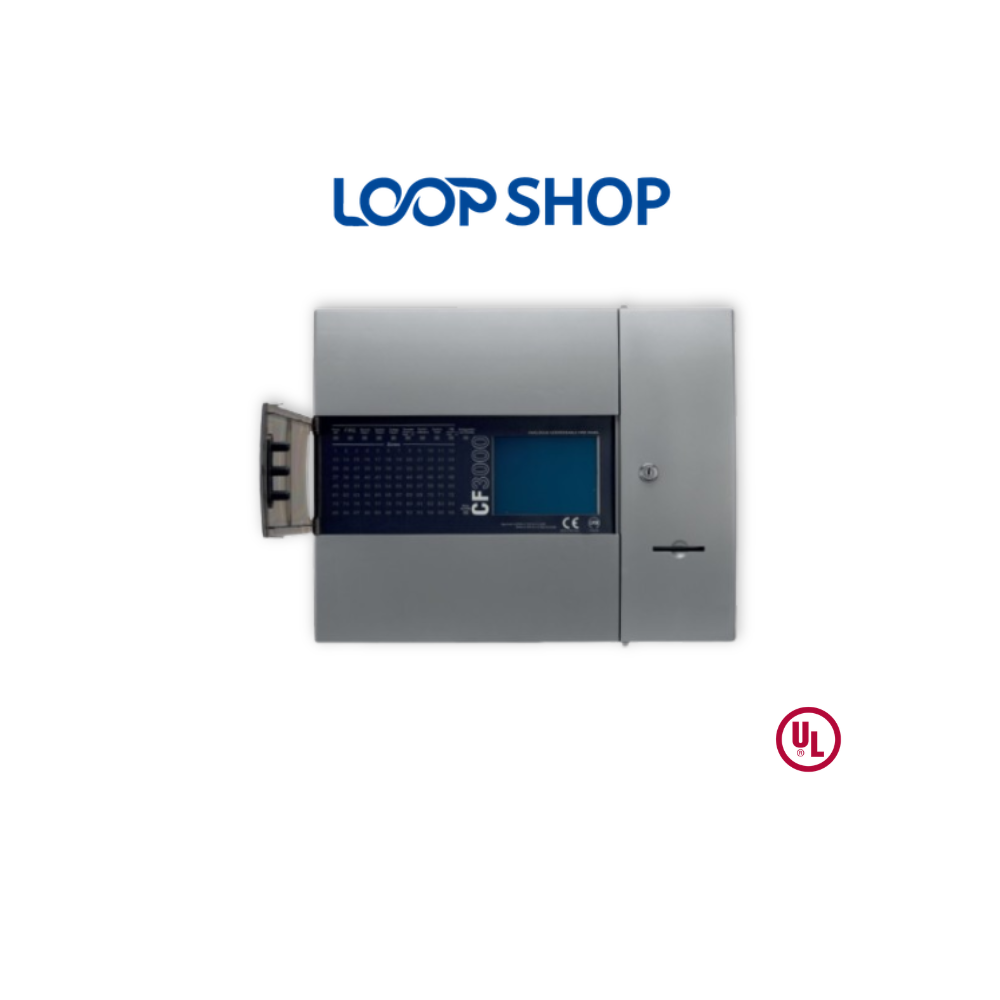

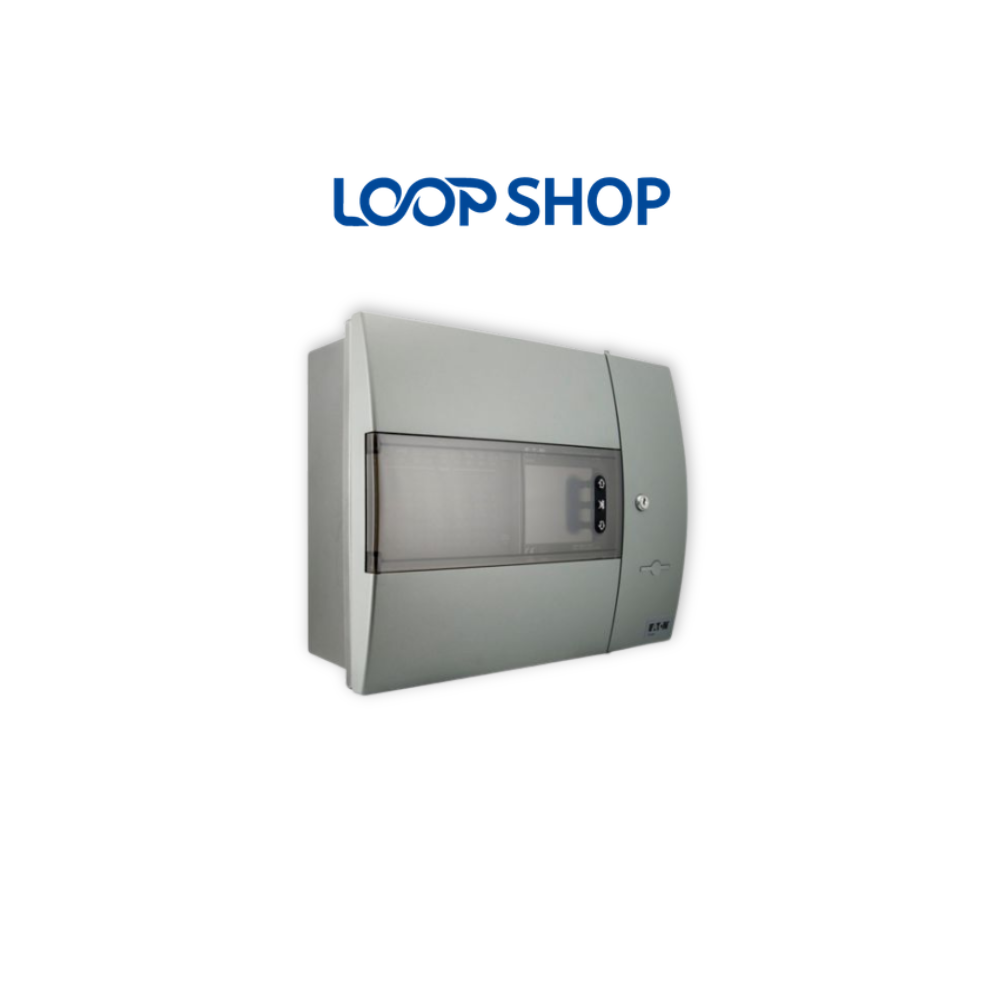

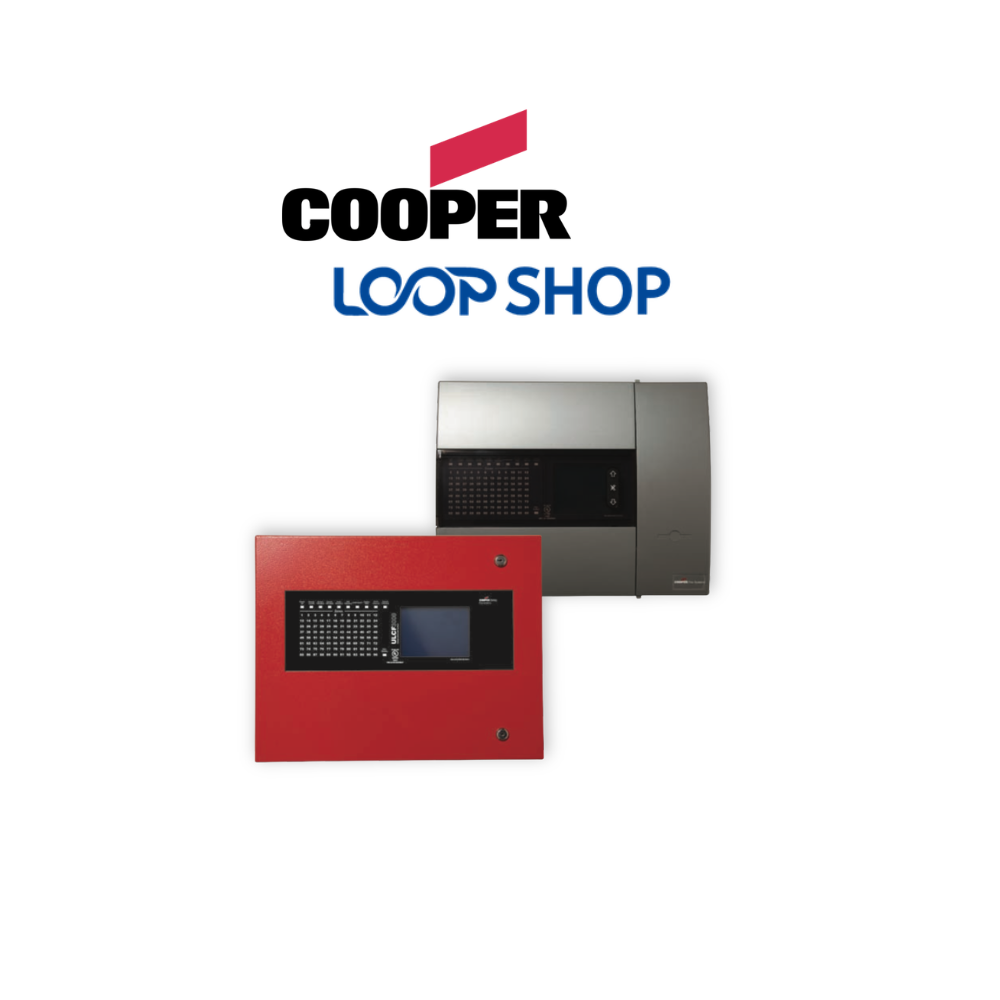

The Eaton Cooper ULCF30002G delivers premium fire safety. This addressable panel features a high-specification two loop structural design. It provides intelligent analogue protection for modern commercial spaces.
• Automated Device Addressing: The system runs an automatic software mapping loop sequence. This feature removes traditional configuration manual hardware dip-switch mistakes.
• Streamlined Device Commissioning: Integrated auto-learn features simplify device testing and timeline configuration. Loop expansion adjustments are handled directly via the main touchscreen screen interface.
• Advanced Multi Panel Expansion: The Eaton Cooper ULCF30002G safely interconnects up to 126 panels. It forms a cohesive network architecture across sprawling facility installations.
• High Capacity Loop Protection: The Eaton Cooper ULCF30002G tracks 400 total addressable points. This system comfortably protects active, expanding structural business grids.
• Continuous Circuit Loop Isolation: Built-in isolators protect active communication strings against short wire faults. Data networks continue operating continuously if a wire line break happens.
• Regulated Sounder Control Circuits: Manages four independent Class B Style Y output signaling pathways safely. The panel feeds supervised 24V DC power to connected notification sirens.
• Comprehensive Security History Logging: The Eaton Cooper ULCF30002G houses an expansive logging internal history storage. It catalogs 9,999 date-stamped structural status markers for fire inspections.
• Intelligent Communication Relays: Features native on-board interface connection links for seamless equipment interaction. Dedicated relays control localized automation triggers like ventilation fan overrides.
Verify battery curves and load metrics inside the datasheet file: eaton-fire-ulcf3000-datasheet-en.pdf.
Cross-verify international industrial safety compliance registries directly using the official UL Product iQ Directory.
| Property | Specification Details |
|---|---|
| Brand | Eaton Cooper |
| Catalog Number | ULCF30002G |
| System Topology | Analogue Addressable Panel |
| Certification Standards | UL 864 9th Edition (Control Units) |
| Addressable Loops | 2 Loops (Class A, Style 7 Configuration) |
| Addresses Per Loop | Up to 200 addressable points per circuit |
| Detection Groups | 96 Zones with display fire LEDs |
| Operating Supply | 120V AC / 240V AC, 60Hz input limits |
| Notification Circuits | 4 Circuits (Class B, Style Y) Supervised |
| Chassis Enclosure | Mild steel back box / ABS door front |
| Ingress Protection | IP30 Industry Standard Rating |
| Dimensions (H x W x D) | 395 mm x 495 mm x 205 mm |
A: Soft addressing assigns electronic identifiers automatically to connected loop devices. This completely removes physical configuration setup labor times and cuts out errors.
A: Each internal loop card monitors 200 points. This allows a single installation setup to manage up to 400 total active addressable points across the loop network.
A: Yes. Onboard serial integration connection ports (RS232 / RS485) provide reliable communications out to master graphic screens and building automation setups.
A: When powered by a 240V AC line supply, the circuits share an available output threshold of 3.0A, adjusting safely to 2.25A when configured on 120V AC circuits.
A: No. The system includes built-in short circuit isolators tracking loop lines directly from the primary main processing cards to protect active operations.
